Description

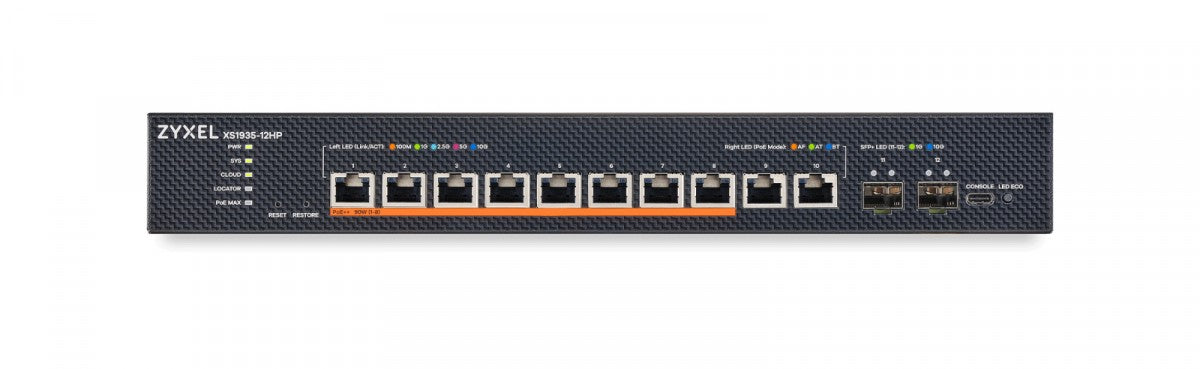

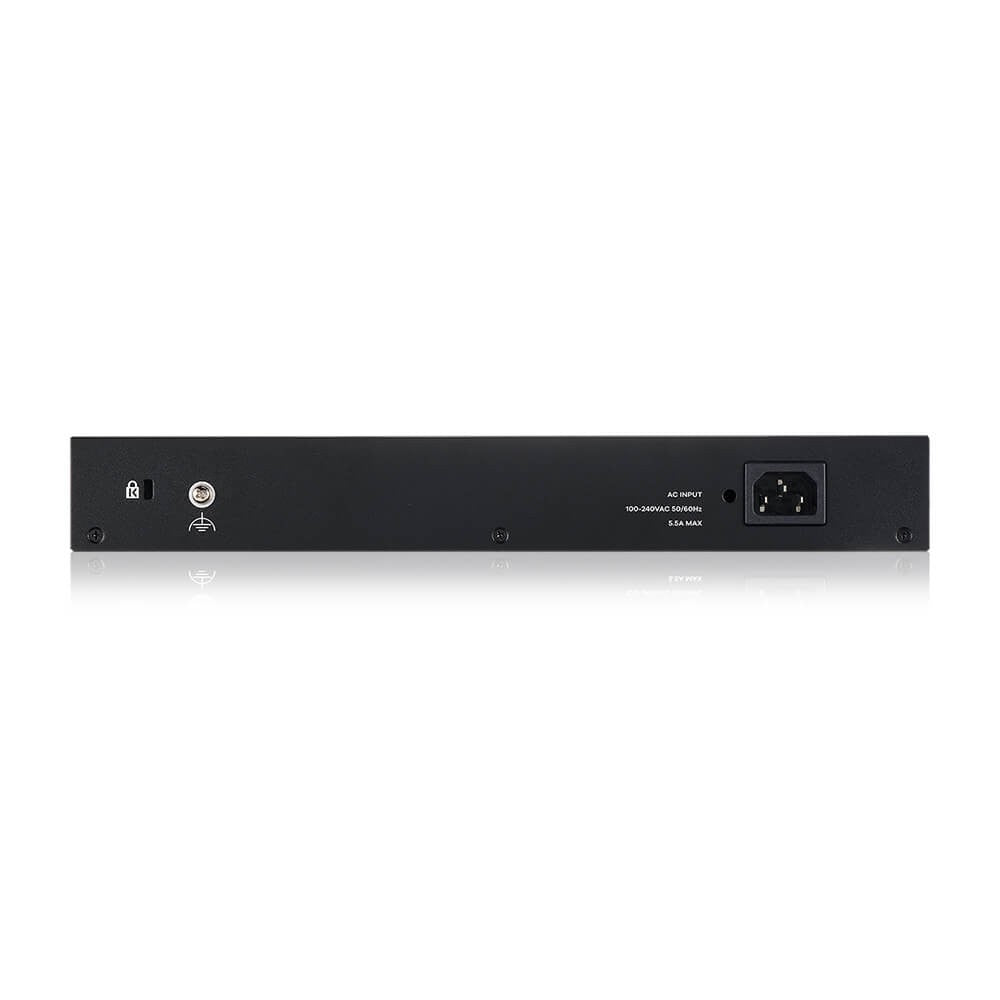

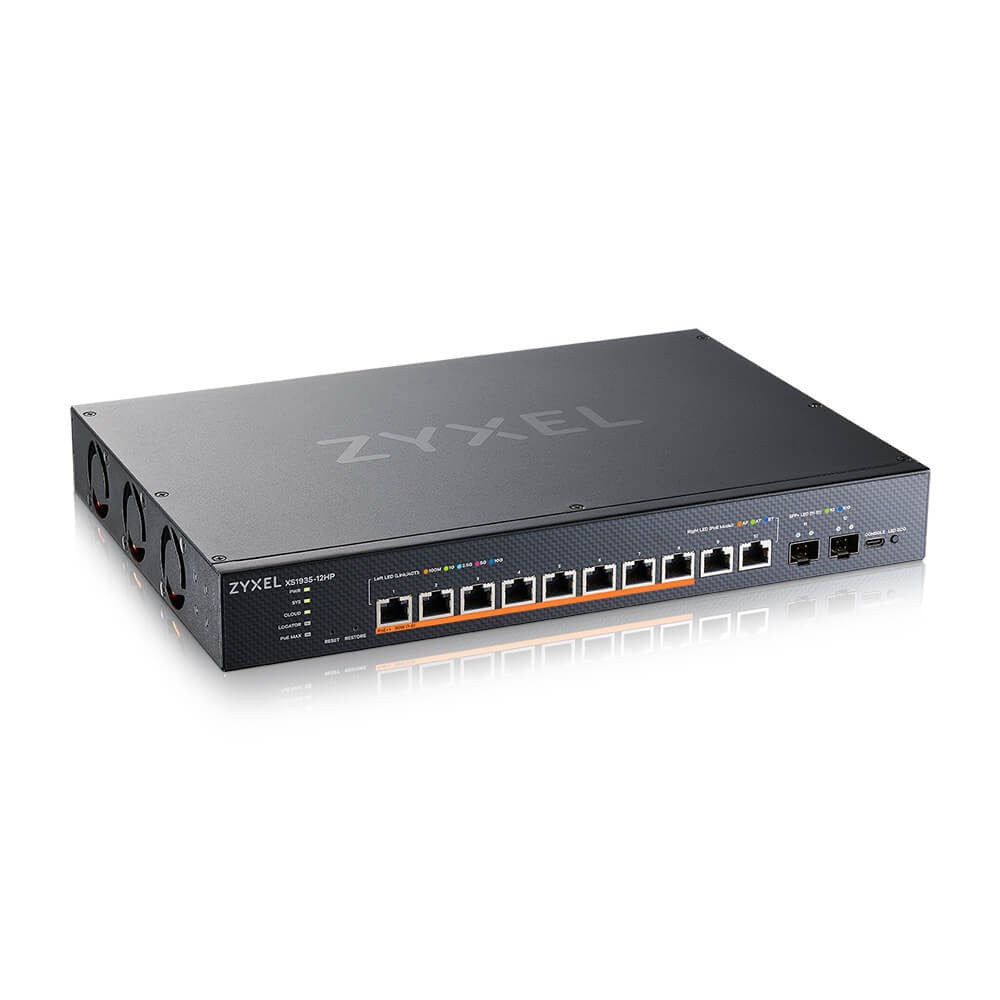

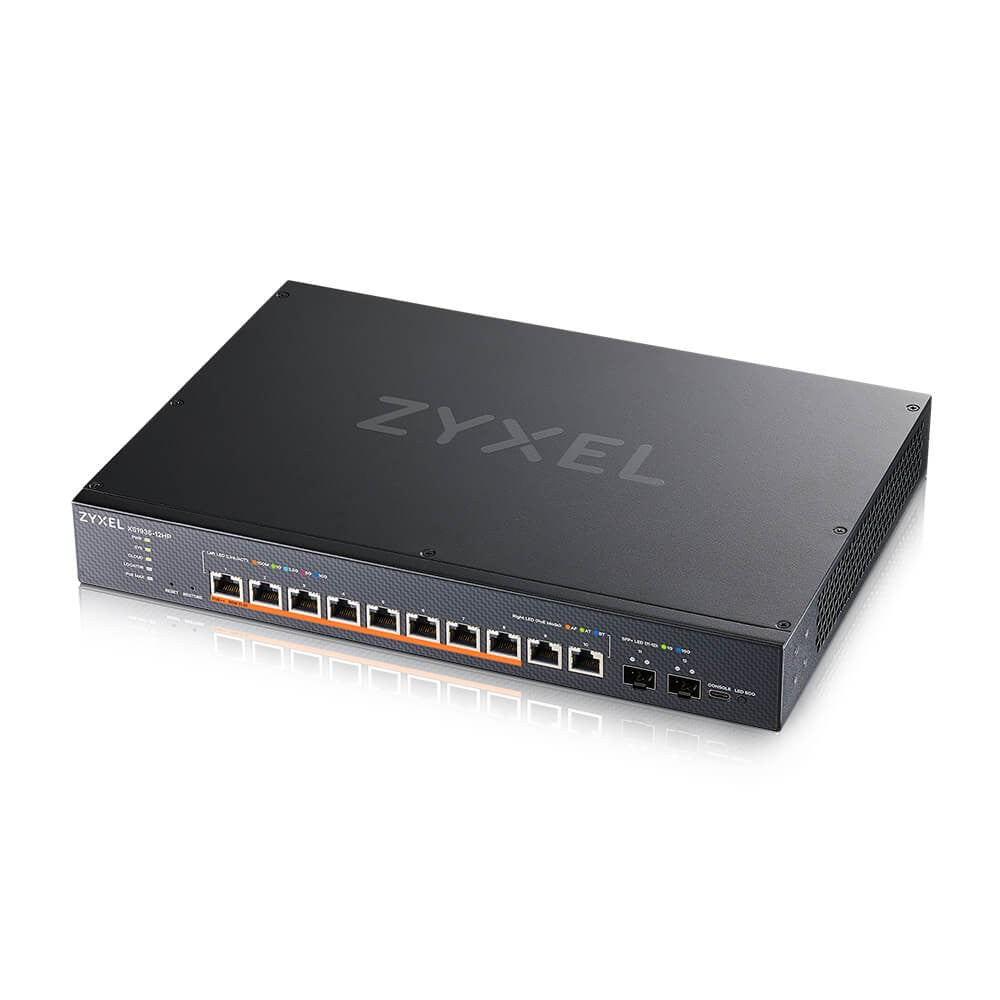

Zyxel Multi-Gigabit Smart Managed Switch XS1935-12HP-ZZ0101F 8-port 90W PoE++ 400Watt 802.3bt, 2x 10GbE, 2 SFP+ Uplink
Specifications
| Description | Speed to perform. Flexibility to grow. XS1935 Series 10G multi-gig Lite-L3 switch 10G multi-gig - Supports multi-gig speeds up to 10G (10G/5G/2.5G/1G/100M) 90W PoE++ - Supporting 802.3bt (90W/port) & total PoE budget 400W Lite-L3 Features - Features with rich L2 functions and L3 static routing capability Cloud management - Zero-touch setup, remote management and monitoring Next-Gen networking starts with 10G multi-gig. The XS1935 Series 10G multi-gig switches deliver flexible connectivity with speeds up to 10G (100M/1G/2.5G/5G/10G) on all ports, enabling seamless network upgrades without replacing existing infrastructure. PoE models provide powerful PoE capabilities to power demanding devices such as WiFi 7 access points, IP cameras and other edge devices, while ensuring servers, NAS and workstations perform without bottlenecks. The series also includes a fibre variant with 10G SFP+ ports, designed for edge deployments and smaller aggregation environments, delivering high-speed fibre connectivity where it matters most. Dedicated networkedAV switch mode. Our networkedAV mode simplifies complex AVoIP installations with a dedicated switching mode built for AV professionals. It streamlines deployment while maintaining full control, providing fast access to the essential functionality needed to support AVoIP installations at scale. Available on select switches, networkedAV mode delivers a pro-grade AV networking solution in just four steps. From digital signage to arena-scale visuals, it ensures low-latency, rock-solid streaming every time. 10x faster networking. Up to 90W per port. The XS1935-12HP is built for the next generation of connectivity, delivering up to 10x the bandwidth of traditional 1G networks. This ensures the latest and next-generation WiFi access points, including WiFi 7, can operate at their full potential without being limited by wired infrastructure. With the speed and capacity modern businesses demand, the XS1935-12HP enables organizations to build networks ready for today and prepared for the future. With PoE++ delivering up to 90W per port (8x total), nearly 6x more power than traditional PoE (15.4W), the XS1935-12HP easily powers demanding devices including WiFi access points, IP cameras, video conferencing systems and smart IoT devices. A generous 400W PoE budget provides the capacity to support multiple high-performance devices, empowering next-generation networks from a single switch. Lite-L3 intelligence, compact by design. The XS1935 Series combines intuitive design with powerful Lite-L3 networking capabilities, giving growing businesses greater control over performance, traffic management and network segmentation. Features such as VLANs, enhanced QoS, link aggregation and Layer 3 static routing help optimize traffic flow and keep critical applications running smoothly. Everything can be easily managed through the intuitive web interface or centrally through Nebula Cloud, providing flexible deployment and simplified network management without the complexity of traditional command-line configuration. The result is smarter, more scalable networking designed for modern business environments. Click. Tap. Done. Get up and running in minutes with the Nebula mobile app. With just a few simple clicks, our user-friendly step-by-step wizard walks you through the entire installation process, no technical expertise required. Once connected, the intuitive interface gives you complete control, making it easy to adjust settings, monitor performance and manage your network anytime, anywhere. |
|---|---|
| Switch class | Managed |
| Application | Home and small office |
| Switch layer | L2+ |
| Network architecture | GigabitEthernet |
| Number of ports 1G/2.5G/5G/10G | 10 |
| Number of 10Gb ports | 2 |
| Number of PoE ports (PoE & PoE+) | 8 |
| Number of SFP+ ports | 2 |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 240 |
| Forwarding rate | 178.5 |
| Packet buffer | 2 |
| MAC address table size | 16000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 12 |
| Stackability | No |
| Number of VLAN groups | 4000 |
| VLAN | 802.1Q Static VLANs/Dynamic VLANs: 1K/4K Support up to 4K VLAN ID Independent VLAN Learning (IVL) L2PT Port-based VLAN Voice VLAN VLAN trunking GVRP |
| Supported protocols and standards | IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10G BASE-T Ethernet IEEE 802.3ae 10 Gbit/s Ethernet over fiber IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (90W) PoE over 4 pair IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication |
| QoS | No. of hardware queues per port: 8 802.1p queuing methods: SPQ, WRR, WFQ Storm control: broadcast, unknown L2MC, unknown unicast (DLF) Rate limiting per port Policy-based rate limiting Policy-based prioritization |
| Security | 802.1X Port security MAC authentication Static MAC forwarding Static ARP Policy-based security filtering Port isolation MAC search Guest VLAN PPPoE relay agent PPPoE option 82 PPPoE IA Interface related trap enable/disable (by port) CPU protection Import HTTPS certification Login authentication by RADIUS RADIUS accounting Authorization on RADIUS Multiple RADIUS servers (IPv4/IPv6) VLAN and bandwidth assignment via RADIUS with 802.1x authentication ACL packet filtering (IPv4/IPv6) |
| Management, monitoring, configuration | Standalone management by Web interface Cloud management by Nebula Control Center Auto configuration recovery (only for cloud mode) Zyxel iStackingTM Management through Web, SNMP Firmware upgrade by FTP/Web Configuration saving and retrieving Multiple login supported DHCP relay DHCP relay per VLAN DHCP client IPv4 (IPv4/IPv6) DHCP option 82 Daylight saving NTP Server (IPv4*/IPv6) Port mirroring Scheduled PoE PoE default consumption mode PoE power management extended configuration Restore to last custom default |
| L2 features | L2 multicast group: 1K IGMP snooping (v1, v2, v3) Configurable IGMP snooping timer and priority IGMP snooping statistics IGMP throttling IGMP filtering Static multicast Multicast load sharing over trunking port |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 511.6 |
| Mean time between failures (MTBF) | 261963 |
| Environment requirements | Operating Temperature: -20°C to 50°C/-4°F to 122°F Operating Humidity: 5% to 95% (non-condensing) Storage Temperature: -40°C to 70°C/-40°F to 158°F Storage Humidity: 5% to 95% (non-condensing) |
| Accessories included | Power cord Rack mounting kit |
| Power supply | 100 - 240 V AC, 50/60 Hz |
| Dimensions | 330 x 230 x 44 mm |
| Weight | 2.8 |
