Description

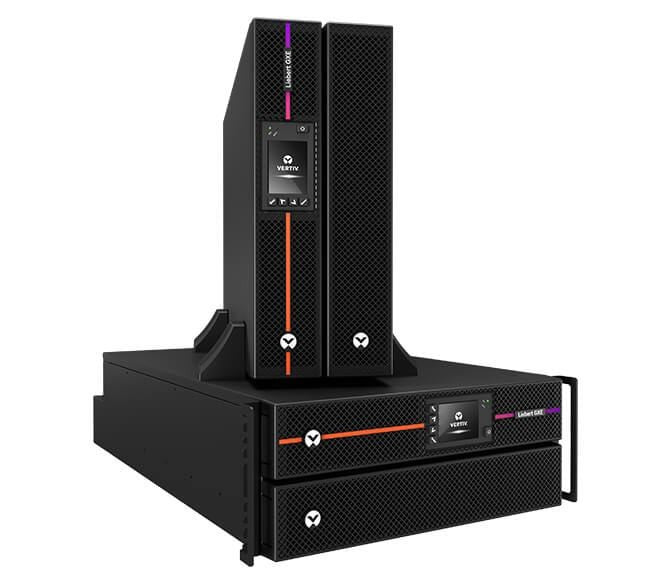

Vertiv UPS GXE3-6000IRT4UXL 6000 VA/6000 W 230V 4U
Specifications
| Description | The Vertiv Liebert GXE UPS is a cost-effective and efficient online double-conversion solution that provides power protection and deployment and operational flexibility. The unit output power factor (1.0) of the Liebert GXE single-phase UPS provides continuous and reliable power to a larger number of connected devices, protecting them from multiple AC mains disturbances thanks to online double conversion technology and input surge protection. The high performance of the mains operation and eco mode of the economical UPS also provides energy and operating cost savings. Available in 6 or 10 kVA power ratings, it provides the flexibility to be installed in both stand-alone and rack-mounted versions, along with mission-critical IT equipment for any application. In addition, the ability to expand with external battery enclosures provides scalable back-up time for applications requiring extended back-up time in the event of AC mains failure. In addition to extended battery runtime, the unit is equipped with multiple monitoring options, making the compact UPS provide best-in-class power protection for equipment deployed at the network edge or at remote sites. |
|---|---|
| Apparent power | 6 kVA |
| Active power | 6000 |
| UPS Architecture | on-line double conversion |
| The shape of the output voltage | Full sine wave |
| Number of phases input | 1 (230V) |
| No. of batteries | 1 |
| Voltage | 230 |
| Backup time (100% load) | 5 |
| Charging time | 3 |
| Chassis type | Desktop |
| Chassis type | Rack |
| Filters / protection | No |
| Software | Free Vertiv Power Assist software for local status and UPS shutdown management or VertivPower Insight for remote network management |
| Input power ports | Input terminal |
| Output power ports | Output terminals |
| I/O connectors | 1 x RS-232 (COM) |
| I/O connectors | 1 x USB (Type B) |
| I/O connectors | 1 x RJ-45 LAN |
| Environment requirements | Operating temperature (°C) 0 to 40°C Storage temperature (°C, without battery inside) -20°C to +70°C Relative humidity (operating, non-condensing) 5% to 95% Maximum operating altitude (m), not derated 2000 Audible noise level (linear mode) |
| Accessories included | Liebert GXE UPS Quick Installation Guide Safety instructions Adjustable 4-point rack mounting kit Rack mounting brackets/hardware USB type A-B cable (1.2 m) Stabiliser feet for free-standing configuration Free Vertiv Power Assist software for local status and UPS shutdown management or VertivPower Insight for remote network management |
| Color | Black |
| Dimensions | 430 x 750 x 173 mm |
| Weight | 70 |
