Description

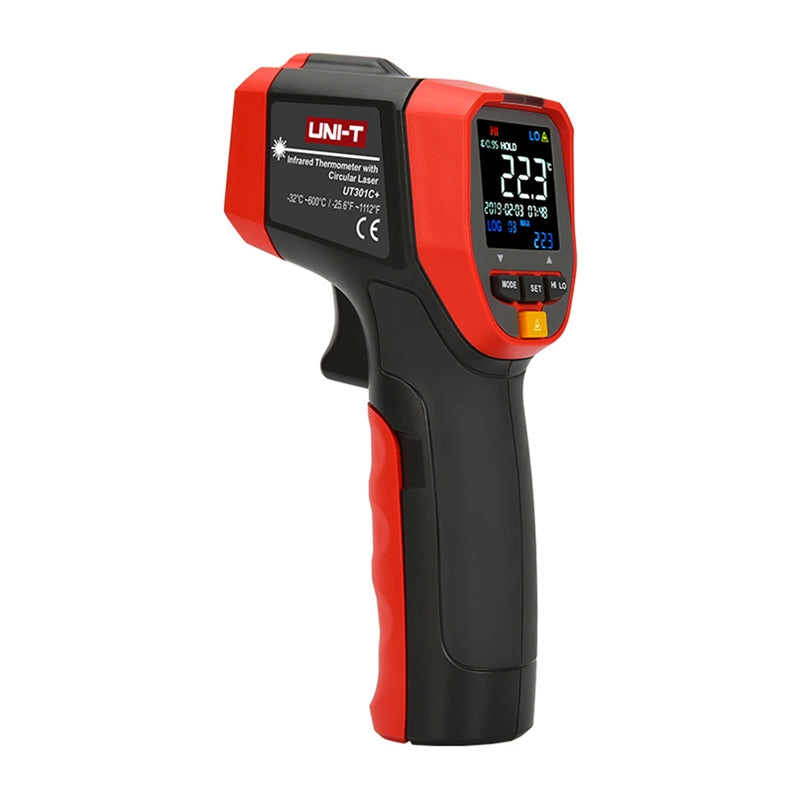

Uni-T UT301C+ Infrared Thermometer
The Uni-T UT301C+ is an infrared thermometer designed for fast and accurate temperature measurements in more demanding technical applications. The device operates in the range from -32°C to 600°C, offers an accuracy of ±1.5°C, and has a response time of up to 250 ms, which facilitates the efficient detection of temperature anomalies. With a 12:1 D:S ratio, adjustable emissivity of 0.1–1.0, and a color EBTN display, the model performs well during inspections of equipment, installations, and systems requiring regular temperature monitoring.
Wider range and advanced data logging capabilities
The UT301C+ supports adjustable emissivity and allows for the storage of 99 records, which enhances the convenience of subsequent analysis of results. The device is equipped with a scheduled measurement function, date and time display, and visual and audible alarms for exceeding set temperature thresholds. Additionally, MAX, MIN, AVG, DIFF, Hold, and measurement lock modes are available to help better control operating conditions and detect deviations more quickly.
Convenient operation in the field and during extended measurements
The thermometer is powered by a 9V battery, weighs 204 g, and measures 160 × 74 × 48 mm, making it convenient to carry and use daily. The 30 × 30 mm display improves readability, and its ability to withstand a 1-meter drop increases the device’s durability. The model can operate at temperatures ranging from 0°C to 50°C with humidity below 90% RH without condensation, allowing it to be used in various working environments.
Included
- Thermometer
- Battery
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT301C+ |
| Type | Infrared thermometer |
| Temperature range | -32°C~600°C |
| Accuracy | ±1.5°C or ±1.5% (>0°C), ±(1.5°C + 0.1°C/°C) (≤0°C) |
| Repeatability | 0.7°C or 0.7% |
| Temperature range | -25.6°F~1112°F |
| Accuracy | ±3.0°F or ±1.5% (>32°F), (3.0°F + 0.1°F/°F) (≤32°F) |
| Repeatability | 1.5°F or 0.1°F/°F |
| D:S ratio | 12:1 |
| Response time | ≤250 ms |
| Emissivity | 0.1–1.0 |
| Stored emissivity settings | 5 sets |
| Spectral response | 8 μm–14 μm |
| Laser power | <1 mW |
| Display | Color EBTN |
| Data memory | 99 records |
| Functions | scheduled measurements, date and time, high and low alarms, Data Hold, unit selection, measurement lock, backlight, tripod socket, auto power off, battery indicator, laser ring |
| Measurement modes | MAX / MIN / AVG / DIFF / Hold |
| Operating temperature | 0°C~50°C or 32℉~122℉ |
| Storage temperature | -20°C~60°C or -4℉~140℉ |
| Humidity | <90% RH non-condensing |
| Drop resistance | 1 m |
| Power supply | 9V battery |
| Display dimensions | 30 mm x 30 mm |
| Weight | 204 g |
| Dimensions | 160 mm x 74 mm x 48 mm |
| Color | Red and gray |
| Certifications | CE, UKCA |
