Description

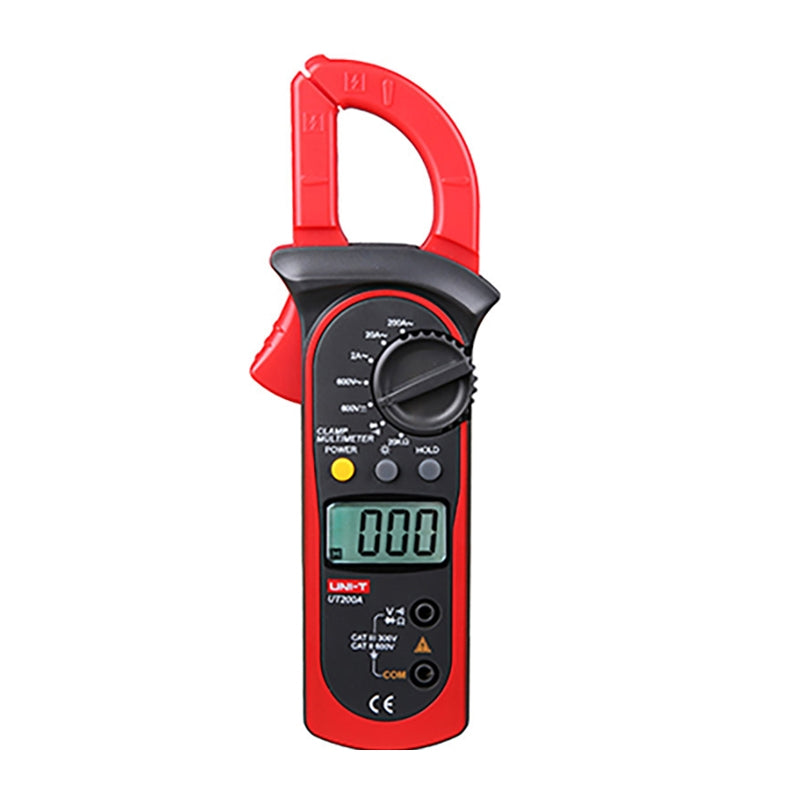

Uni-T UT200A Digital Clamp Meter
The Uni-T UT200A smart clamp meter is a simple and practical model designed for everyday service and electrical installation work. Thanks to its clamp design, it allows for quick current measurement without having to open the circuit, which significantly facilitates work in the field and on home installations.
Basic measurements for everyday use
The UT200A model allows for measuring AC current up to 200 A and AC and DC voltage up to 600 V, making it ideal for standard inspection and repair tasks. The resistance measurement function also allows for checking basic electrical components and circuits.
Simple operation and practical features
Manual range selection provides greater control over the measurement, which is useful in simple applications. The meter is equipped with functions such as a diode test, continuity test, and Data Hold, which speed up work and make it easier to read results. The backlit display and low battery indicator improve the comfort of everyday use.
Compact design and safe operation
The compact housing and 28 mm jaw opening allow for comfortable use of the device even in hard-to-reach places. Compliance with safety category CAT III 600V enables safe use when working with electrical installations.
Included
- Clamp meter
- Battery x1
- Test leads
- Carrying case
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT200A |
| Type | Clamp meter |
| AC current | 2A / 20A / 200A ±(1.5%+5) |
| AC voltage | 600V ±(1.5%+5) |
| DC Voltage | 600V ±(1%+3) |
| Resistance | 20kΩ ±(1%+2) |
| Maximum Reading | 2000 |
| Range Selection | Manual |
| Functions | Diode test, continuity test, Data Hold, LCD backlight, low battery indicator |
| Jaw opening | 28 mm |
| Display | 35.6 x 18 mm |
| Power supply | 9V battery (6F22) |
| Device dimensions | 208 x 76 x 30 mm |
| Net weight | 260 g |
| Color | Red and gray |
| Safety | CAT III 600V |
