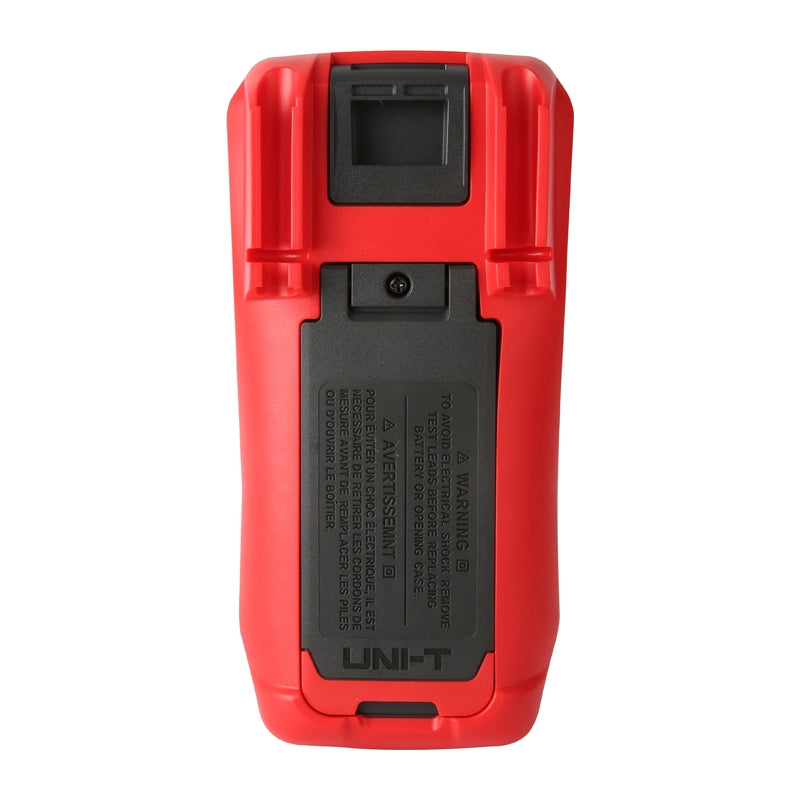

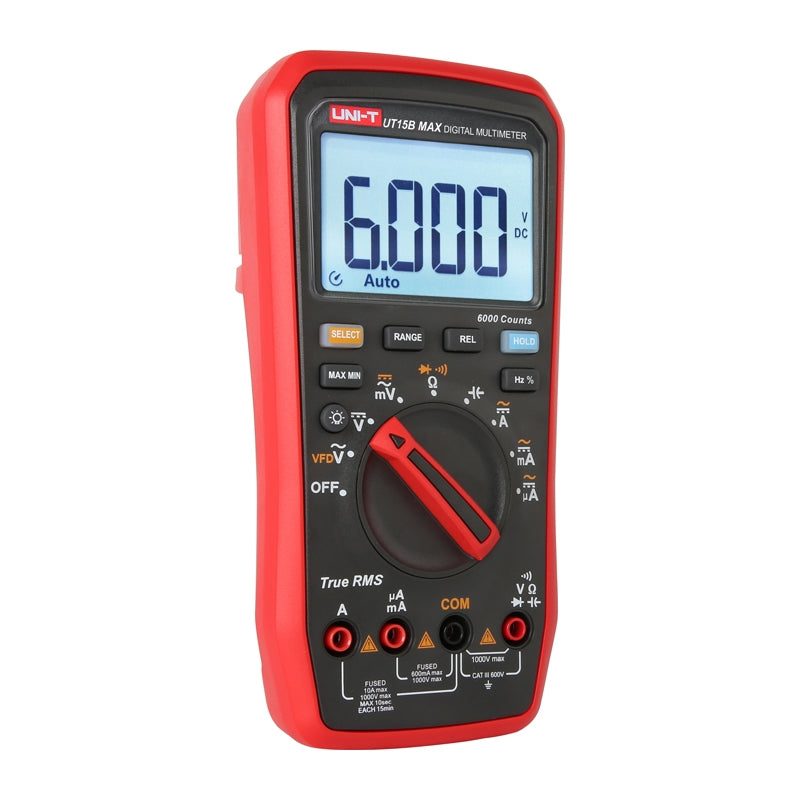

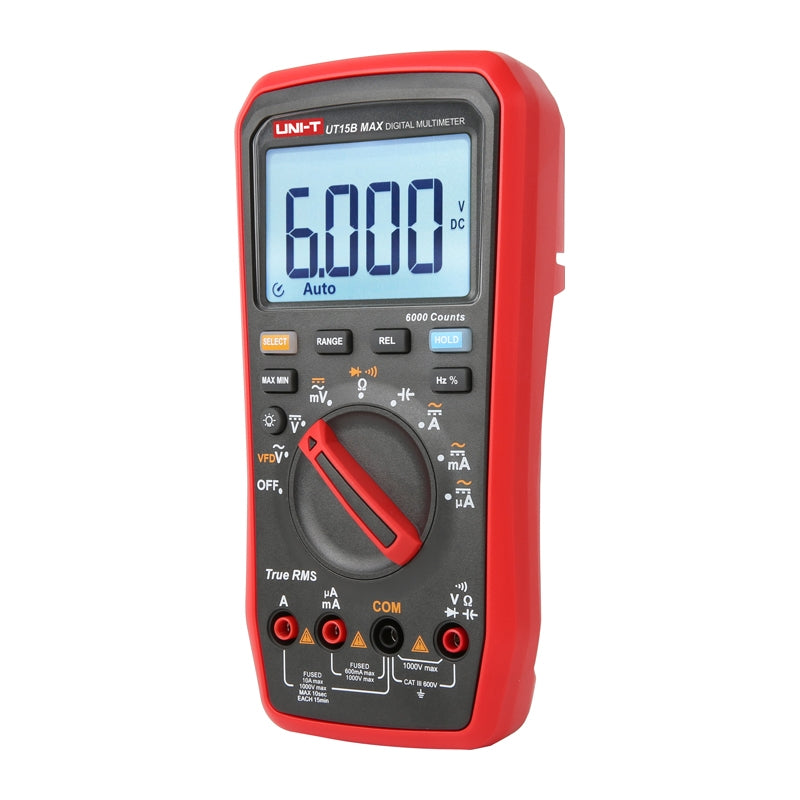

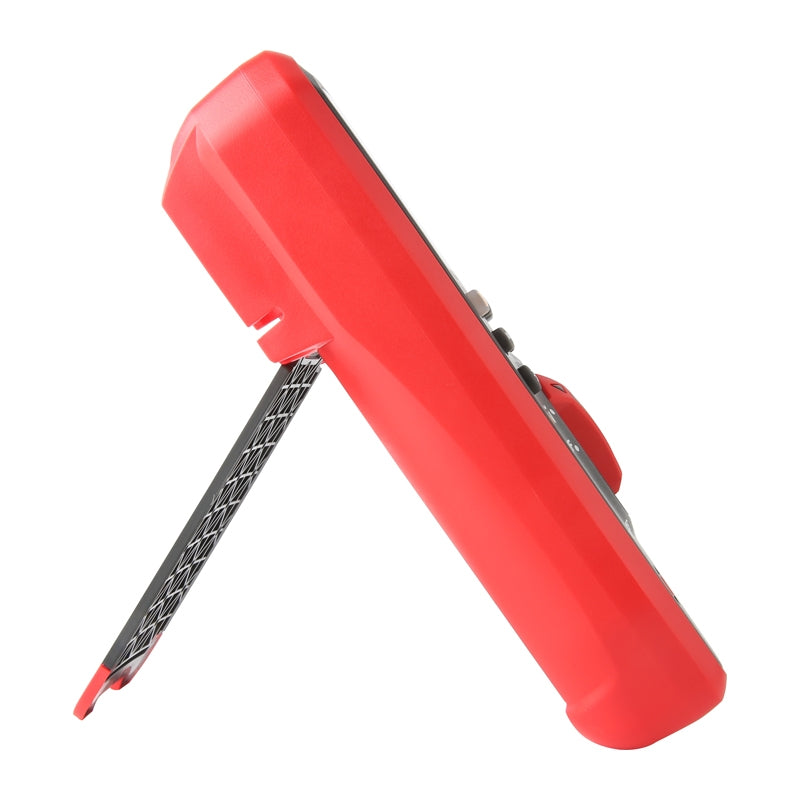

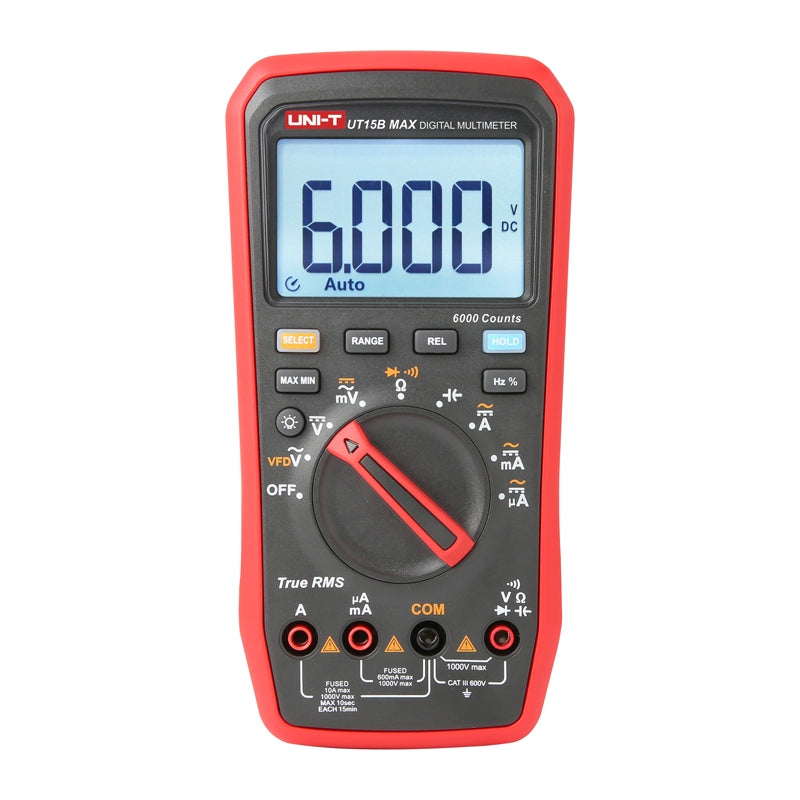

Uni-T True RMS UT15B MAX Digital Multimeter
The Uni-T UT15B MAX is the entry-level model in the series, combining high measurement precision with practical features useful in everyday work. The device measures DC and AC voltage up to 1000 V, DC and AC current up to 10 A, resistance up to 60.00 MΩ, capacitance up to 6000 µF, and frequency up to 10 MHz. An additional advantage is the VFD function, which enhances the multimeter’s utility when working with specific electrical circuits.
Convenient features and safe operation
The model features a display with a maximum reading of 6000, as well as continuity and diode test functions, Data Hold, MAX/MIN, and relative mode. Adjustable backlighting improves readability, and automatic or manual range switching allows you to adapt the operation to the situation. Automatic shutdown and wake-up with any button also contribute to ease of use.
Safety and practical operation
The UT15B MAX is designed for safe and convenient operation. The device features visual and audible alarms, a wrong-lead connection alarm, and CAT III 600V overvoltage protection. An ideal solution for professionals seeking a precise multimeter for routine tasks where temperature measurement is not critical
Included
- Digital multimeter
- User manual
- Standard gold-plated test leads x2
- Test leads with fine tips x2
- Batteries x2
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT15B MAX |
| Type | True RMS digital multimeter |
| DC voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.4%+3) |
| AC Voltage | 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V ±(0.5%+5) |
| VFD | 600.0 V ±(8%) |
| AC current | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3) |
| DC current | 600.0 µA / 6000 µA / 60.00 mA / 600.0 mA / 6.000 A / 10.00 A ±(1.2%+3) |
| Resistance | 600.0 Ω to 60.00 MΩ ±(0.5%+2) |
| Capacitance | 6.000 nF to 6000 µF ±(2.0%+5) |
| Frequency | 10 Hz ~ 10 MHz ±(0.1%+3) |
| Duty Cycle | 1% ~ 99.9% ±(1.0%+4) |
| Temperature Measurement | No |
| Display | 6000 |
| Continuity Test | Yes |
| Diode Test | Yes |
| Data Hold | Yes |
| MAX/MIN Mode | Yes |
| Relative Mode | Yes |
| Backlight | Adjustable |
| Range Selection | Automatic and manual |
| Auto Power Off | Yes |
| Wake-up with any button | Yes |
| Visual and Audible Alarm | Yes |
| Wiring Error Alarm | Yes |
| Voltage category | CAT III 600V |
| Power supply | 2x 1.5V AA batteries |
| Weight | 455 g |
| Dimensions | 182 mm × 91 mm × 45 mm |
| Color | Red and gray |
