Description

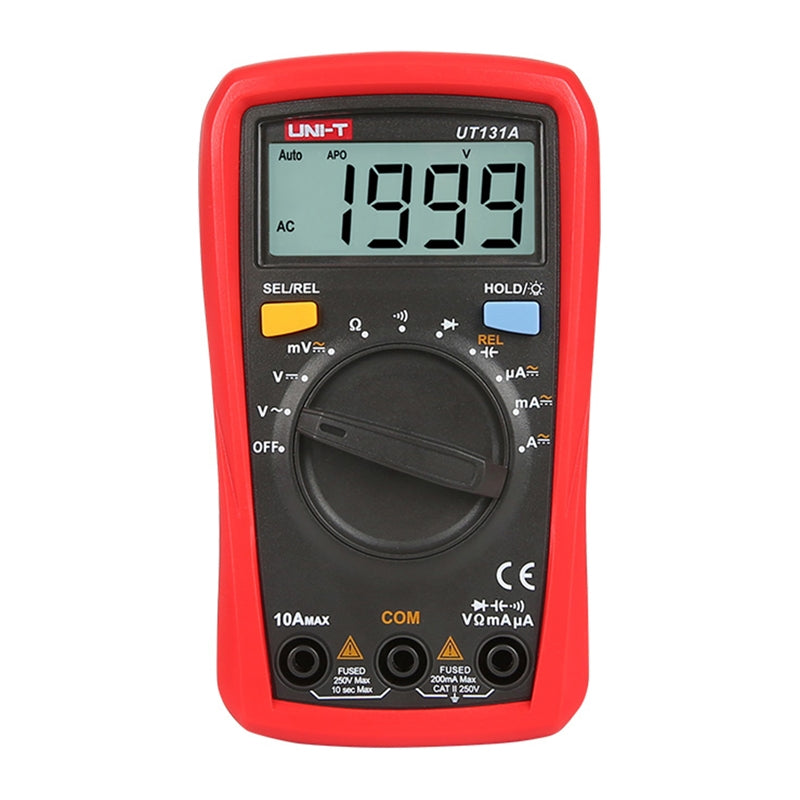

Uni-T Palm Size UT131A Digital Multimeter
The Uni-T UT131A is a compact digital multimeter from the UT131 series, designed for ease of use and everyday measurement of basic electrical parameters. The new generation of this series features a refreshed design, a clear LCD display, and an ergonomic protective cover with space for test leads. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases the device’s durability during daily use.
Wide measurement range and automatic operation
The UT131A model allows for the measurement of DC and AC voltage up to 250 V, DC and AC current up to 10 A, resistance up to 200 MΩ, and capacitance up to 2 mF. It is the capacitance measurement function that sets this model apart from other versions in the series and makes it the most versatile choice in this regard. Automatic range switching simplifies operation and speeds up measurements, resulting in greater convenience.
Practical everyday features
The device is equipped with a diode test, continuity test, Data Hold function, auto-off, and LCD backlight. A maximum reading of 2000 and a loud buzzer enhance the convenience of daily use. Thanks to its CAT II 250V safety rating, the UT131A is suitable for basic measurement tasks in a safe working environment.
Included
- Digital multimeter
- Test leads
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT131A |
| Type | Pocket digital multimeter |
| DC Voltage | 200mV / 2V / 20V / 200V / 250V ±(0.5%+2) |
| AC voltage | 200 mV / 2 V / 20 V / 200 V / 250 V ±(0.7%+3) |
| DC current | 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.0%+2) |
| AC current | 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ ±(0.8%+2) |
| Capacitance | 2nF / 20nF / 200nF / 2µF / 20µF / 200µF / 2mF ±(3.0%+5) |
| Maximum reading | 2000 |
| Range switching | Automatic |
| Functions | Diode test, continuity test, Data Hold, auto power off, LCD backlight |
| Safety | CAT II 250V |
| Drop test | 2 m |
| Power supply | 2x 1.5V battery (R03) |
| Weight | 206 g |
| Dimensions | 134 mm x 77 mm x 47 mm |
| Display dimensions | 66 mm x 51 mm |
| Color | Red and gray |
| Certifications | CE, UKCA, cETLus |
Producer: Uni-Trend Technology (china) Co., Ltd. (CN)
Address: Industrial North 1st Road, Songshan Lake Park, Dongguan City, 6, 523808, Dongguan City
Email: info@uni-trend.com
EU Responsible Person: UNI-TREND TECHNOLOGY EU GMBH
Address: Affinger Strasse, 12, 86167, Augsburg
Email: info@amz-lab.de
