Description

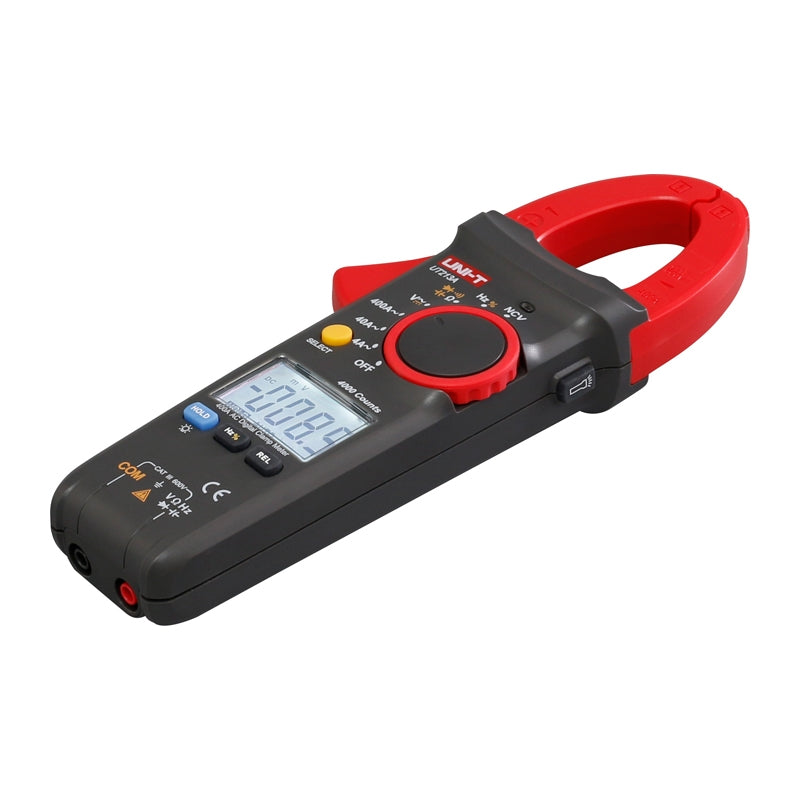

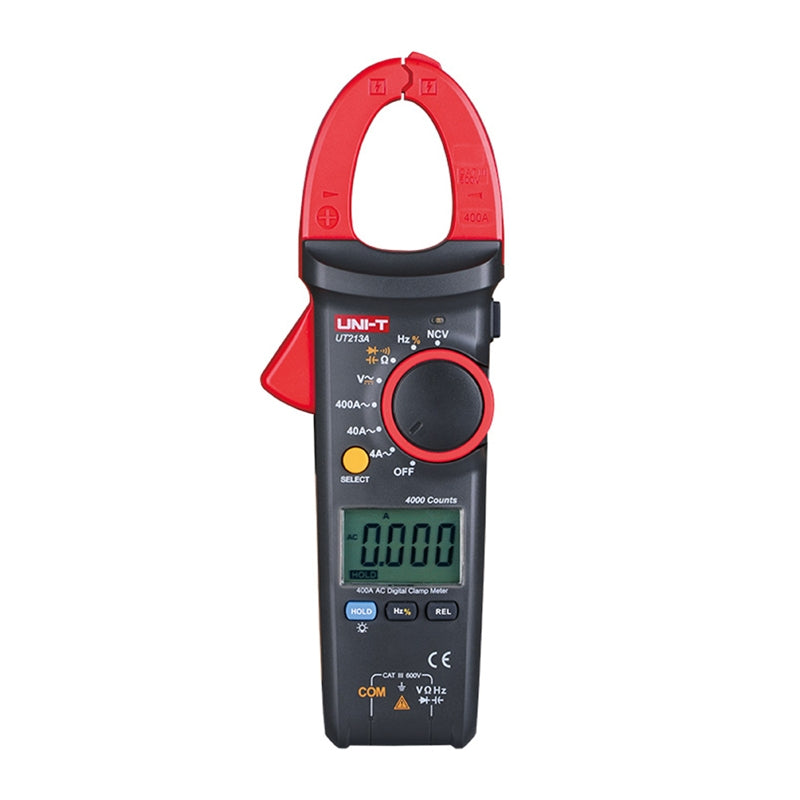

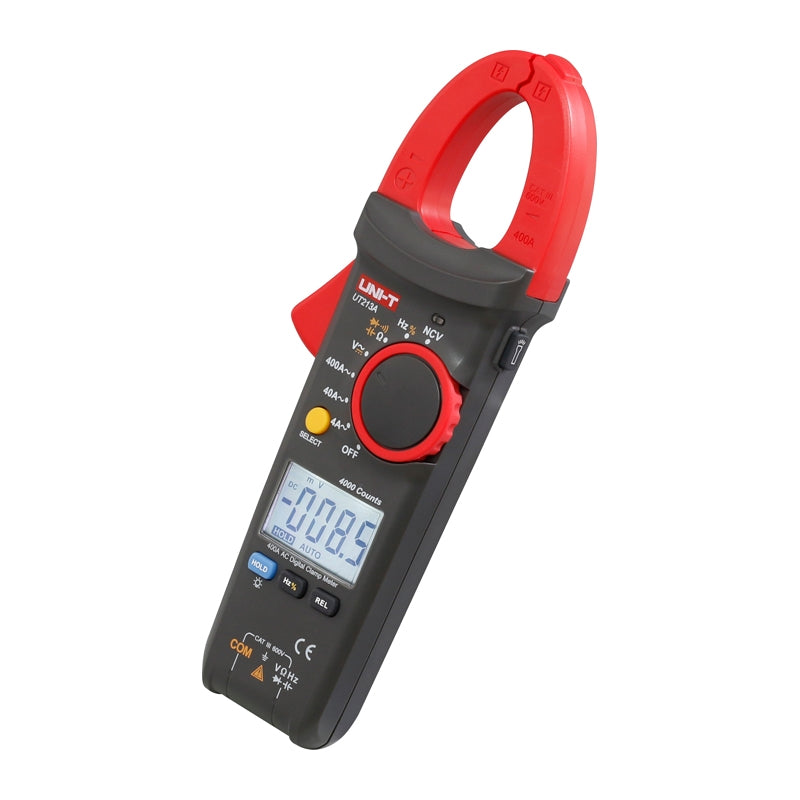

Uni-T UT213A 2nd Generation 400A Digital Clamp Meter
The Uni-T UT213A digital clamp meter is a practical tool designed for The Uni-T UT213A is a 400A digital clamp meter designed for electricians and HVAC/R technicians who need a convenient tool for everyday measurements. The device complies with the CAT III 600V safety standard, features a compact design, and includes a built-in flashlight that facilitates work in dimly lit areas. Thanks to automatic range switching and a clear display, the model performs well during quick diagnostics of installations and equipment.
Basic measurements in a convenient form
The UT213A model allows for measuring AC current up to 400A, AC/DC voltage up to 600V, resistance up to 40MΩ, capacitance up to 100µF, and frequency from 10Hz to 1MHz. The maximum reading of 4000 allows for easy reading of results, and the 30 mm jaw opening facilitates working with wires in everyday applications. It is a practical solution for those who need a versatile clamp meter for basic electrical measurements.
Features useful in everyday work
The device is equipped with a diode test, NCV function, Data Hold, Relative mode, LCD backlight, flashlight, auto-off, continuity buzzer, low battery indicator, and input protection. These features enhance user convenience and facilitate work in various conditions. Powered by three R03 batteries and weighing 280 g, this model remains compact and ready for everyday use.
Included in the set
- Clamp meter
- Batteries x3
- User manual
Specifications
| Manufacturer | Uni-T |
|---|---|
| Model | UT213A |
| Type | Clamp meter |
| AC Current | 400A ±(1.8%+9) |
| AC Voltage | 600V ±(1.2%+5) |
| DC Voltage | 600V ±(0.8%+1) |
| Resistance | 40MΩ ±(1%+2) |
| Capacitance | 100µF ±(4%+5) |
| Frequency | 10Hz ~ 1MHz ±(0.1%+4) |
| Maximum reading | 4000 |
| Functions | NCV, diode test, continuity test, Data Hold, Relative mode, LCD backlight, flashlight, auto-range, auto-off, low battery indicator |
| Jaw opening | 30 mm |
| Power supply | 3x 1.5V battery (R03) |
| Display | 38 x 24 mm |
| Dimensions | 220 x 75 x 40 mm |
| Weight | 280 g |
| Safety | CAT III 600V |
| Certifications | CE, UKCA, cETLus |
Producer: Uni-Trend Technology (china) Co., Ltd. (CN)
Address: Industrial North 1st Road, Songshan Lake Park, Dongguan City, 6, 523808, Dongguan City
Email: info@uni-trend.com
EU Responsible Person: UNI-TREND TECHNOLOGY EU GMBH
Address: Affinger Strasse, 12, 86167, Augsburg
Email: info@amz-lab.de
