Description

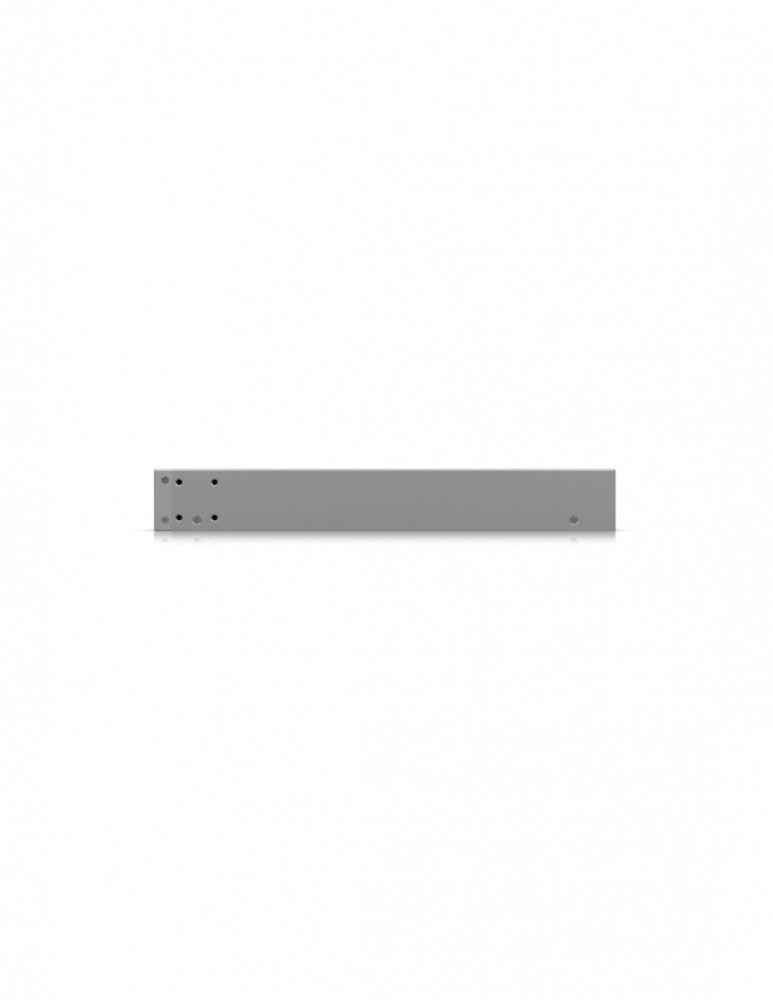

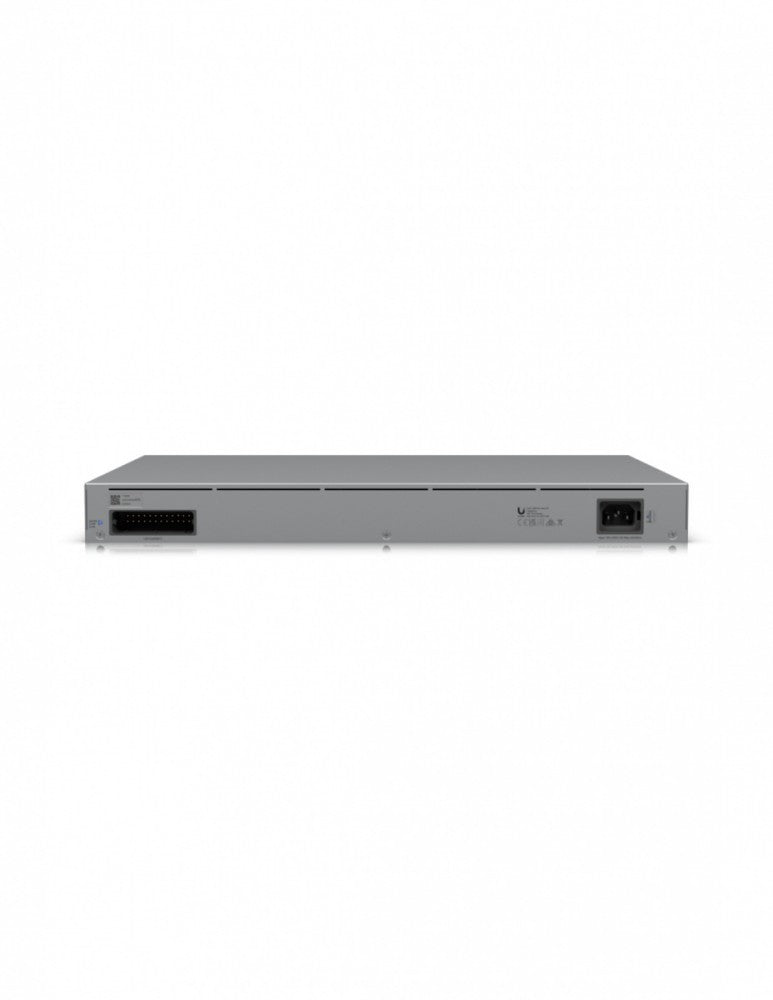

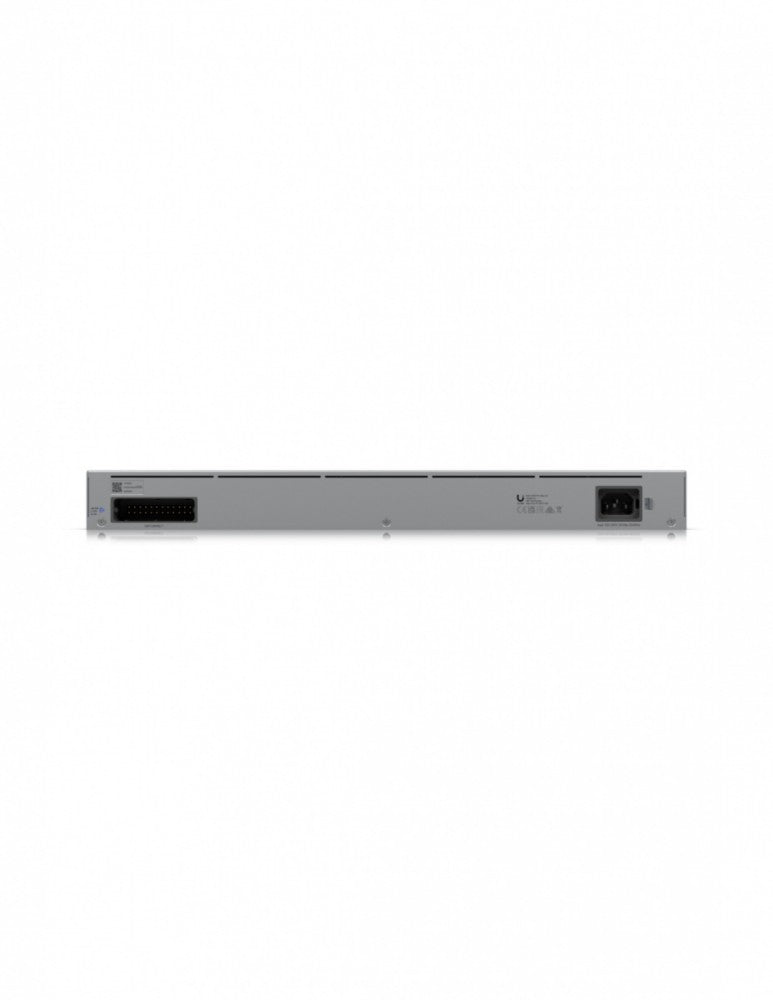

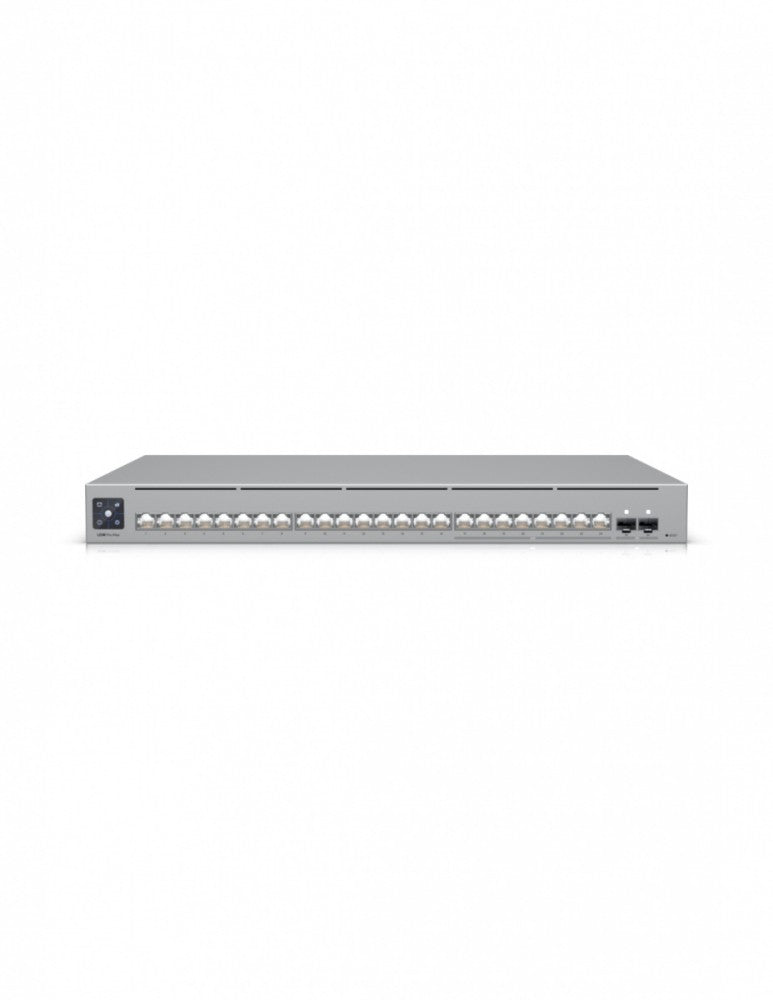

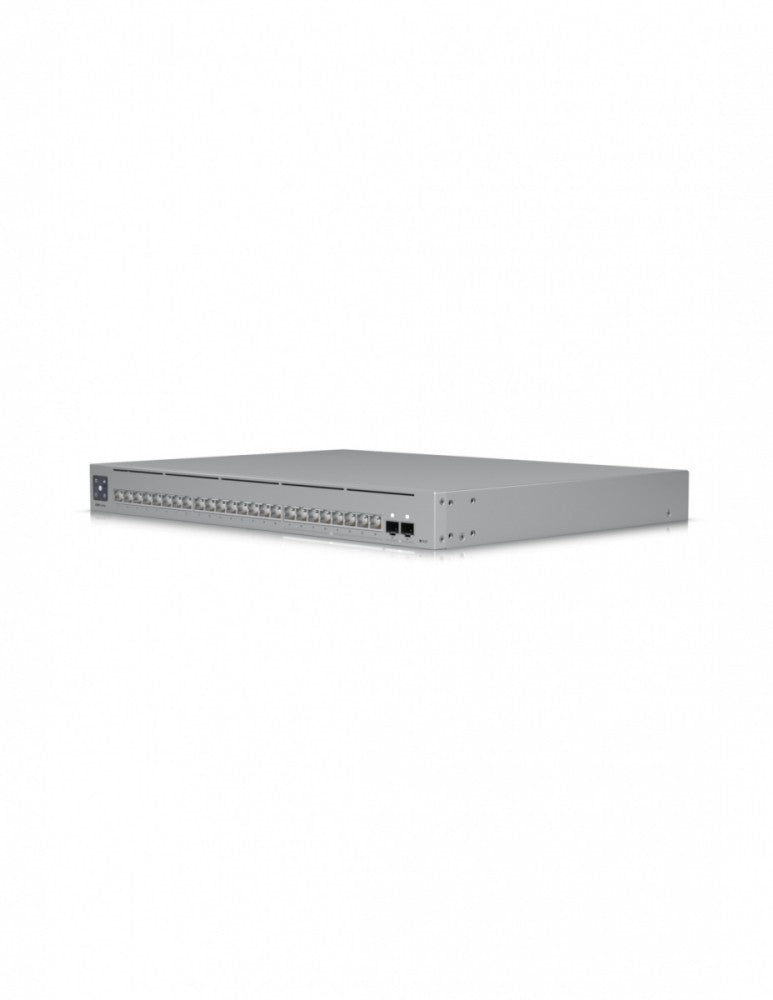

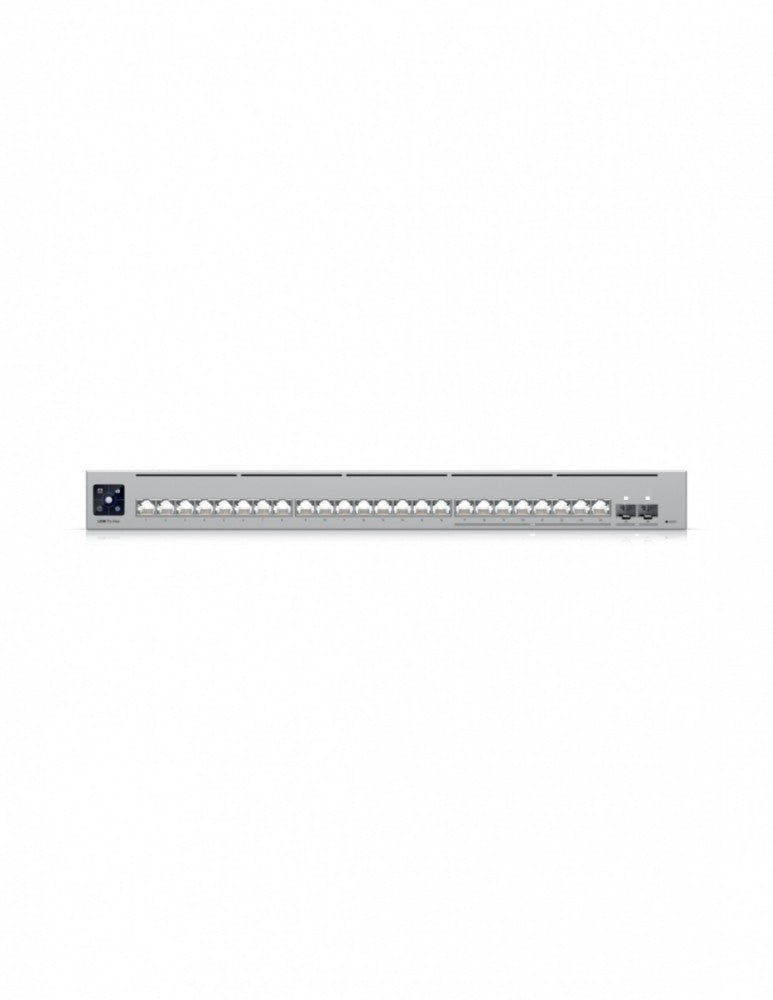

UBIQUITI USW-Pro-Max-24 Switch Pro Max 24
Specifications
| Description | UBIQUITI USW-Pro-Max-24 The Pro Max 24 (USW-Pro-Max-24) is a 24-port Layer 3 Etherlighting switch that offers 2.5GbE throughput. Etherlighting ports are illuminated for easy port location, speed/link information, and native VLAN/network*. It features 8 x 2.5GbE RJ45 ports, 16 x GbE RJ45 ports, and 2 x 10G SFP+ ports. Powered by a ready-made DC backup power supply. Managed via UniFi Network 8.0.24 and later. *For optimal brightness, pairing with UniFi Etherlighting patch cables is recommended. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L3 |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100/1000 Mbps ports | 16 |
| 10/100/1000/2500 Mbps ports | 8 |
| Number of SFP+ ports | 2 |
| Console port | No |
| Throughput | 112 |
| Forwarding rate | 83.328 |
| Support for Jumbo frames | Yes |
| L2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| L3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Chassis type | Rack |
| Fan | No |
| Power supply | Internal |
| Power consumption | 50 |
| Certificates | CE FCC IC |
| Power supply | Universal Input, 100240 VAC, 50/60 Hz UniFi SmartPower RPS DC Input |
| Dimensions | 442.4 x 325 x 43.7 mm |
| Weight | 4.2 |
