Description

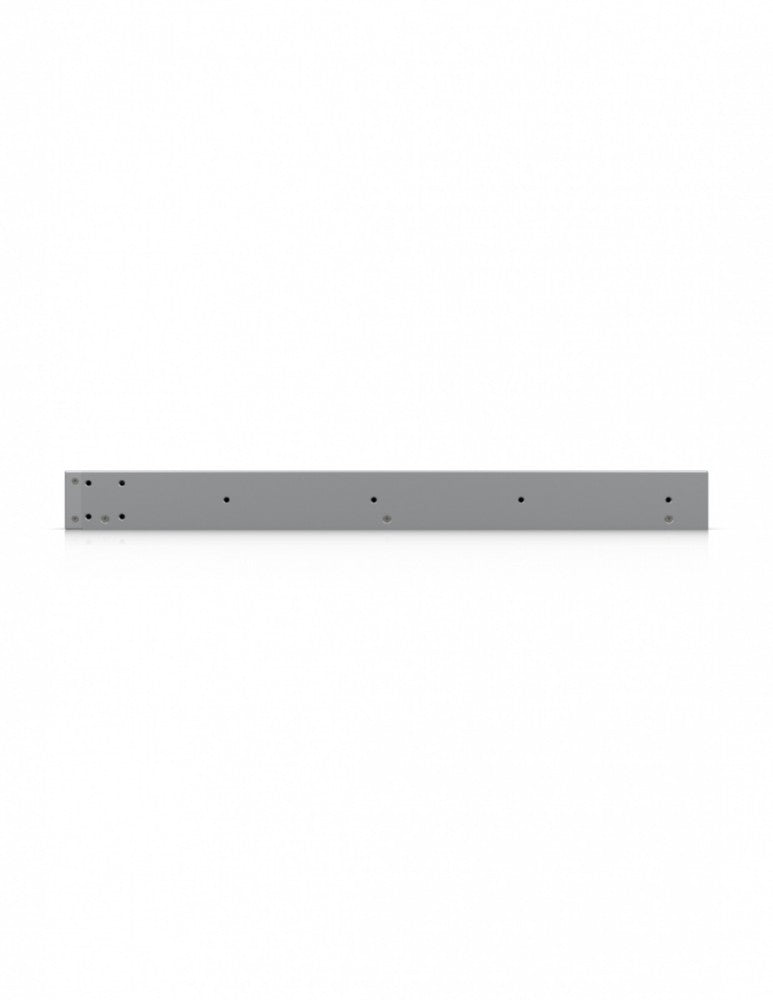

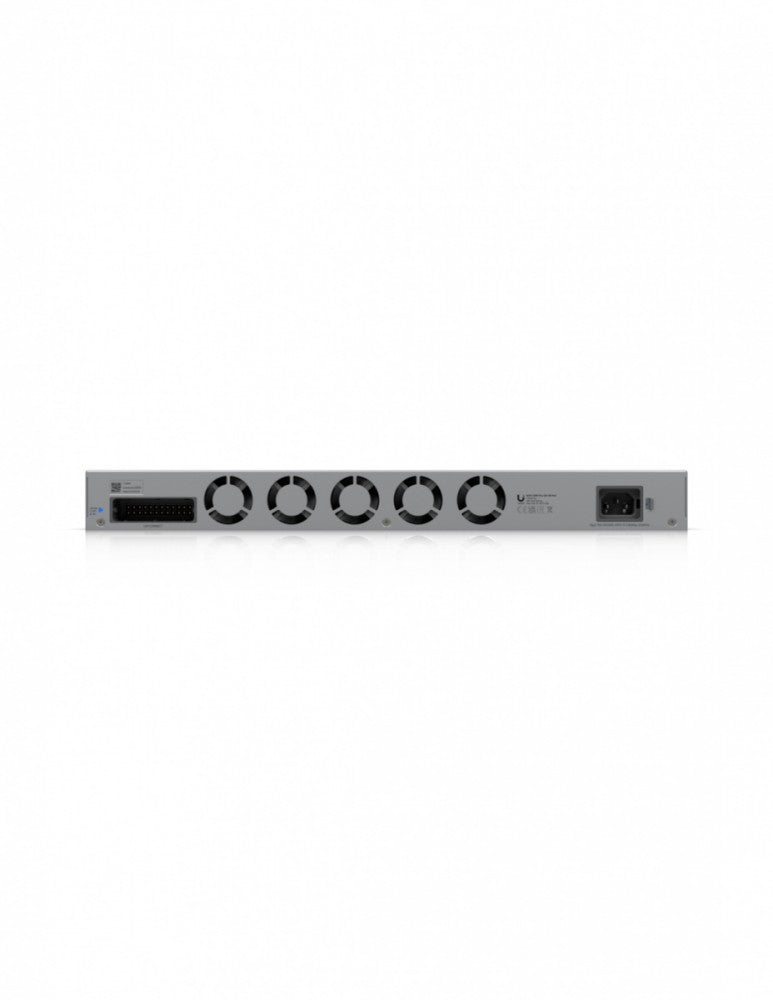

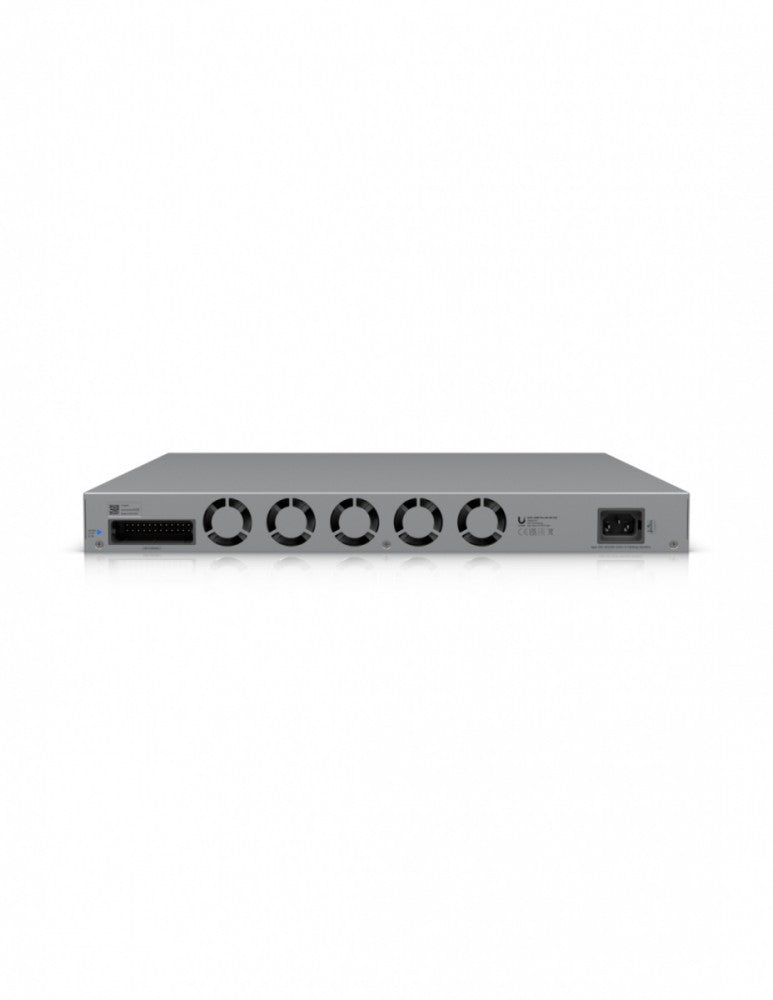

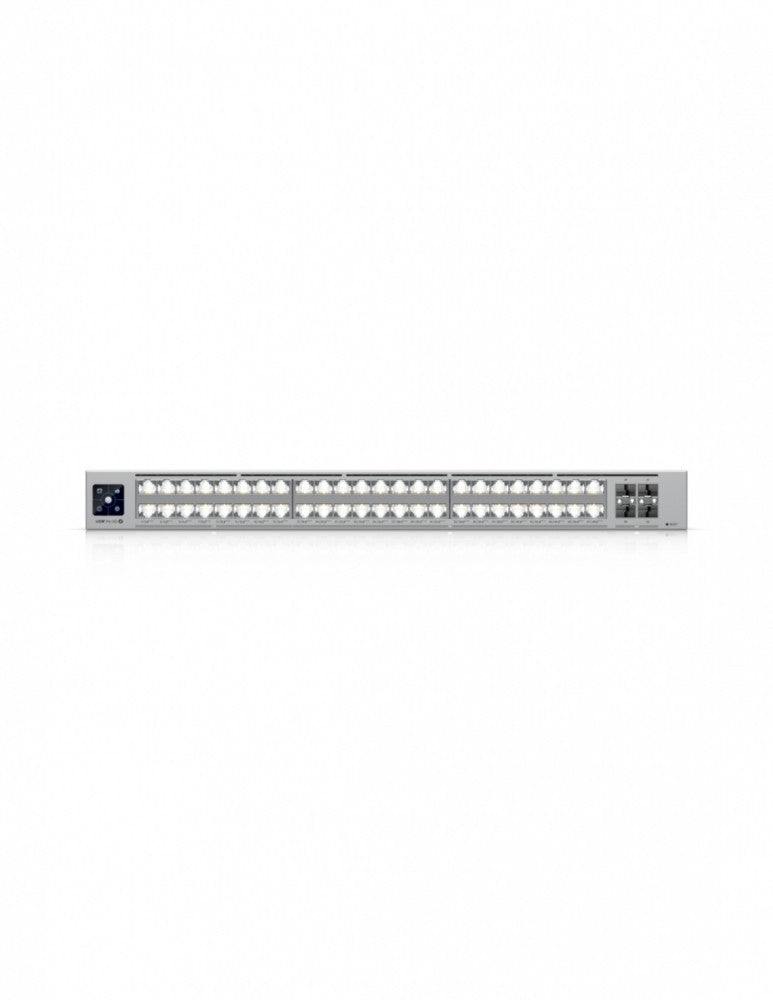

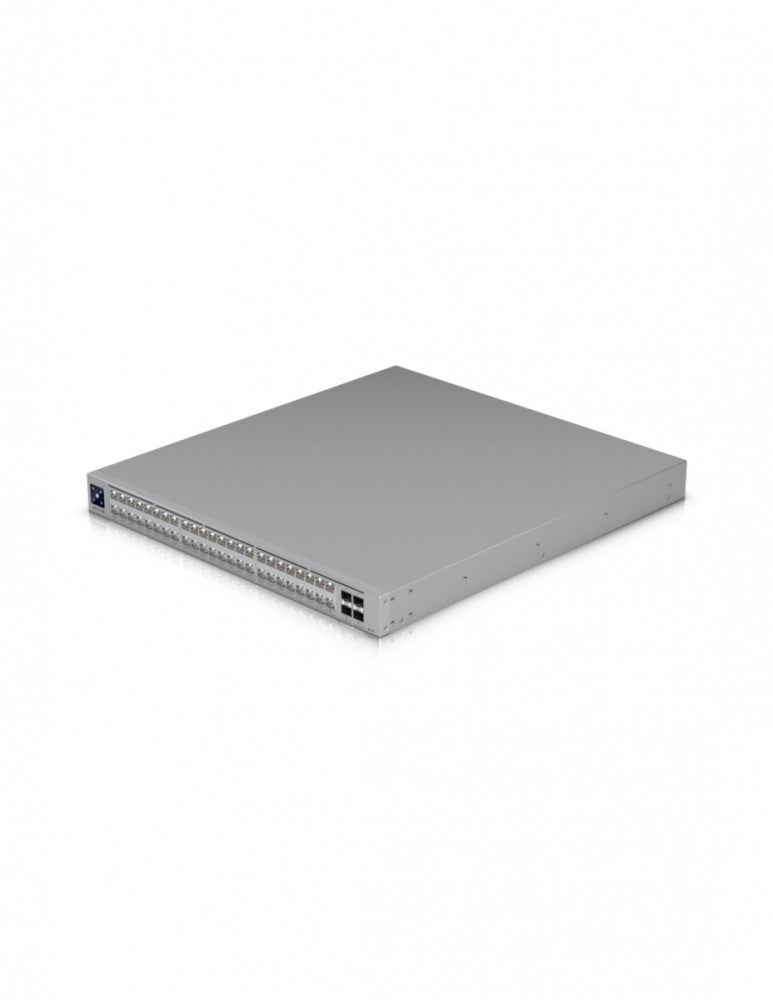

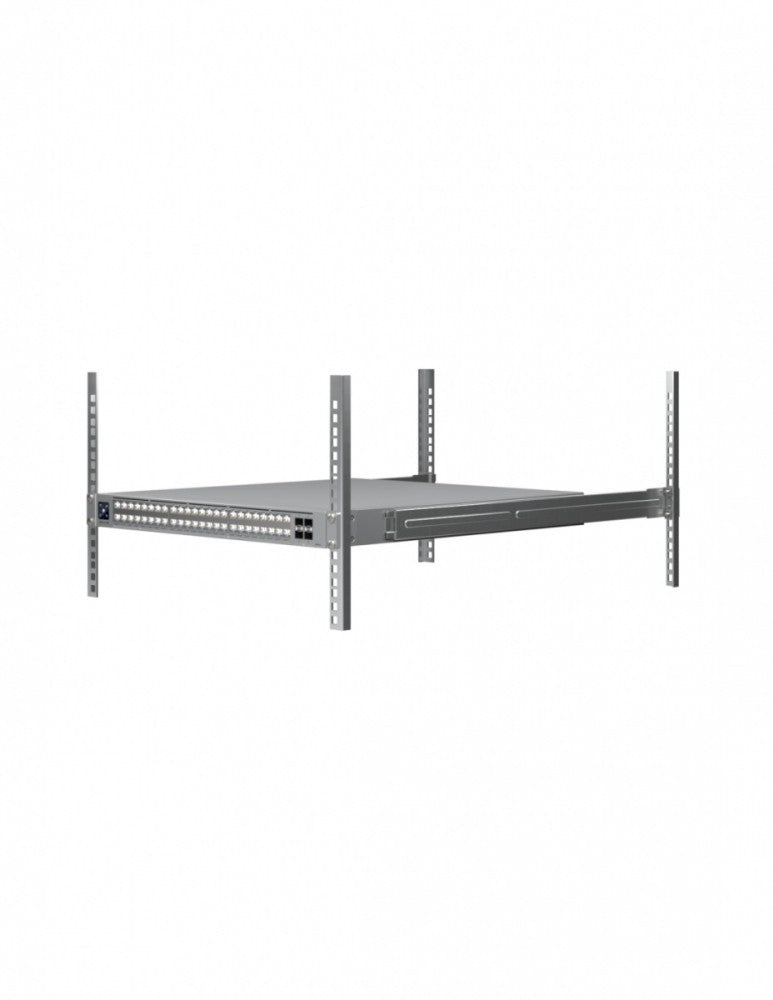

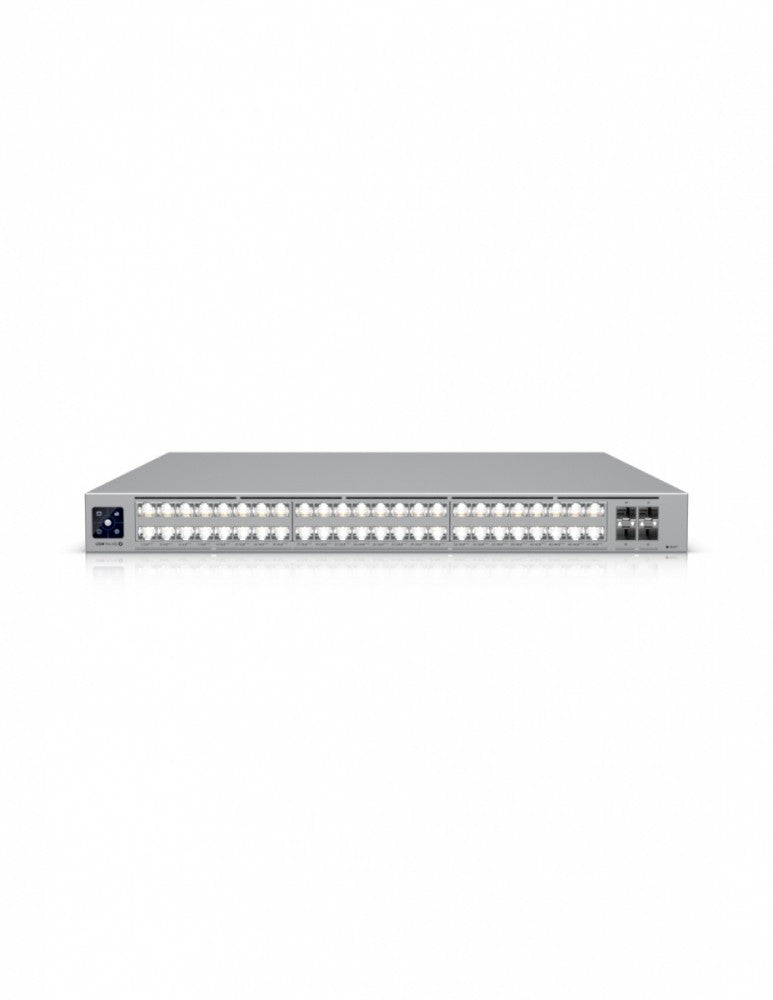

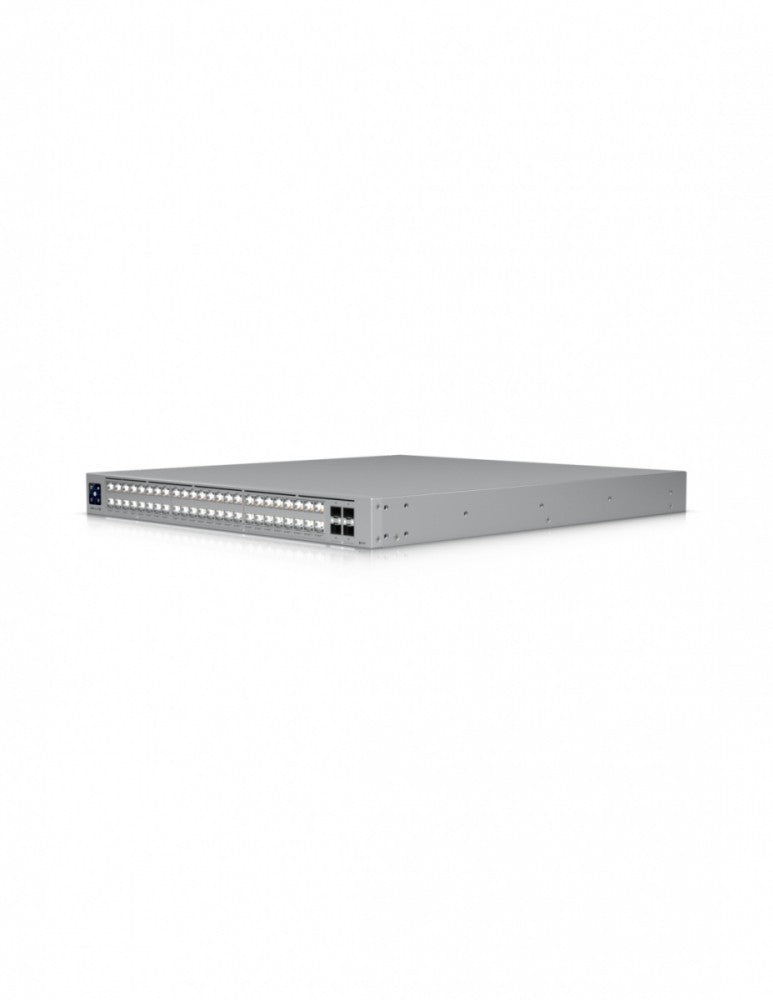

UBIQUITI UniFi Switch USW-Pro-XG-48
Specifications
| Description | The USW-Pro-XG-48 is a professional Layer 3 switch equipped with 48 Ethernet ports, including 32 10GbE ports, 16 2.5GbE ports, and 4 25G SFP28 ports. The device provides high performance and reliability, making it an ideal solution for extensive, high-bandwidth networks. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2 |
| Switch layer | L3 |
| Network architecture | GigabitEthernet |
| Number of 10/100/1000 Mbps ports | 48 |
| 10/100/1000/2500 Mbps ports | 16 |
| Number of 10Gb ports | 32 |
| SFP28 ports | 4 |
| Console port | No |
| Forwarding mode | Store-and-forward |
| Throughput | 920 |
| Forwarding rate | 684 |
| MAC address table size | 128000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 8 |
| VLAN | 10G Support Flow Control Support Port Mirroring VLAN Support IPv4 Routes: 256,000 Frequency Limit Traffic Growth Control Virtual LAN Features: Interface-based VLAN, Voice VLAN Number of VLANs: 1,000 |
| Security | DHCP Features: DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping Access Control List (ACL) IPv4 256 entries IGMP snooping Loop entry protection |
| Management, monitoring, configuration | Multicast support |
| Other functions | Rack mounting options Stackable 1U layout Display backlight Display type: LCM Housing material: SGCC (hot-dip galvanized steel) Reset button |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 250 |
| Environment requirements | Relative humidity range 10 - 90 Temperature range (operation) -5°C - 40°C |
| Certificates | CE Federal Communications Commission (FCC) Industry Canada (IC) National Defense Authorization Act (NDAA) |
| Accessories included | Hook mounting kit Power cords |
| Power supply | AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power source: AC/DC |
| Dimensions | Product depth: 480 mm Product width: 442 mm Product height: 44 mm |
| Weight | 7500 |
