Description

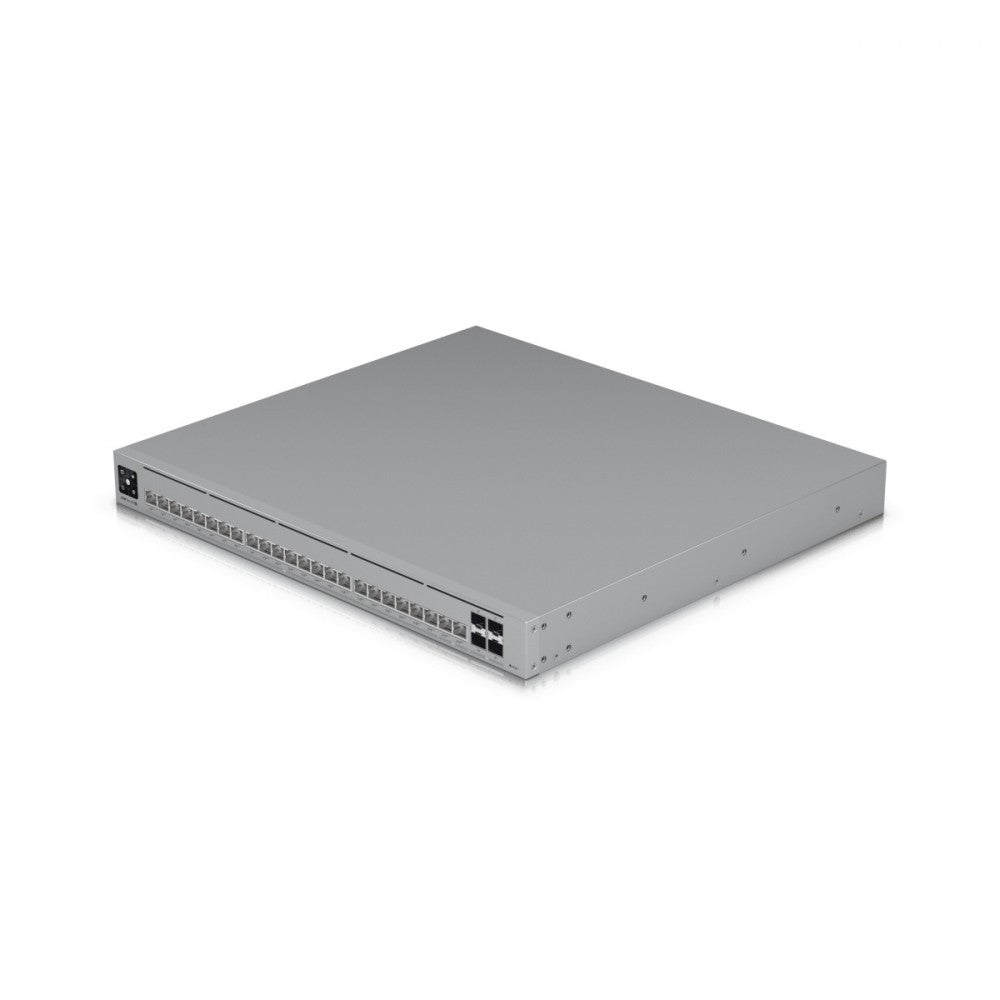

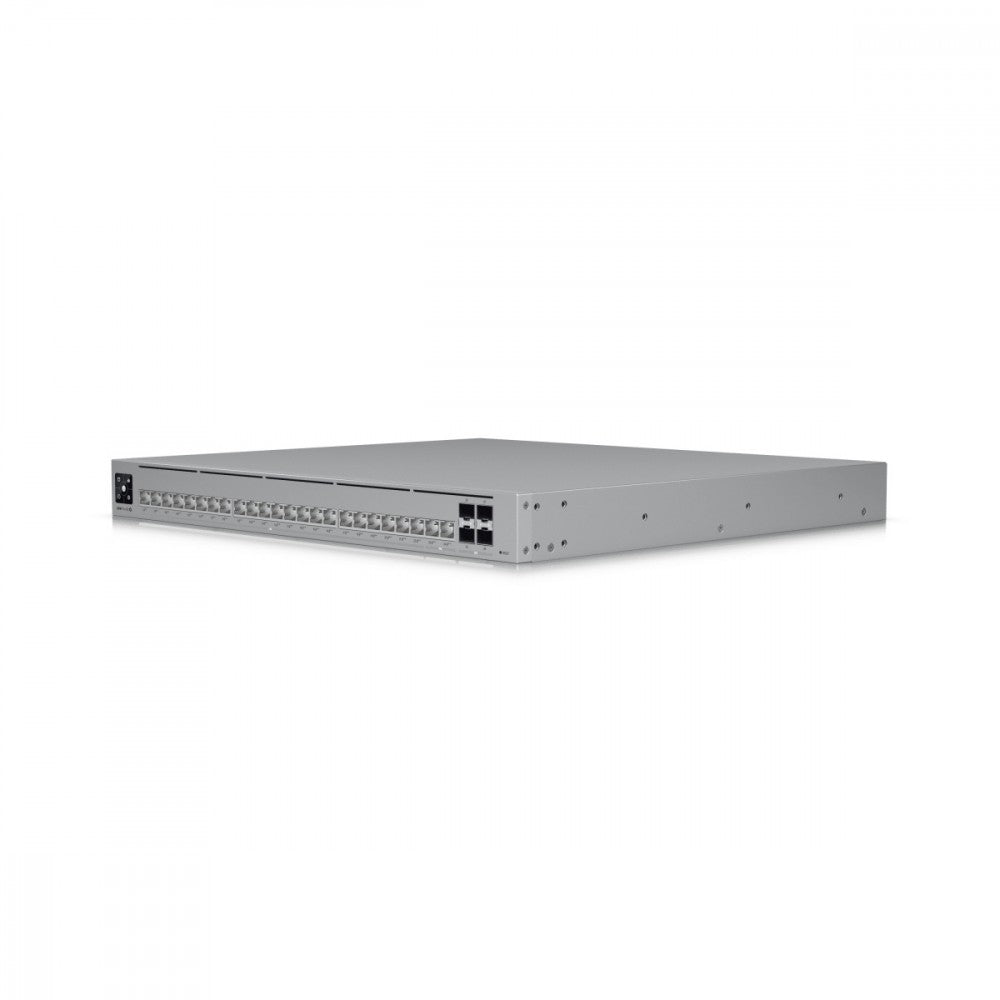

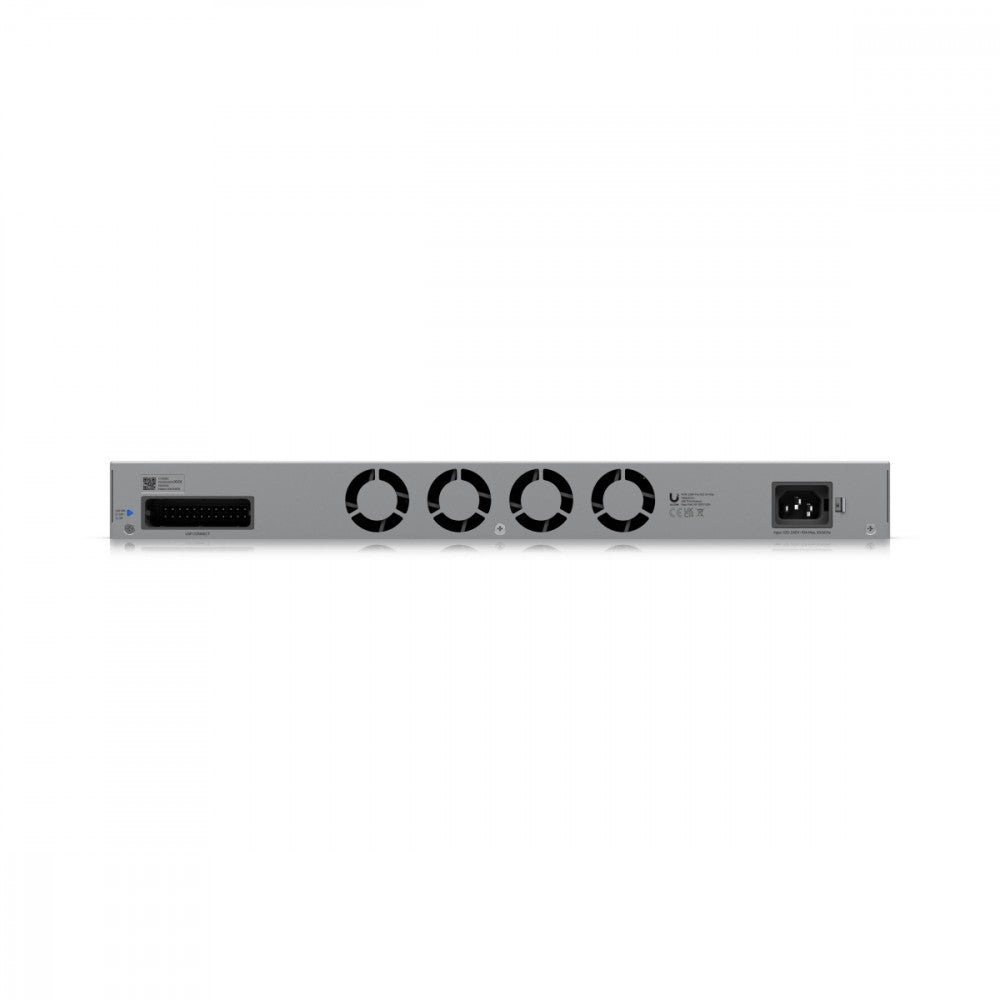

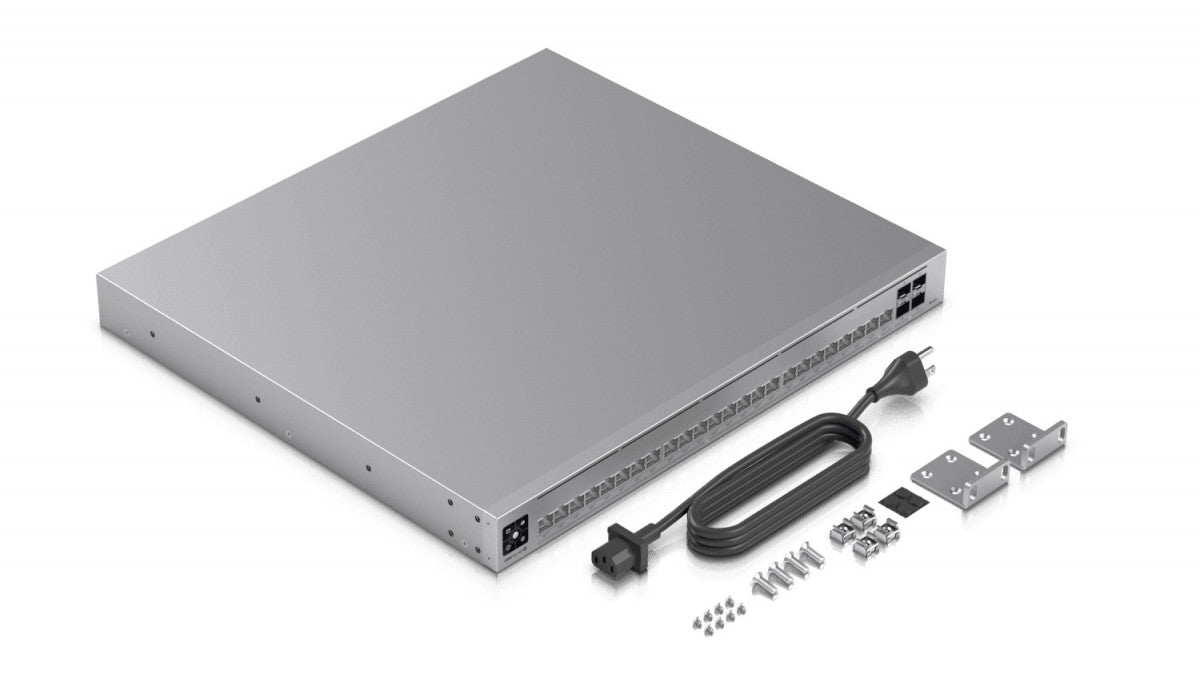

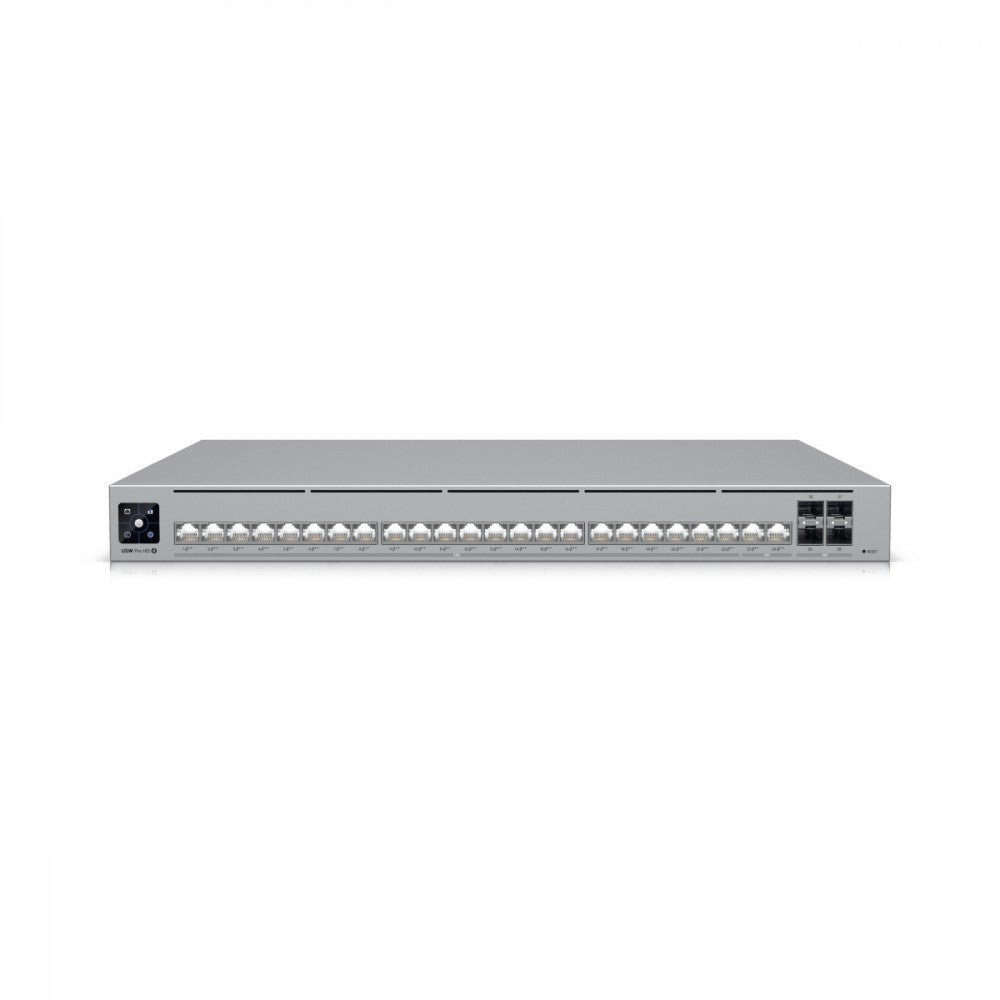

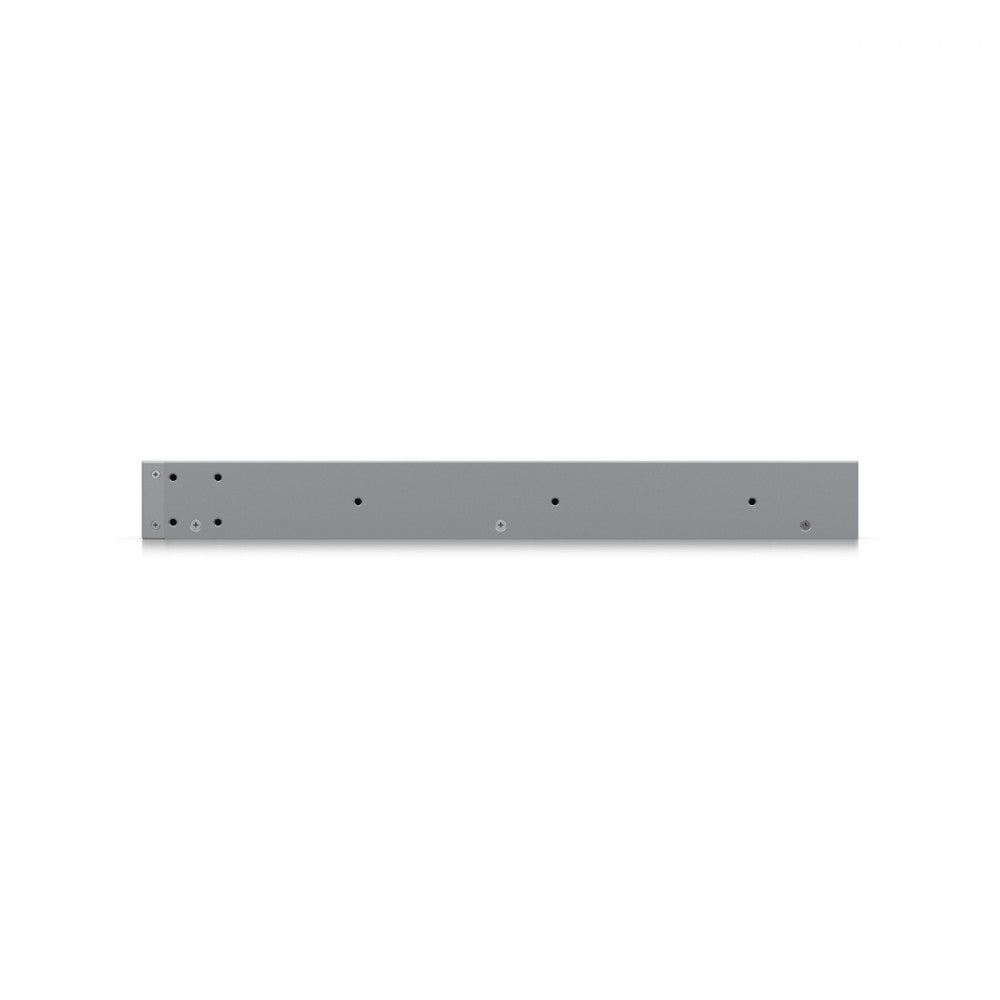

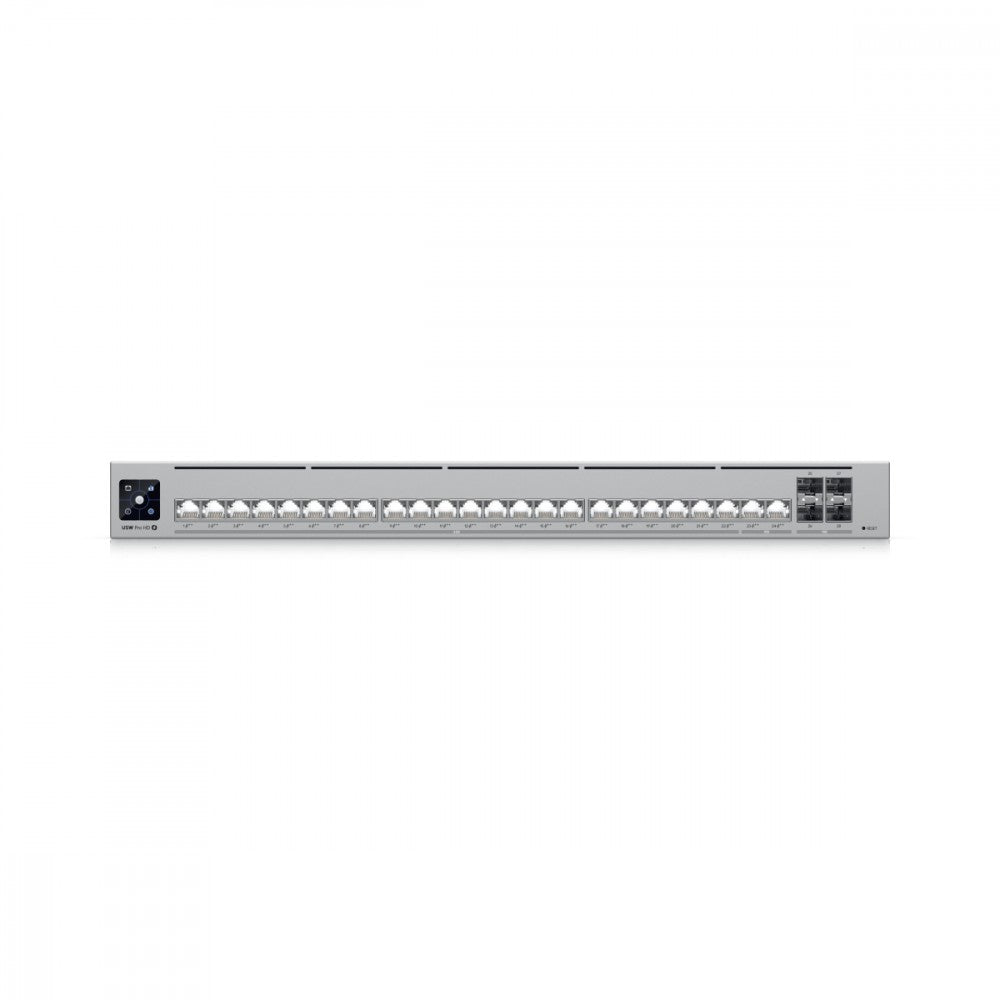

Ubiquiti UniFi Switch Pro HD USW-Pro-HD-24-Po
Specifications
| Description | Pro HD 24 PoE USW-Pro-HD-24-PoE (600W) Professional Layer 3 Ethernet switch with (2) 10GbE PoE++, (22) 2.5GbE PoE++, and (4) 10G SFP+ ports. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L3 |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | None |
| 10/100/1000/2500 Mbps ports | 22 |
| Number of ports 1G/2.5G/5G/10G | 2 |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | 4 |
| Number of QSFP28 ports | 1 |
| Number of QSFP+ ports | None |
| Console port | No |
| Throughput | 230 |
| Forwarding rate | 171 |
| Memory buffer | 2 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Number of VLAN groups | 1000 |
| L2 features | LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection |
| L3 features | DHCP Server (Local Area Networks) DHCP Relay Inter-VLAN Routing (Local Area Networks) Static Routing (Local Area Networks) |
| Chassis type | Rack |
| Power supply | Internal |
| Environment requirements | Operating temperature: -5 to 40°C Operating humidity: 10 to 90% non-condensing |
| Certificates | CE, FCC, IC |
| Power supply | Power Supply: AC Input Power Supply: AC/DC, Internal, 660 W Supported Voltage Range: 100-240 VAC Power Supply: (1) Universal Input, 100-240 VAC, 50/60 Hz (1) DC Input USP RPS |
| Dimensions | 442 x 400 x 44 mm |
