Description
UBIQUITI Switch USW-Pro-Max-16-PoE
Specifications

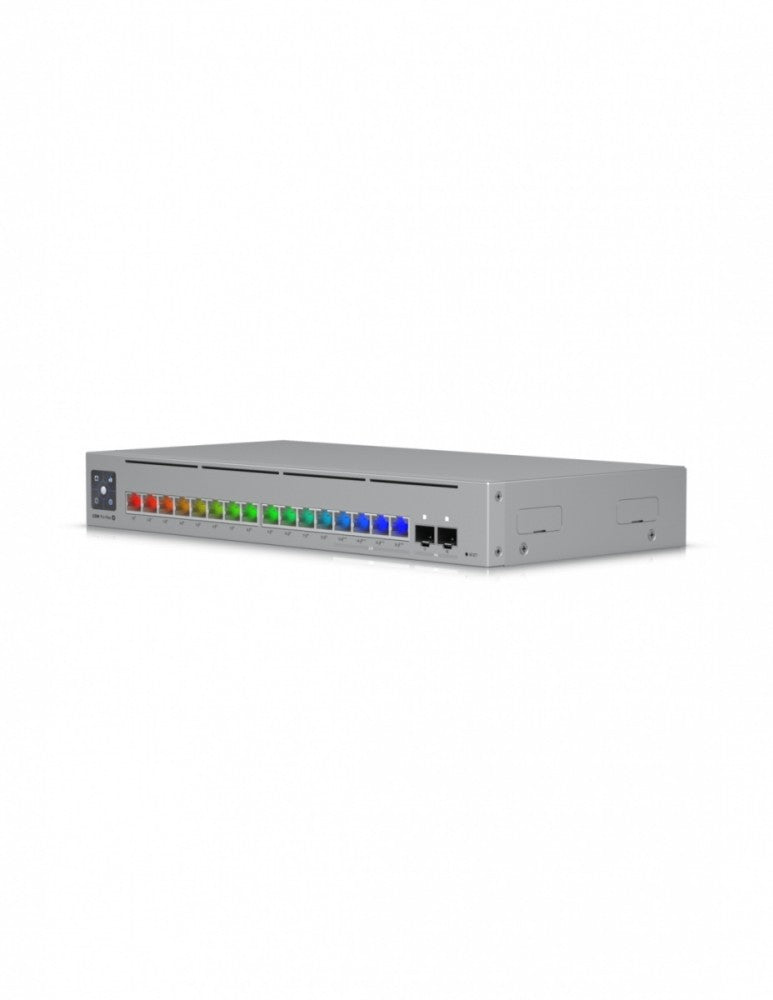

| Description | UBIQUITI USW-Pro-Max-16-PoE The USW-Pro-Max-16-PoE is an advanced 16-port Layer 3 switch with Etherlighting technology, supporting 2.5GbE and equipped with PoE++ outputs. Each port is equipped with Etherlighting illumination, making it easy to identify the port location, speed/link, and native VLAN. The switch offers four 2.5GbE PoE++ ports and twelve GbE PoE+ ports, with a total PoE power of 180W. Additionally, it has two 10G SFP ports for higher bandwidth requirements. Desktop, wall, or rack mount (requires additional rack mount accessories), and a quiet, fanless cooling system provide flexibility and reliability in various network environments. |
|---|---|
| Switch class | Managed |
| Application | Home and small office |
| Switch layer | L3 |
| Network architecture | FastEthernet |
| Number of 10/100/1000 Mbps ports | 12 |
| 10/100/1000/2500 Mbps ports | 4 |
| Number of 10Gb ports | 2 |
| Number of PoE+ ports | 12 |
| Number of PoE++ ports | 4 |
| Console port | No |
| Throughput | 84 |
| Forwarding rate | 62.496 |
| Support for Jumbo frames | Yes |
| L2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| L3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Chassis type | Rack |
| Fan | No |
| Power supply | External |
| Power consumption | 25 |
| Certificates | CE FCC IC |
| Power supply | 5V, 25W (included) |
| Dimensions | 325.1 x 160 x 43.7 mm |
| Weight | 1.95 |
