Description

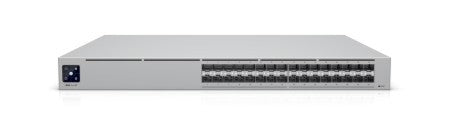

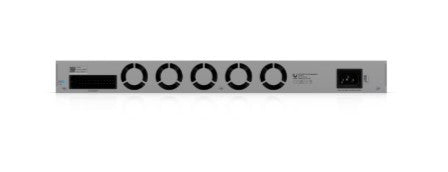

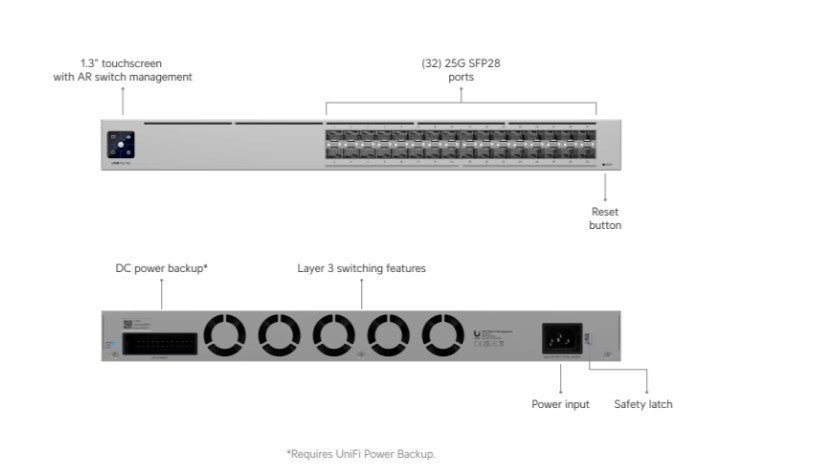

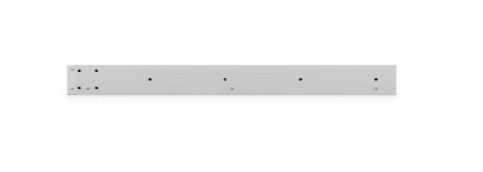

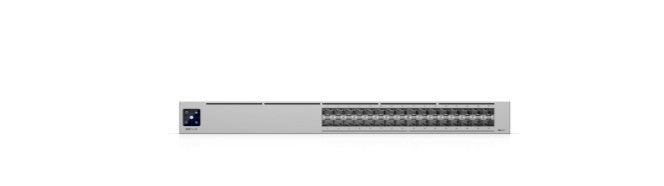

UBIQUITI Switch UniFi Pro XG Aggregation Managed L2/L3 1U Grey
Specifications
| Description | Professional 32-port Layer 3 switch with Etherlighting technology for high-performance 25G SFP28 connections. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L3 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | None |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | 32 |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | None |
| SFP28 ports | 32 |
| Number of SFP56 ports | None |
| Number of QSFP+ ports | None |
| Console port | No |
| Throughput | 800 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Stackability | No |
| Chassis type | Rack |
| Fan | No |
| Power supply | External |
| Power consumption | 200 |
| Environment requirements | Operating temperature: -5 to 40°C Operating humidity: 10 to 90% (non-condensing) |
| Certificates | CE, FCC, IC, Anatel: 05977-25-08356 |
| Power supply | Max Power Consumption: 200 W Power Method: (1) Universal Input 100-240 VAC, 50/60 Hz; (1) USP RPS DC Input Power Input Type: AC Input Power Supply: AC/DC, Internal, 200 W Supported Voltage Range: 100-240 VAC |
| Dimensions | 442.4 x 43.7 x 480 mm |
| Weight | 7.1 |
| Other features | LACP Port Aggregation STP and RSTP Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based Access Control Lists (ACLs) and Device Isolation DHCP Snooping and DHCP Protection Egress Rate Limiting Flow Control Storm Control Multicast and Broadcast Traffic Limiting MAC Blocking IP-Based ACLs and Network Isolation MAC Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection Virtual Network Override |
