Description

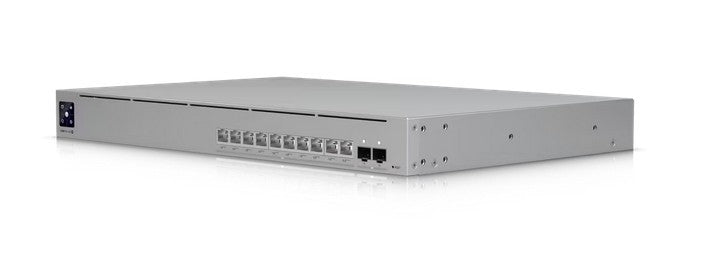

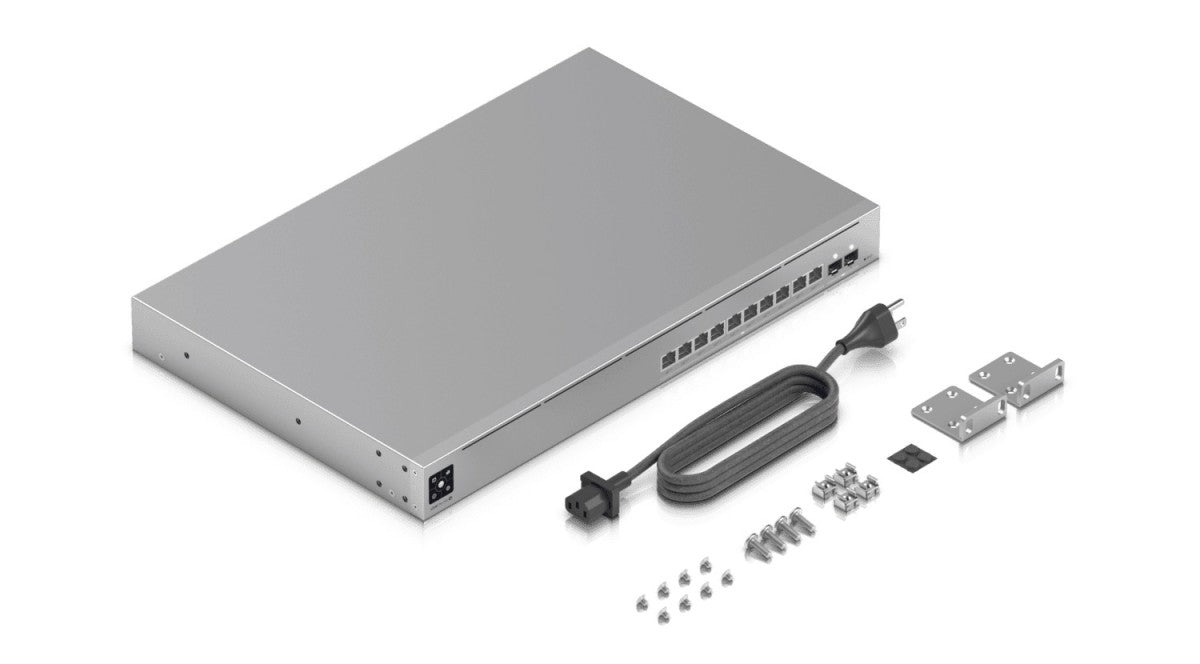

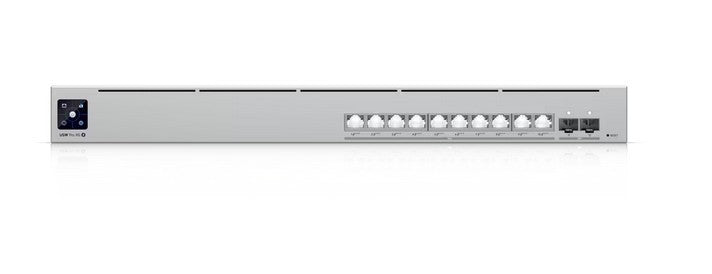

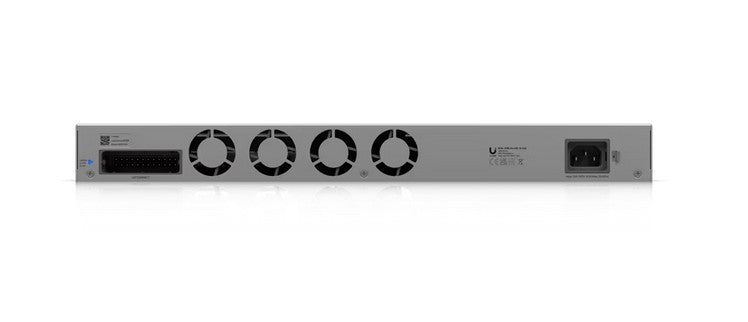

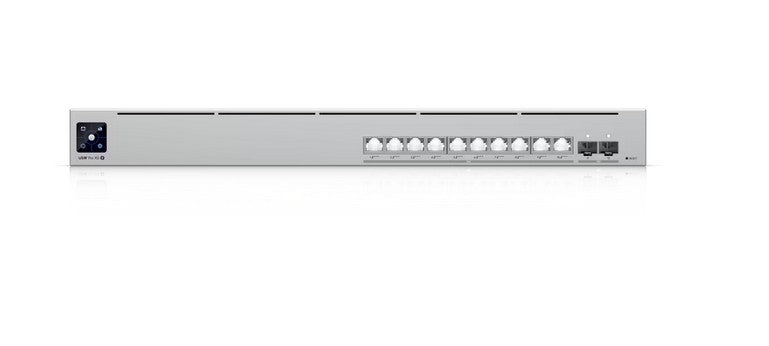

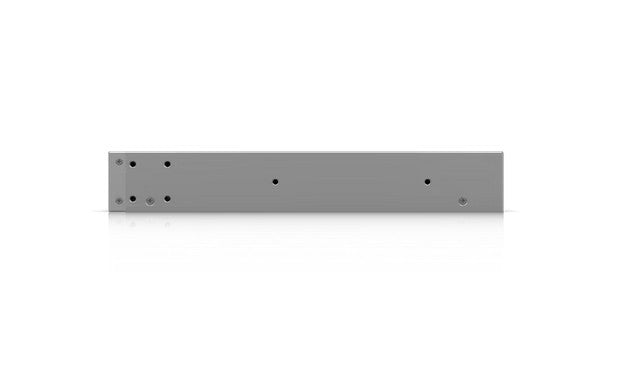

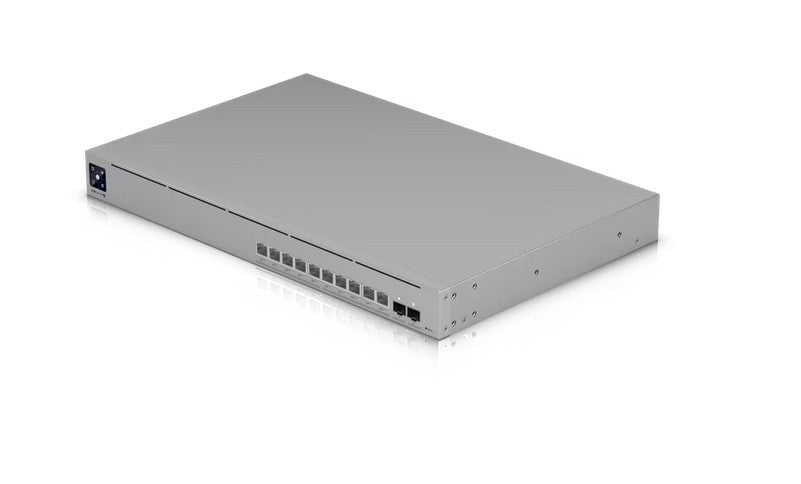

Ubiquiti Switch Pro XG 10 POE USW-Pro-XG-10-Po
Specifications
| Description | Professional 1U Etherlighting PoE+++ Layer 3 10-port switch with (10) 10GbE and (2) 10G SFP+ ports. |
|---|---|
| Switch class | Managed |
| Application | Home and small office |
| Switch layer | L3 |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 10 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | 2 |
| Number of SFP56 ports | None |
| Number of QSFP+ ports | None |
| Throughput | 240 |
| Forwarding rate | 179 |
| Memory buffer | 2 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Stackability | No |
| L2 features | LACP Port Aggregation STP & RSTP QoS (DSCP) Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection |
| L3 features | DHCP Server (Local Networks) DHCP Relay Inter-VLAN Routing (Local Networks) Static Routing (Local Networks) |
| Chassis type | Rack |
| Fan | No |
| Power consumption | 520 |
| Environment requirements | Operating temperature: -5 to 40°C Operating humidity: 10 to 90% non-condensing |
| Certificates | CE, FCC, IC |
| Power supply | Power Supply: AC Input Power Supply: AC/DC, Internal, 550 W Power Supply: Universal Input, 100-240 V AC, 50/60 Hz USP RPS DC Input |
| Dimensions | 442.4 x 285 x 44 mm |
| Other features | Weight: Without mounting brackets: 4.6 kg With mounting brackets: 4.7 kg |
