Description

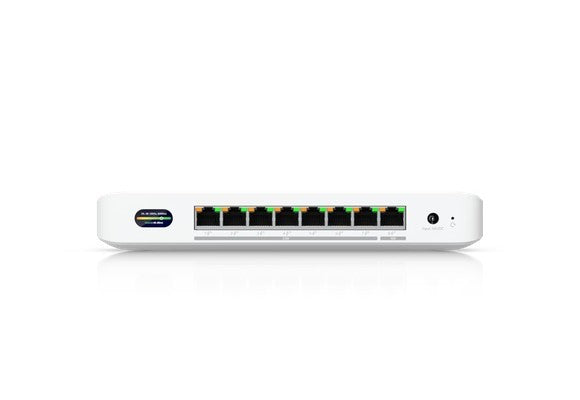

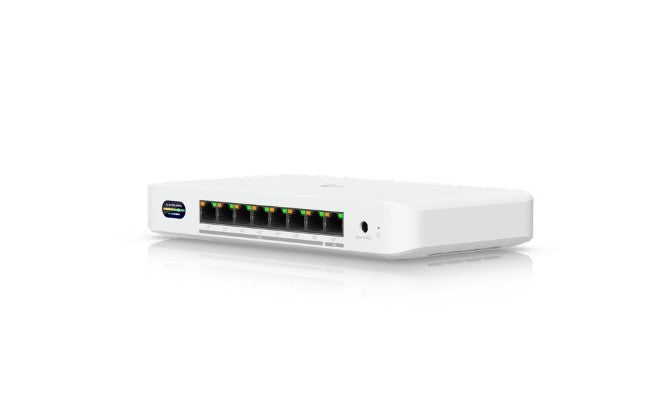

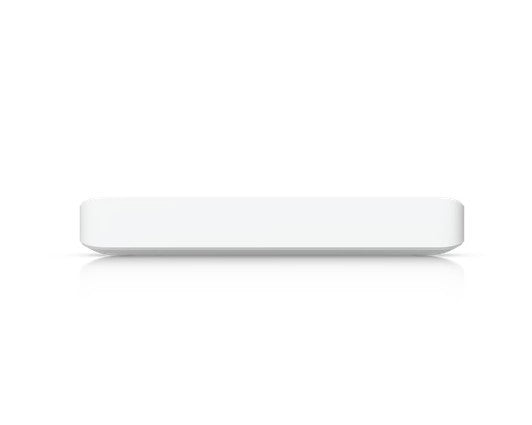

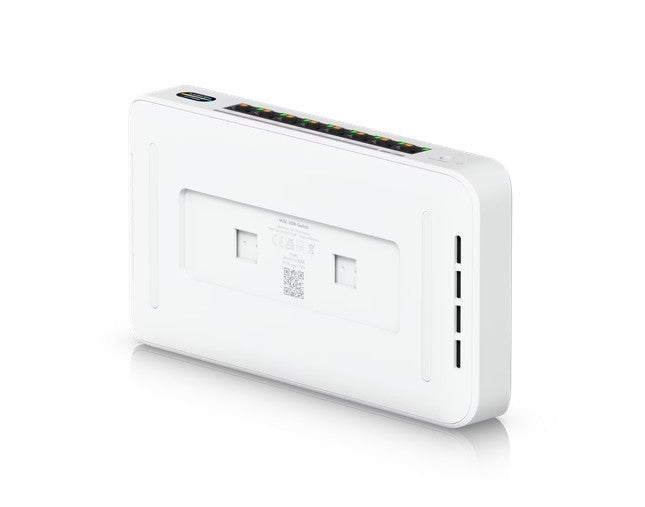

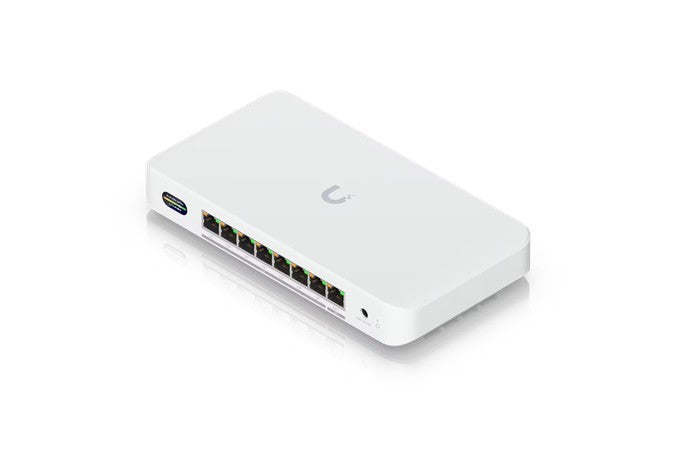

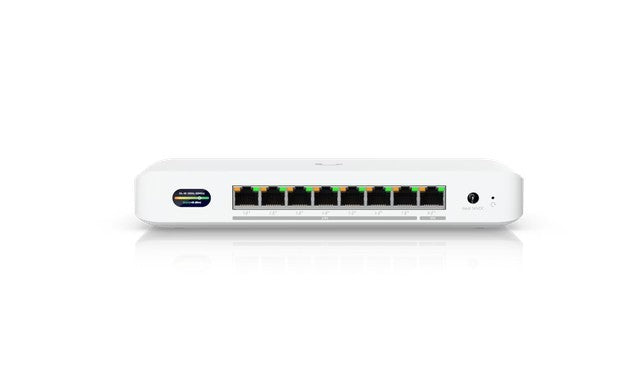

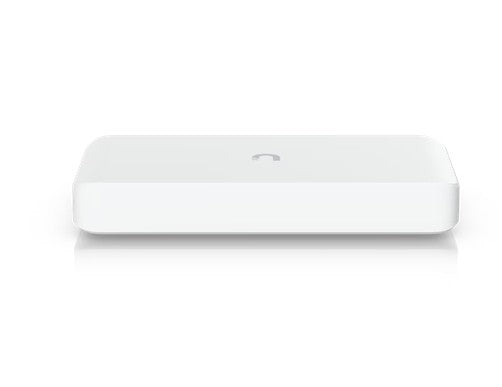

UBIQUITI Device Switch Bridge UniFi UDB-Switch
Specifications
| Description | Device Bridge Switch Compact PoE+ switch with 1 10 GbE port, 7 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi. |
|---|---|
| Switch class | Unmanaged |
| Application | Home and small office |
| Network architecture | GigabitEthernet |
| 10/100/1000/2500 Mbps ports | 7 |
| Number of 10Gb ports | 1 |
| Number of PoE+ ports | 8 |
| Console port | No |
| Support for Jumbo frames | No |
| Stackability | No |
| Supported protocols and standards | 802.11a 802.11n 802.11ac 802.11ax 802.11be |
| Security | WPA3 SAE |
| Management, monitoring, configuration | Ethernet WiFi UniFi Network: Version 10.0.156 or later |
| Chassis type | Desktop |
| Fan | No |
| Power supply | External |
| Power consumption | 210 |
| Environment requirements | Ambient Operating Temperature: -30 to 40° C (-22 to 104° F) Ambient Operating Humidity: 5 to 95% noncondensing |
| Certificates | CE FCC IC |
| Power supply | Max. Power Consumption: 25W (Excluding PoE output) Supported Voltage Range: 42.5-57V DC Max. PoE Wattage per Port: 30W Total PoE Availability: 60W AC adapter input: 35W; 210W AC adapter input: 185W |
| Dimensions | 212.9 x 113 x 32.5 mm |
| Weight | 563 |
