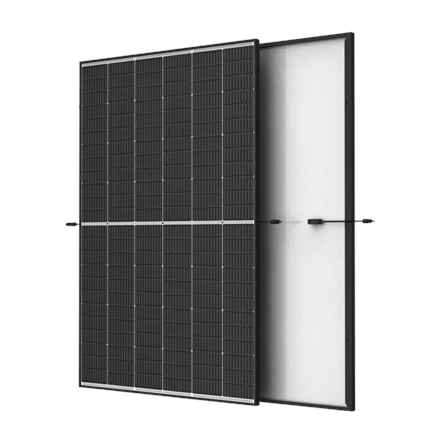

TrinaSolar TrinaSolar 510 W VERTEX S+ NEG18R.28 N-Type Dual Glass TOPCon Monocrystalline TSM-NEG18R.28 510W

TrinaSolar TrinaSolar 510 W VERTEX S+ NEG18R.28 N-Type Dual Glass TOPCon Monocrystalline TSM-NEG18R.28 510W

Producer: TrinaSolar

Key Features

Package features

• Gross depth (mm): 2000
• Gross height (mm): 30.00
• Gross width (mm): 1140.00
• Packing quantity: 1.00
• Paper/Pasteboard: 1200.00
• Plastic (No PET): 300.00
• Tare weight (kg): 1.50
• Volume (m3): 0.0684
• Embeeded battery: No
• WEEE tax: Yes
• WEE classification: CL109:4B:2024-01-01
• Palette Qty: 36

Technical details

• Gross weight: 25.00
• Net weight: 23.50
• Peak power: 510
• Number of cells: 108
• Glass thickness: 1.6
• Module weight: 23.5
• Module Dimensions: 1961 x 1134 x 30
• J-Box: IP68
• Frame dimensions: 30
• Solar Cells: Monocrystalline
• Producer product name: VERTEX S+ NEG18R.28
• Producer product family: N-Type Dual Glass TOPCon Monocrystalline
• Producer: TrinaSolar

Operational conditions

• Temperature Coefficient of PMAX: -0.29%/°C
• Maximum System Voltage: 1500
• Operating temperature (T-T): -40 to +85
• Temperature Coefficient of VOC: -0.24%/°C
• Temperature Coefficient of ISC: 0.04%/°C

Power

• Power Tolerance-PMAX: 0/+5
• Maximum Power Voltage: 33.7
• Open Circuit Voltage: 40.6
• Short Circuit Current: 15.93
• Efficiency: 22.9

Warranty

• Product workmanship warranty: 15
• Power warranty: 30
• First year degradation: 1
• Annual power degradation: 0.4

Packaging content

• Quantity per shipping carton: 36

Other

• Warranty: 300
