Description

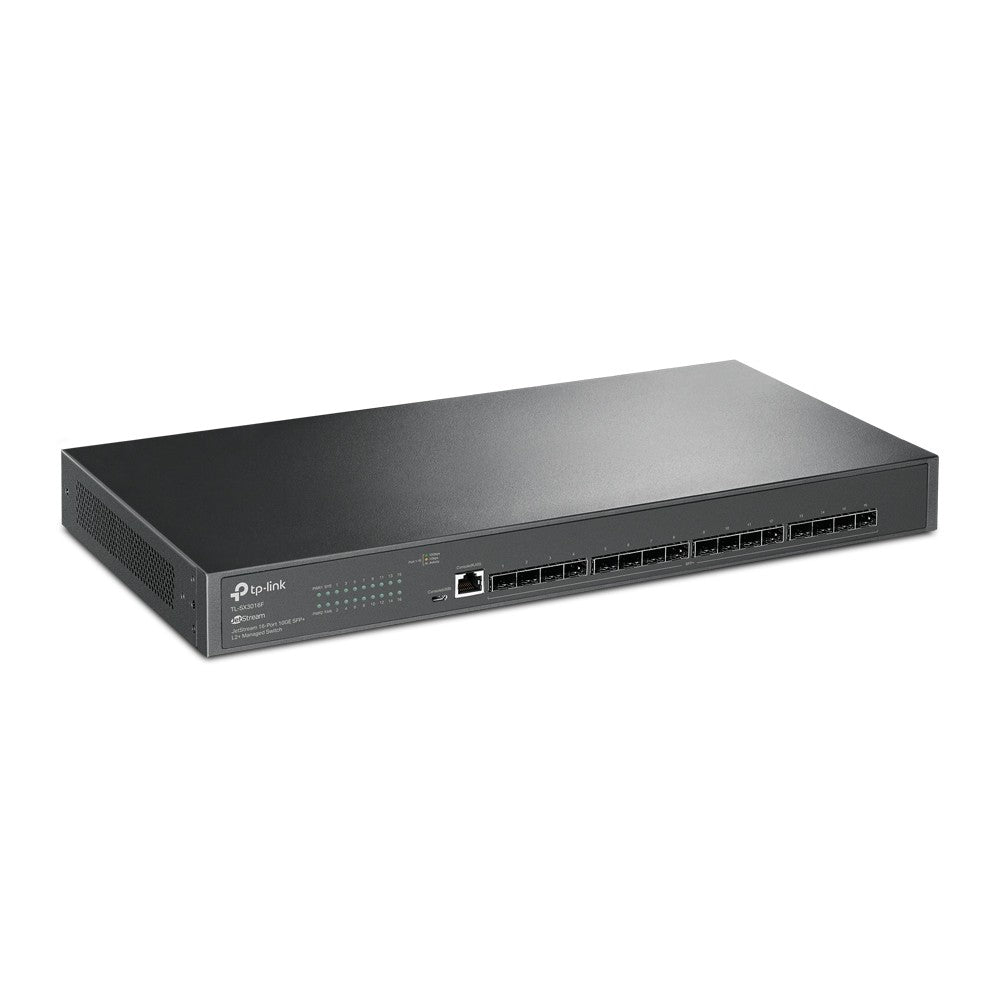

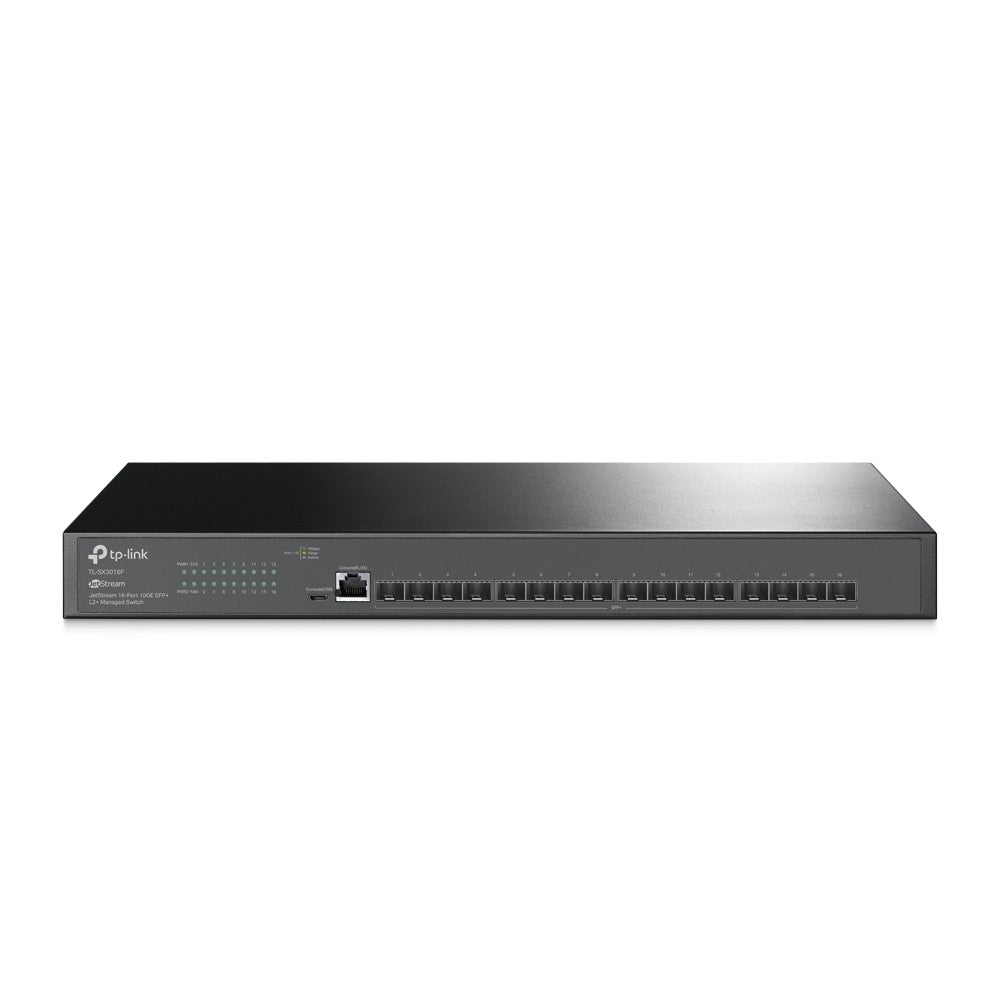

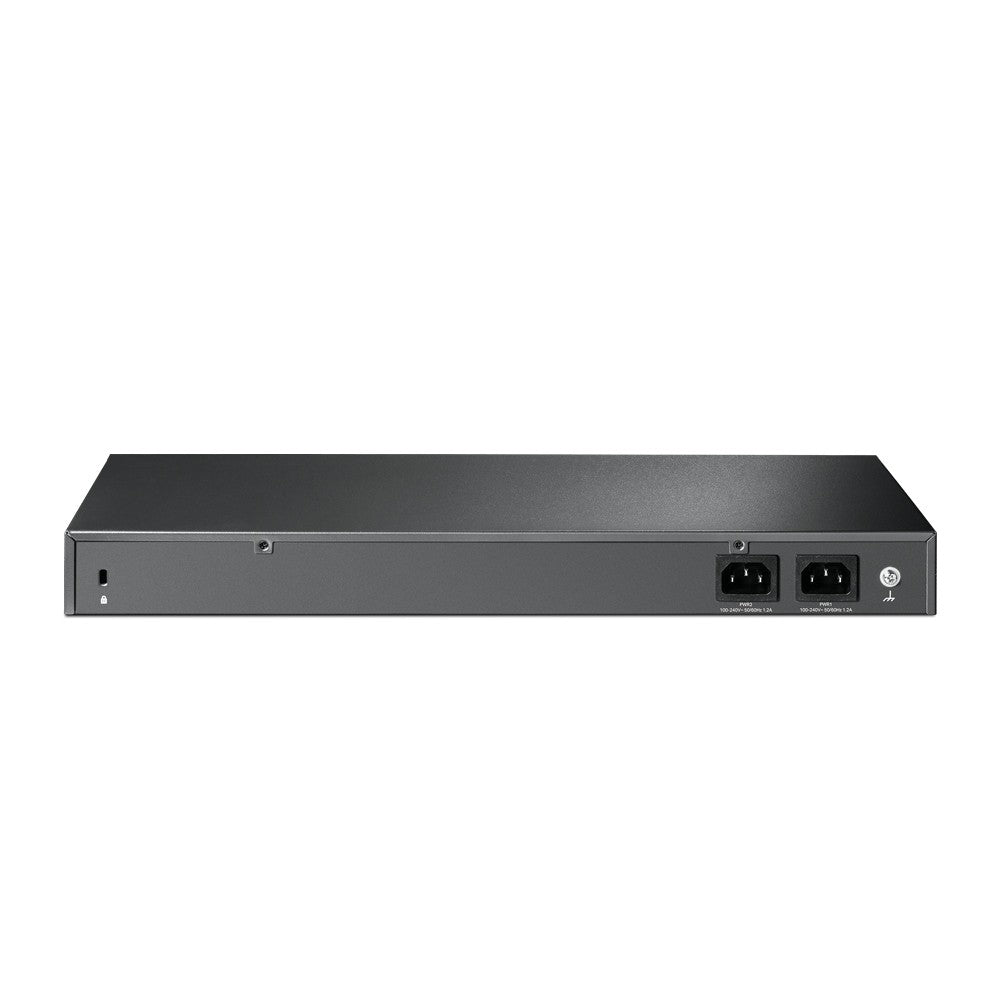

TP-LINK Verwalteter Switch SX3016F 16xSFP+
Specifications
| Description | JetStream L2+ Managed Switch, 16 SFP+ 10 GE Slots 16 10GE SFP+ Slots: Ultra-fast, fully 10Gbps SFP+ slots provide high-bandwidth connections and device switching capabilities up to 320Gbps. Reliable L2 and L2+ Features: Support for a complete line of L2 and L2+ features including Static Router, industry-class QoS, IGMP Snooping and more. Strong security strategies: Provides LAN security based on IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication and more. Dual Redundant Power Supplies: Two power supplies supporting each other is an ideal choice for a stable network architecture. Centralized Cloud Management: Integration with Omada SND enables cloud-based access and remote management. Self-management: Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management capabilities. |
|---|---|
| Switch class | Managed |
| Application | Home and small office |
| Switch layer | L2+ |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 1 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | 16 |
| Number of QSFP+ ports | None |
| Console port | Yes |
| Throughput | 320 |
| Forwarding rate | 238.08 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9 |
| VLAN | VLAN groups: Max 4K VLAN groups 802.1Q VLAN Tagging VLAN MAC Address: 30 entries VLAN Protocol Private VLAN GVRP VLAN VPN (QinQ): Port-based QinQ, Selective QinQ Voice VLAN |
| Supported protocols and standards | Spanning Tree Protocol (STP): STP 802.1d RSTP 802.1w MSTP 802.1s |
| Security | IP, MAC, and port binding: 512 entries DHCP Snooping ARP inspection IPv4 source address protection: 100 entries IPv6 address, MAC, and port binding: 512 entries DHCPv6 Snooping ND Detection IPv6 source address protection: 100 entries Protection against DoS attacks Port protection through static/dynamic port configuration Up to 64 MAC addresses per port Storm Control Broadcast/Multicast/Unicast: control mode (kbps/indicator) 802.1X Authentication: Port-based authentication MAC address-based authentication VLAN allocation MAB Guest VLAN Radius Authentication and Authorization AAA (including TACACS+) Port isolation Secure web-based management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI management with SSHv1/SSHv2 encryption Access control based on IP/port/MAC |
| Management, monitoring, configuration | GUI graphical interface Command line interface CLI via console port, Telnet SNMP v1/v2c/v3: Trap/Inform RMON (groups 1,2,3,9) SDM template DHCP/BOOTP client LLDP/LLDP-MED 802.1ab Automatic DHCP installation Dual Image, Dual Configuration CPU usage monitoring Cable diagnostics EEE Password recovery SNTP System logs |
| L2 features | IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MVR MLD Snooping: MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static group configuration Restricted IP Multicast Forwarding Multicast Filtering: 256 profiles and 16 entries per profile |
| L3 features | 16 IPv4/IPv6 interfaces Static routing: 48 static routes Static ARP entries: 128 static entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay |
| Chassis type | Rack |
| Accessories included | TL-SX3016F Switch 2 Power Cords Quick Installation Guide Rack Mounting Kit Rubber feet |
| Power supply | 100-240 V AC~50/60 Hz |
| Dimensions | 440 × 220 × 44 mm |
