Description

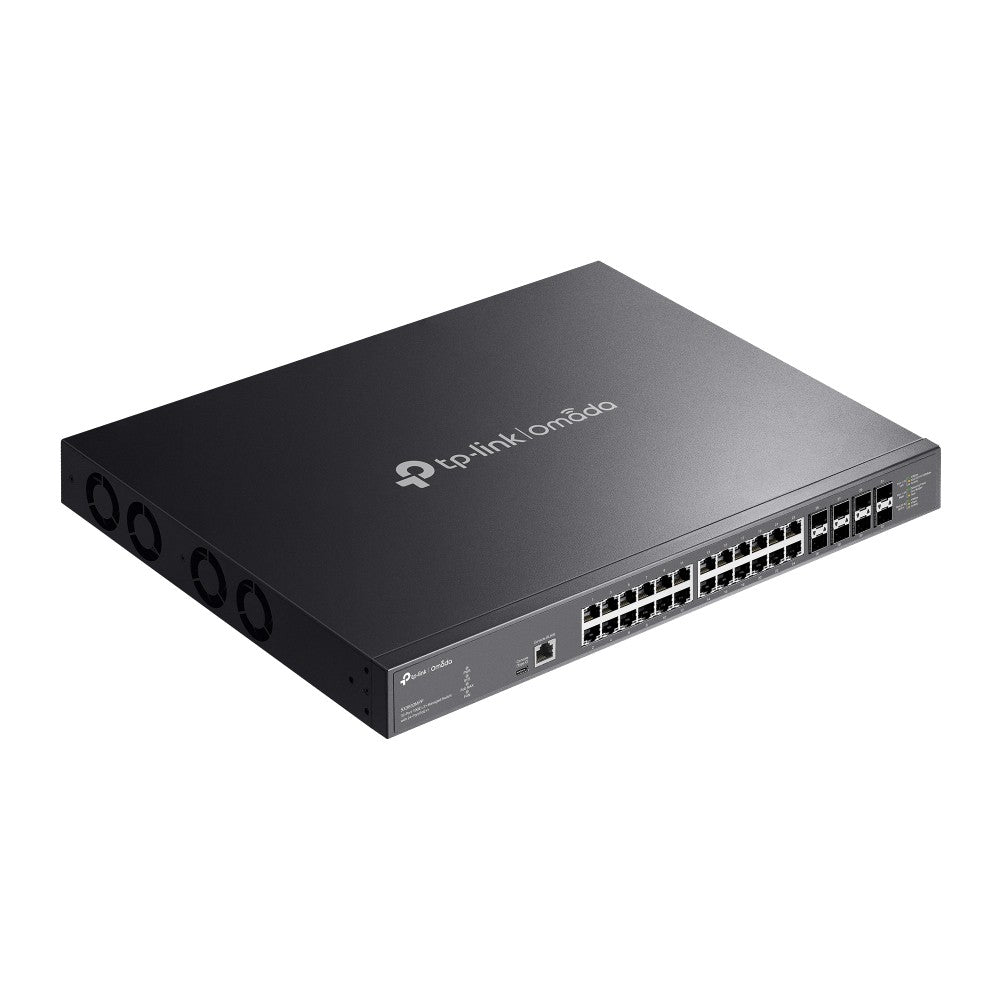

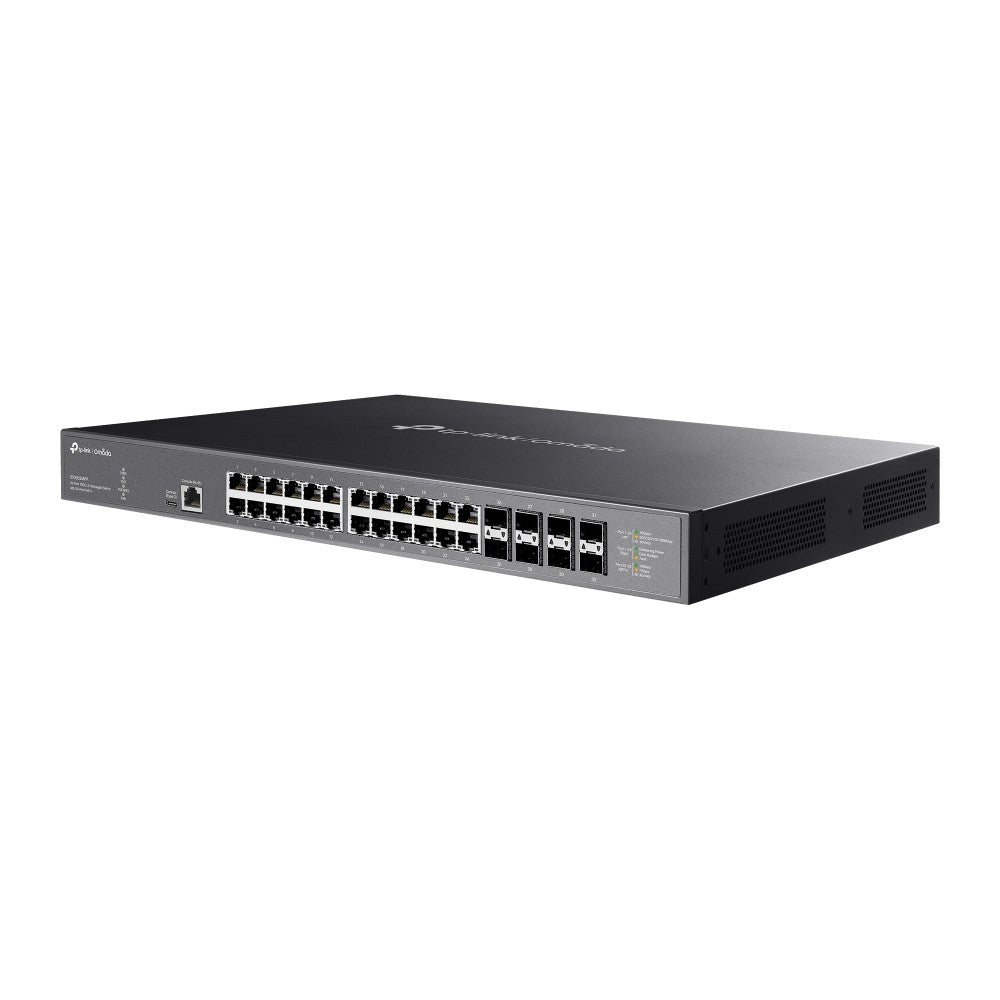

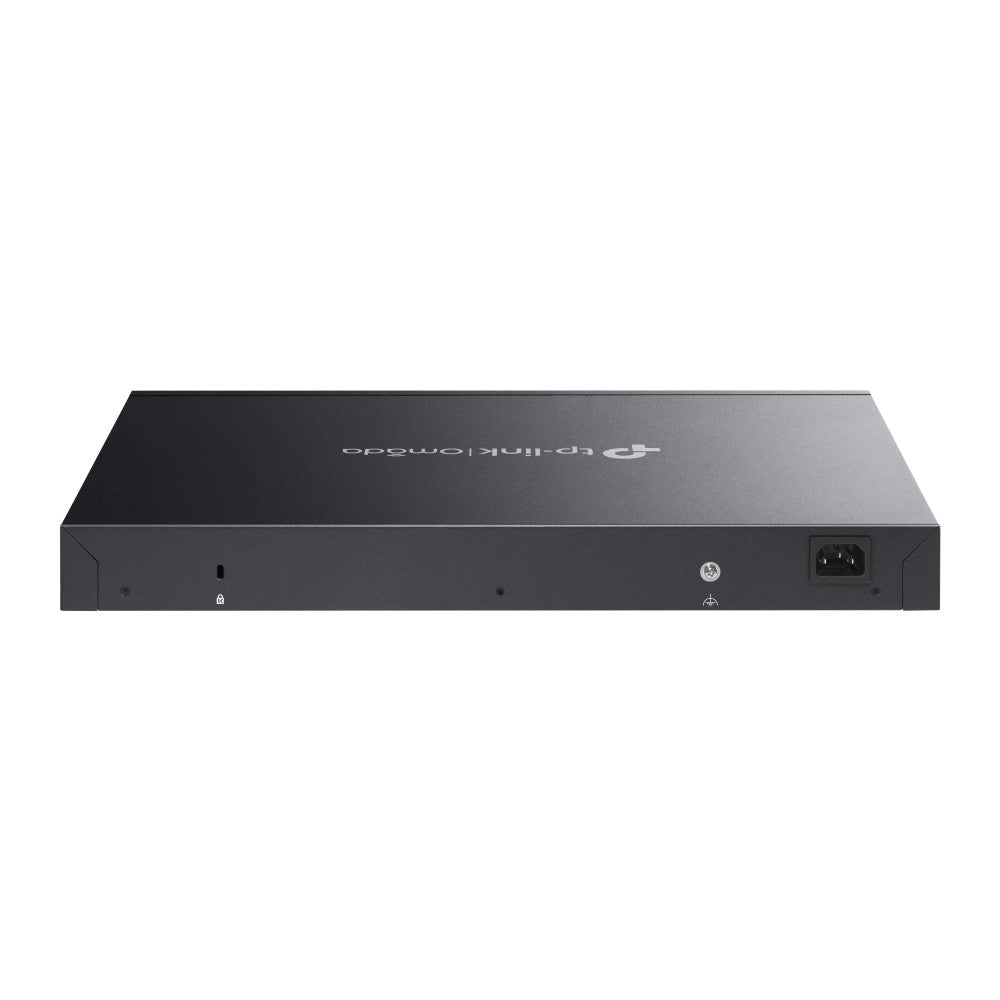

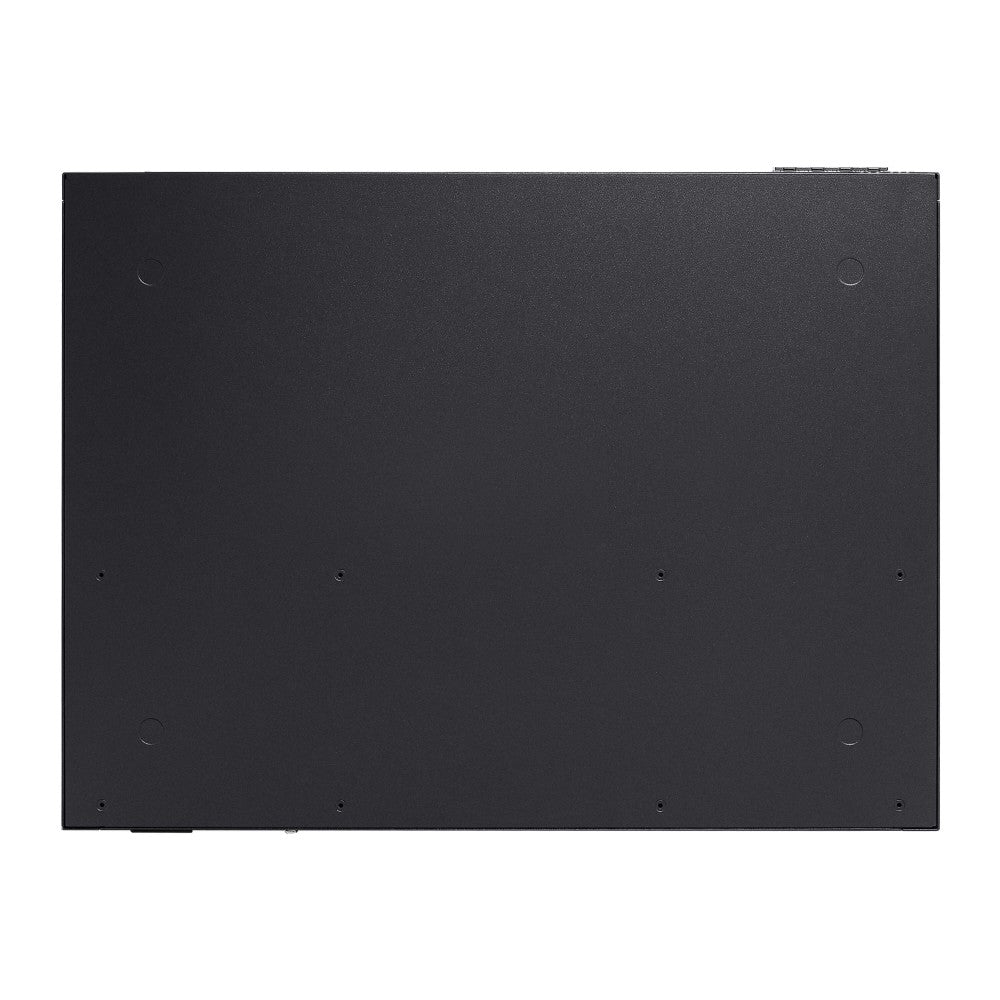

TP-LINK Switch SX3832MPP
Specifications
| Number of PoE++ ports | None |
|---|---|
| Description | SX3832MPP Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ 24 x 1/2.5/5/10 Gbps RJ45 PoE++ ports 8 x 1/10 Gbps SFP+ slots 770 W total PoE budget, up to 90 W PoE out per port Centralized cloud management via the web or the Omada app Standalone management via web, CLI, SNMP, and RMON Static Routing helps route internal traffic for higher efficiency VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM ERPS supports rapid protection and recovery in a ring topology Durable metal casing and rack-mountable design Software Defined Networking (SDN) with Cloud Access Remotely manage your access points, switches, and gateways across multiple sites all from a single interface. |
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2+ |
| Network architecture | GigabitEthernet |
| Number of 10Gb ports | 32 |
| Number of SFP+ ports | 8 |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 640 |
| Forwarding rate | 240 |
| Packet buffer | 24 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9 |
| Stackability | No |
| Number of VLAN groups | 4000 |
| VLAN | VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 12 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN |
| QoS | 8 priority queues 802.1p CoS/DSCP priority Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Bandwidth Control: Port/Flow-based Rating Limiting Smoother Performance Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| Security | AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control DoS Defend DHCP Filter Static/Dynamic Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode IP-MAC-Port Binding: 512 Entries DHCP Snooping ARP Inspection IPv4 Source Guard: 96 Entries IPv6-MAC-Port Binding: 512 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard: 95 Entries 802.1X: Port-based authentication Mac-base authentication VLAN Assignment MAB Guest VLAN Radius authentication and accountability support |
| Management, monitoring, configuration | Omada App - Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Cloud Access - Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning - Requiring the use of Omada Cloud-Based Controller. Centralized Management: Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Management Features: Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics IEEE 802.3az Energy Efficient Ethernet (EEE) Password Recovery SNTP System Log |
| L2 features | 128 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 48 IPv4/IPv6 Static Routes Static ARP: 128 static entries 510 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring |
| Other functions | Automatic Device Discovery: Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features: L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 1010.2 |
| Environment requirements | Operating Temperature: -5-45°C (23113°F) Storage Temperature: -40-70°C (-40158°F) Operating Humidity: 10-90% RH non-condensing Storage Humidity: 5-90% RH non-condensing |
| Certificates | CE FCC RoHS |
| Accessories included | SX3832MPP Switch Power Cord Console Cable Quick Installation Guide Rackmount Kit Rubber Feet |
| Power supply | Power Supply: 100-240 V AC~50/60 Hz PoE Ports: Standard: 802.3bt/at/af compliant PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port Power Budget: 770 W |
| Dimensions | 440 x 330 x 44 mm |
