Description

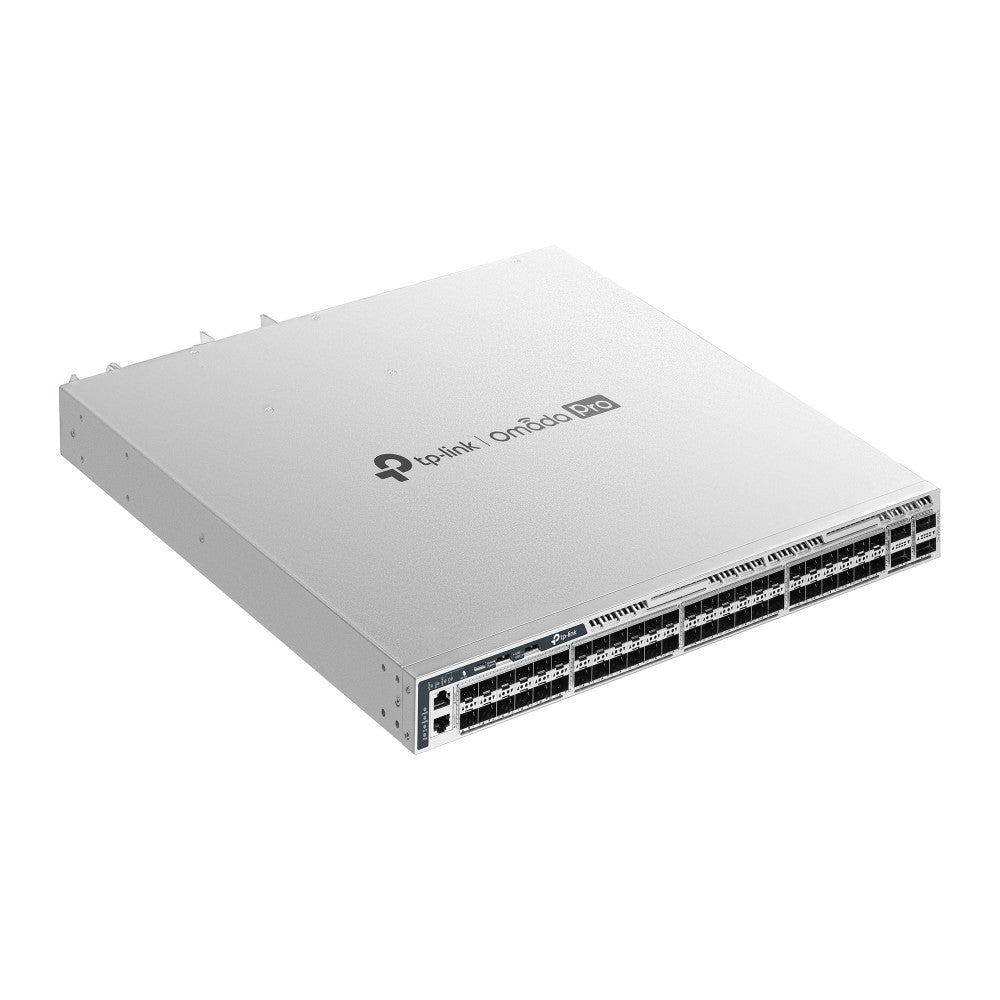

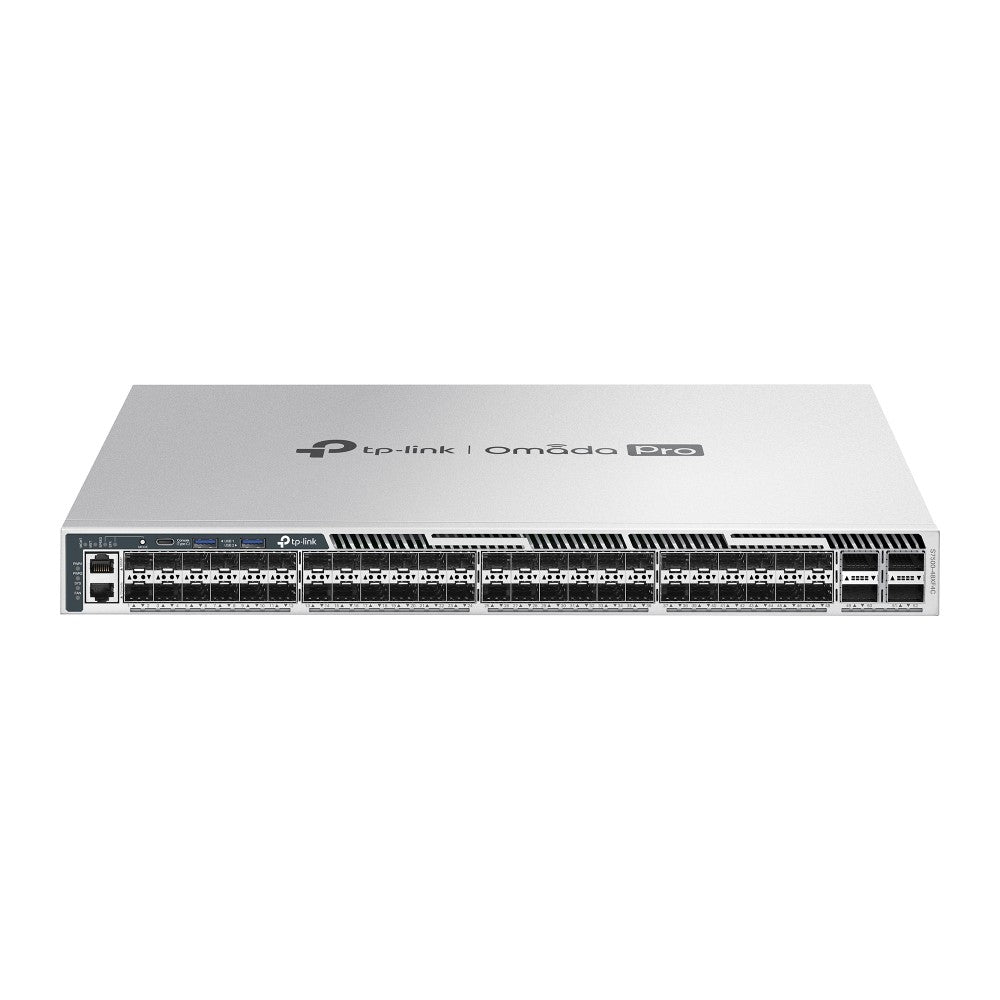

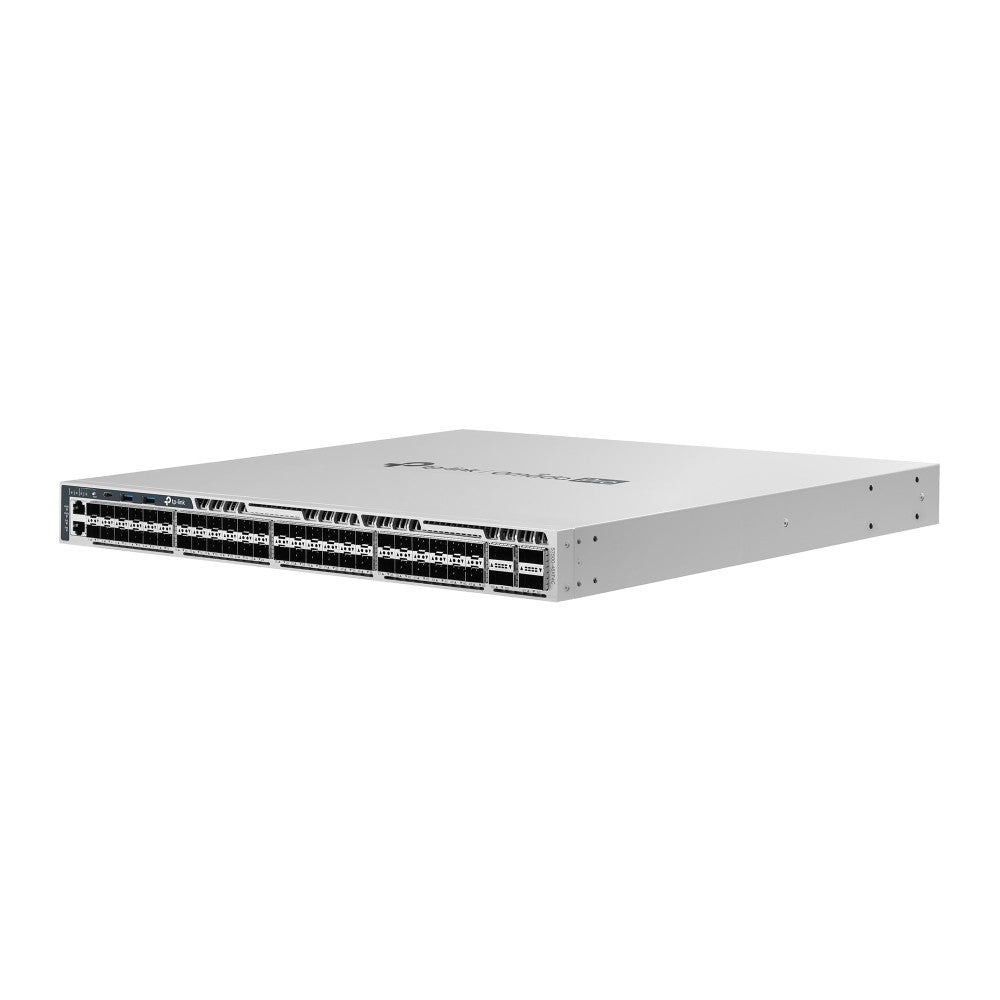

TP-LINK Switch S7500-48XF4C
Specifications
| Description | S7500-48XF4C Omada Pro 48-Port 10G Stackable L3 Managed Aggregation Switch with 4 100G Slots 48x 10 Gbps SFP+ slots and 4x 100 Gbps QSFP28 slots Physical Stacking for built-in redundancy and performance M-LAG improves link reliability from the card level to the device level L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security Highly available with two field-replaceable power supplies, VRRP, ERPS, BFD Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2 Centralized cloud management via the web or the Omada app Omada Pro S7500-48XF4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, ultra-fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 48x 10 Gbps SFP+ slots, 4x 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-48XF4C offers a dependable networking solution for enterprises, campus, and ISPs. High-speed Connectivity and Powerful Stacking 48x 10 Gbps SFP+ slots and 4x 100 Gbps QSFP28 slots provide up to 1760 Gbps switching capacity per unit. Physical stacking of up to 12 units enhances network performance and redundancy. Abundant Layer 3 Capabilities Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability. Comprehensive Security Functions Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks. Highly Available Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing. M-LAG improves link reliability from the card level to the device level. Easy Operation and Maintenance The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions. PTPv2 and 802.1AS provide sub-microsecond-level time synchronization precision by leveraging hardware timestamping. Omada Pro Integration Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface. Apart from central management via the web or Omada app, S7500-48XF4C can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L3 |
| Network architecture | GigabitEthernet |
| Number of 10Gb ports | 48 |
| Number of 100Gb ports | 4 |
| Number of SFP+ ports | 48 |
| Number of QSFP28 ports | 4 |
| Console port | Yes |
| Throughput | 1760 |
| Forwarding rate | 600 |
| Packet buffer | 10 |
| MAC address table size | 128000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9 |
| Stackability | Yes |
| Maximum number of units per stack | 12 |
| Number of VLAN groups | 4000 |
| VLAN | Max 4K VLAN Group (802.1q VLAN) 802.1Q Tagged VLAN MAC VLAN Entries: 200 Multicast VLAN Management VLAN VLAN VPN (QinQ): Max 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries Voice VLAN Private VLAN |
| QoS | 8 Queues of Priority Port Priority IEEE 802.1p Priority DSCP Priority Queue Min-Bandwidth Schedule Mode (SP, WRR, SP+WRR) Bandwidth Control Rate Limit Storm Control Voice VLAN User-Defined OUI Smoother Performance Action for Flows QoS remark (802.1P Remark, DSCP Remark) |
| Security | Port Isolation CPU-Defend ARP Inspection (Dynamic ARP Inspection) DoS Defend IP-MAC-Port Binding 1,024 Entries DHCP Snooping ARP Inspection IPv4 Source Guard IPv6-MAC-Port Binding 1,024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard DHCP Filter Static/Dynamic Port Security - Up to 64 MAC addresses per port Broadcast/Multicast/Unknown-unicast Storm Control - kbps/ratio control mode 802.1X Port base authentication Mac base authentication VLAN Assignment MAB Guest VLAN RADIUS authentication and accountability support AAA (including TACACS+) Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv2 IP/Port/MAC-based access control Secure boot RADSEC |
| Management, monitoring, configuration | Omada App Omada Pro Cloud-Based Controller Omada Pro Hardware Controller Omada Pro Software Controller Cloud Access Zero-Touch Provisioning Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Password Recovery SNTP System Log |
| L2 features | Link Aggregation Spanning Tree Protocol Port-based and VLAN-based Loopback Detection 802.3x Flow Control ERPS Mirroring RSPAN MAC Address Table Multicast IGMP Snooping MLD Snooping Multicast VLAN Registration (MVR) Max Multicast Table: 4K (IPv4, IPv6) Fast Leave Static Multicast Groups Multicast Filtering IGMP Snooping Authentication |
| L3 features | L3 Interface: 256 (IPv4,IPv6) Static Route: 2,048 IPv4, 1,024 IPv6 Host Route Table: Max 22,528 entries IPv4 Network Router entries: 40,960 (shared with IPv6 Network Router entries) IPv6 Network Router entries: 40,960 (shared with IPv4 Network Router entries) ECMP: 768 entries, max 32 ECMP Nexthops per Destination Static ARP: 1,024 static entries Dynamic ARP: 45,056 dynamic entries ND: 45,056 DHCP Server: Max 64 IP pool, Max 8,000 IP entries DHCPv4/v6 Relay VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance OSPFv2 OSPF Instance: 16 Network Entries: 256 entries Area Entries for Stub or NSSA: 16 per instance Area Range Entries: 16 per instance Virtual-link Entries: 16 per instance OSPFv3 Area Entries for Stub or NSSA: 16 per instance Area Range Entries: 16 per instance RIPv1/v2 Network Entries: 256 Redistribute Entries: 20 RIPng IS-IS IS-IS Interfaces: 128 IS-IS Area Numbers: 3 Max Redistribute Configs: 10 IS-IS IPV6 IS-IS BFD BGP: Max 20 redistribute configs PIM-SM/PIM-DM/PIM-SSM IP Multicast Route Entries: 1K PIM Neighbors: 256 Max PIM Interfaces: 128 IGMP: Version v1/v2/v3, Max 2,048 multicast groups BFD: 16 template numbers, 8 session numbers PBR uRPF |
| Other functions | Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 109.3 |
| Environment requirements | Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters Storage Temperature: -40 °C to 70 (-40 to 158 ) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing |
| Accessories included | S7500-48XF4C Switch Power Cord RJ45 Console Cable Quick Installation Guide Rackmount Kit Rubber Feet |

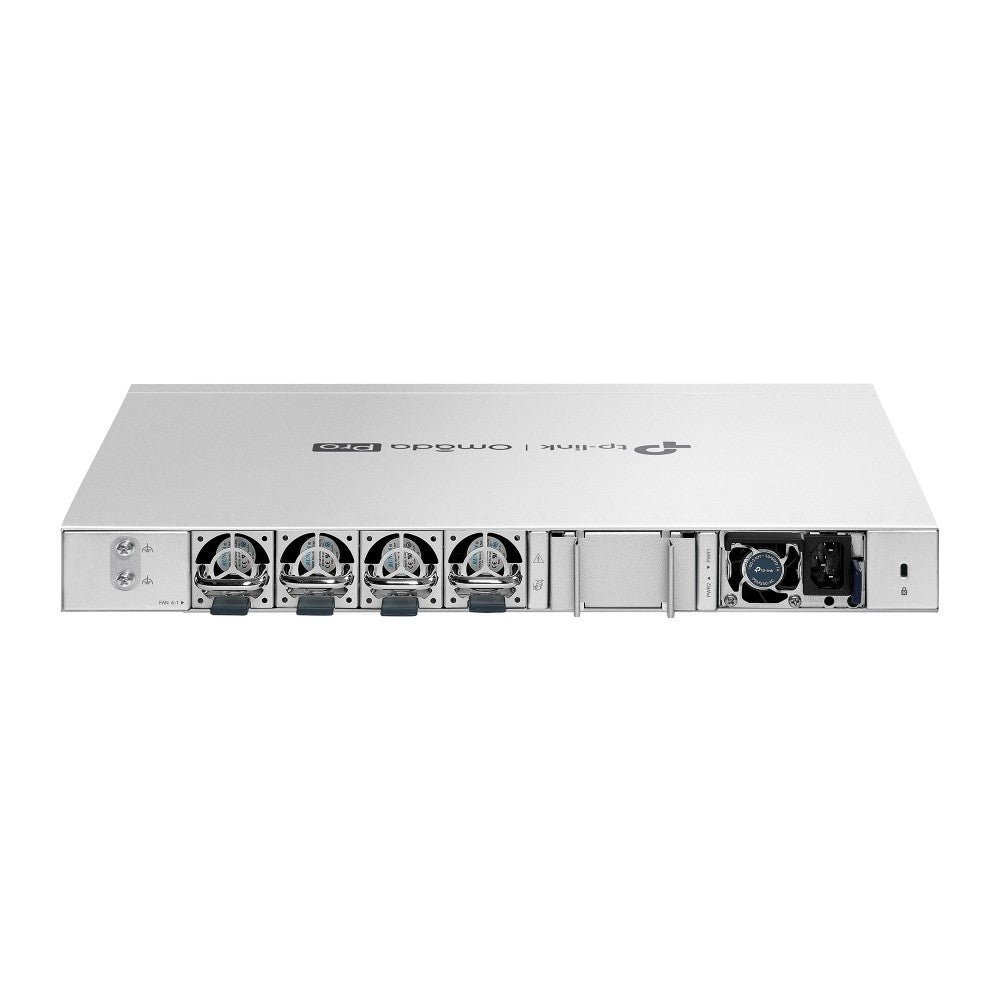

| Power supply | Two Field-replaceable and Hot-swappable Power Supply Modules*(100240 VAC, 50/60 Hz) *Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| Dimensions | 440 x 380 x 44 mm |
