Description

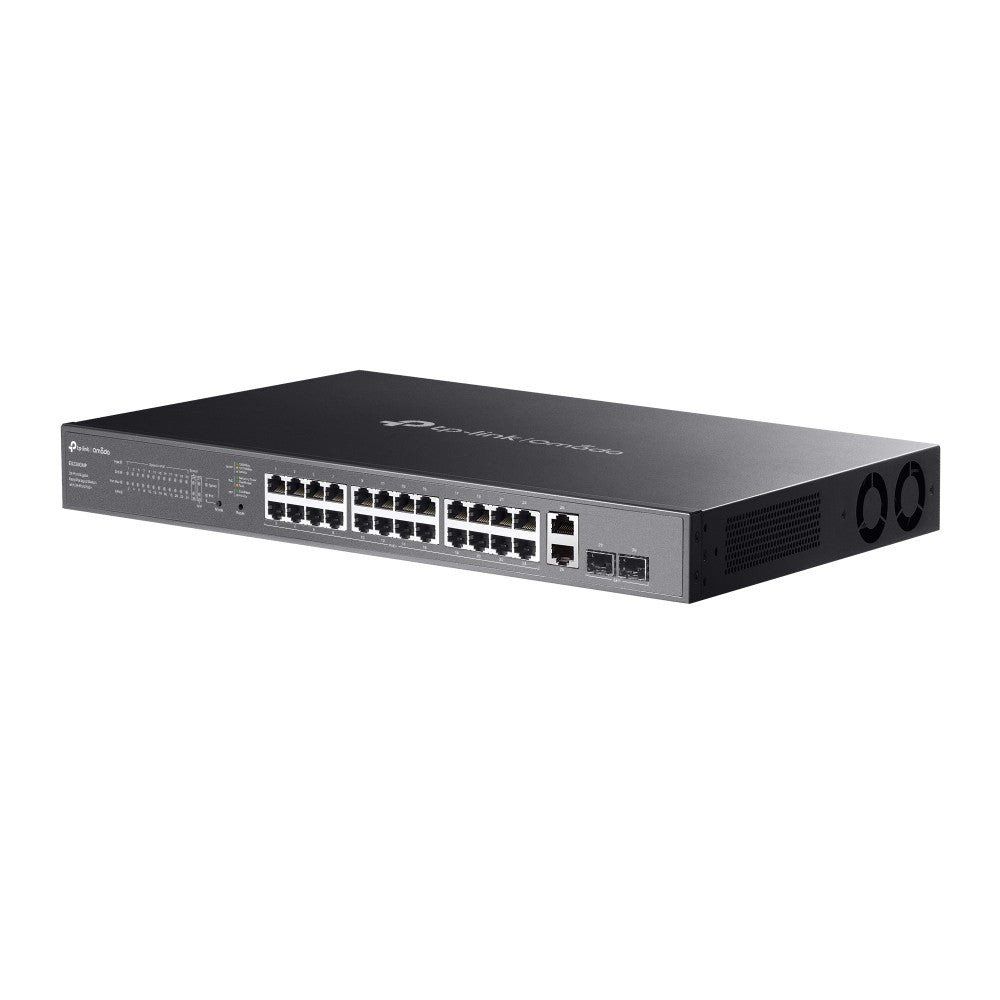

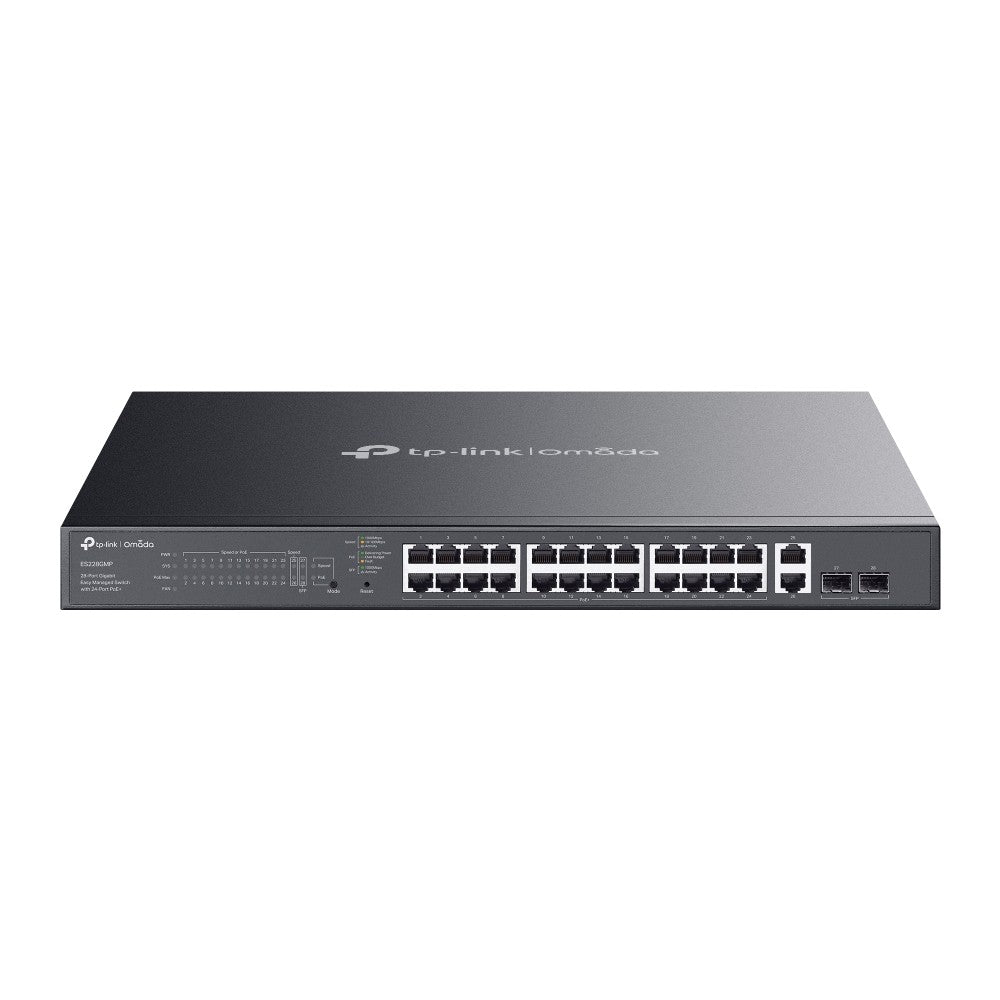

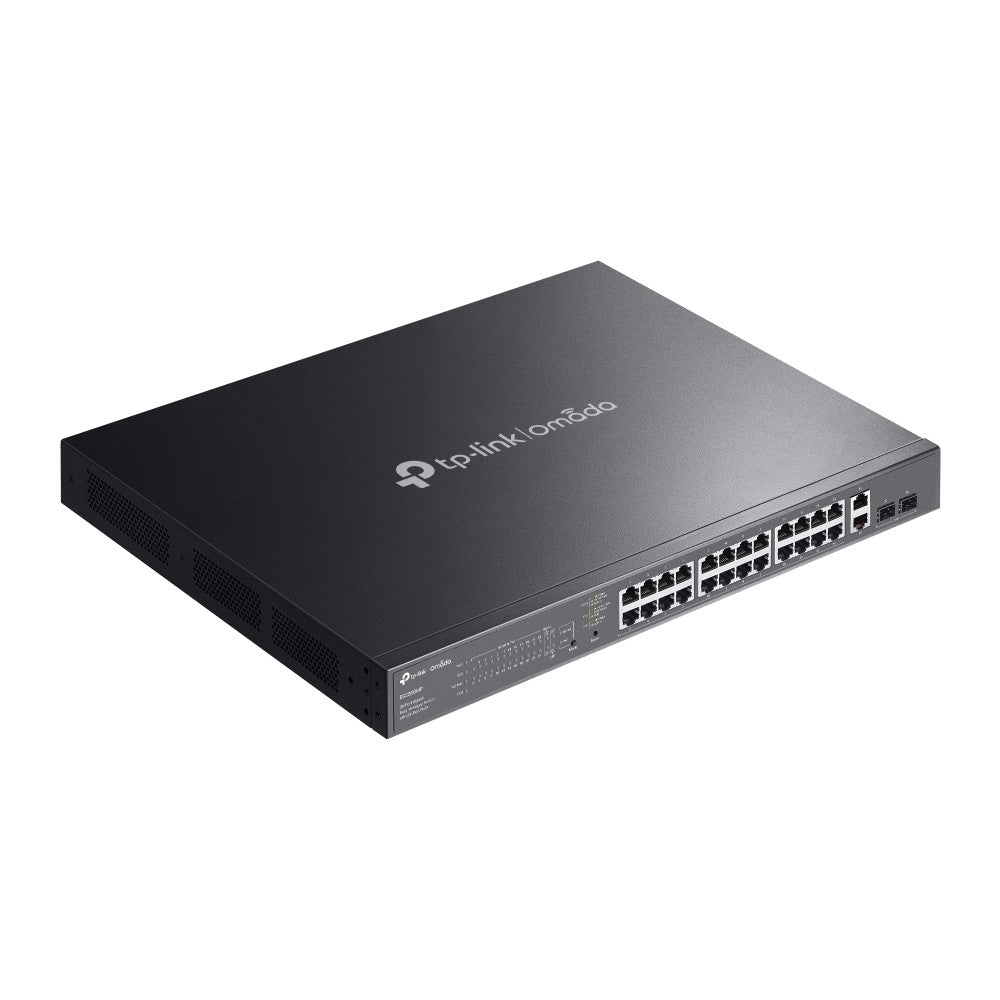

TP-LINK Switch ES228GMP
Specifications
| Description | Omada Easy Managed Switch, 28 Gigabit ports, including 24 PoE+ ports 26 Gigabit RJ45 ports (including 24 802.3at/af PoE+ compliant ports) 2 Gigabit SFP slots Up to 384W of total PoE power. Up to 30W of power per PoE port Ease of use thanks to plug-and-play operation, enabling instant connection, and simple configuration for access to additional features Centralized cloud management via the website or the Omada app Up to 250m PoE range, QoS, PoE Auto Recovery, and port isolation ensure a reliable surveillance network Automatic loop prevention, VLAN, and IGMP snooping Rugged metal housing with rack-mountability |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100/1000 Mbps ports | 26 |
| Number of PoE+ ports | 24 |
| Number of SFP ports | 2 |
| Console port | No |
| Forwarding mode | Store-and-forward |
| Throughput | 56 |
| Forwarding rate | 41.67 |
| Packet buffer | 4 |
| MAC address table size | 8000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 15 |
| VLAN | MTU VLAN Port-based VLAN 802.1Q Tag VLAN Max. 32 VLAN groups 4K VID |
| QoS | Port-based QoS/802.1p/DSCP 8 priority queues Priority scheduling mode WRR (Weighted Round Robin) Queue weight configuration Bandwidth control Port-based rate limiting Storm control Multiple control modes (kbps / pps) Broadcast/Multicast/Unknown-Unicast transmission control |
| Management, monitoring, configuration | Web GUI DHCP Client Cable Diagnostics Automatic Device Discovery Group Configuration Group Software Update Unified Configuration |
| L2 features | IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | External |
| Power consumption | 384 |
| Environment requirements | Permissible operating temperature: -5°C~45°C Permissible storage temperature: -40°C~70°C Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
| Certificates | FCC CE RoHS |
| Accessories included | ES228GMP Power cable Mounting brackets Rubber feet Screws Installation instructions |
| Power supply | 100240V AC, 50/60Hz |
| Dimensions | 440 × 330 × 44 mm |
