Description

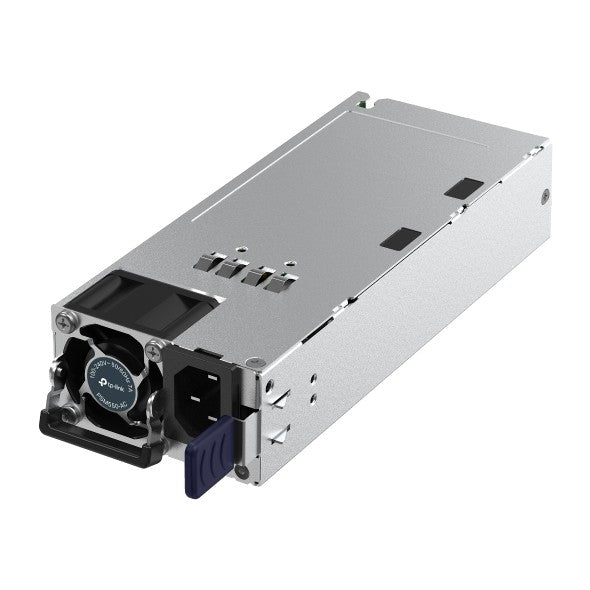

TP-LINK PSM550-AC Power Supply Module
Specifications
| Description | The TP-Link PSM550-AC is an AC-input, DC-output power supply module that converts AC input voltage to 12 V DC with a maximum output power of 550 W. The module is fully hot-swappable, ensuring uninterrupted system operation during installation or replacement. It is compatible with multiple Omada and Omada Pro switches, including the SX6632YF and S7500-26XF6Y. 550 W AC power supply module Up to 550 W output power 12 V DC output voltage Fully hot-swappable, ensuring uninterrupted system operation during installation or replacement Output overvoltage, overcurrent, short-circuit, and overtemperature protection Compatible with: SX6632YF, S7500-26XF6Y |
|---|---|
| I/O ports | None |
| Output voltage | 12 |
| Output power | 550 |
| Input voltage range | 100~240 VAC 47~63 Hz |
| Height | 40 |
| Width | 73.5 |
| Depth | 185 |
| Other features | AC input: 100-240 V AC, 50/60 Hz, 7 A DC output: 12 V Main: 12 V DC / 45 A (max.) 12 V Standby: 12 V DC / 2.1 A (max.) Surge protection: 4 kV Maximum output power: 550 W Environmental: Operating temperature (sea level to 3,000 m): 0°C to 55°C Operating temperature (sea level to 5,000 m): 0°C to 45°C Storage temperature: -40°C to 70°C Operating humidity: 5%-90% RH, non-condensing Storage humidity: 5%-95% RH, non-condensing |
