Description

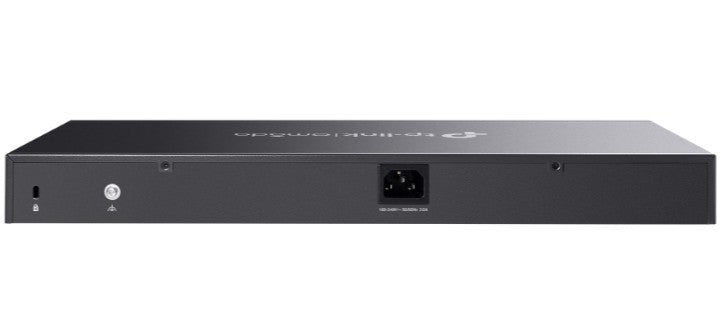

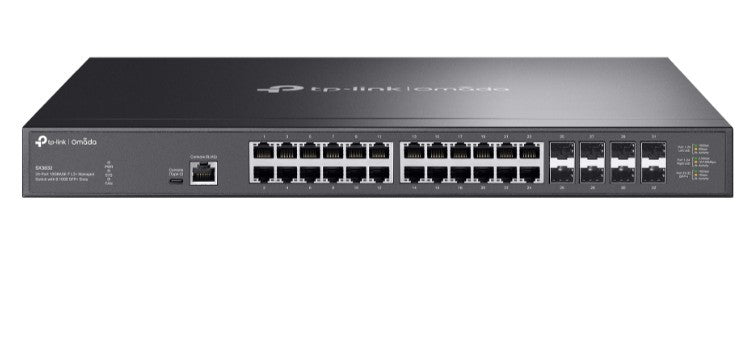

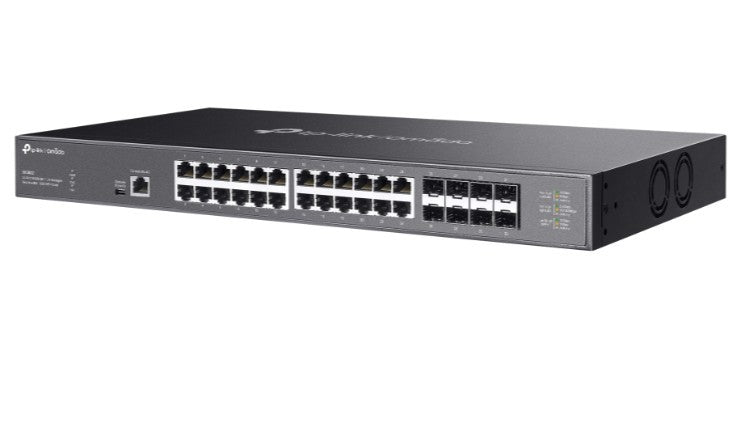

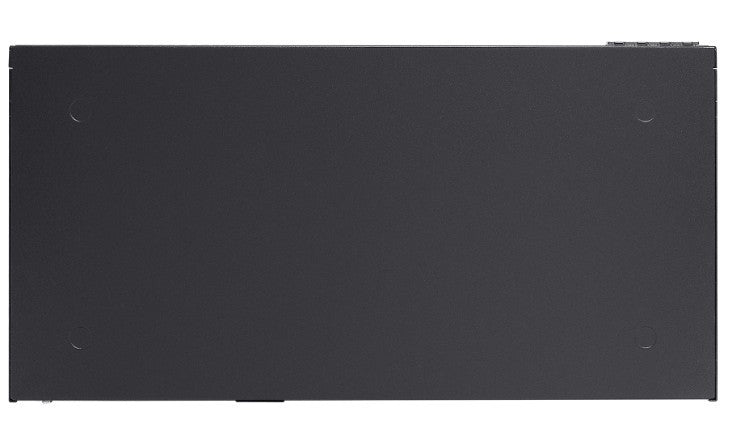

TP-LINK Managed Switch Omada 24-Port 10GBASE-T L2+ with 8 10GE SFP+ Slots SX3832
Specifications
| Description | SX3832 Omada L2+ Managed Switch, 24 10GBASE-T Ports, 8 10GE SFP+ Slots 24 RJ45 ports with speeds of 1/2.5/5/10 Gbps 8 SFP+ slots with speeds of 1/10 Gbps 640 Gbps switching capacity Centralized cloud management via the Omada app or web interface Autonomous management via web interface, CLI, SNMP, and RMON Static Routing for easy internal traffic management for improved performance VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM ERPS for fast protection and recovery in a ring topology Rugged metal housing and rack-mountable design |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | None |
| Number of 10/100/1000 Mbps ports | 24 |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | 8 |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | None |
| Number of SFP56 ports | None |
| Number of QSFP+ ports | None |
| Console port | Yes |
| Forwarding mode | Store-and-forward |
| Throughput | 640 |
| Forwarding rate | 240 |
| MAC address table size | 32000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 9 |
| Stackability | No |
| Security | IP, MAC, and Port Binding: 512 entries; DHCP Snooping; ARP Inspection; IPv4 Source Address Protection: 96 entries IPv6, MAC, and Port Binding: 512 entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Address Protection: 95 entries DoS Protection DHCP Filter Port Protection via Static/Dynamic/Fixed Configuration: Up to 64 MAC Addresses per Port Storm Control Broadcast/Multicast/Unicast: Control Mode (Kbps / Rate) 802.1X Authentication: Port-Based Authentication; MAC-Based Authentication; VLAN Assignment; MAB; Guest VLAN; Authentication and authorization via Radius AAA (including TACACS+) Port isolation Secure web management via HTTPS with SSLv3/TLS 1.2 encryption Secure CLI management with SSHv1/SSHv2 encryption Access control based on IP/port/MAC |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | External |
| Power consumption | 104.9 |
| Mean time between failures (MTBF) | 568258 |
| Environment requirements | Permissible operating temperature: -5~50 degrees Celsius Permissible storage temperature: -40~70 degrees Celsius Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing |
| Certificates | CE, FCC, RoHS |
| Power supply | 100-240 V AC~50/60 Hz |
| Dimensions | 440 x 220 x 44 mm |
