Description
TP-Link EAP787
Specifications
| Description | BE15000 Tri-Band Ceiling-Mount Wi-Fi 7 Access Point Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference mitigation for robust wireless performance. Maximum 6 GHz Coverage with AFC: Unlock stronger signals and extended performance on the 6 GHz band. Tri-Band, 8-Stream Wi-Fi 7: 5765 Mbps on the 6 GHz band, 8648 Mbps on the 5 GHz band, and 688 Mbps on the 2.4 GHz band. 1 10G Port: Ensures fast connectivity throughout the network. Low Latency and Interference: 320 MHz bandwidth, multi-link support, multi-RU support, and 4K-QAM modulation ensure high network performance. Flexible Deployment and Easy Configuration: Supports both 802.3bt PoE and DC power for flexible installation, thanks to Omada SDN, which enables one-click configuration. Advanced Features: Supports centralized management, mesh networking, and seamless roaming. Greater Throughput and Coverage: Supports over 510 concurrent clients and covers an area of up to 190 square meters, ensuring reliable and extensive wireless connectivity. |
|---|---|
| Network architecture | GigabitEthernet |
| I/O ports | 1 x 10/100/1000 Mbit/s PoE |
| Operating frequency | 5 GHz |
| Operating frequency | 2,4 GHz |
| Operating frequency | 6 GHz |
| Standards | 802.11be |
| Standards | 802.11g |
| Standards | 802.11ax |
| Standards | 802.11n |
| Standards | 802.11b |
| Standards | 802.11a |
| Number of antennas | 1 |
| Antenna | Built-in |
| Antenna gain | 5 |
| Security | Captive Portal Authentication Access Control MAC Address Filter Wireless Isolation Between Clients VLANs Rogue Access Point Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Management, monitoring, configuration | Omada App Cloud Access: Yes. Requires an Omada Controller. Email Alerts LED On/Off Control MAC Access Control Management SNMP v1, v2c, v3 System Logging: Local/Remote Syslog Web-based Management Central Management: Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller |
| Power supply | 802.3bt/at PoE or 12V/2.5A DC |
| Environment requirements | Operating temperature: 0°C-40°C Storage temperature: -40°C-70°C Operating humidity: 10%-90% non-condensing Storage humidity: 5%-90% non-condensing |
| Certificates | CE, FCC, RoHS, IC |

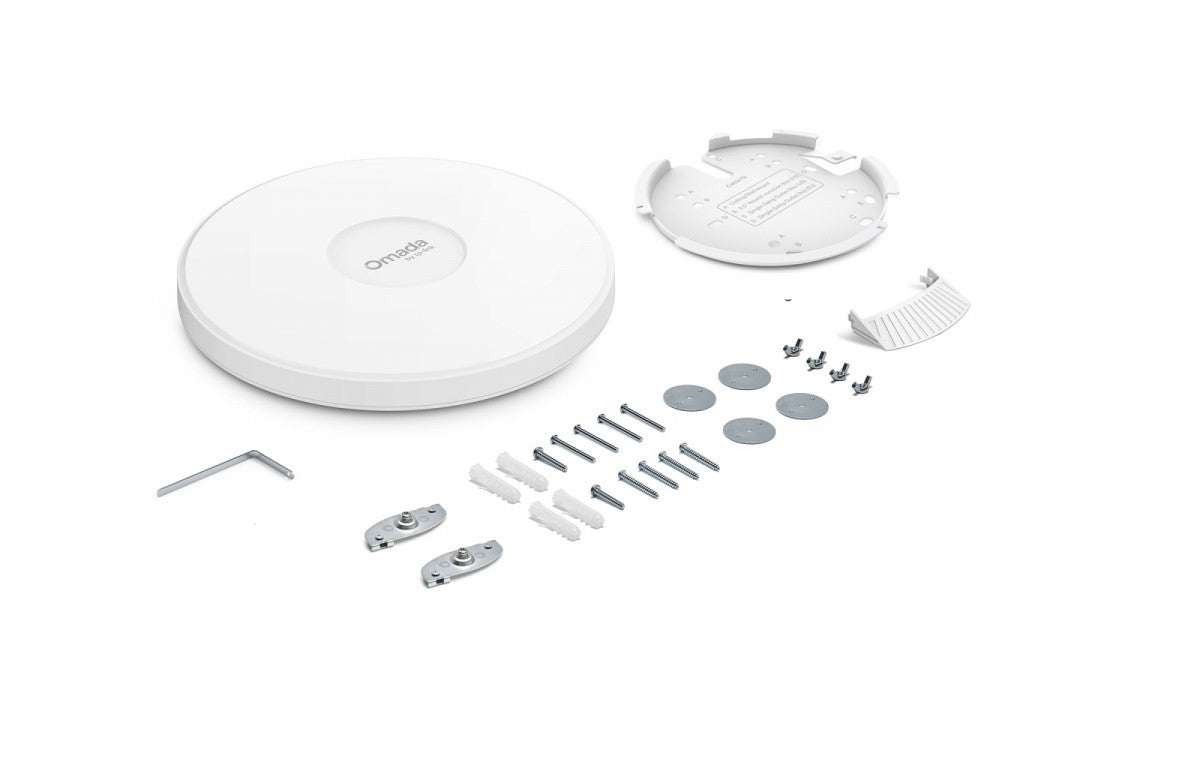

| Accessories included | EAP787 Installation Instructions Ceiling/Wall/Junction Box Mounting Kit Note: Power supply NOT included. |
| Color | White |
| Dimensions | 220 × 220 × 38.8 mm |
