Description

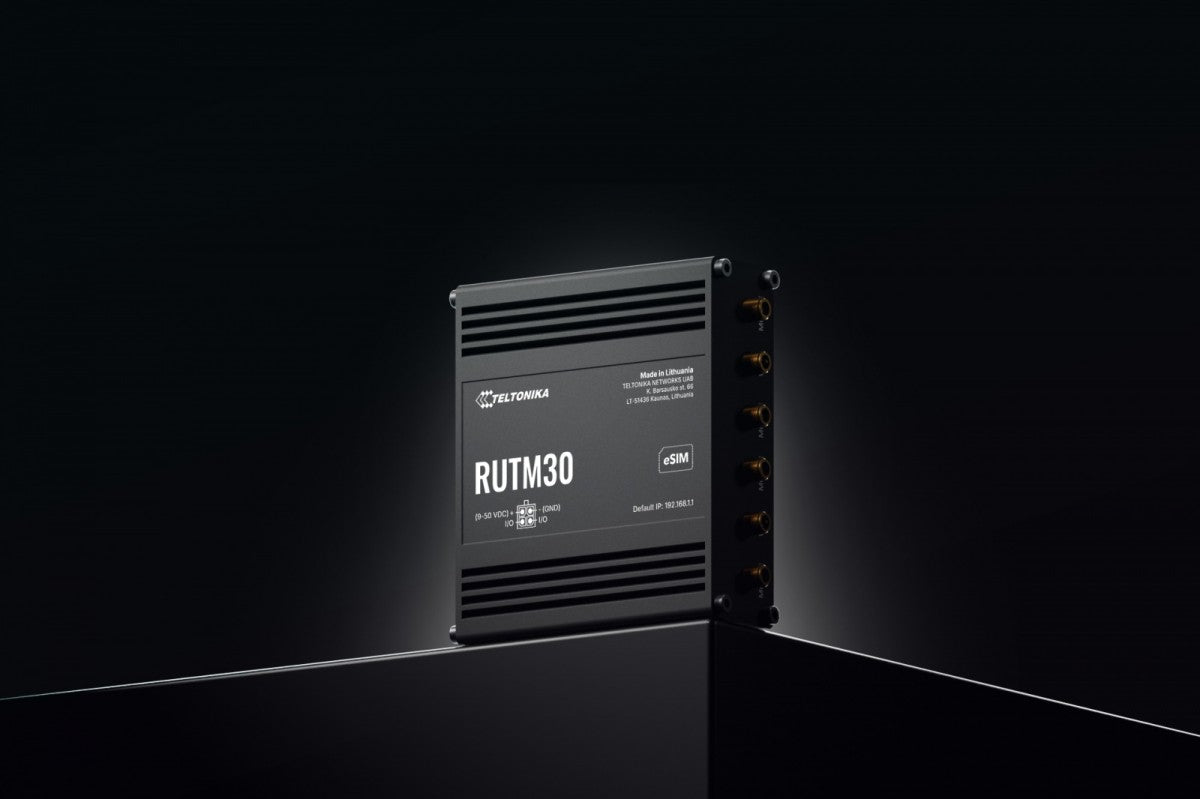

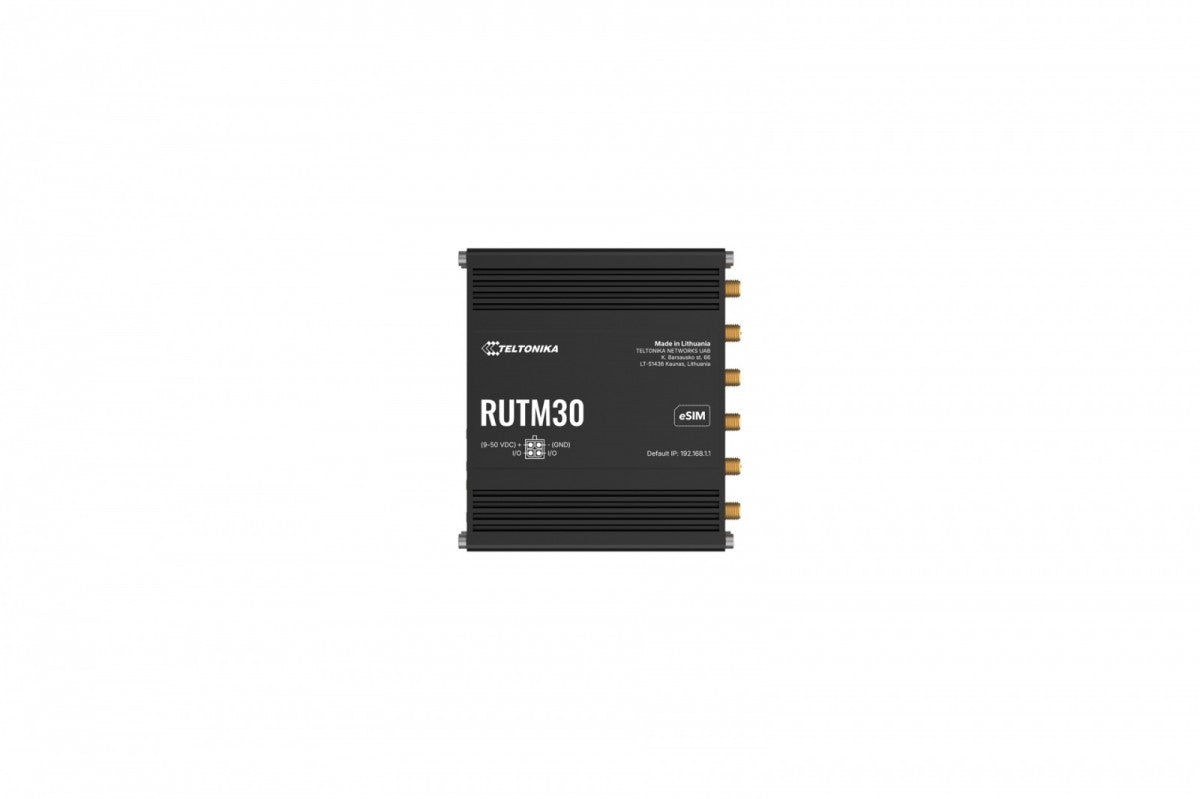

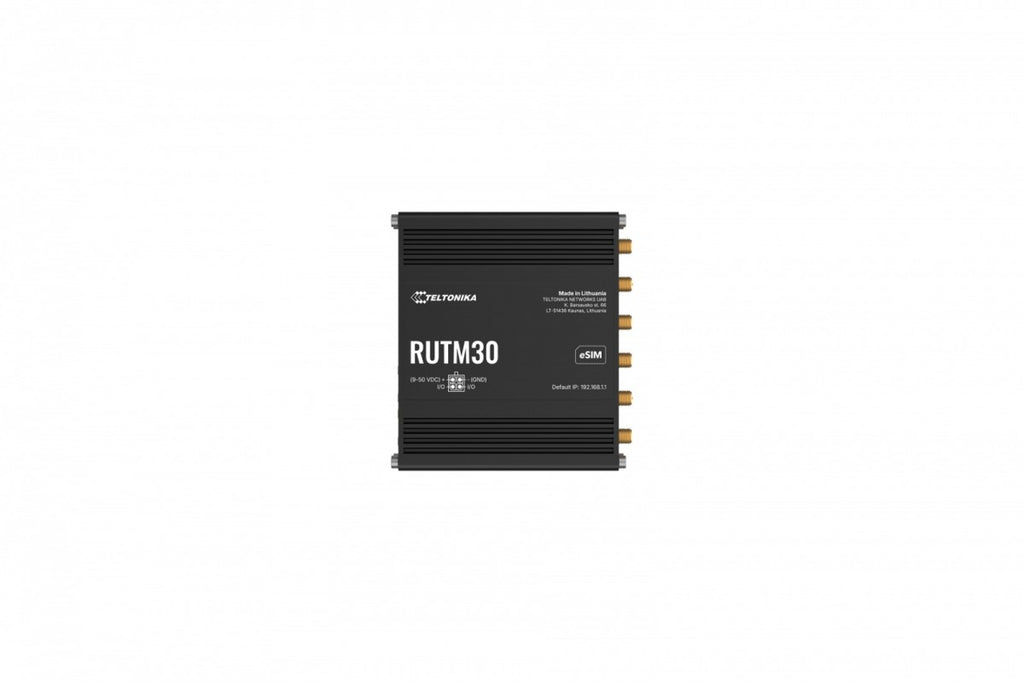

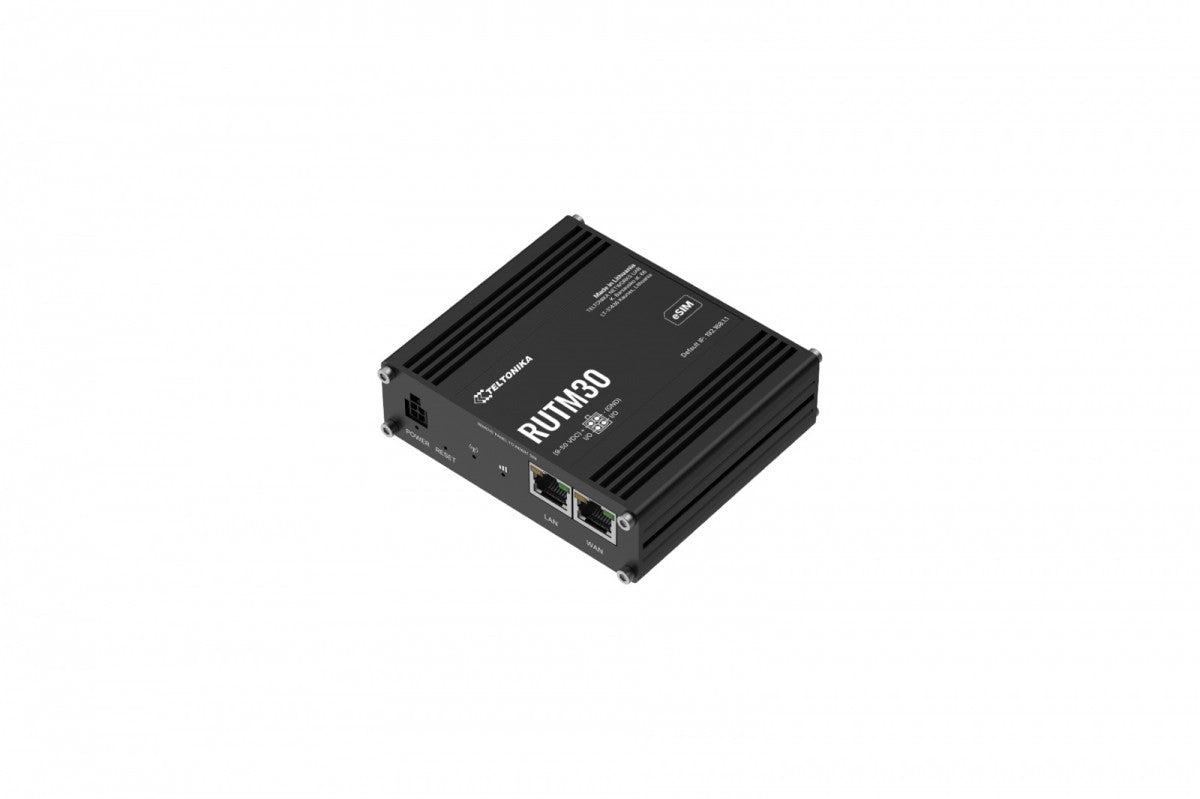

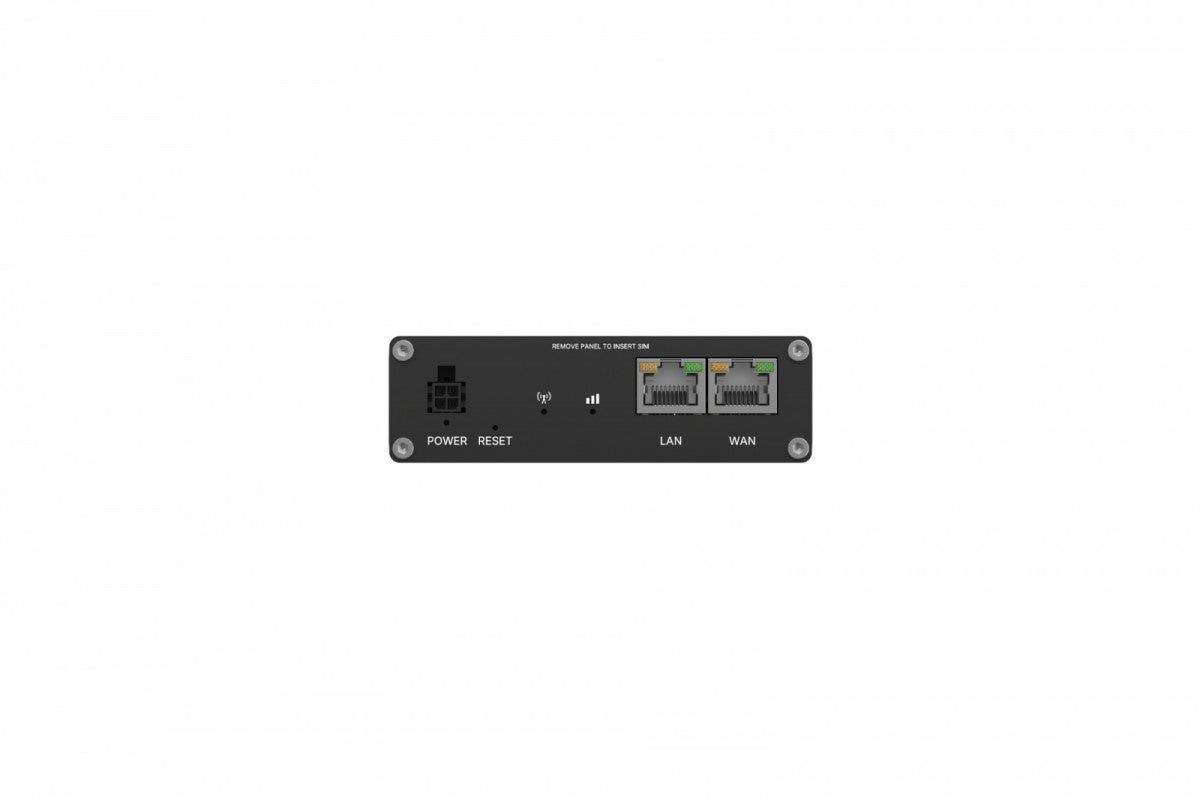

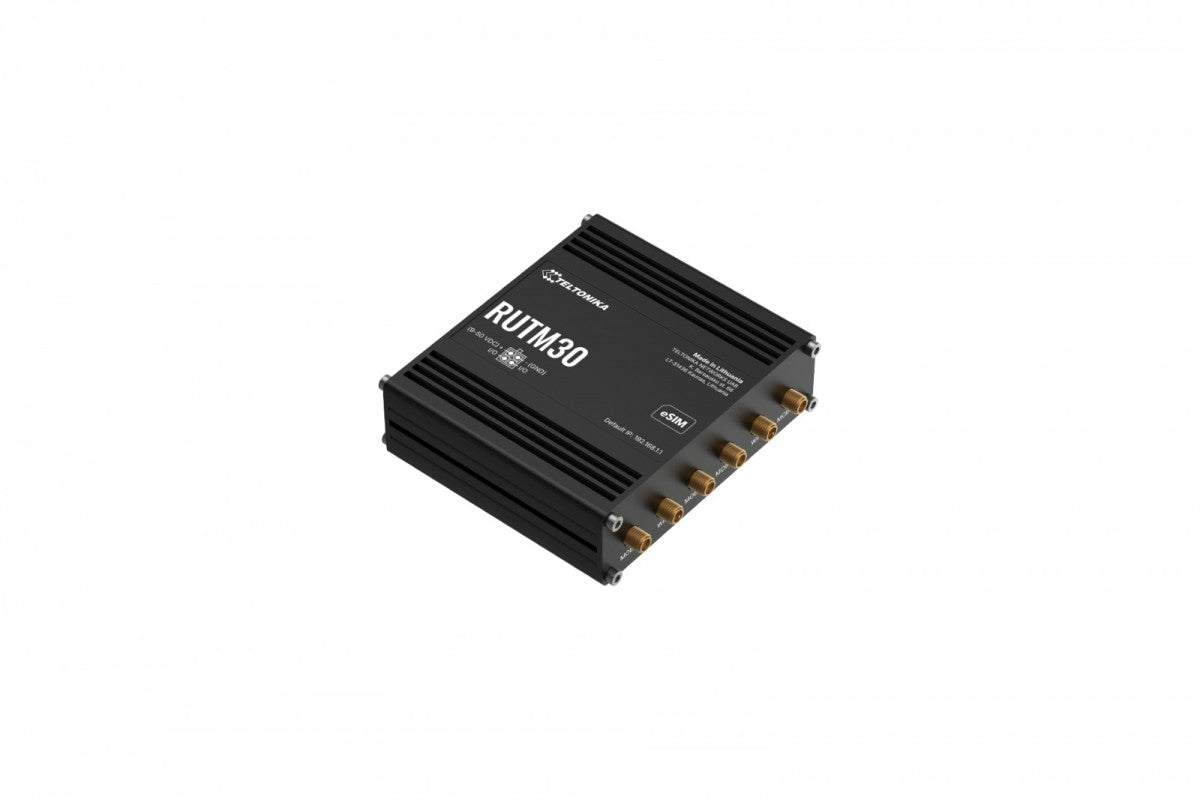

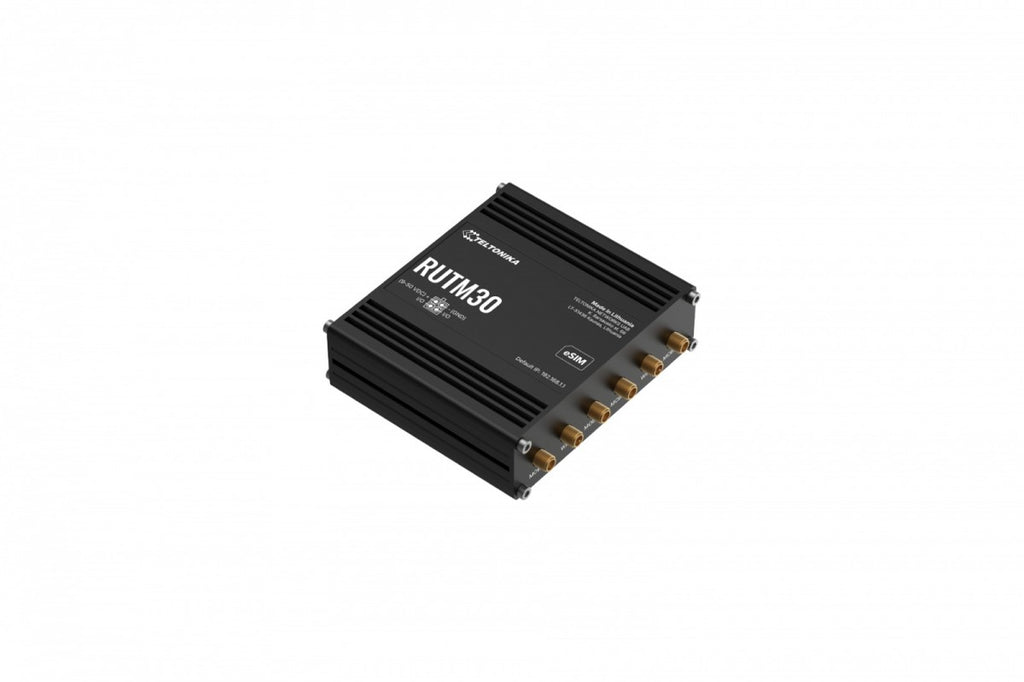

TELTONIKA Router RUTM30
Specifications
| Model | RUTM30 |
|---|---|
| Description | RUTM30 COMPACT 5G ROUTER The RUTM30 is a compact, dual-SIM, multi-network router with eSIM that delivers 5G mobile connectivity for data-intensive applications. Equipped with two Gigabit Ethernet ports and dual-band Wi-Fi, it offers data connection redundancy with auto-failover. Its backward compatibility with LTE Cat 19 and multiple interfaces ensure long-term network expandability and simple upgrades. The RUTM30 is ideal for various IoT and M2M solutions that demand high-speed connectivity, easy setup, and remote access. CONNECTIVITY - 5G, 4G Cat19, 3G DUAL SIM - With auto failover, backup WAN, and other switching scenarios eSIM - Seamless connectivity with eSIM SGP.22 SA & NSA - Supports both architectures to leverage the 5G infrastructure |
| Type | v |
| Type | GSM 3G/4G |
| Data transmission | LTE |
| Data transmission | UMTS |
| Data transmission | 5G |
| UMTS network | 900 MHz |
| UMTS network | 2100 MHz |
| UMTS network | 850 MHz |
| LTE network | 850 MHz |
| LTE network | 2100 MHz |
| LTE network | 700 MHz |
| LTE network | 2300 MHz |
| LTE network | 2500 MHz |
| LTE network | 800 MHz |
| LTE network | 2600 MHz |
| LTE network | 1800 MHz |
| LTE network | 900 MHz |
| LTE network | 3500 MHz |
| LTE network | 3700 MHz |
| LTE network | 1500 MHz |
| LTE network | 600 MHz |
| 5G network | 1500 MHz |
| 5G network | 2600 MHz |
| 5G network | 3500 MHz |
| 5G network | 700 MHz |
| 5G network | 3700 MHz |
| 5G network | 800 MHz |
| 5G network | 2300 MHz |
| 5G network | 1800 MHz |
| 5G network | 2100 MHz |
| 5G network | 850 MHz |
| 5G network | 900 MHz |
| Max download speed | 3.4 |
| Max upload speed | 550 |
| Aero2 support | No |
| Standards | 802.11v |
| Standards | 802.3 |
| Standards | 802.3u |
| Standards | 802.11e |
| Standards | 802.11s |
| Standards | 802.3at |
| Standards | 802.3bt |
| Standards | 802.3az |
| Standards | 802.11k |
| Standards | 802.11w |
| Standards | 802.11r |
| Standards | 802.11n |
| Standards | 802.11b |
| Standards | 802.11g |
| Standards | 802.11ac |
| Standards | 802.3af |
| Standards | 802.1x |
| Operating frequency | 2,4 GHz |
| Operating frequency | 5 GHz |
| Operating frequency | 6 GHz |

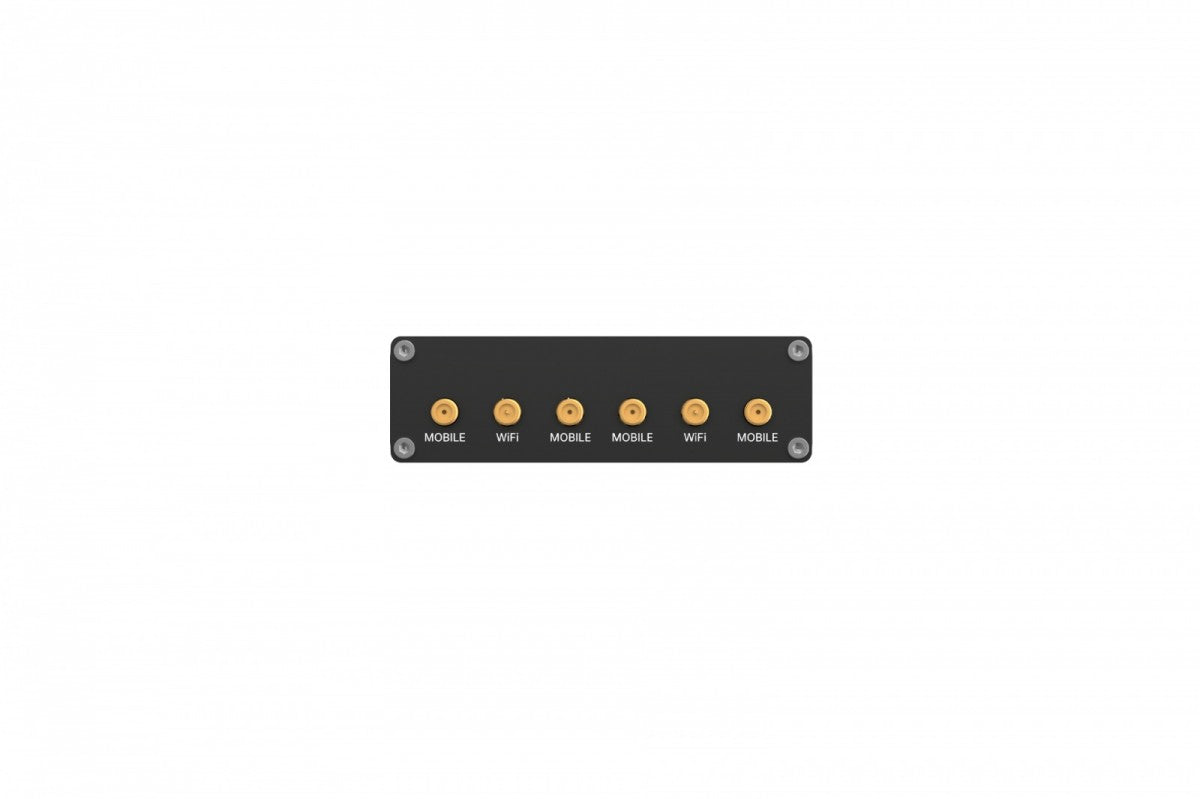

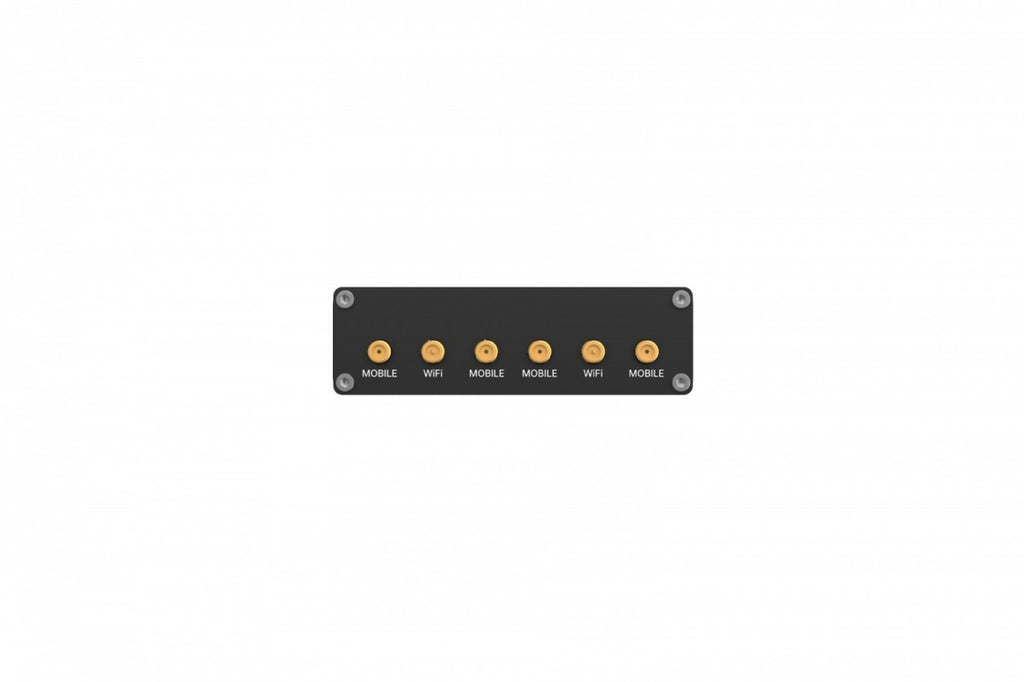

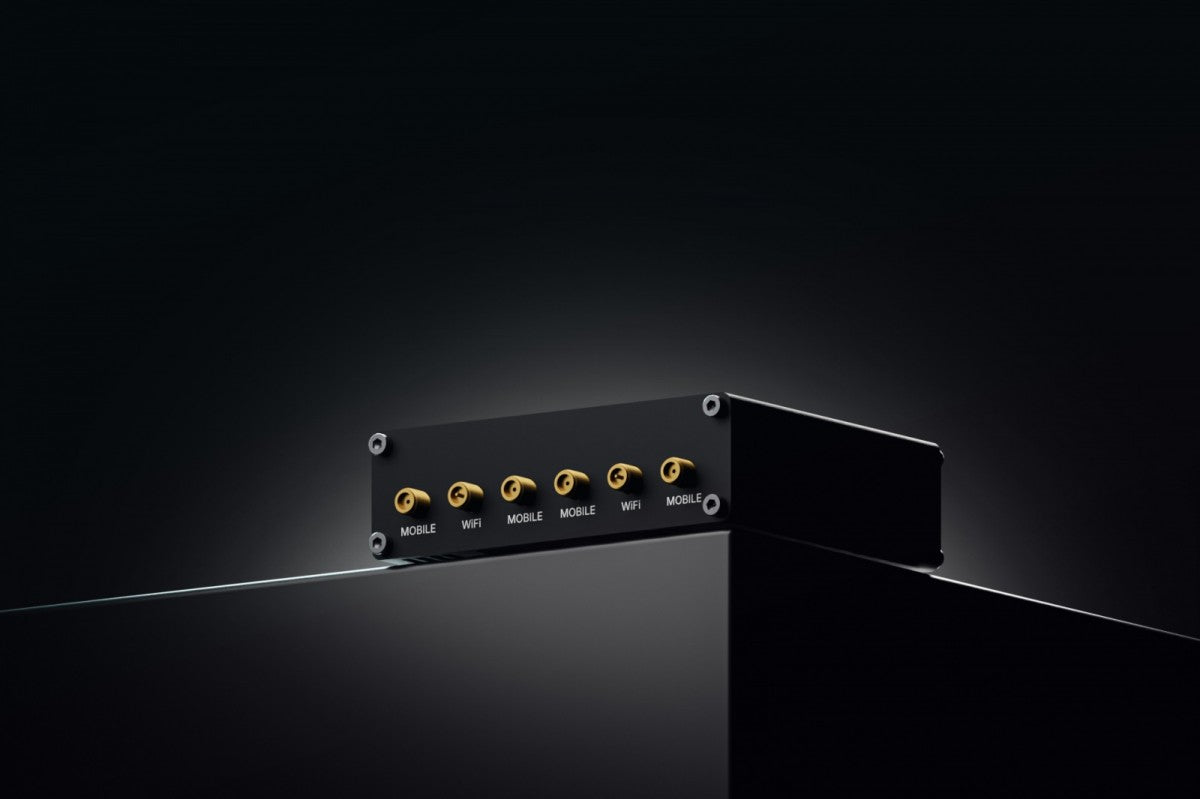

| Number of antennas | Six connectors |
| Antenna | Detachable external |
| Management, monitoring, configuration | WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off Email: Receive email message status alerts of various services TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem MQTT: MQTT Broker, MQTT publisher SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection JSON-RPC: Management API over HTTP/HTTPS MODBUS: MODBUS TCP status/control RMS: Teltonika Remote Management System (RMS) |
| Security | Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag-based VLAN separation Mobile quota control: Custom data limits for SIM card WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only Access control: Flexible access control of SSH, Web interface, CLI and Telnet TPM: Identification and authentication module, TPM 2.0 standard Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates 802.1x: Port-based network access control client WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| Card reader | None |

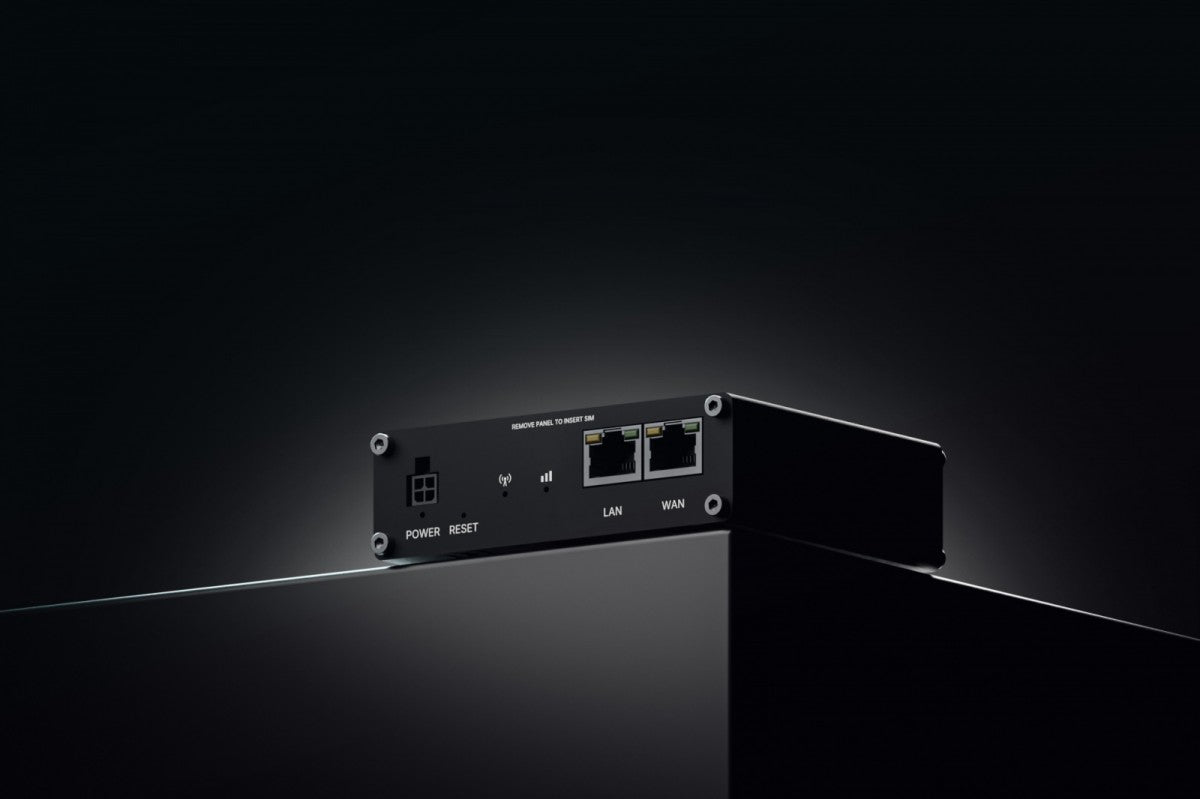

| I/O ports | 2 x 10/100/1000 Mbit/s |
| I/O ports | 2 x SIM card slot |
| SIM card | Mini |
| Power supply | Idle: |
| Certificates | CE: EN IEC 62311:2020 RCM: TBD CB: EN IEC 62368-1:2020+A11:2020 |
| Environment requirements | Operating temperature: -40 °C to 75 °C Operating humidity: 10% to 90% non-condensing Ingress Protection Rating: IP30 |
| Accessories included | RUTM30 Router 18 W PSU 4 x 5G Straight compact mobile antennas (SMA male) 2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable) Ethernet cable (1.5 m) SIM Adapter kit 1 x hex key QSG (Quick Start Guide) Packaging box |
| Color | Black |
| Weight | 319 |
| Dimensions | 100 x 30 x 93.7 mm |
