Description

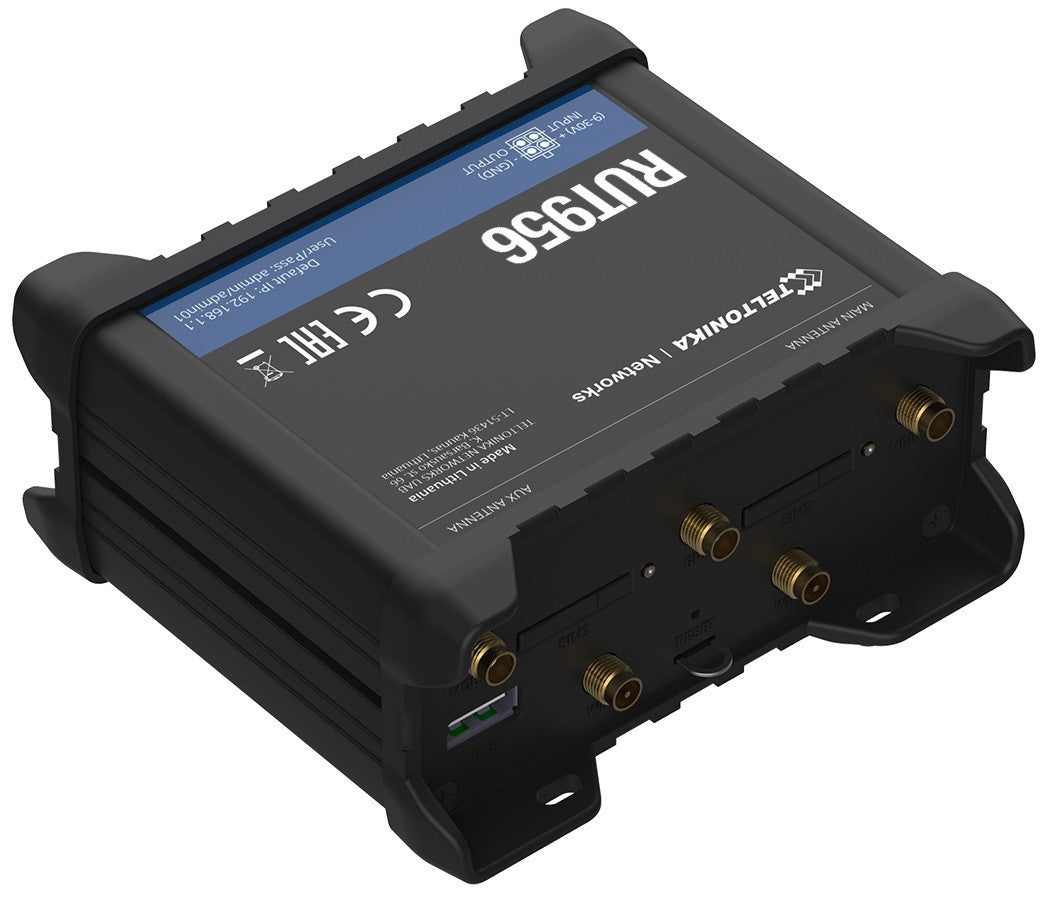

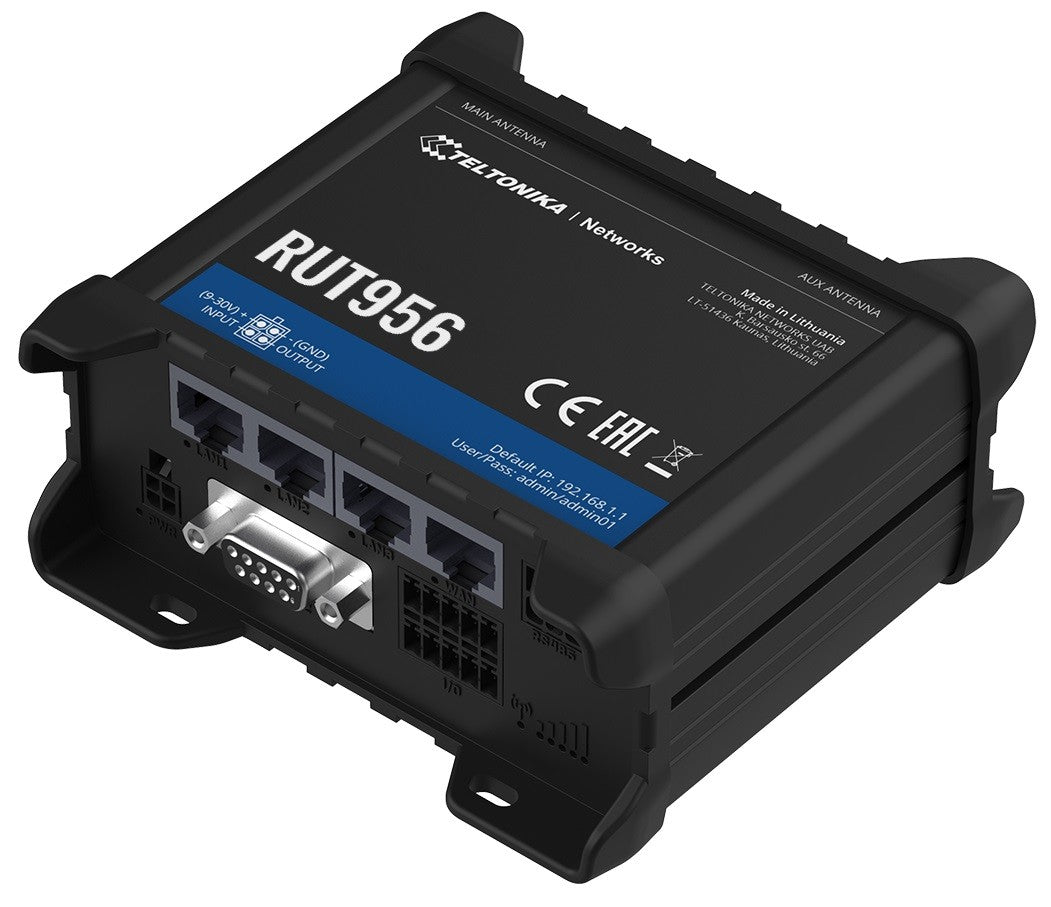

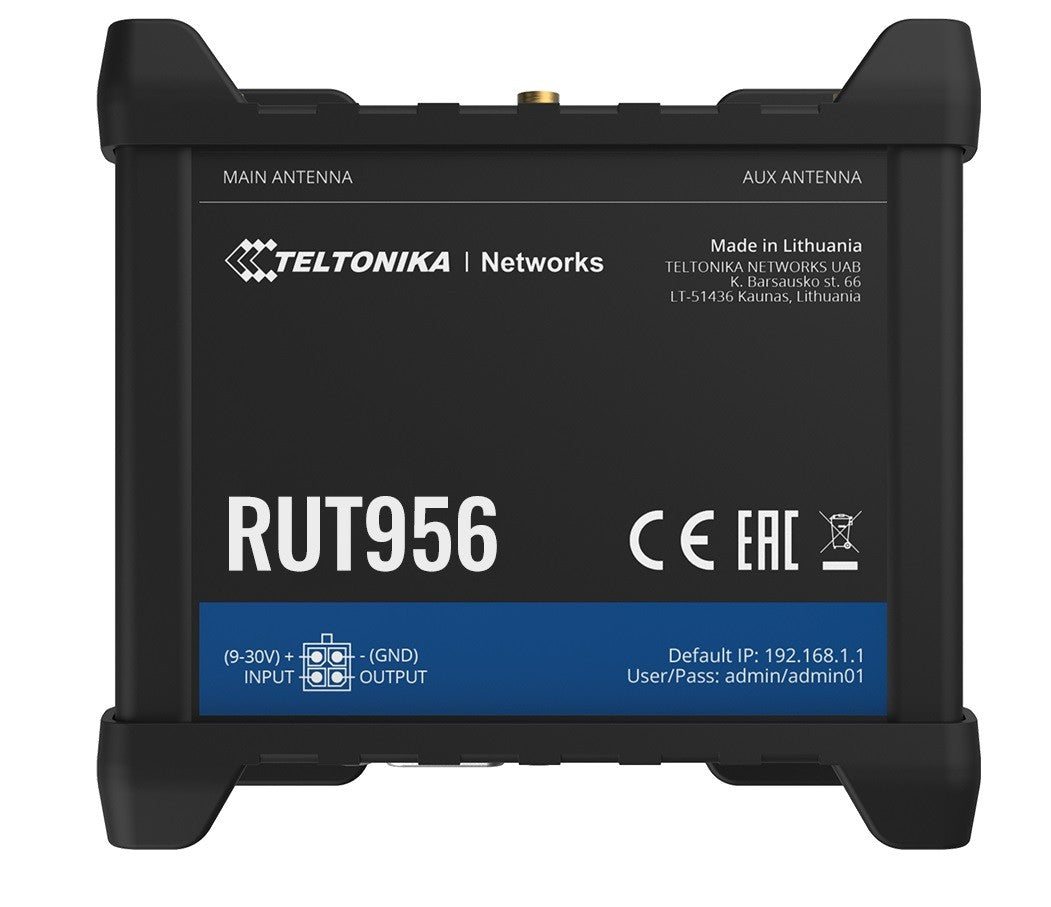

TELTONIKA Router LTE RUT956 (Cat 4), 2G, GNSS, WiFi
Specifications
| Model | RUT956 |
|---|---|
| Description | RUT956 router RUT956 is an industrial router that combines dual-SIM 4G LTE cellular, Wi-Fi and wired connectivity options, in addition to GNSS capabilities. Automatic WAN failover ensures the solution continues to operate even if the main connection is lost. Serial communication interfaces enable the integration of the most diverse devices, even older ones. Digital and analog I/O with advanced RutOS software features facilitate equipment control, automation and event notification. The router is equipped with advanced industrial software features, including Modbus, SNMP, TR-069, NTRIP, MQTT and many VPNs. |
| Type | GSM 3G/4G |
| Data transmission | GPRS |
| Data transmission | UMTS |
| Data transmission | LTE |
| GSM network | 1900 MHz |
| GSM network | 900 MHz |
| UMTS network | 850 MHz |
| UMTS network | 900 MHz |
| UMTS network | 2100 MHz |
| LTE network | 2300 MHz |
| LTE network | 2500 MHz |
| LTE network | 2100 MHz |
| LTE network | 800 MHz |
| LTE network | 850 MHz |
| LTE network | 900 MHz |
| LTE network | 1800 MHz |
| Aero2 support | No |
| Standards | 802.11n |
| Standards | 802.11g |
| Standards | 802.3u |
| Standards | 802.11b |
| Standards | 802.11e |
| Standards | 802.3 |
| Operating frequency | 2,4 GHz |
| Number of antennas | Five connectors |
| Antenna | Detachable external |
| Security | Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Set up custom data limits for both SIM cards WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter Secure Boot: Cryptographic integrity check of the each system boot process (available on device with special order code RUT955T073B0). WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| Management, monitoring, configuration | Cellular functions: Band lock, SIM switch, Operator black/white list, Data/SMS limits Network: Failover (Network backup), VLAN, QoS, Load Balancin Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator GNSS: NMEA forwarding, AVL, Geofencing Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT Serial: Console, Over IP, Modem, NTRIP, Modbus |
| Card reader | None |

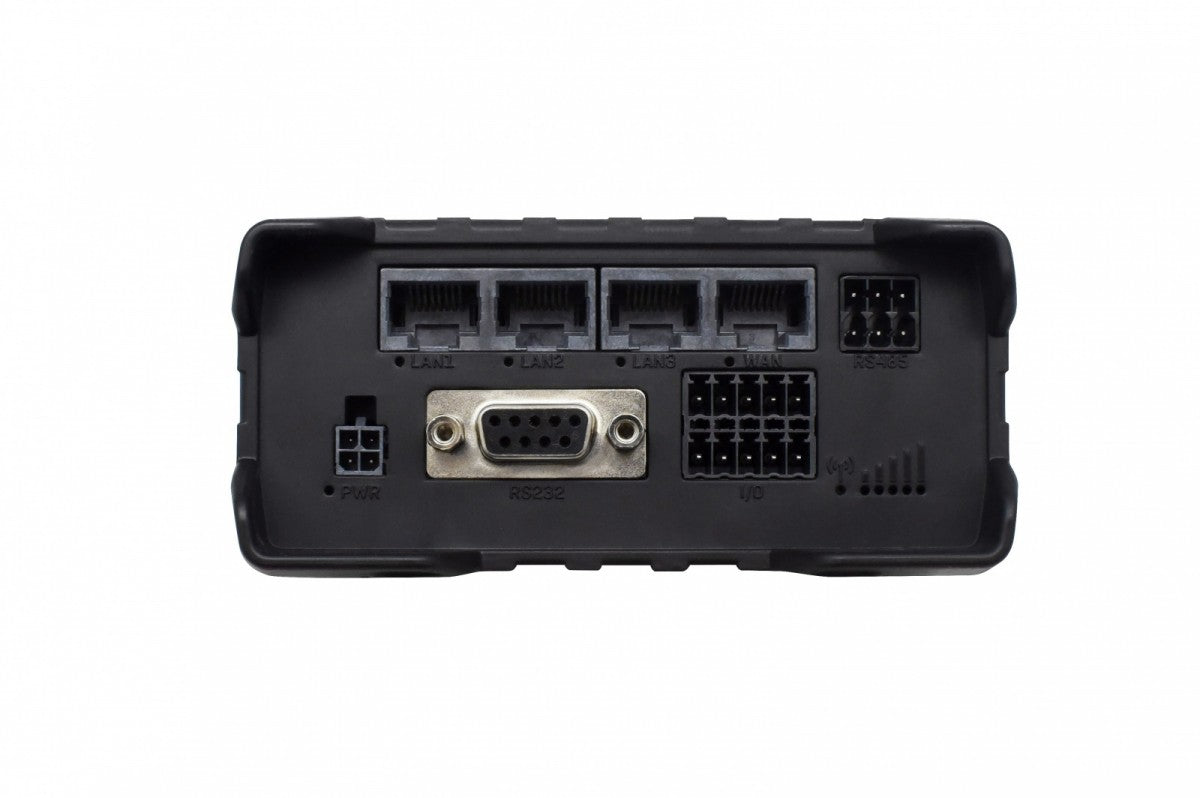

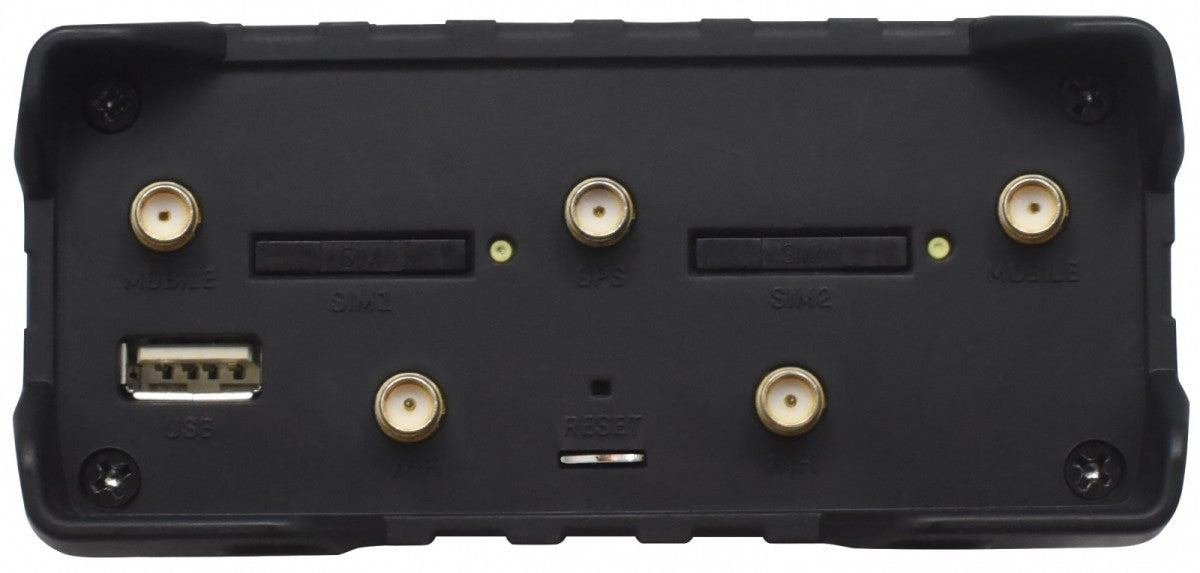

| I/O ports | 1 x USB 2.0 |
| I/O ports | 1 x 10/100 Mbit/s WAN |
| I/O ports | 2 x SIM card slot |
| I/O ports | 3 x 10/100 Mbit/s |
| I/O ports | 1 x Console port (RS-232) |
| I/O ports | 1 x RS-485 |
| SIM card | Mini |
| Power supply | 4pin connector, 9-30 VDC |
| Software | RutOS (OpenWrt based Linux OS) |
| Environment requirements | Operating temperature: -40°C to 75°C Operating humidity: 10% to 90% non-condensing |
| Accessories included | RUT956 router 9W power supply 2 x LTE antenna (magnetic mount, SMA male, 3 m cable) 2 x WiFi antenna (magnetic mount, RP-SMA male, 1.5 m cable) GNSS antenna (adhesive, SMA male, 3 m cable) RS485 block connector I/O block connector Ethernet cable (1.5 m) SIM Adapter kit RMS leaflet Quick Start Guide |
| Color | Black |
| Weight | 295 |
| Dimensions | 110 x 50 x 100 mm |
| Other features | Network support: 4G/LTE (Cat 4), 3G, 2G CPU: Mediatek MIPS 24Kc 580MHz Memory: 16 MB Flash, 128 MB RAM LED: 2-color network type indication, 5x signal strength, 4x Ethernet, power supply 10 pin connector: 1 x isolated input, 1 x digital input (dry), 1 x analog input, 1 x isolated open collector output (requires external voltage), 1 x relay output |
