Description

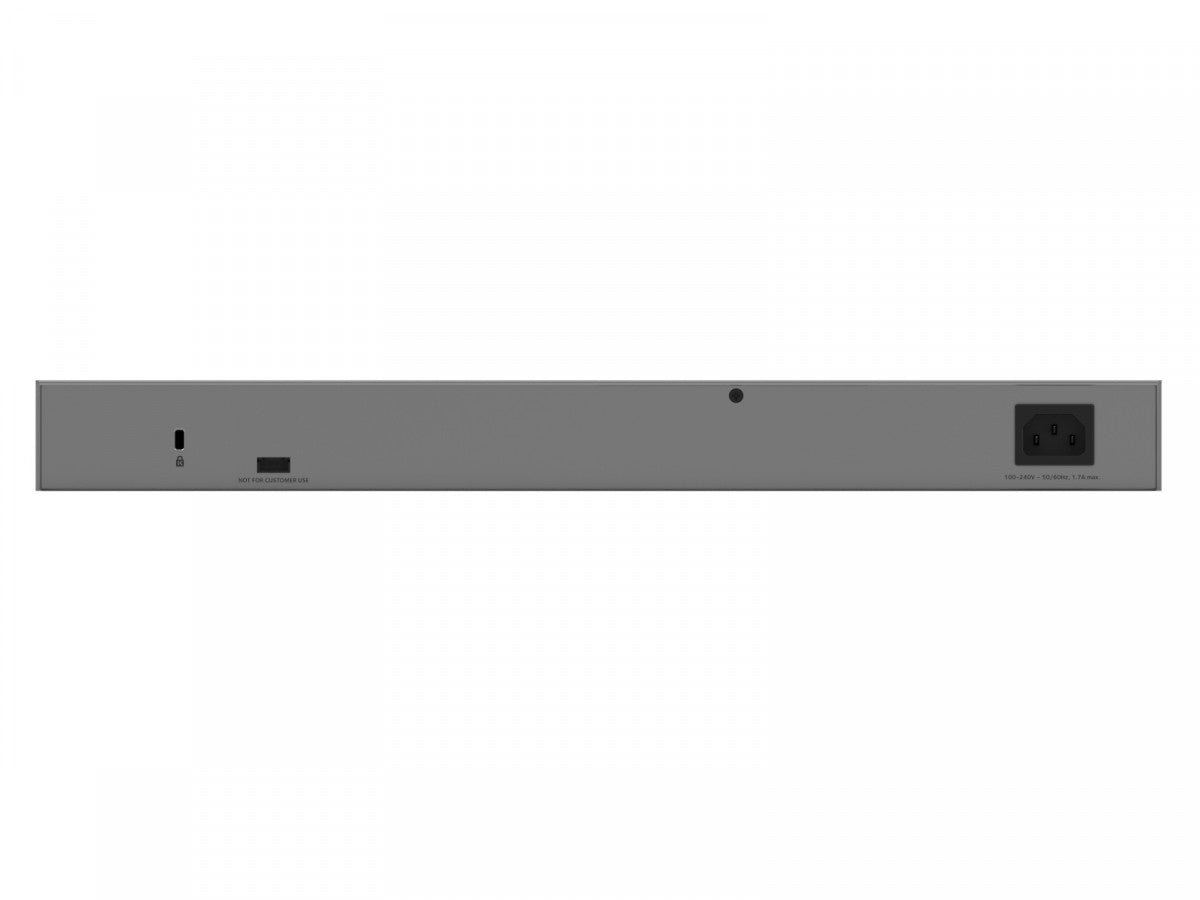

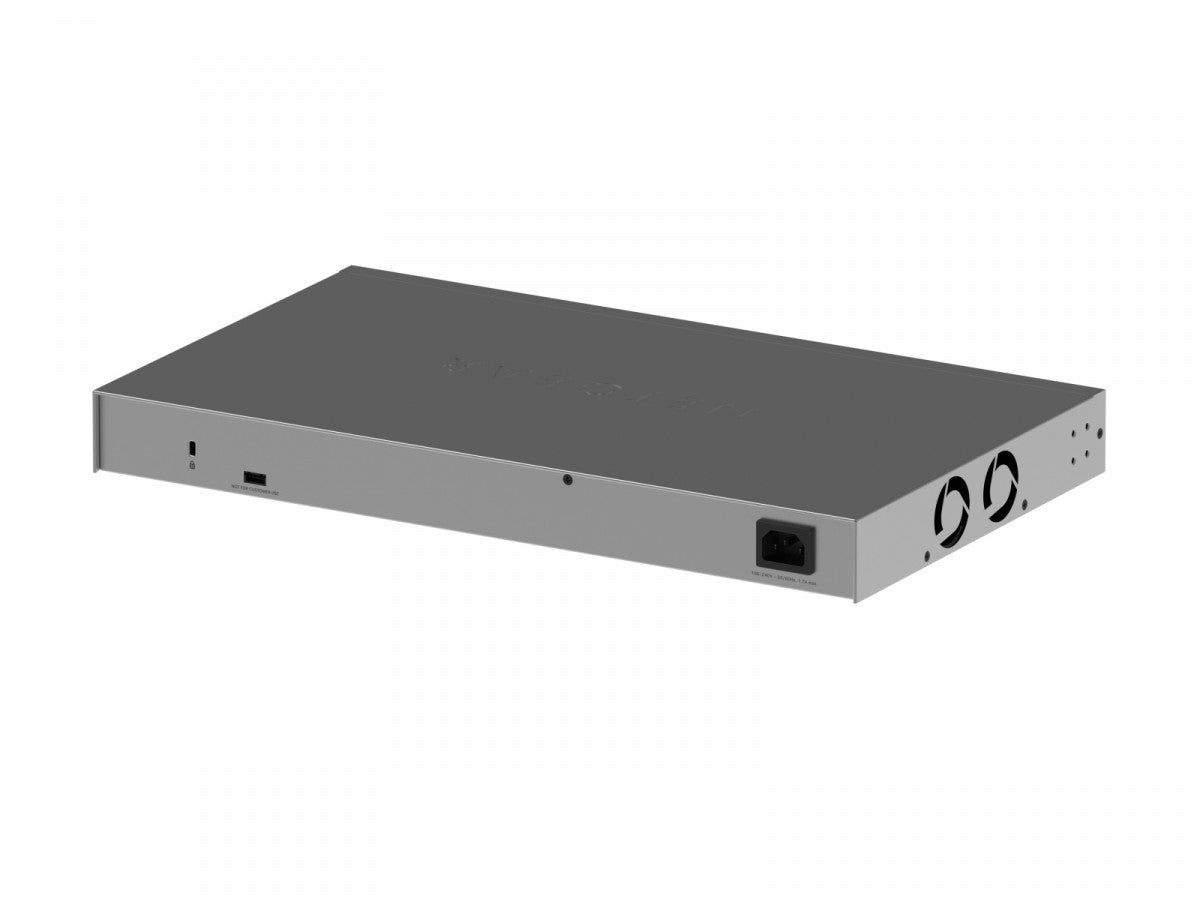

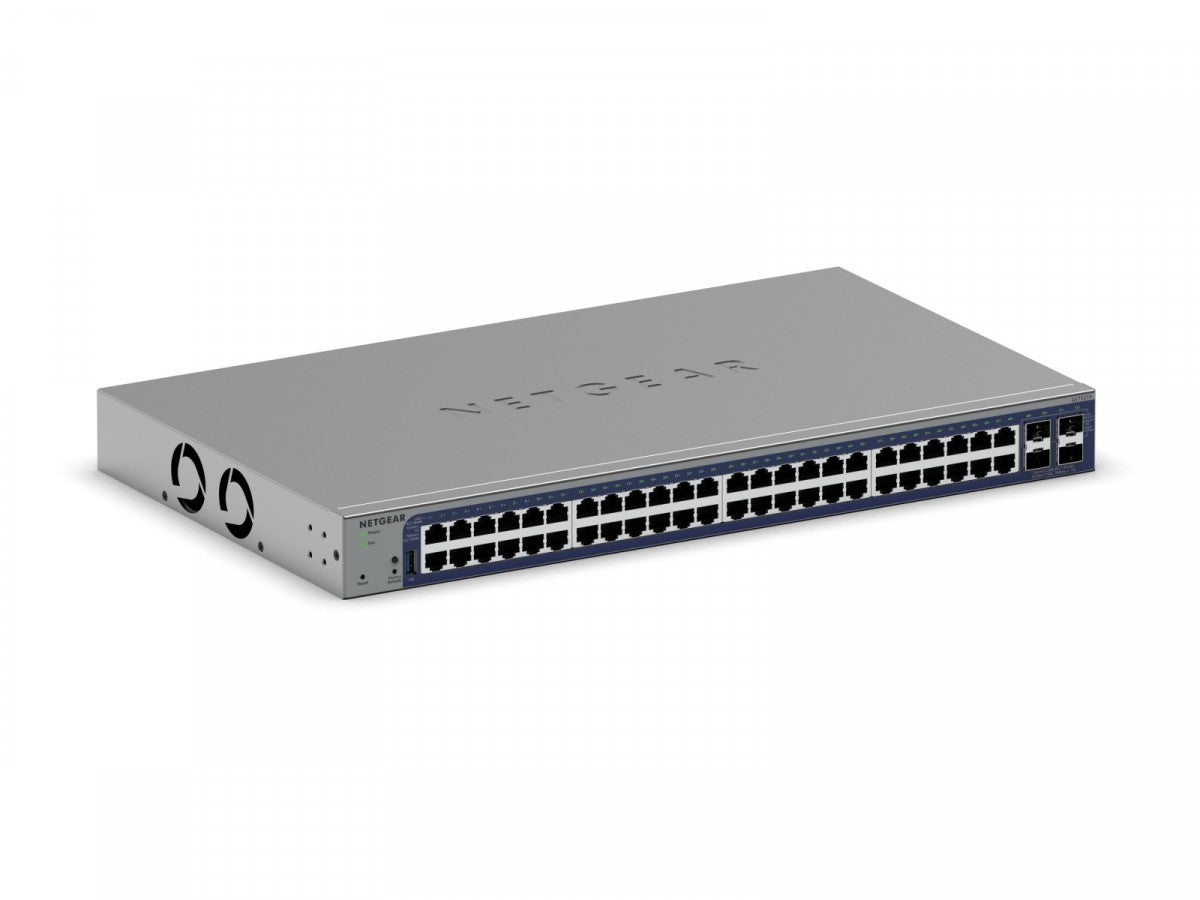

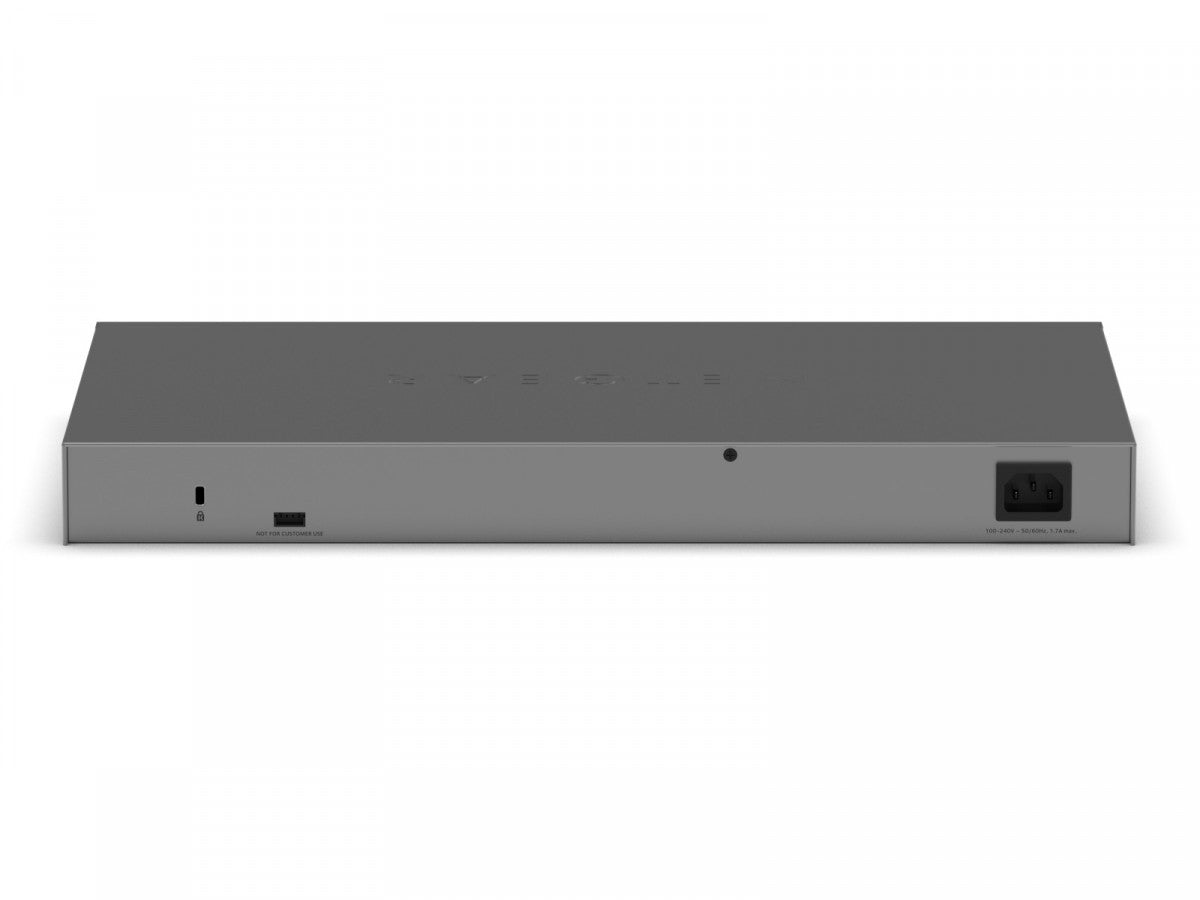

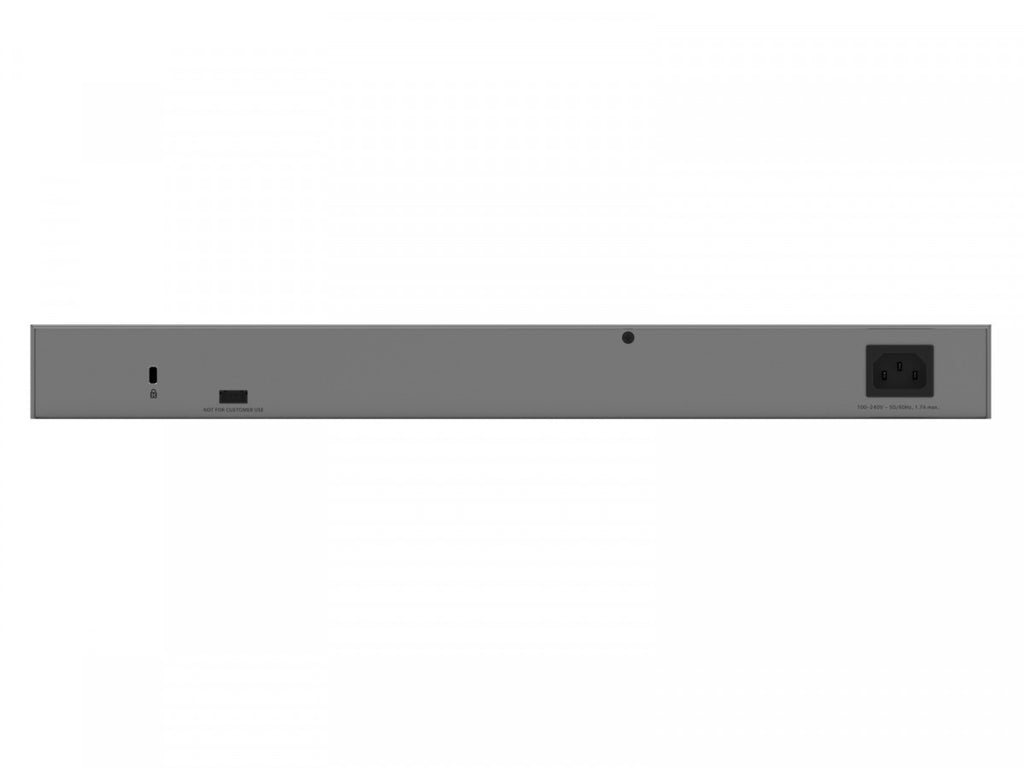

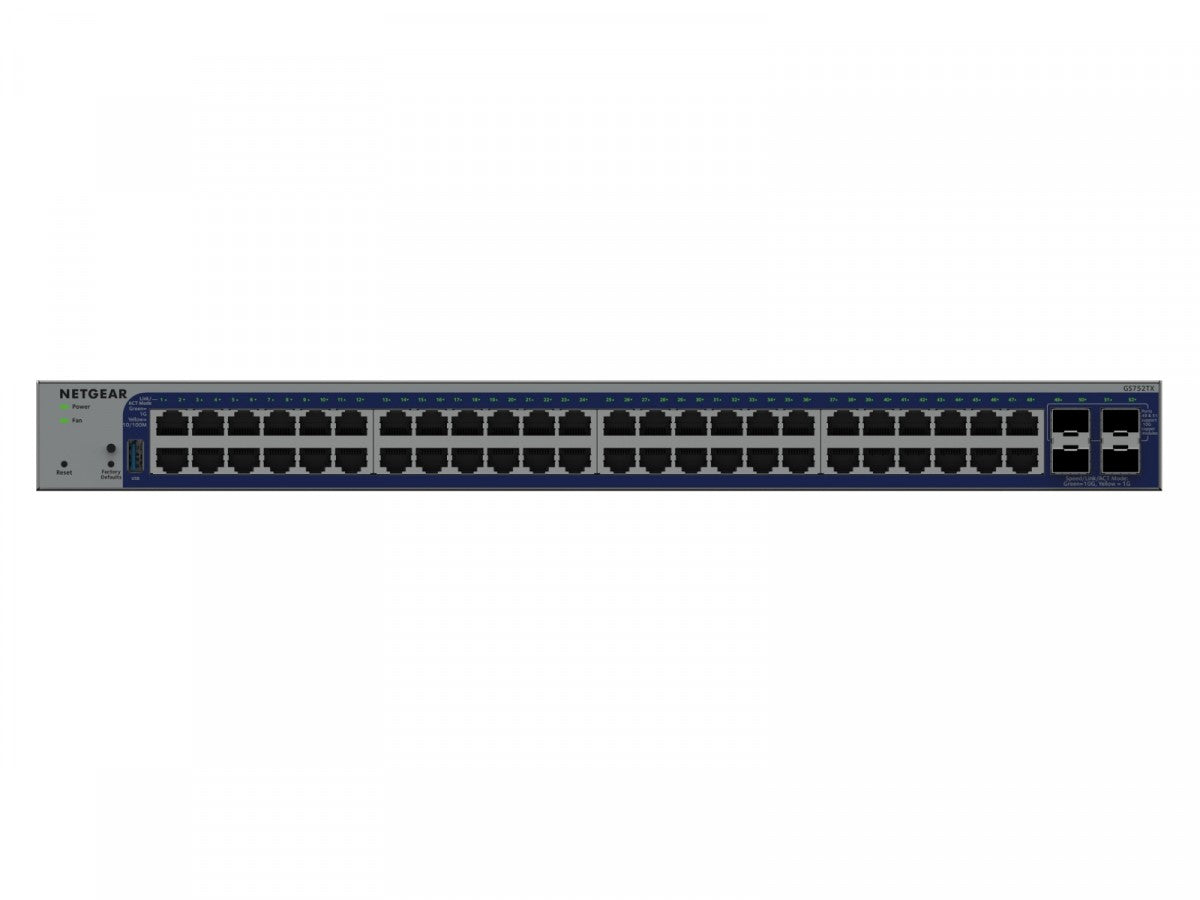

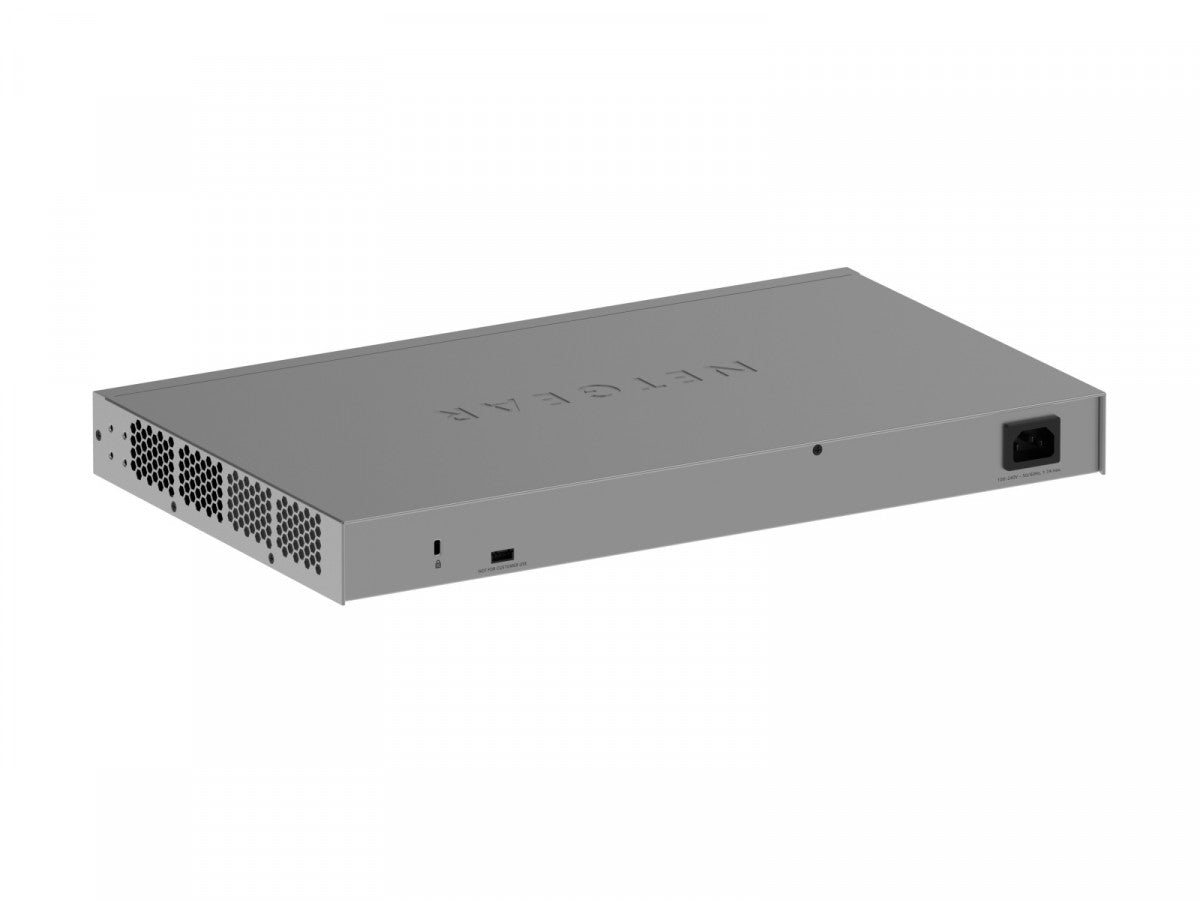

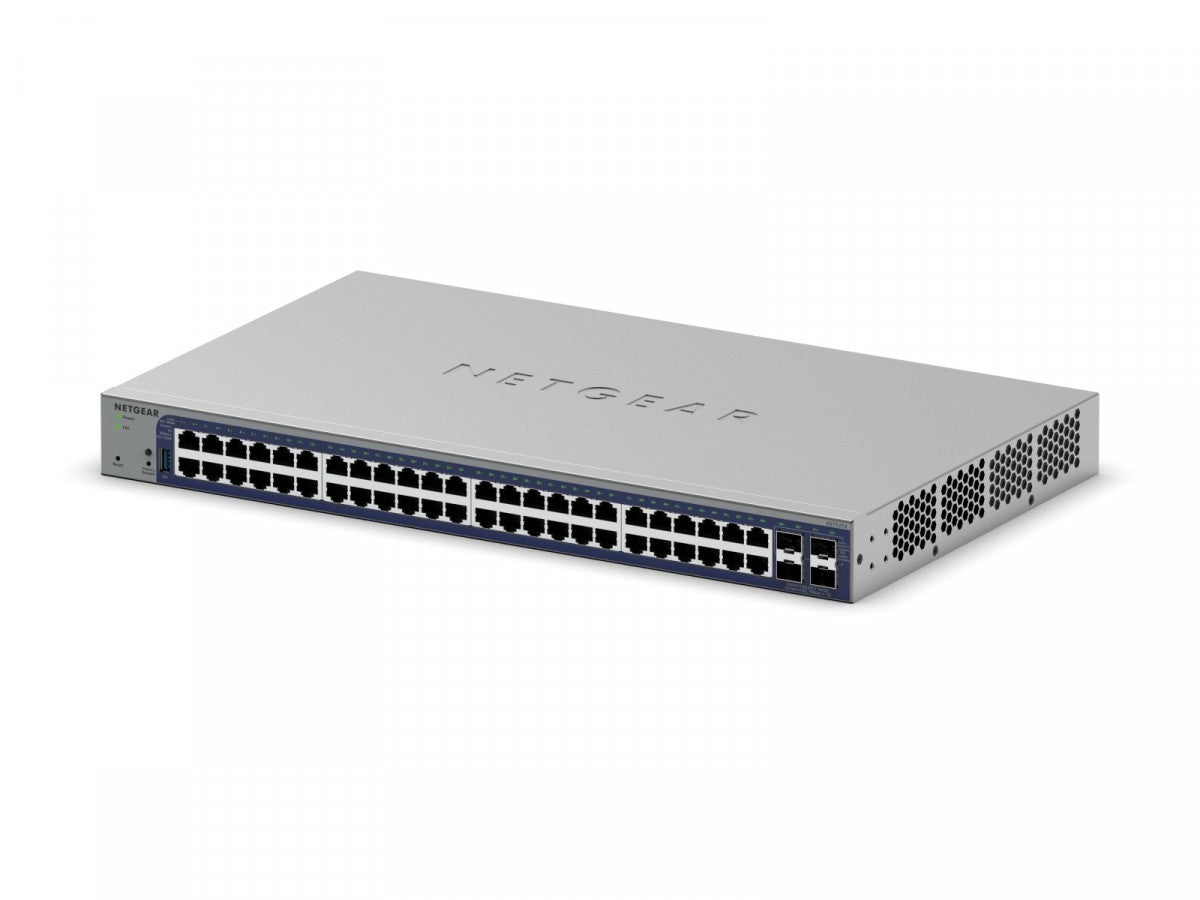

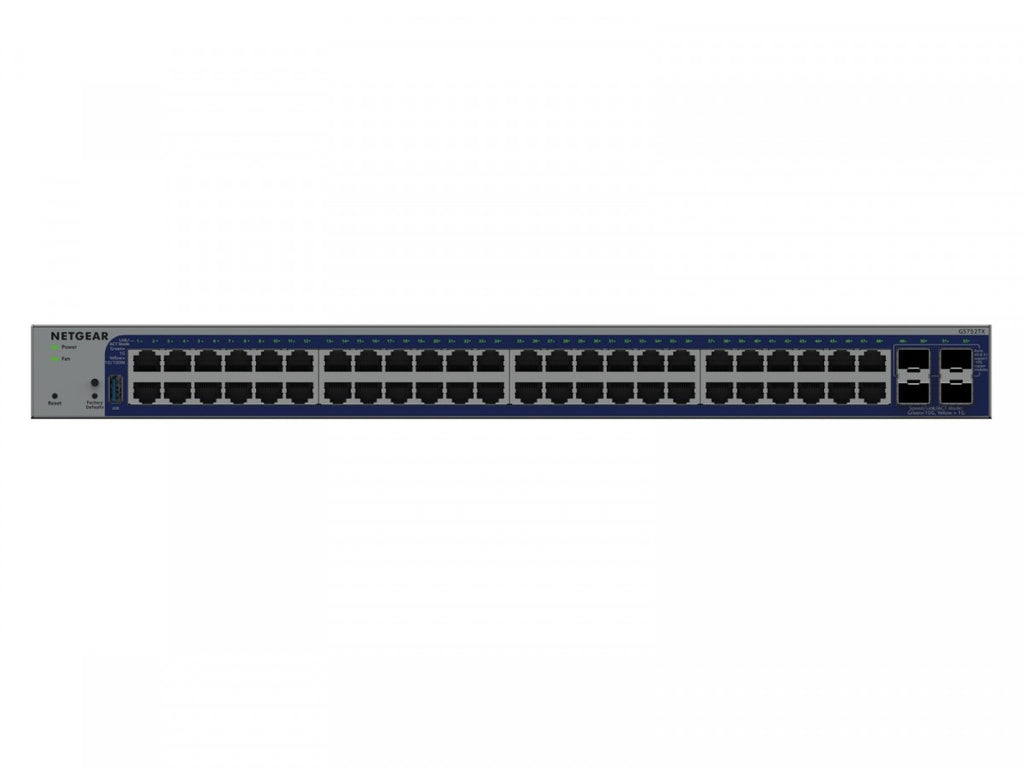

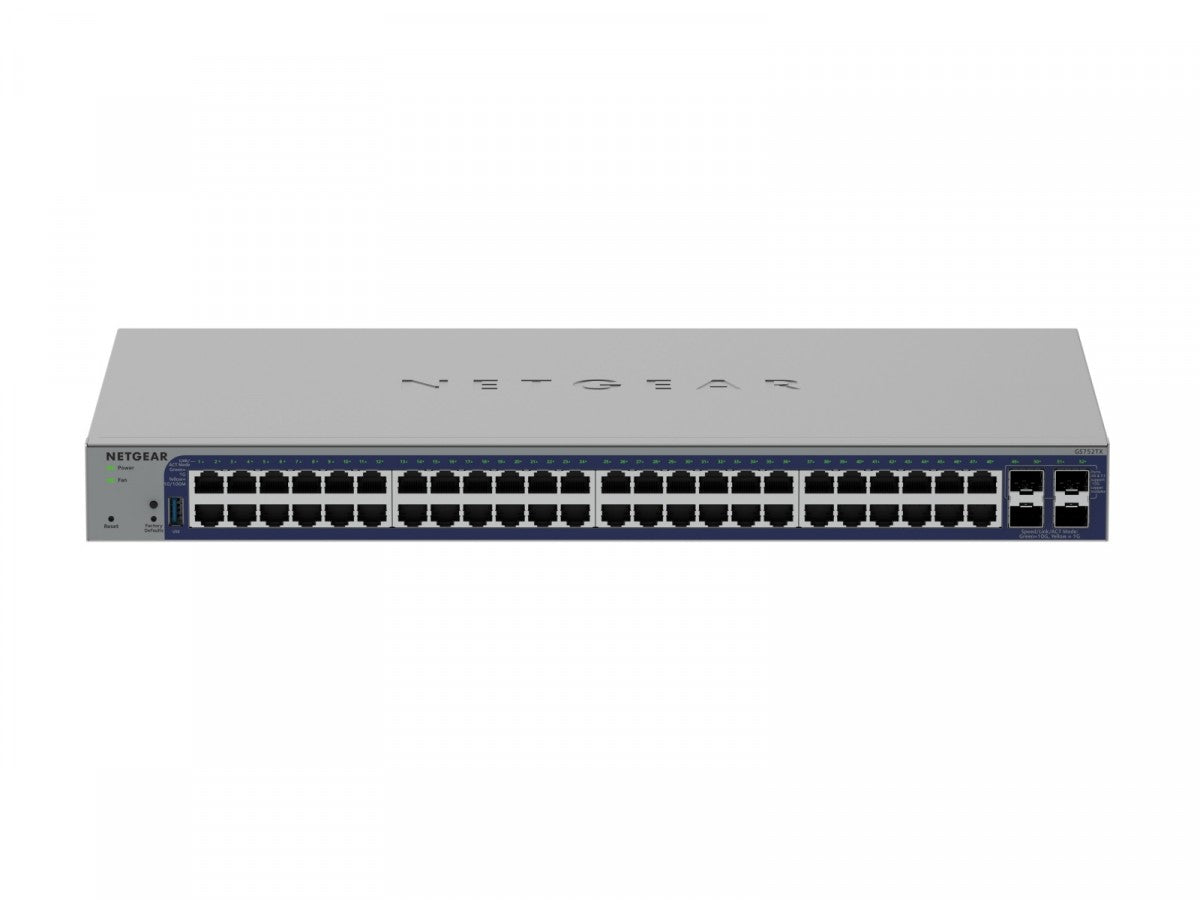

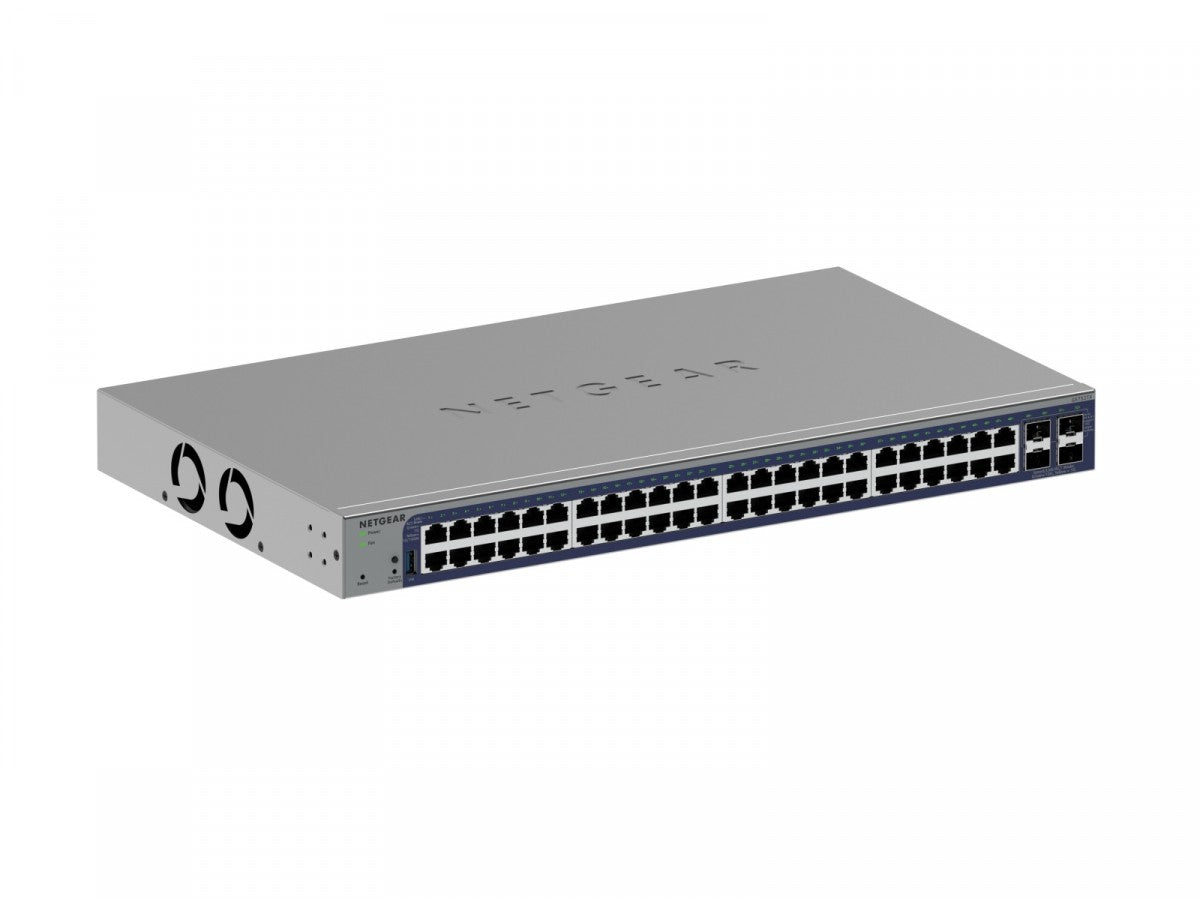

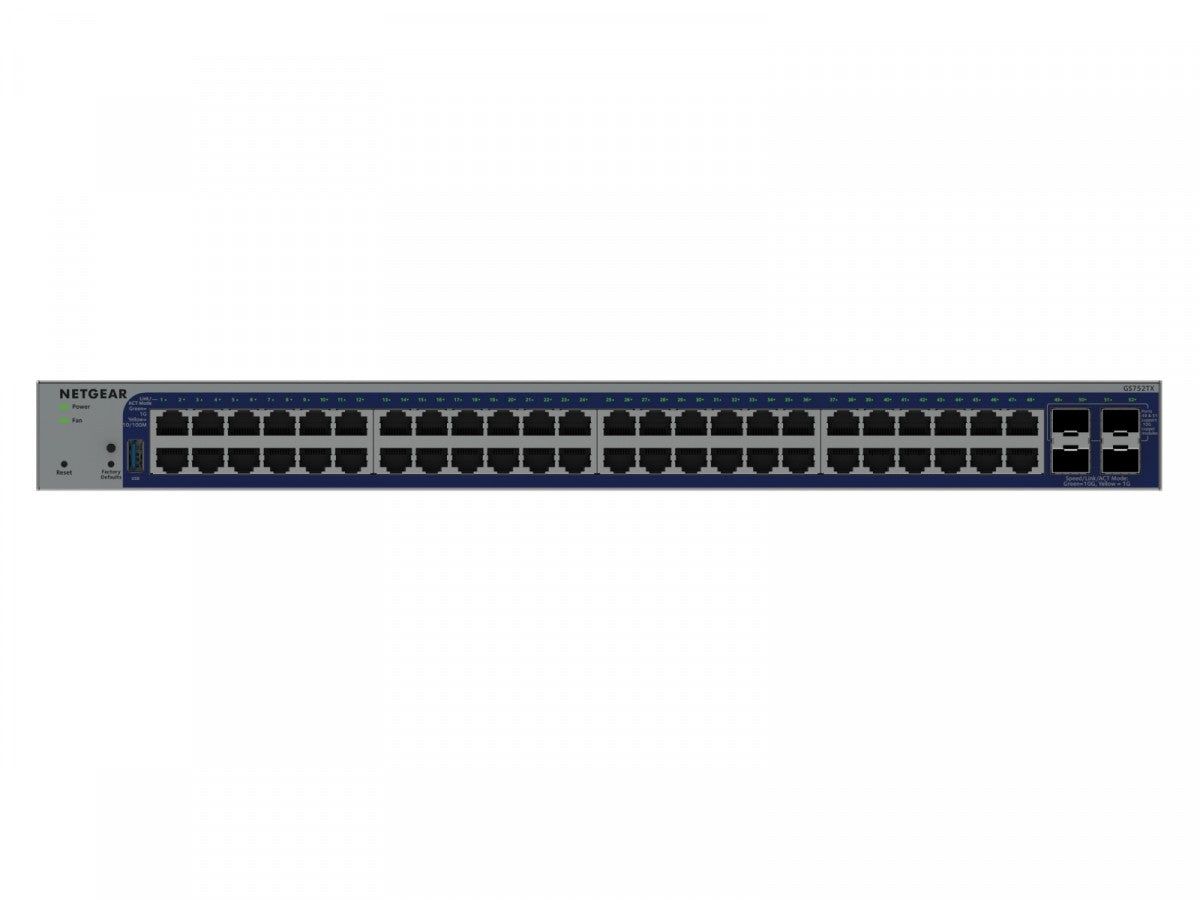

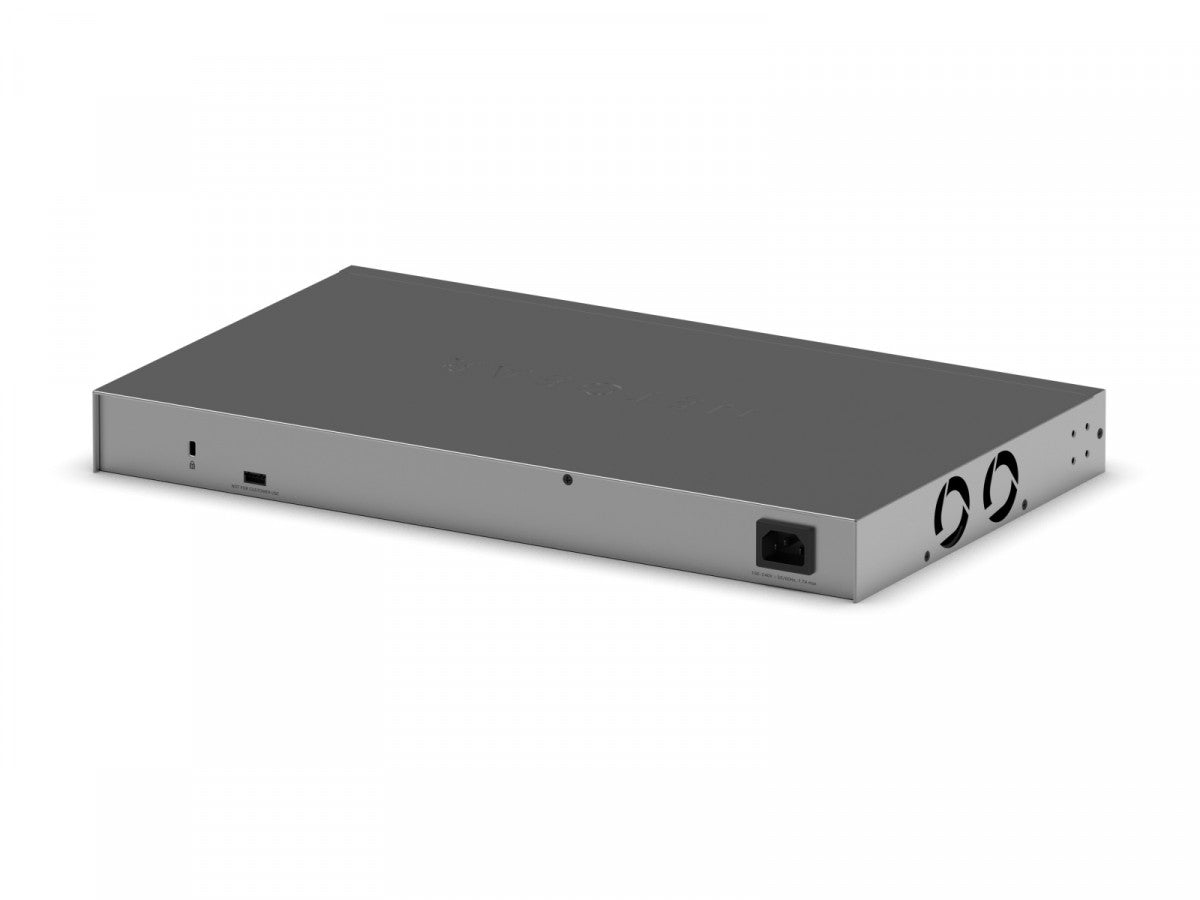

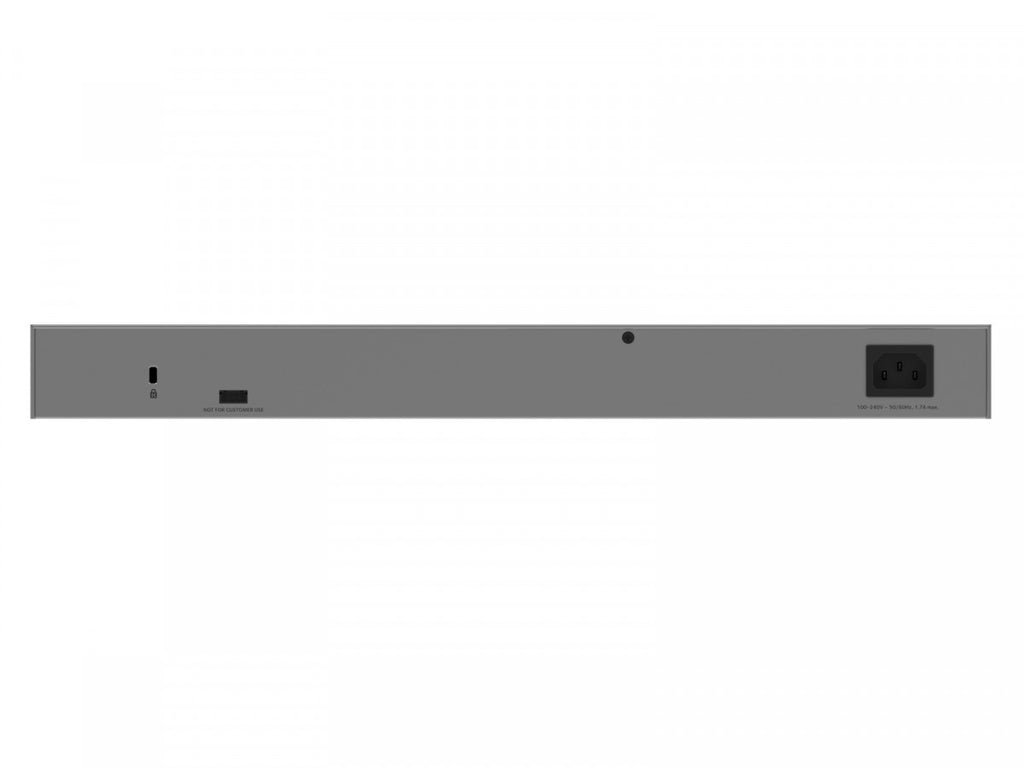

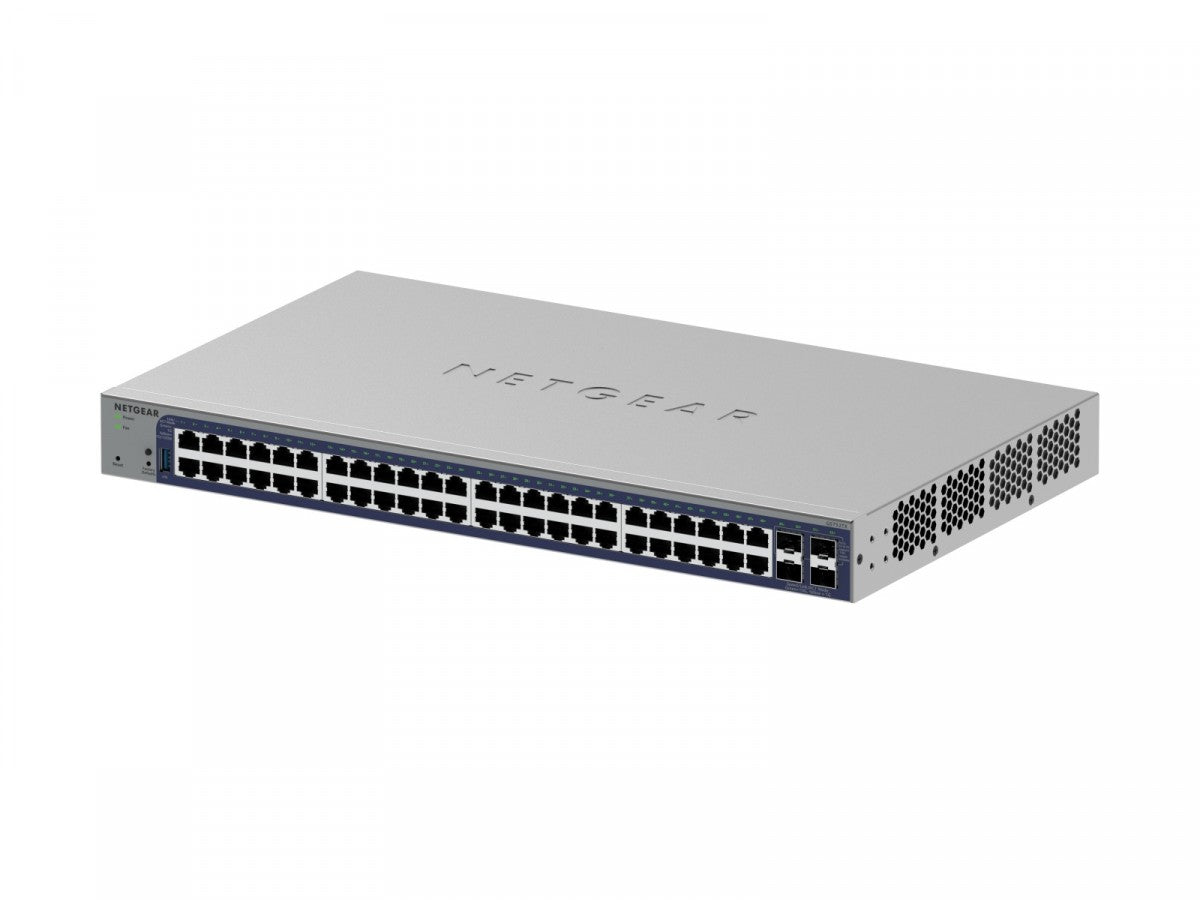

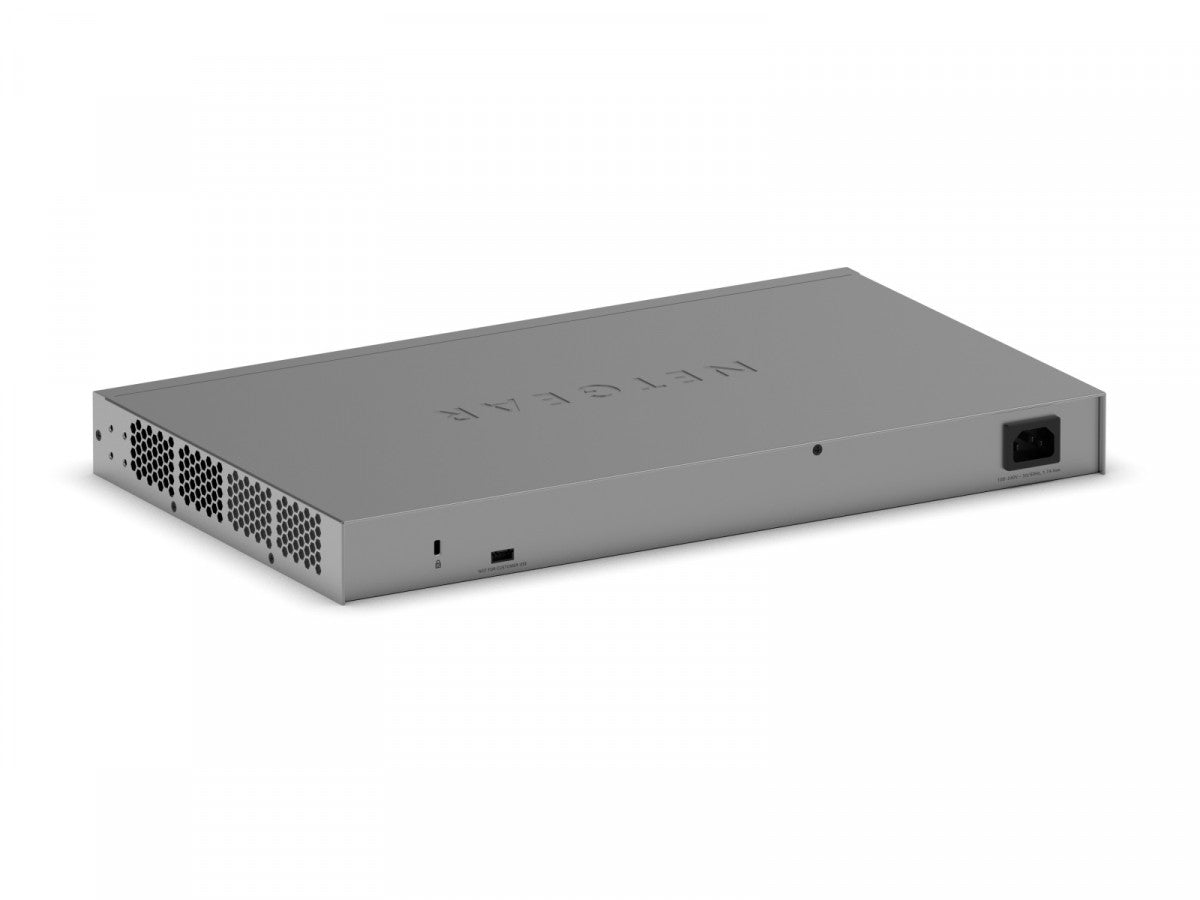

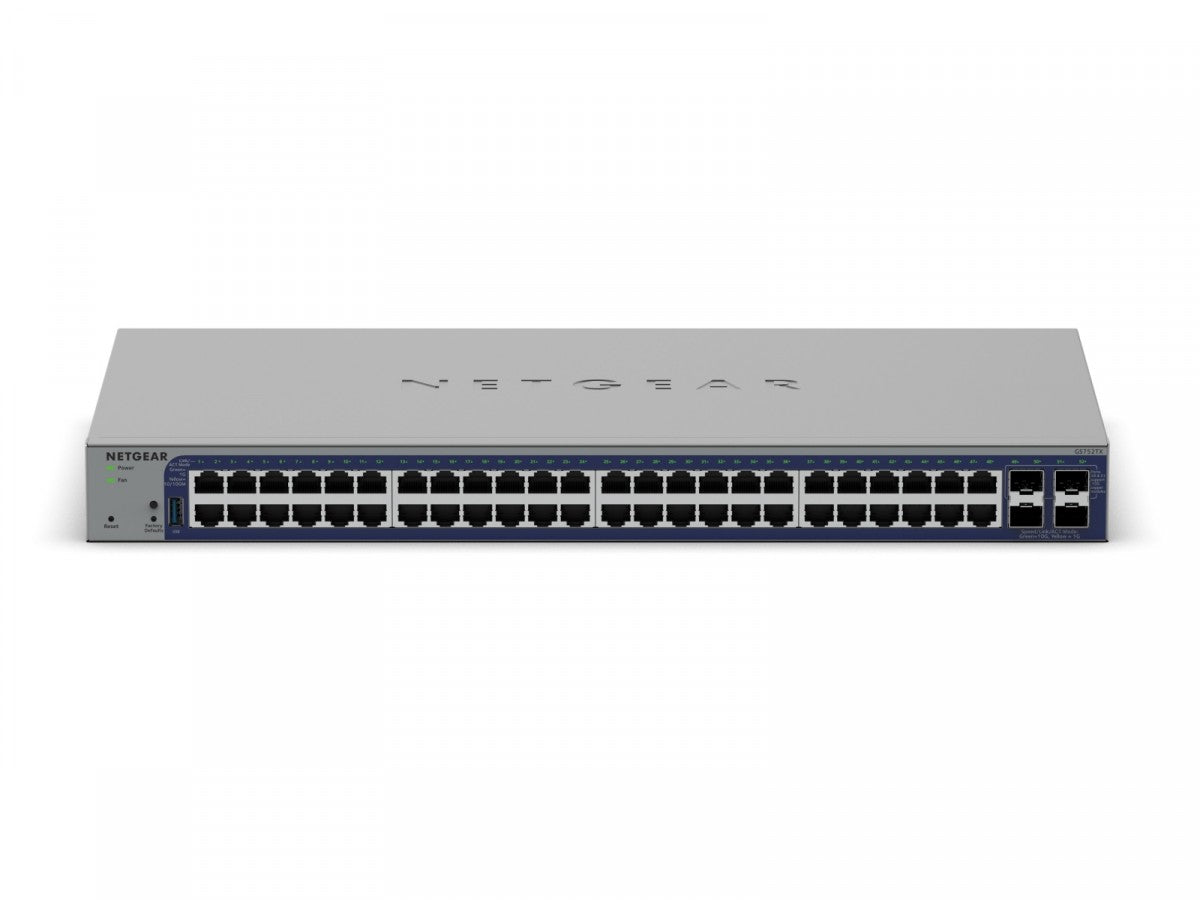

Netgear 48P GE SMART SW TH W/10G SFP+
Specifications
| Description | As a leading provider of network equipment for businesses, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business needs, whether in the hospitality, catering, education or retail domains. The Gigabit Ethernet Switches with 4 SFP+ Ports join the NETGEAR Smart switches with Cloud family, adding full 24 and 48 port PoE+ and PoE++ support for organizations that deploy high-density PoE devices and require a powerful interconnect link between access and aggregation. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 190W and 420W over 24-port, or 380W and 640W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the 24-port models support quiet rack mounting operation with a maximum of 30.5dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the 52-port models are rated at no more than 37.3dBA. |
|---|---|
| Switch class | Managed |
| Application | Medium and large companies |
| Switch layer | L4 |
| Switch layer | L3 |
| Switch layer | L2 |
| Network architecture | GigabitEthernet |
| Number of 10/100 Mbps ports | 48 |
| Number of 10/100/1000 Mbps ports | None |
| 10/100/1000/2500 Mbps ports | None |
| Number of 10Gb ports | None |
| Number of ports 25Gb | None |
| Number of PoE ports (PoE & PoE+) | None |
| Number of PoE+ ports | None |
| Number of COMBO ports | None |
| Number of SFP ports | None |
| Number of SFP+ ports | 4 |
| Number of SFP56 ports | None |
| Number of QSFP+ ports | None |
| Forwarding mode | Store-and-forward |
| Throughput | 176 |
| Forwarding rate | 130.94 |
| Memory buffer | 1.5 |
| MAC address table size | 16000 |
| Support for Jumbo frames | Yes |
| Jumbo frame size | 10 |
| Supported protocols and standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3ad Trunking (LACP) IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service IEEE 802.1D Spanning Tree (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1x RADIUS Network Access Control |
| QoS | Port-based rate limiting: Yes ingress and egress Port-based QoS: Yes Support for IPv6 fields: Yes DiffServ QoS: Yes ingress IEEE 802.1p COS: Yes Destination MAC and IP: Yes IPv4 and v6 DSCP: Yes IPv4 and IPv6 ToS: Yes TCP/UDP-based: Yes Weighted Round Robin (WRR): Yes Strict priority queue technology: Yes Auto-VoIP VLAN / Auto-Voice VLAN: Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address Auto-VoIP: Yes, based on protocols (SIP). Prioritzes traffic to a higher queue Voice VLAN: Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED |
| Management, monitoring, configuration | Cloud/Remote management: Yes Insight mobile app & Insight Cloud Portal management: Yes uPnP Discovery: Yes Lite Command-line Interface (CLI): Yes (Refer to Lite CLI Manual on NETGEAR Support page of the switch model) Networking monitoring: Yes Data/performance logs: Yes Centralized network configuration/policies (network-centric management): Yes Device auto-join and configure (zero-touch provisioning): Yes Multi-site, multi-network single pane-of-glass view: Yes Multi-switch, multi-port concurrent configuration: Yes Network/global password (for all Insight Managed devices on a network): Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud portal) |
| Chassis type | Rack |
| Fan | Yes |
| Power supply | Internal |
| Power consumption | 43 |
| Mean time between failures (MTBF) | 346910 |
| Environment requirements | Operating Operating Temperature: 0° to 50°C (32° to 122°F) Humidity: 90% maximum relative humidity (RH), non-condensing Altitude: 10,000 ft (3,000 m) maximum Storage Storage Temperature: 20° to 70°C ( 4° to 158°F) Humidity (relative): 95% maximum relative humidity, non-condensing Altitude: 10,000 ft (3,000 m) maximum |
| Certificates | CE FCC Class A RCM ICES Class A VCCI KC BSMI UKCA |
| Accessories included | NETGEAR GS752TXv3 with Insight Cloud Management DC power cord Rackmount kit Installation guide |
| Dimensions | 440 x 257 x 43.2 mm |
| Weight | 3.53 |
