Description

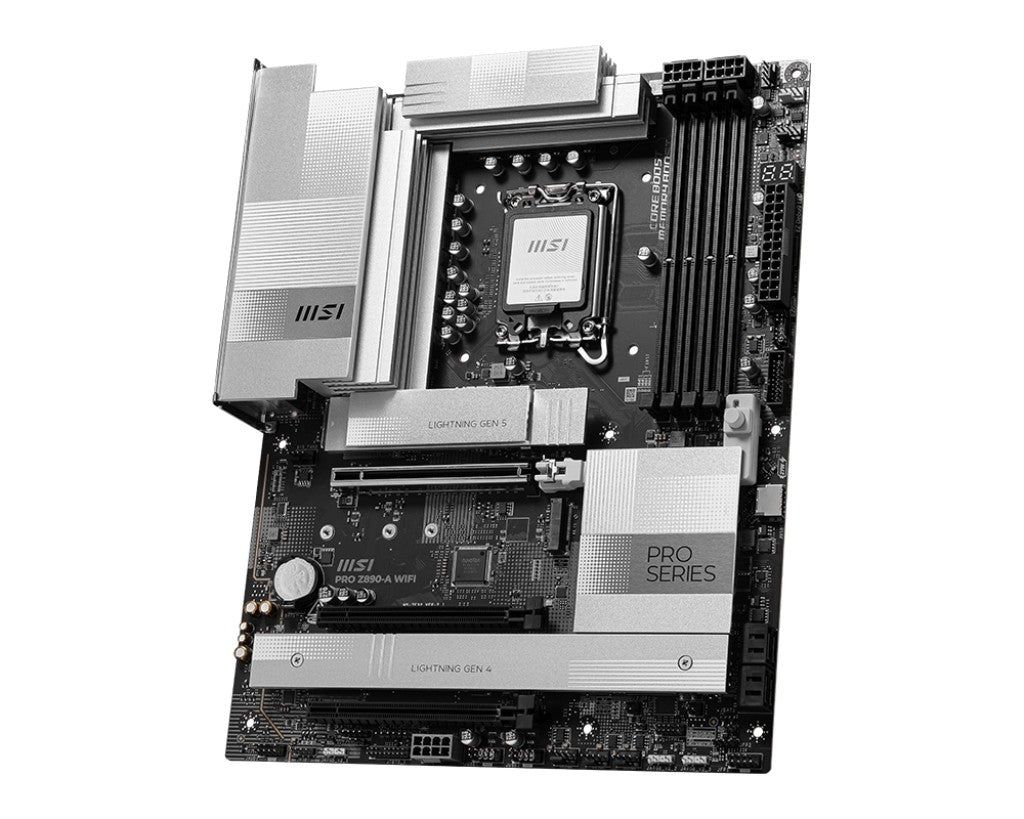

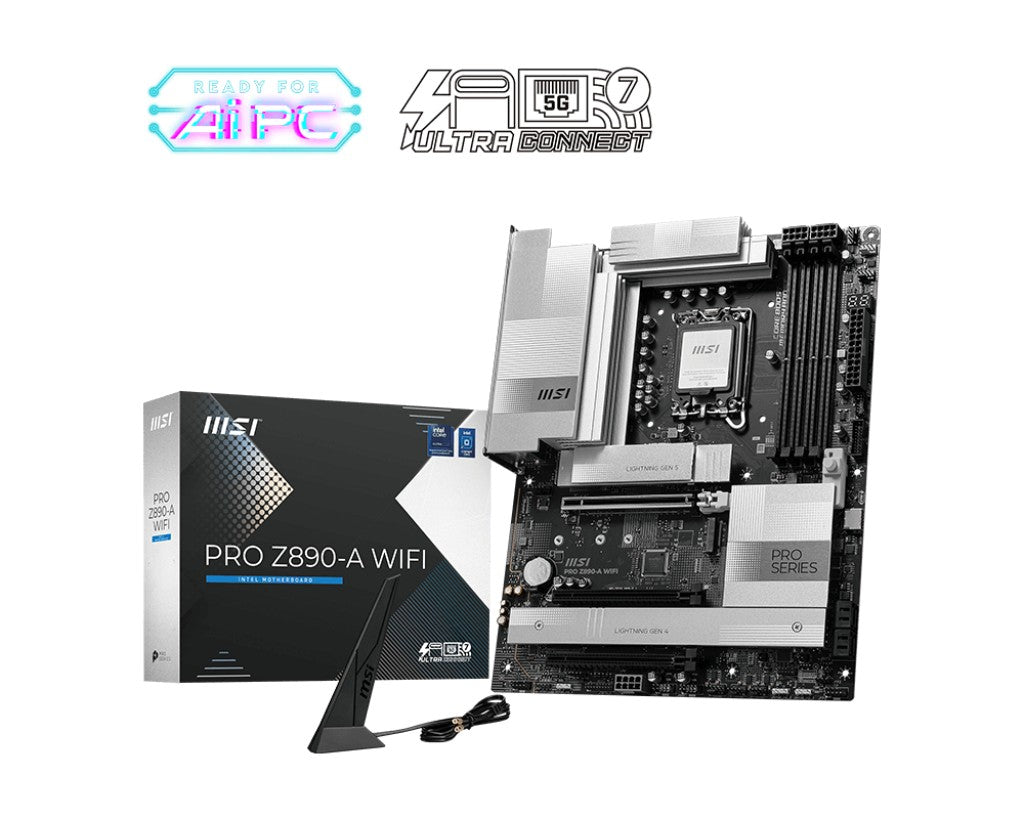

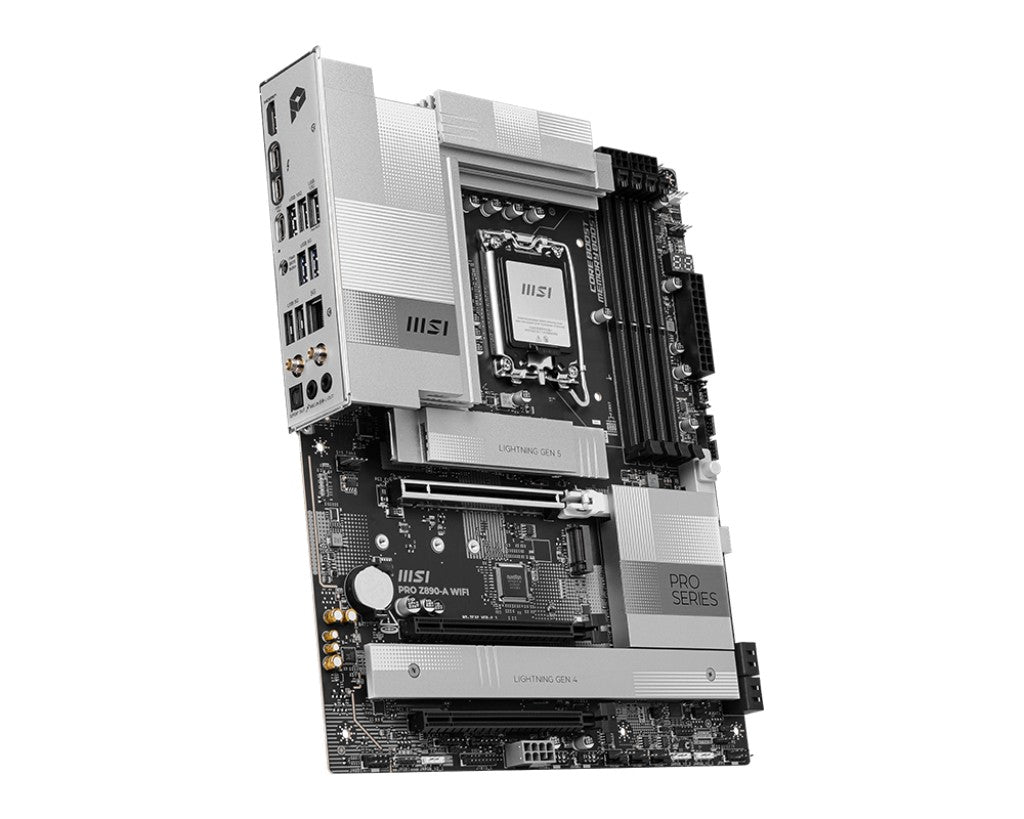

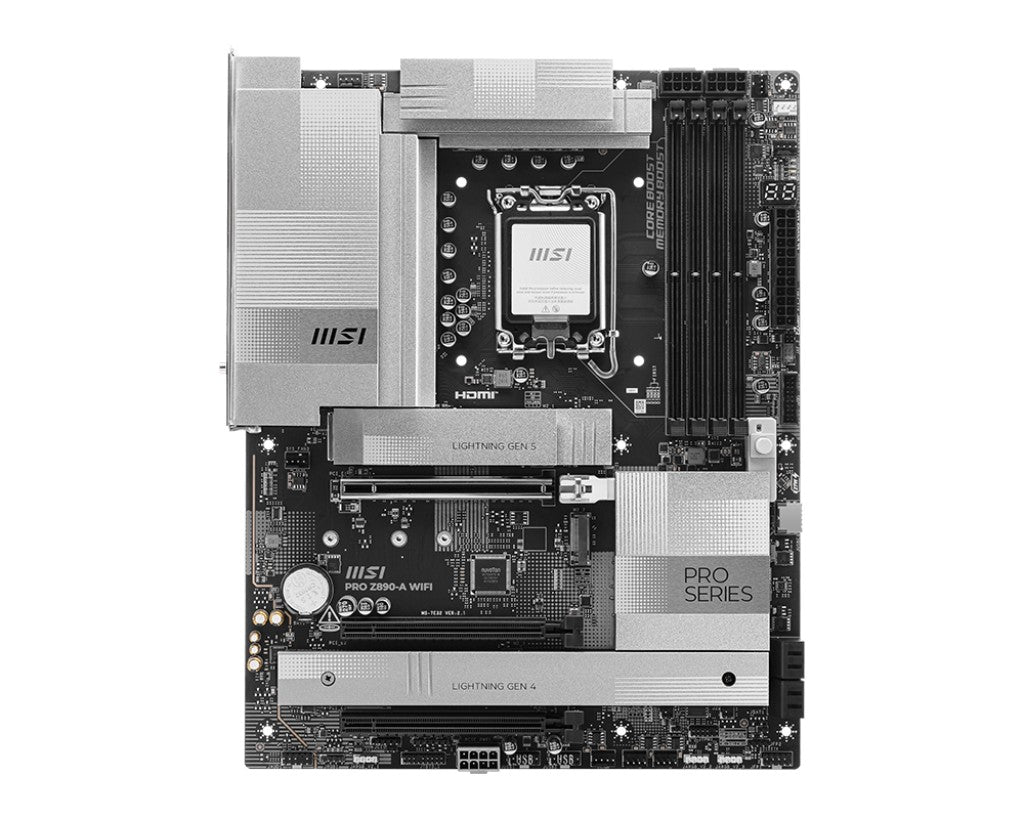

MSI Motherboard PRO Z890-A WIFI s1851 4 DDR5 HDMI/DP ATX
Specifications
| Description | PRO Z890-A WIFI Supports Intel Core Ultra (Series 2) processors in the LGA 1851 socket Dual-channel DDR5 9200+ MT/s memory support (overclocking) Exceptional performance: 16+1+1+1-phase, 90-amp power design with Duet Rail Power System and Smart Power Stages (SPS), two 8-pin CPU power connectors, Core Boost and Memory Boost technology, 6-layer PCB with 2oz of layered copper made of server-grade materials Frozr Guard Protection System: Improved, extended Extended Heatsink design, 7W/mK thermal pads on the power MOSFETs, additional thermal pads on the chokes, and a connector with the EZ M.2 Shield Frozr II heatsink system allow for improved heat dissipation and long-lasting, uninterrupted operation. EZ System DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna Exceptional Speed: PCIe 5.0 and Lightning Gen 5 x4 M.2 connectors Ultra Connect: Dual Thunderbolt 4 ports, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost 4: Generates studio-quality sound for exceptional gaming immersion |
|---|---|
| Model | PRO Z890-A WIFI |
| CPU socket | LGA1851 |
| Processor family | Intel Core |
| Integrated CPU | No |
| Chipset manufacturer | Intel |
| Chipset type | INTEL Z890 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 9200 MHz |
| Max memory size | 256 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 3 x PCIe x 16 |
| Max. number of SATA devices | 4 |
| RAID | No |
| Detailed data on disk/drive interfaces | Slot 3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) Storage 4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Graphics | 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz* 2x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
| Sound card | Realtek ALC1220P 7.1-Channel High Definition Audio Supports S/PDIF output |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | LAN Realtek 8126 5Gbps LAN WIRELESS LAN AND BLUETOOTH Intel Wi-Fi 7 Wireless network module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (320 MHz) up to 5.8 Gbps. Supports 802.11 a/b/g/n/ac/ax/be. Supports Bluetooth 5.4**, MLO, 4KQAM. |
| USB ports at back panel | 10 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 4 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

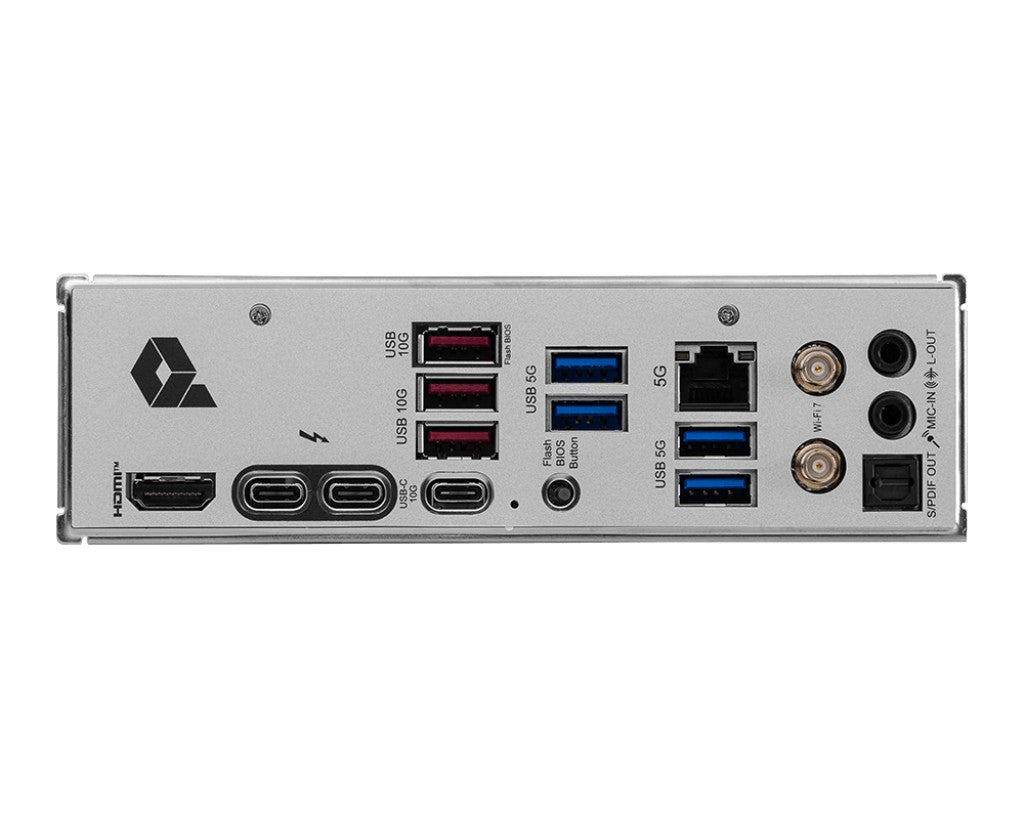

| External connectors | 1 x MIC (front) |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Line Out (front) |
| External connectors | 3 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x RJ-45 |
| External connectors | 2 x Thunderbolt 4 |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x HDMI |
| External connectors | 2 x SMA |
| External connectors | 1 x S/PDIF |
| Onboard connectors | 1 x 8-pin PCIe |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x 2-Digit Debug Code LED |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 4 x EZ Debug LED |
| Onboard connectors | 1 x Thunderbolt header |
| Onboard connectors | 2 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Form factor | ATX |
| Dimensions | 24,38 x 30,48 cm |
| Supported operating systems | Windows 11 |
