Description

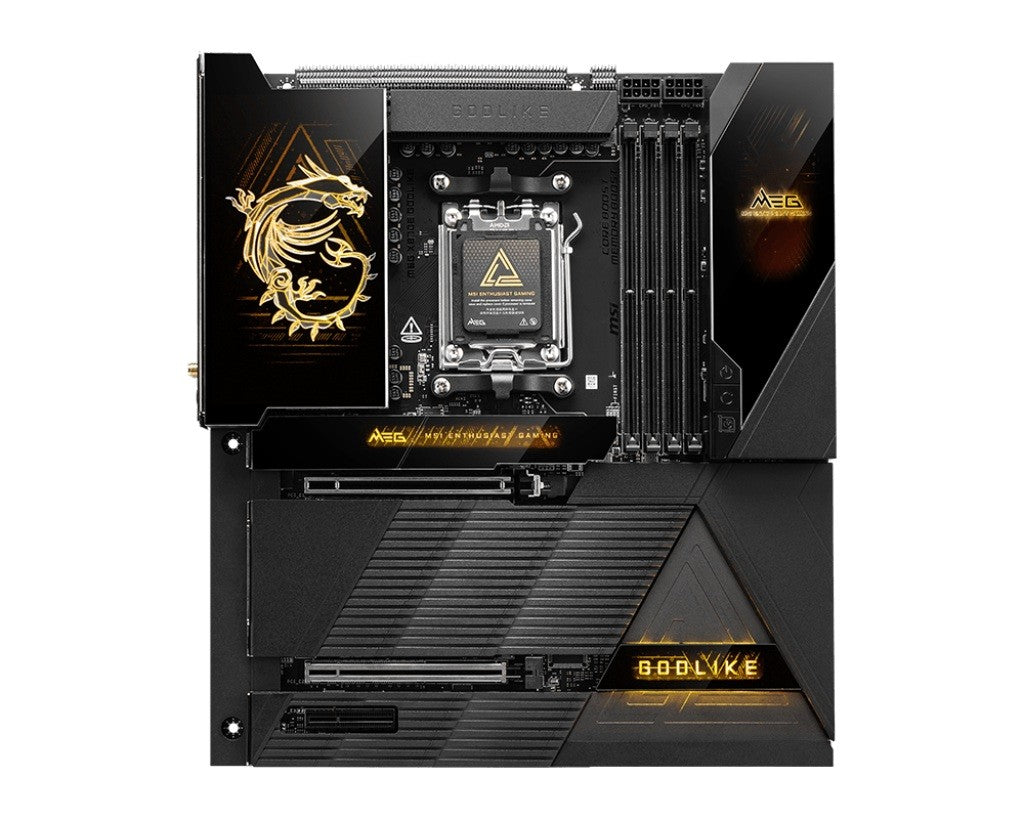

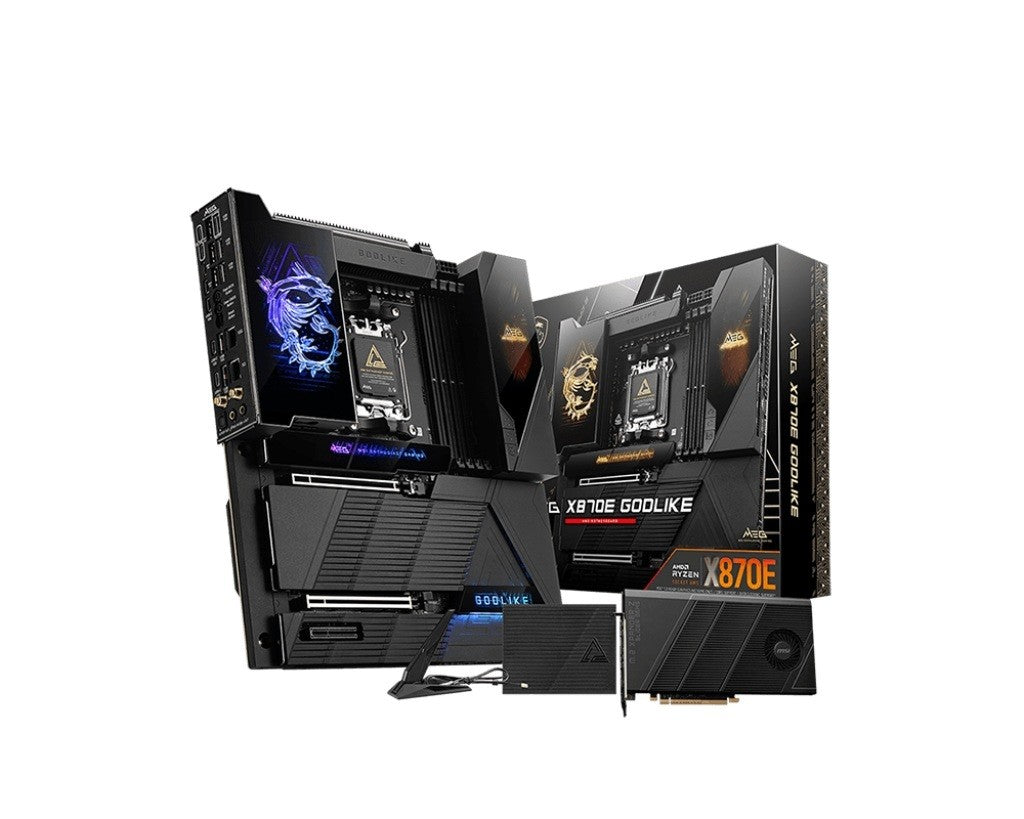

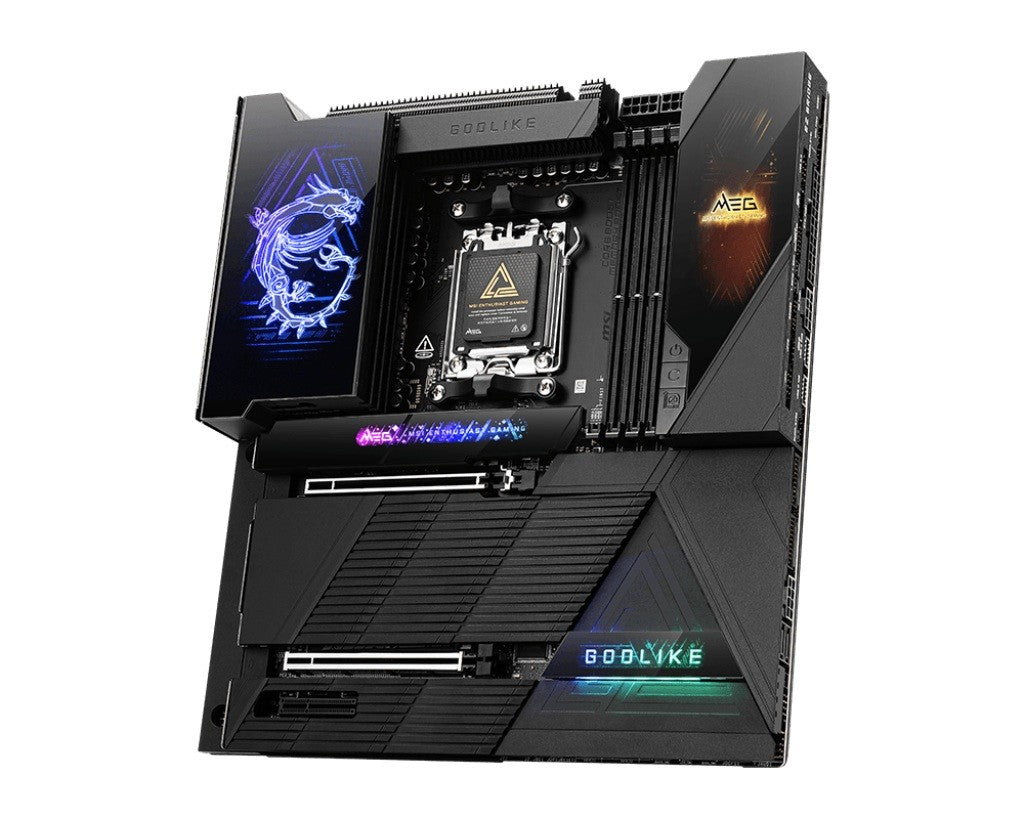

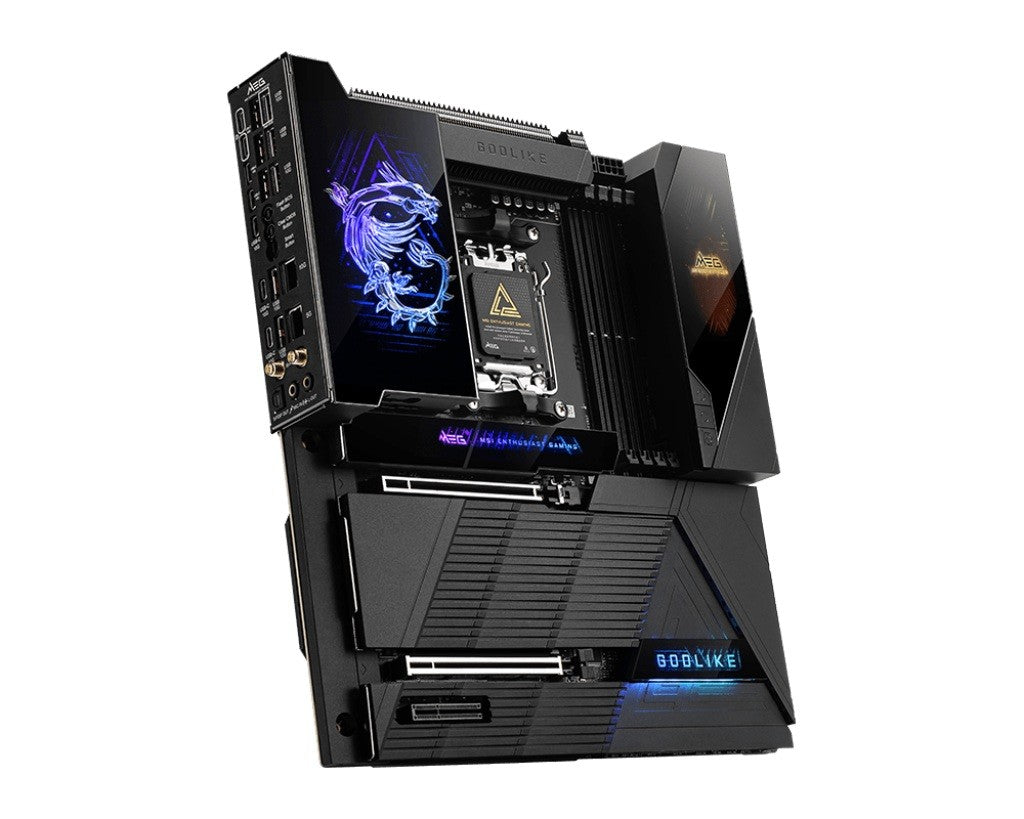

MSI Motherboard MEG X870E GODLIKE AM5 4DDR5 ATX
Specifications
| Description | MEG X870E Godlike motherboard Supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors Supports DDR5 memory, dual-channel DDR5 up to 9000+ MT/s (OC) Dynamic Dashboard III: 3.99-inch LCD display for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience. M.2 XPANDER-Z SLIDER GEN5: A single-slot M.2 expansion card featuring two high-speed Gen5 M.2 slots, with an EZ Slide design for effortless SSD upgrades. Ultra performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made with 2oz thickened copper and server-grade materials. Frozr Guard: wave-fin design, Direct Touch cross heat-pipe, MOSFET baseplate, 9 W/mK thermal pads, double-sided M.2 Frozr shield, and Frozr AI software for optimal low-temperature performance. EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II, and EZ Antenna. Ultra Connect: 10G LAN + 5G LAN, full-speed Wi-Fi 7 solution, and USB4latest professional-grade connectivity for secure, stable, and high-speed networking and data transfer. Lightning-fast gaming experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, front USB 20G with 60W USB power delivery. Audio Boost 5 HD: premium audio solution featuring the latest ALC4082 audio processor combined with an ESS DAC and amplifier, delivering an immersive sound experience. |
|---|---|
| Model | MEG X870E Godlike |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 5600 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 7x M.2 M.2_1 slot (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 slot (from CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_3 slot (from chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_4 slot (from chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices M.2_5 slot (from chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G M.2_1 (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4, supports 2280 devices M.2_2 (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4, supports 2280 devices M.2_1: Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series CPUs) Supports up to PCIe 4.0 x4 (for Ryzen 8000 series CPUs) M.2_2: Supports up to PCIe 5.0 x4 (for Ryzen 9000/7000 series CPUs) Supports up to PCIe 4.0 x4 (for Ryzen 8700/8600/8400 series CPUs) The M.2_2 slot will be unavailable when using Ryzen 8500/8300 series CPUs. M.2_4: PCI_E3 slot will operate at x2 speed when an device is installed in M.2_4. You can switch PCI_E3 to x4 in BIOS, but this will disable the M.2_4 slot. Supports 5 built-in M.2 slots and 2 additional M.2 slots via expansion card. |
| Graphics | 2x Type-C DisplayPort USB4 port supporting DisplayPort 1.4 with HBR3 via USB Type-C, maximum resolution 4K@60Hz |
| Sound card | Realtek ALC4082 codec + ESS9219Q Combo DAC/HPA High-performance 7.1-channel USB audio Supports S/PDIF output Supports up to 32-bit/384 kHz playback on the front panel |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4 GHz / 5 GHz / 6 GHz* (320 MHz) up to 5.8 Gb/s Supports 802.11 a/b/g/n/ac/ax/be Supports Bluetooth 5.4, MLO, 4KQAM |
| USB ports at back panel | 15 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 4 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 14 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

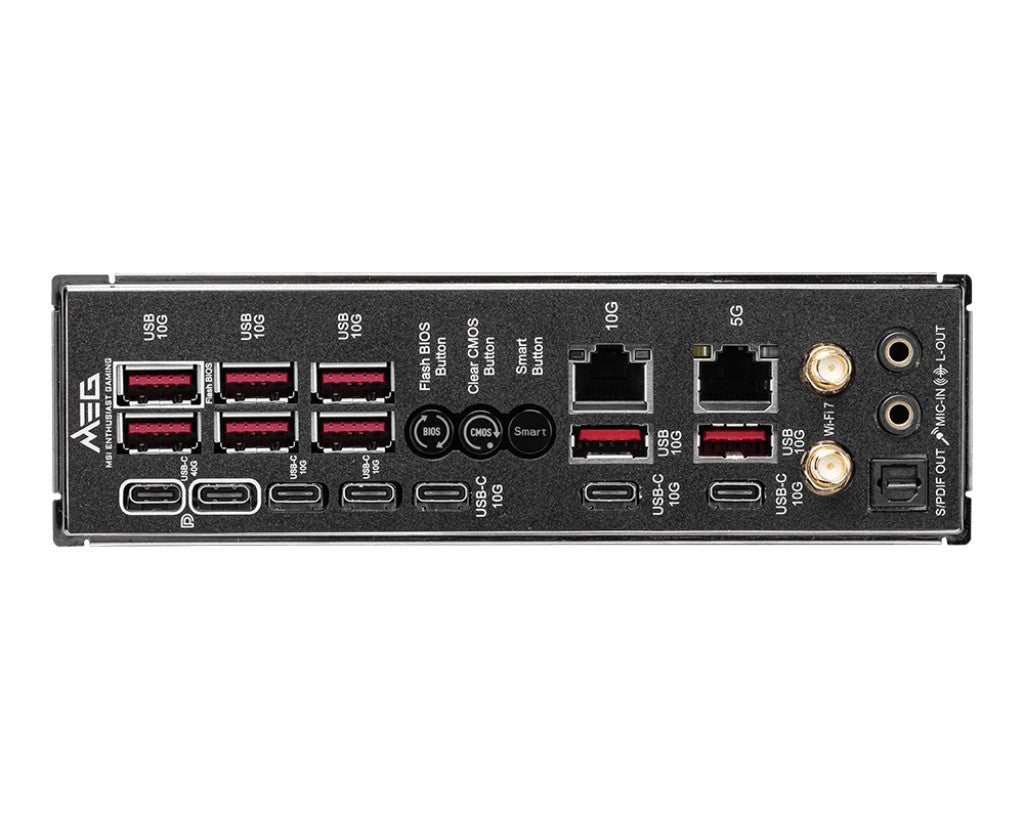

| External connectors | 2 x SMA |
| External connectors | 2 x RJ-45 |
| External connectors | 8 x USB 3.1 |
| External connectors | 5 x USB 3.2 Gen 1 Type-C |
| External connectors | 1 x Smart Button |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 2 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x MIC (front) |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 2 x USB C |
| Onboard connectors | 4 x USB 3.0 |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 2 x System panel header |
| Form factor | E-ATX |
| Dimensions | 304.8 x 277 mm |
| Supported operating systems | None |
