Description

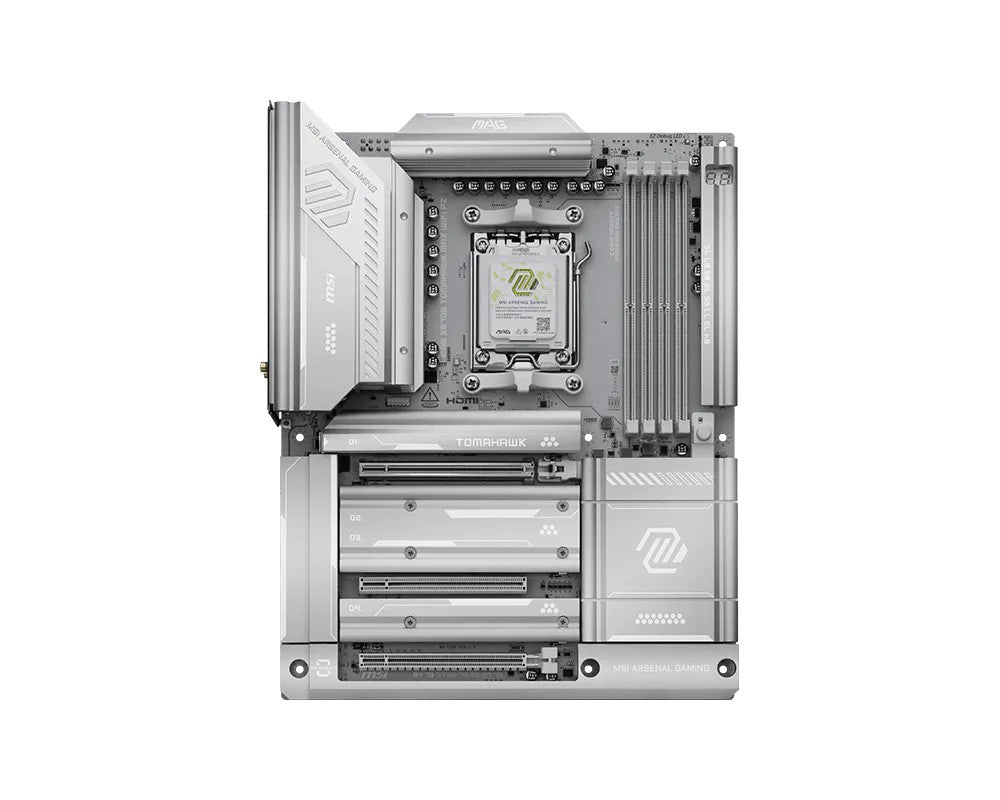

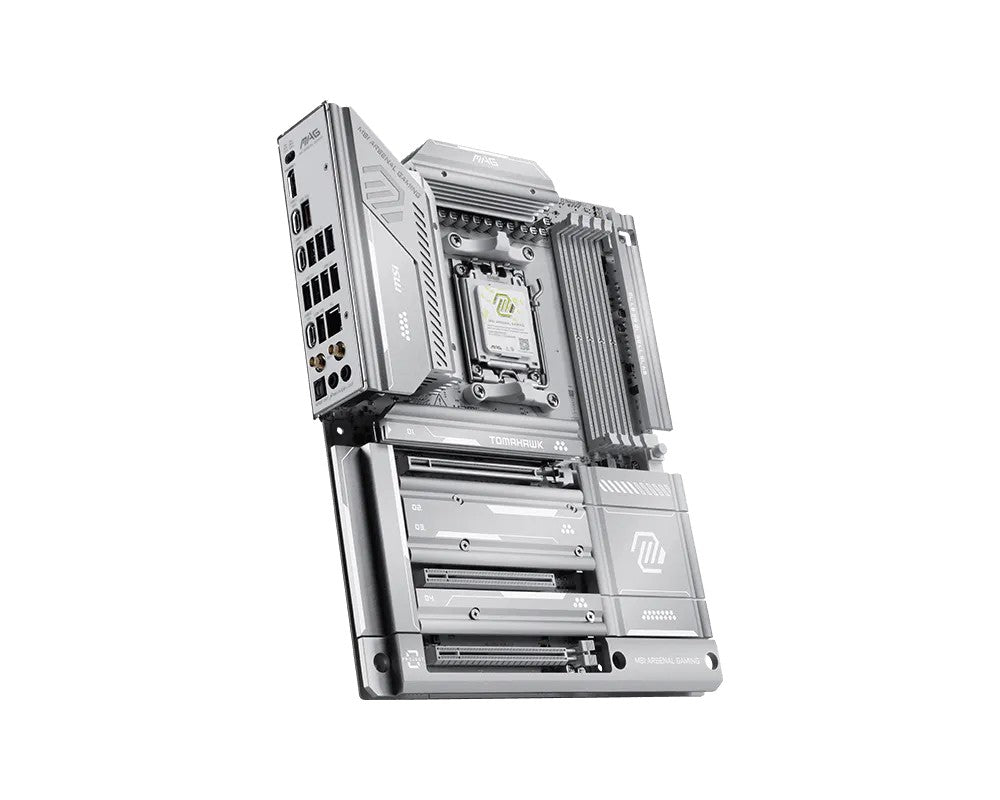

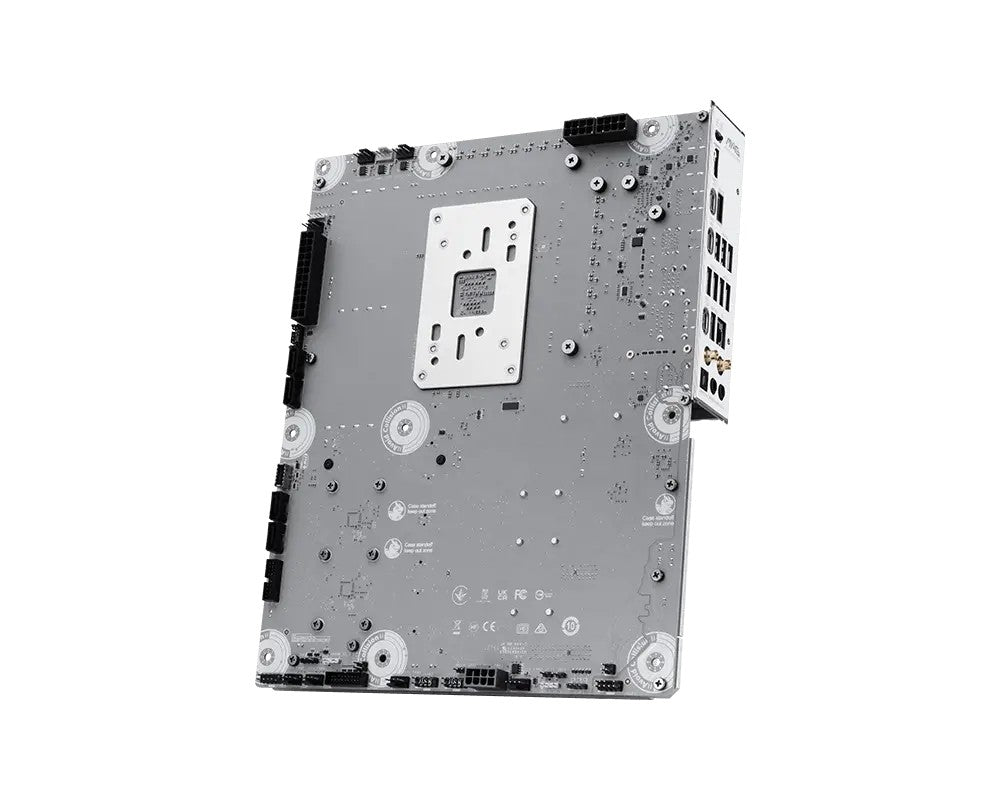

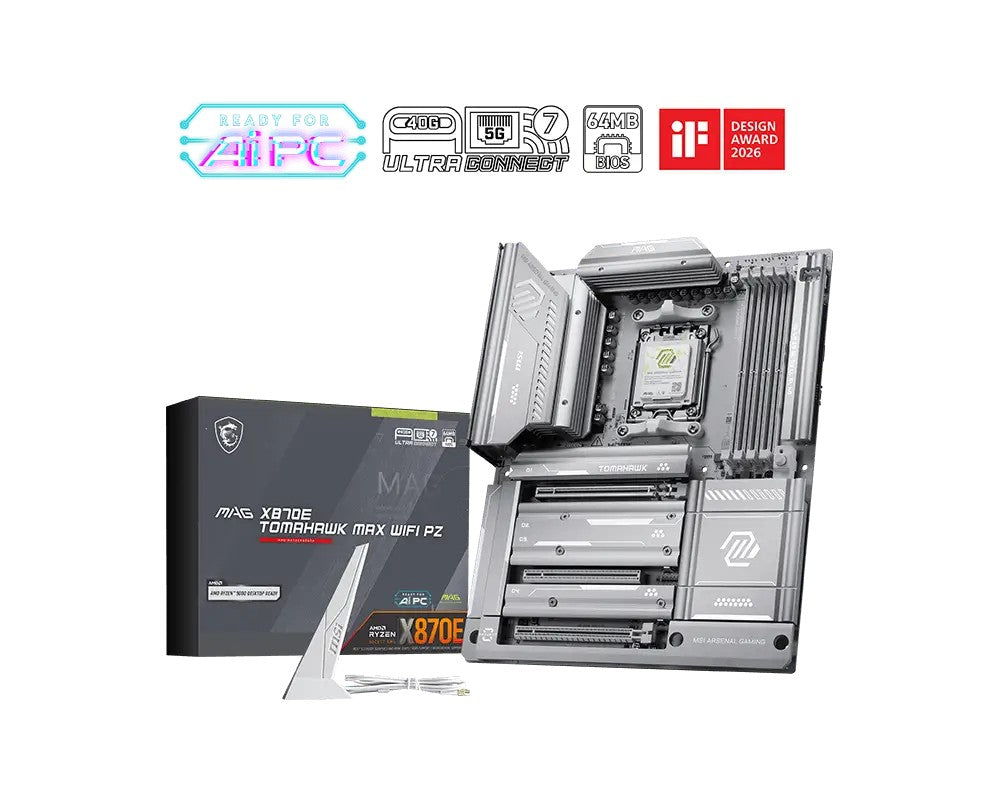

MSI Motherboard MAG X870E TOMAHAWK MAX WIFI PZ AM5 4DDR5 ATX
Specifications
| Description | MAG X870E TOMAHAWK MAX WIFI PZ MAG X870E TOMAHAWK MAX WIFI PZ is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors. Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC) Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience |
|---|---|
| Model | MAG X870E TOMAHAWK MAX WIFI PZ |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 9 |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 8400 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 3.0 x 1 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 4 x M.2 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot (From CPU) Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot (From CPU) Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Graphics | 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz |
| Sound card | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500/5000 Mbit/s |
| Network interface | 1x Realtek 8126 5G LAN Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
| USB ports at back panel | 12 |
| USB ports on motherboard | 9 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 7 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 6 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

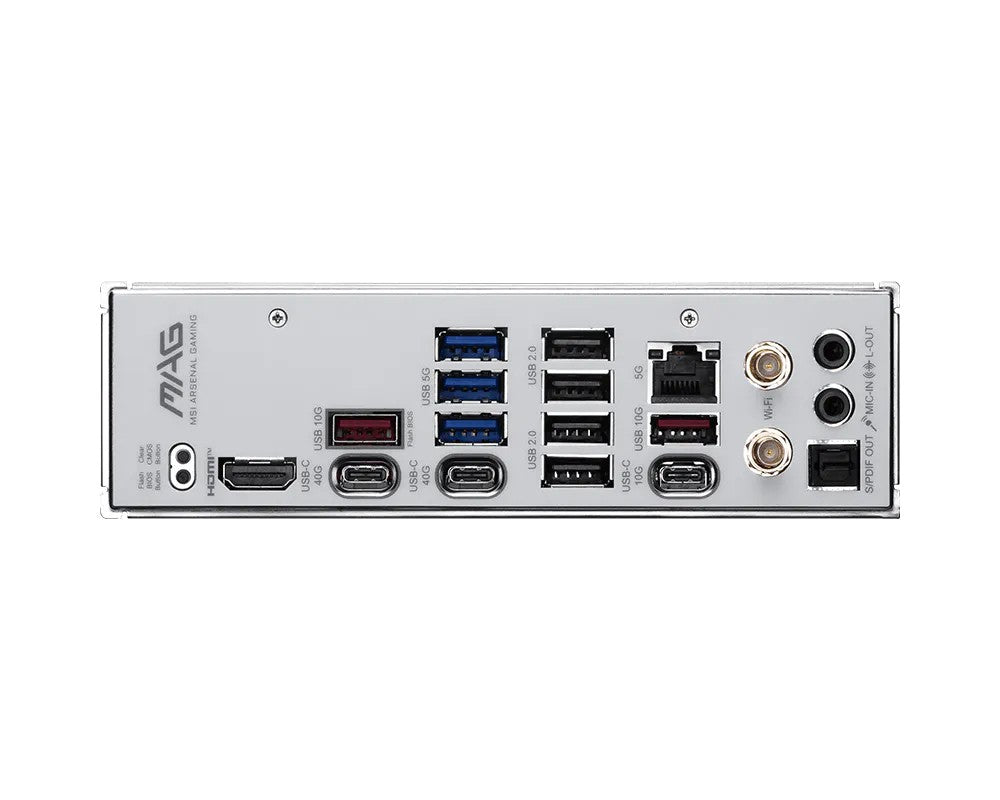

| External connectors | 2 x USB 3.2 Gen 2 Type-A |
| External connectors | 1 x HDMI |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x S/PDIF |
| External connectors | 3 x USB 3.2 Gen 1 Type-A |
| External connectors | 2 x USB4 Type-C |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x USB 3.2 Gen 2 Type-C |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 2 x SMA |
| Onboard connectors | 2 x Base Clock control buttons |
| Onboard connectors | 1 x EZ Conn-header |
| Onboard connectors | 1 x EZ Memory Detection LED |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 4 x EZ Debug LED |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 8-pin PCIe |
| Onboard connectors | 4 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB 3.2 Gen 2x2 Type-C |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 1 x Debug card header |
| Form factor | ATX |
| Dimensions | 243.84 mm x 304.8 mm |
| Accessories included | Quick Installation Guide European Union Regulatory Notice 2 x SATA Cable EZ M.2 Clip II Remover EZ M.2 Clip II M.2 Plate Screw Cable sticker EZ Wi-Fi Antenna 1 to 3 EZ Conn-Cable (V2) EZ Front Panel Cable |
| Supported operating systems | Windows 11 |
