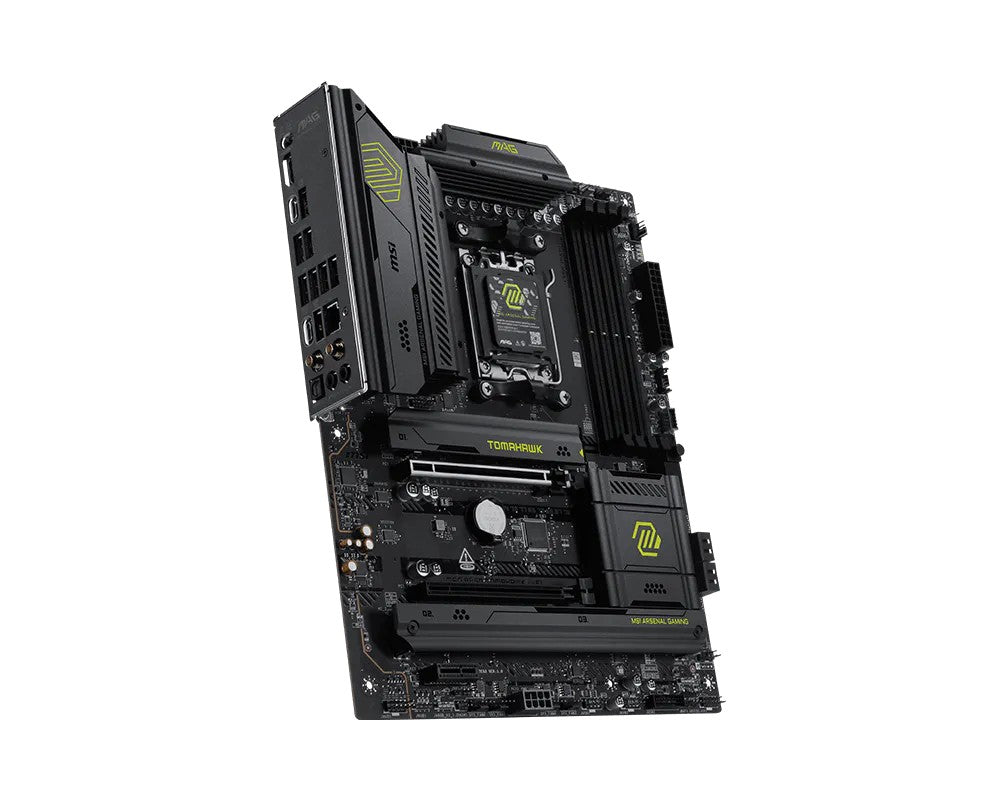

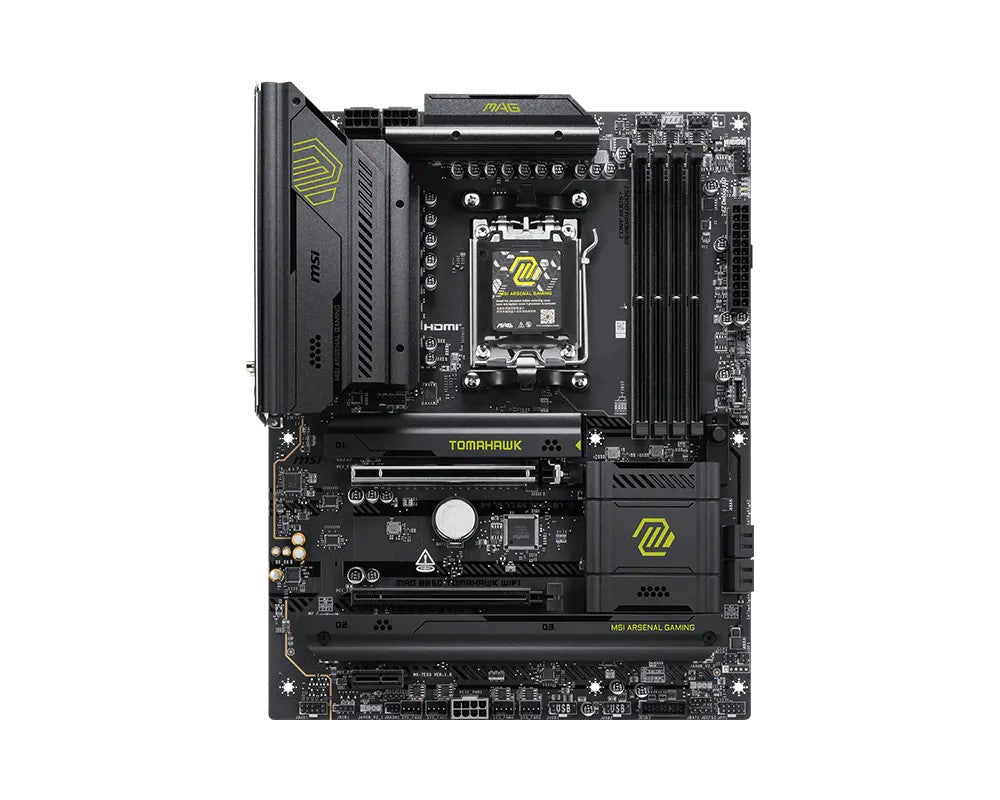

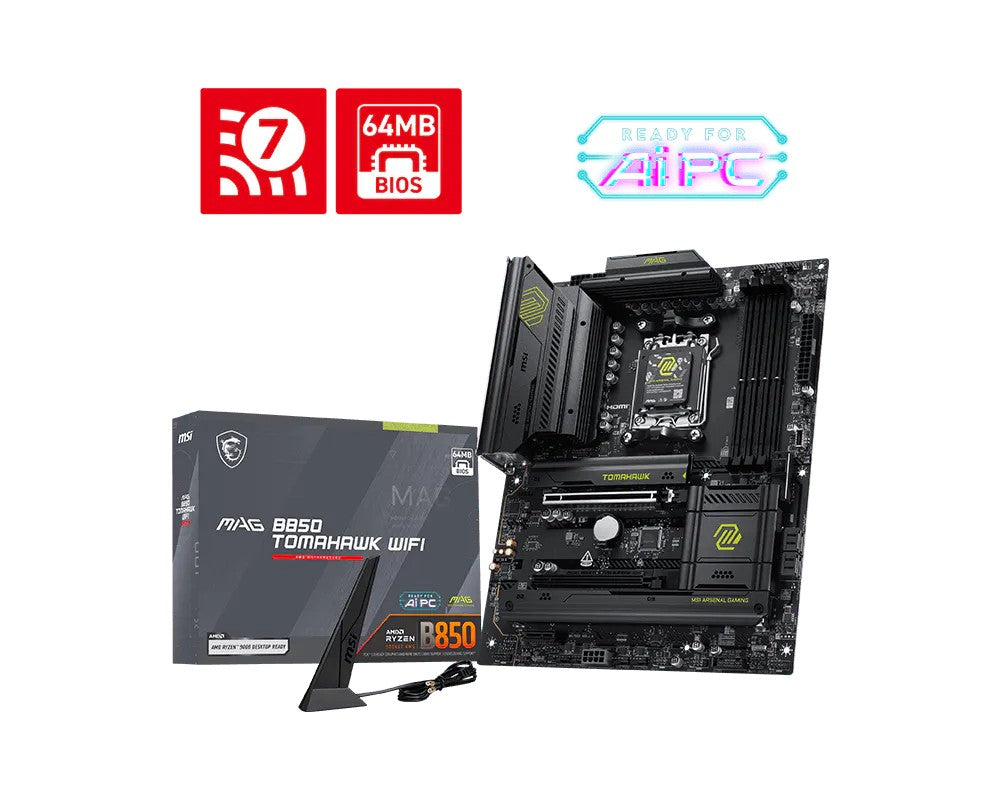

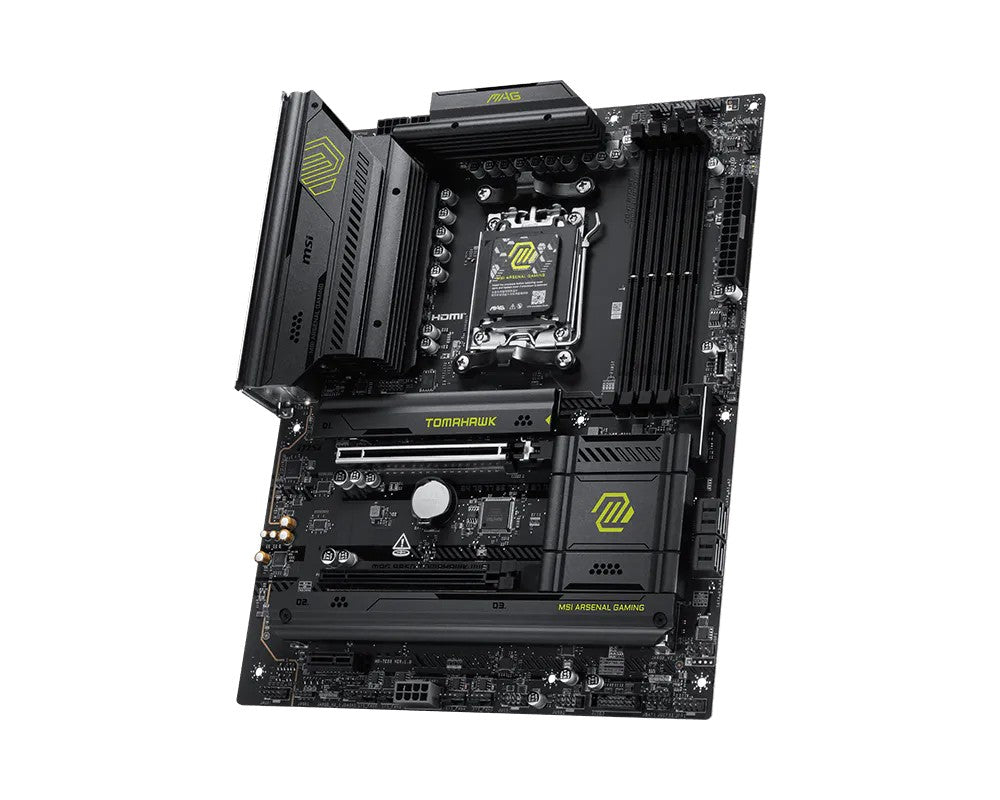

MSI Motherboard MAG B850 TOMAHAWK WIFI AM5 4DDR5 ATX
Specifications
| Description | MAG B850 TOMAHAWK WIFI Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level 6aterial Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Release, EZ M.2 Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience |
|---|---|
| Model | MAG B850 TOMAHAWK WIFI |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B850 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Max memory size | 256 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) M2_3 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
| Graphics | 1 x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz |
| Sound card | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Realtek 8126VB 5G LAN |
| USB ports at back panel | 10 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 4 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 5 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

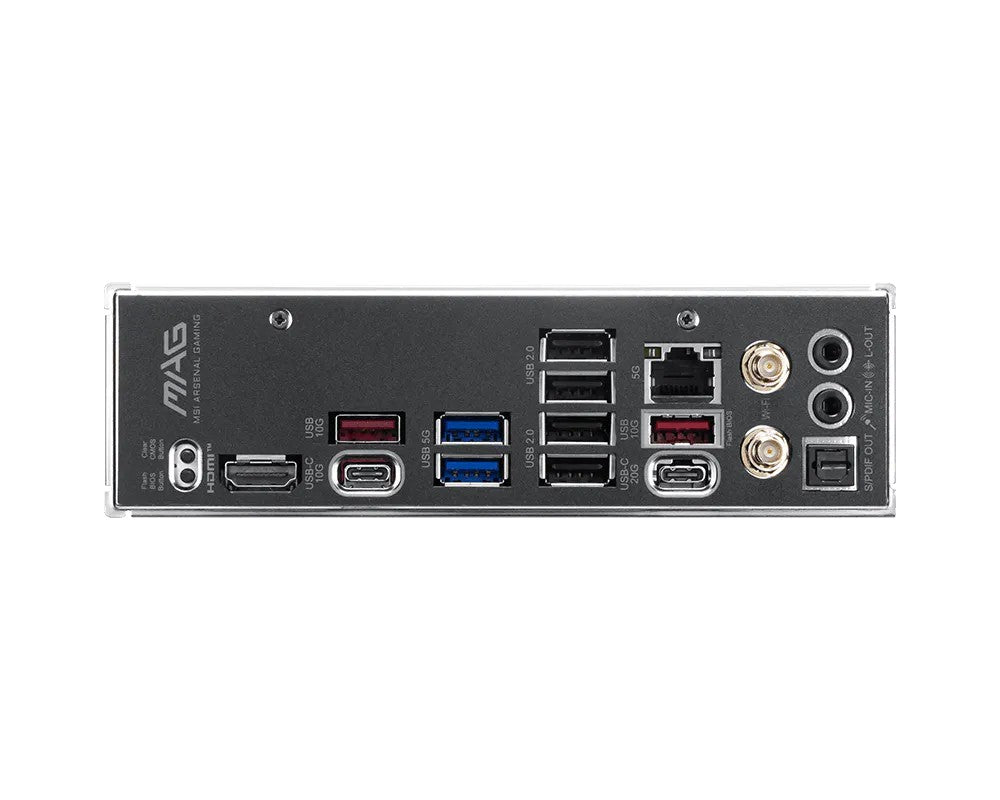

| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x Przycisk Clear CMOS |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x USB 3.0 |
| External connectors | 2 x USB 3.1 |
| External connectors | 3 x USB 3.1 Type-C |
| External connectors | 1 x HDMI |
| External connectors | 1 x Line Out (front) |
| External connectors | 1 x MIC (front) |
| External connectors | 1 x RJ-45 |
| External connectors | 2 x SMA |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x Chassis intrusion header |
| Onboard connectors | 2 x System panel header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 4 x USB 3.0 |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x 8pin 12V |
| Form factor | ATX |
| Dimensions | 243.84 x 304.8 mm |
| Supported operating systems | Windows 11 |
