Description

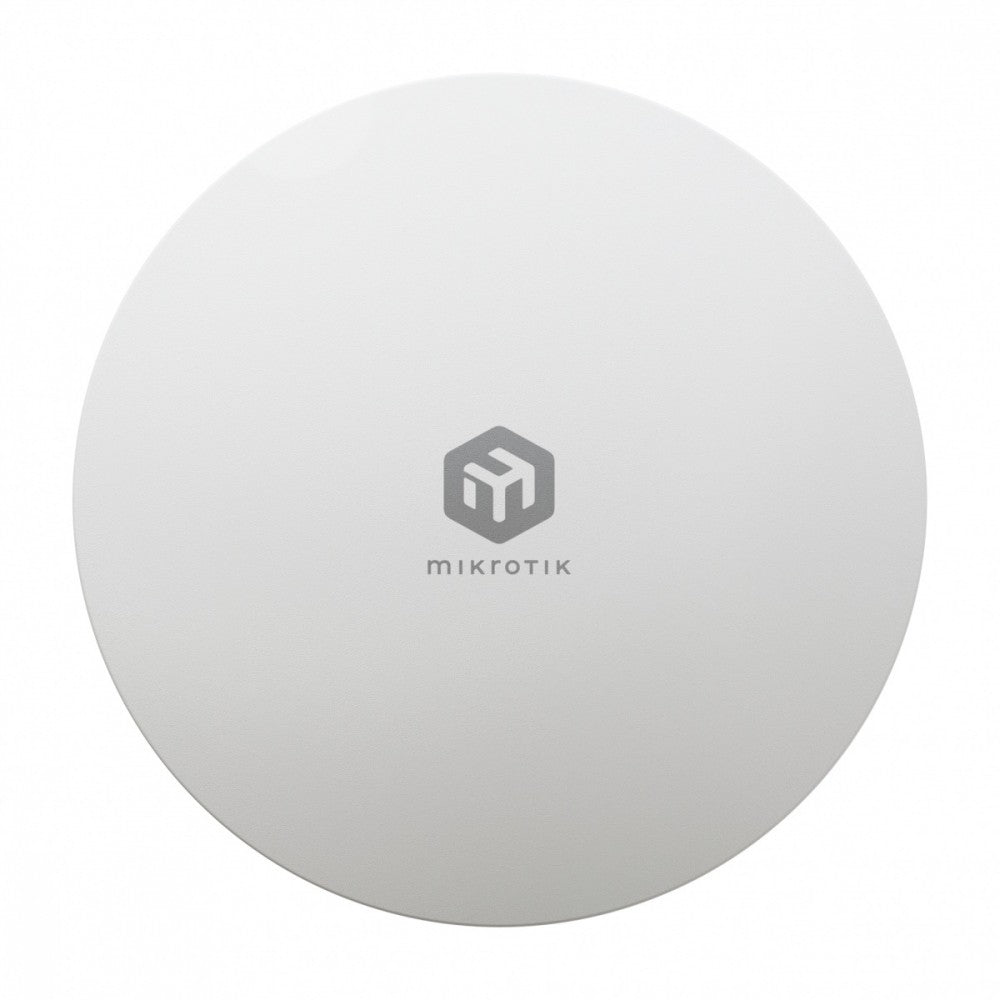

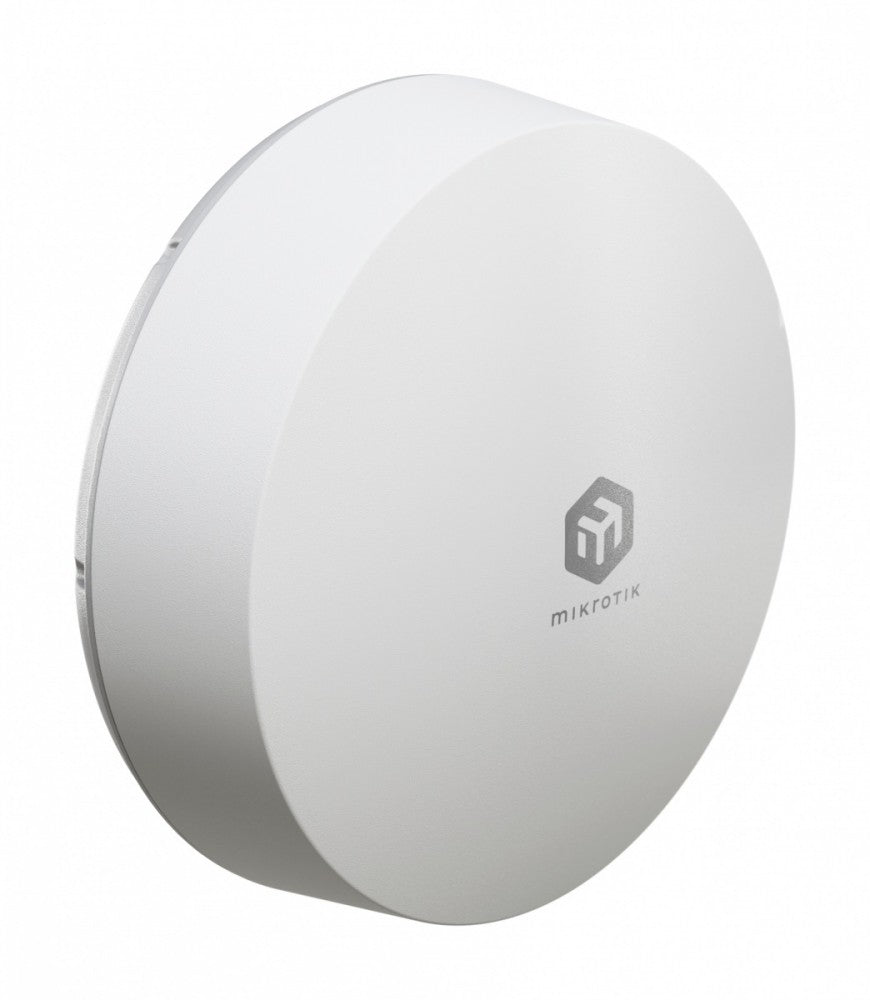

MikroTik Router ALT 5G R16 ATLGM&RG520F-EU
Specifications
| Model | ATLGM&RG520F-EU |
|---|---|
| Description | ATL 5G R16 Our first outdoor 5G device with built-in eSIM support, powerful directional antennas, and a state-of-the-art Release 16 modem, ideal for rural, urban, and IoT deployments. Featuring Gigabit Ethernet, PoE-in, and instant out-of-the-box MikroTik connectivity, it's a smart and rugged choice for fast, flexible internet anywhere. IP66 certified. |
| Type | xDSL |
| Network architecture | GigabitEthernet |
| I/O ports | 1 x SIM card slot |
| I/O ports | 1 x 10/100/1000 Mbit/s PoE |
| Standards | 802.3at |
| Standards | 802.3af |
| Number of antennas | 4 |
| Antenna | Built-in |
| Antenna gain | 16 |
| Security | IP66 |
| Management, monitoring, configuration | 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink) 3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink) MIMO DL 4x4 LTE FDD bands 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900MHz) / 1 (2100MHz) / 32 (1500MHz) LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) 5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) 5G NSA TDD bands 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 76 (1500 MHz) / 38 (2600 MHz) / 75 (1500 MHz) 5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700MHz) 5G SA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) TAC 86945405 |
| Power supply | Number of DC inputs 1 (PoE-IN) Max power consumption 10 W Max power consumption without attachments 10 W PoE in 802.3af/at Cooling type Passive PoE in input Voltage 12-56 V |
| Supported operating systems | RouterOS |
| Environment requirements | Ambient temperature -40°C to 70°C |
| Certificates | CE EAC ROHS |
| Color | White |
| Other features | 64-bit ARM architecture CPU: 88F3720 Number of processor cores: 2 Nominal processor frequency: 800 MHz RouterOS license: 3 RouterOS v7 operating system RAM size: 512 MB Storage size: 32 MB Memory type: FLASH MTBF: approximately 200,000 hours at 25°C |
