Description

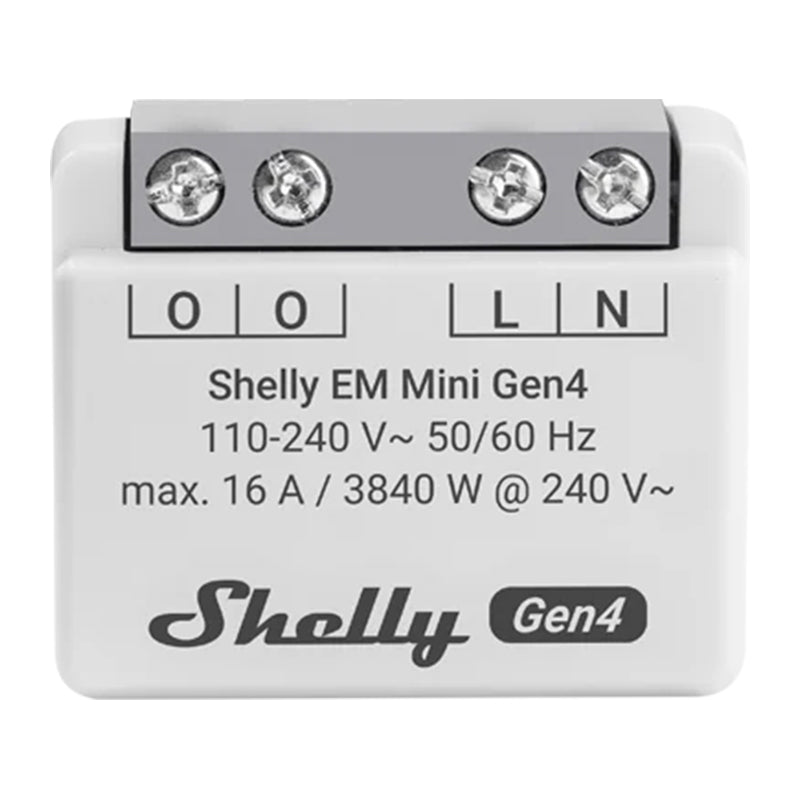

Shelly EM Mini Gen4 WiFi/Matter Energy Meter
The Shelly EM Mini Gen4 is a compact energy meter designed to measure power consumption in real time. Despite its compact size, it offers features familiar from larger Shelly devices - including power measurement, energy consumption and integration with smart home systems. The device supports Wi-Fi, Bluetooth and Zigbee connectivity and is compatible with the Matter protocol, providing great integration flexibility.
Various capabilities
Thanks to its miniature form factor (just 29 × 34 × 16 mm), the Shelly EM Mini Gen4 fits easily into standard installation boxes and small switchboards. It can even be mounted where other devices won't fit - for example, behind an outlet or in a box at the meter.
Two-way energy measurement
The meter allows accurate measurement of voltage, current, power and energy - both drawn from the grid and given off (e.g. from PV installations). Parameter tracking is done with ±1% accuracy, and data can be stored on the device or exported to CSV and JSON files.
Wi-Fi, Zigbee and Bluetooth connectivity
The Shelly EM Mini Gen4 supports various communication protocols - Wi-Fi (including ax), Zigbee and Bluetooth. It can work independently on a local network, integrate with the Shelly cloud, or operate in a home automation system via MQTT, HTTP, WebSocket or Matter. The device also has a built-in web interface and scheduling, webhook and scripting functions.
Additional features and integrations
With BLE Gateway mode, the device can transmit data from Shelly BLU sensors to the local network or the cloud. It also acts as a Wi-Fi and Zigbee signal booster, helping to extend the range of these networks in IoT installations. The meter will be great for home automation systems, analyzing energy consumption or detecting malfunctions in appliances.
General
| Manufacturer | Shelly |
|---|---|
| Model | EMMGen4 |
| Dimensions | 29 × 34 × 16 mm |
| Weight | 13 g |
| Housing material | plastic |
| Screw terminals | Max. tightening torque 0.4 Nm |
| Cross-section of wires | 0.5 - 4 mm² |
| Wire stripping length | 6 - 7 mm |
Environment
| Operating temperature | -20°C to 40°C |
|---|---|
| Humidity | 30 - 70% RH |
| Max. installation altitude | 2000 m above sea level. |
Power supply and safety
| Power supply | 110-240 V AC |
|---|---|
| Power consumption | < 1 W |
| Max current | 16 A |
| Energy limitation class | 3 |
| Min. short-circuit current | 6 kA |
Measurement
| Voltage (AC) | 110-240 V~, 50/60 Hz (±1%) |
|---|---|
| Current (AC) | 0 - 16 A (±1%) |
| Maximum power | 3840 W |
| Measurement range | Active power and energy |
| Data memory | min. 10 days with a resolution of 1 min |
| Data export | CSV, JSON (RPC) |
Wireless connectivity
| Wi-Fi | 802.11 b/g/n/ax (2.4 GHz), range up to 30 m (indoor) |
|---|---|
| Bluetooth | 5.0, range up to 10 m (indoors) |
| Zigbee | 802.15.4, range up to 100 m (indoors) |
Control and integration
| Support for protocols | MQTT, HTTP / HTTPS (WebHooks), WebSocket, UDP, Matter |
|---|---|
| Scripting | Yes, Shelly Script |
| Schedules | up to 20 |
| Webhooks | Up to 20 (5 URLs each) |
| Built-in web interface | yes |
| Integration support | External systems, Home Assistant, Tuya, others |
Producer: Shelly Europe Ltd. (BG)
Address: Cherni Vrah Blvd., 103, 1407, Sofia
Email: support@shelly.cloud
EU Responsible Person: Shelly Europe Ltd.
Address: Cherni Vrah, 103, 1407, Sofia
Email: support@shelly.cloud
