Description

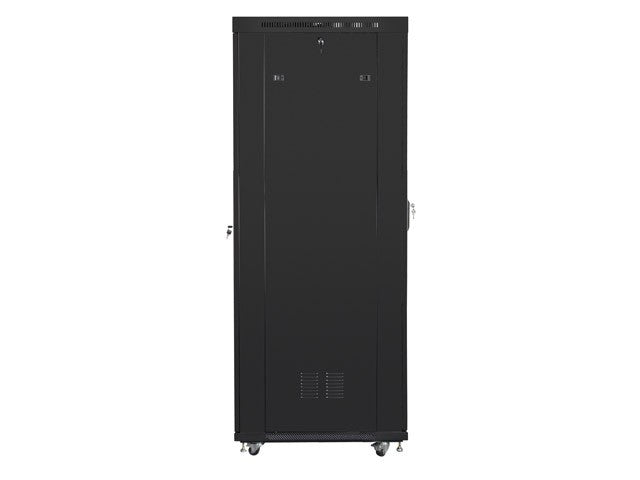

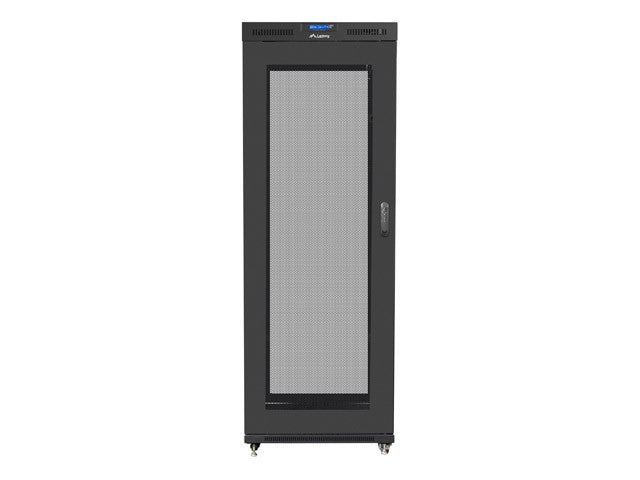

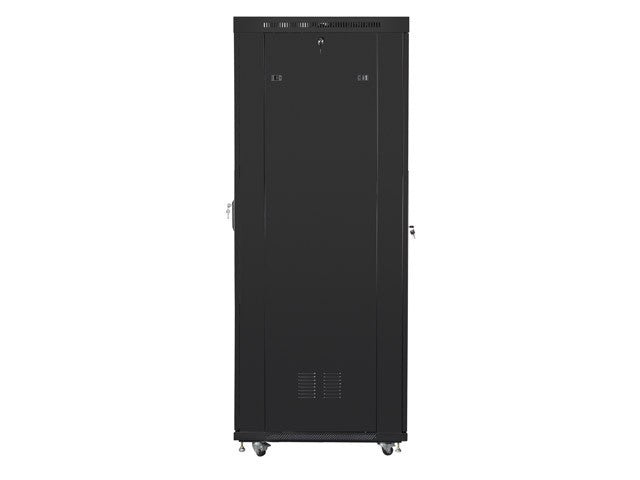

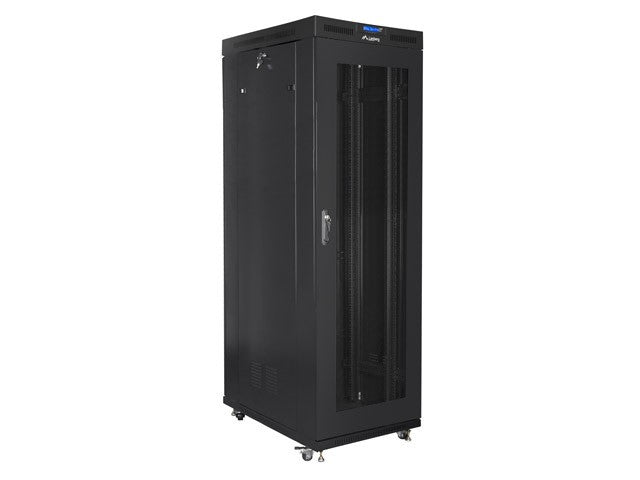

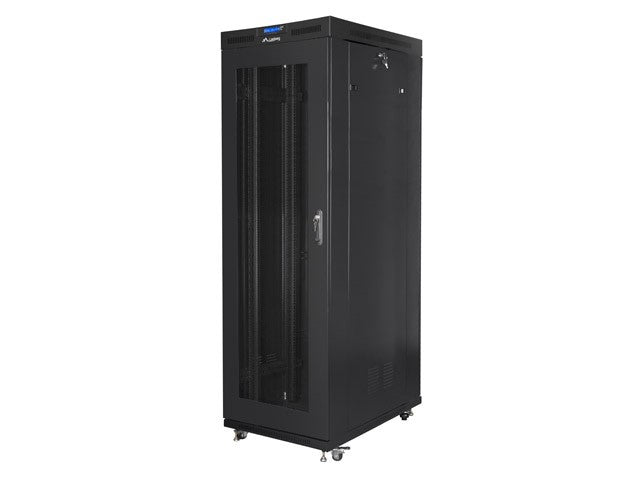

Lanberg Installation standing cabinet rack 19-inch 800x1000 black perforated door LCD (Flat pack)
Specifications
| Description | 19" rack installation cabinet 37U 800x1000 black LCD perforated door (Flat pack) Lanberg FF01-8037-23BL single section standing cabinet is a solution intended for constructing networks, assembling cables and equipment in 19" size with a maximum total load capacity of 800 kg. It may be used in data centres which require a large amount of space in equipment cabinets. The cabinet will successfully fulfil its role in large, expanded networks and server rooms, both in small, medium and large companies and corporations. It will also prove useful in low-current installations such as cable TV networks, alarm systems, fire protection, access control and CCTV and IP monitoring systems. The structure is made using high quality rolled steel and is characterised by excellent design and workmanship. The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a perforated front door with a lock, with the possibility of right or left assembly. It has removable side panels (with locks included) and a rear perforated door with lock. It is possible to run cabling through the lockable top and bottom panels (with plugs supplied). The cabinet has a LCD display mounted on the front, which displays basic information (e.g. temperature inside the cabinet, current time and the current status of the fans) about the operating status of the device. The set includes a ventilation panel with 4 fans 230V. Additionally, accessories for fastening support rails, M6 screws and plugs for input panels are included in the set. Thanks to the flat pack construction, the whole set is contained in 4 flat packs, which makes transportation easier. |
|---|---|
| Type | Floor standing |
| Height | 37U |
| Width | 80 |
| LCD display | Yes |
| Number of fan slots | 4 |
| Number of vertical rails | 4 |
| Protection class | IP20 |
| Front door type | Perforated |
| Stuff | Steel |
| Load (max) | 800 |
| Accessories included | Assembly instructions Set of screws Castors with brakes Feet Ventilation panel (4 fans) Screws M6 Front lock Rear lock Side locks |
| Color | RAL 9004 |
| Color | Black |
| Dimensions | Cabinet dimensions (width x depth x height): 800 x 1000 x 2039.1 mm Height (top panel - bottom panel): 1972.1 mm Height (top panel - base): 2039.1 mm Height (top panel - base including screws): 2039.1 mm Internal spacing width between the rack rails: 450 mm Spacing width between rack rail openings: 465 mm External width between rack rails: 500 mm Door thickness: 5.0 mm Metal thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; the rest - 1.50 mm - 1.20 mm |
| Weight | 118 |
| Other features | LCD display Floor panel: 4 castors with brake + adjustable feet Ventilation panel: incl. 4 fans 230 V in the upper housing Door type: front - perforated, rear - perforated Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI Cable openings: Top, Bottom (adjustable) |
