Description

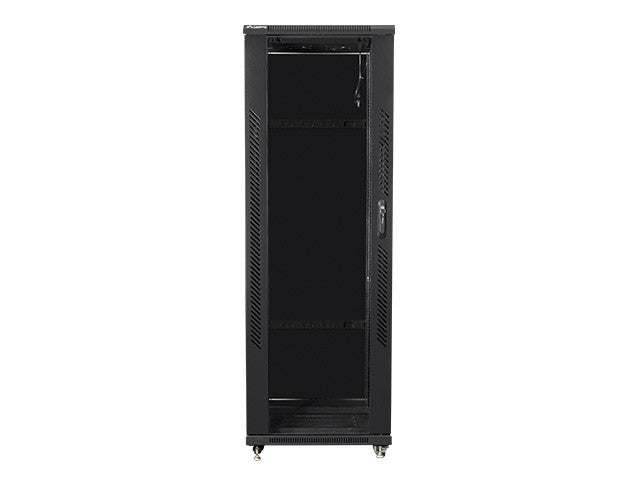

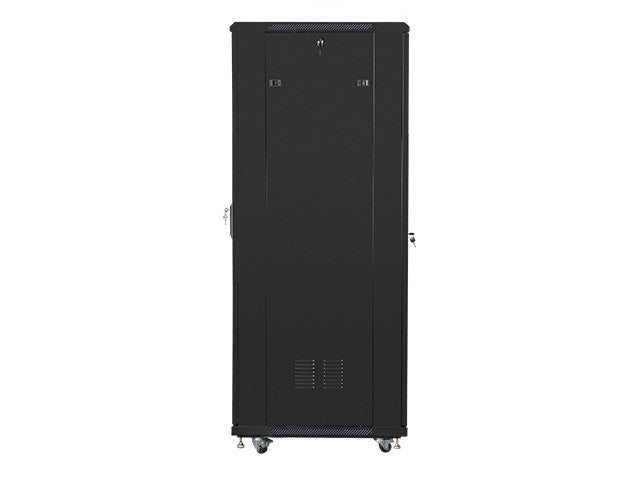

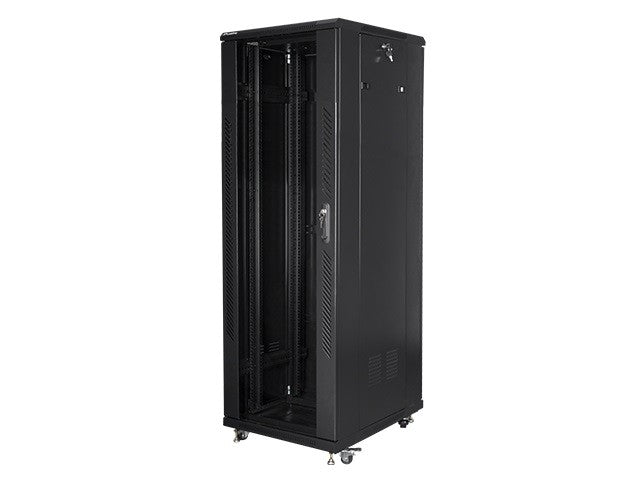

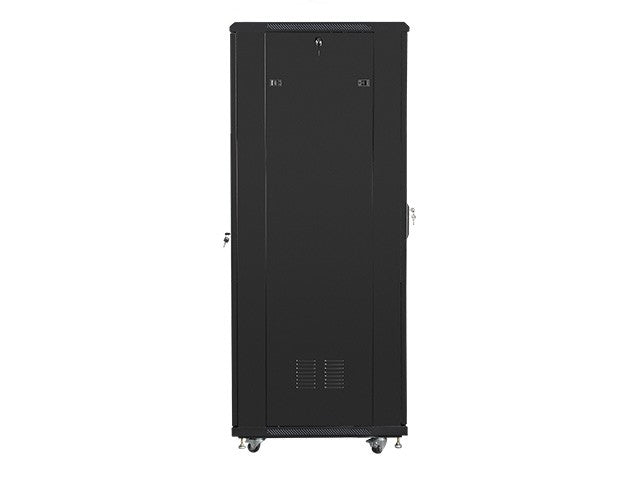

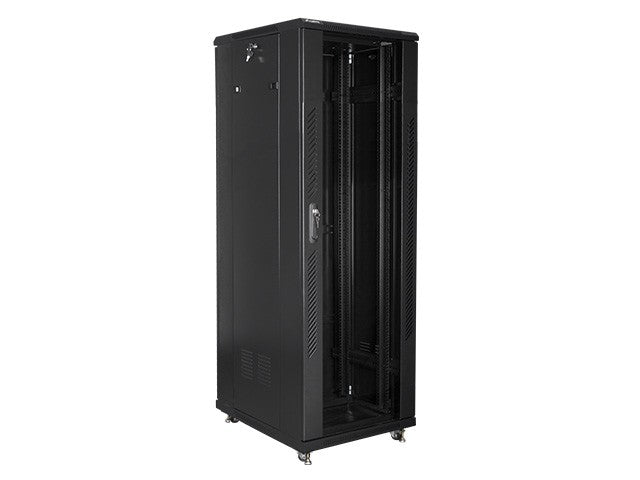

Lanberg Free-Standing Rack 19" 37U 600x800mm black
Specifications
| Description | Free-Standing Rack 19" 37U 600x800mm black One-section standing cabinet Lanberg FF01-6837-12B is a solution designed for network construction, installation of cabling and equipment in size 19 with a maximum combined load capacity of up to 800 kg. It can be used in data centers that require a large amount of space in the device cabinets. The wardrobe will successfully fulfill its role in large, extensive networks and server rooms, both in small, medium and large companies as well as corporations. It also works well in low voltage installations such as cable television networks, alarm and fire alarm systems, access control systems as well as CCTV and IP monitoring systems. The construction is made using high quality rolled steel, characterized by excellent design and quality. The cabinet allows full adjustment of the depth of vertical mounting rails. It is equipped with a front door made of tempered glass with a lock, with the possibility of fitting the right or left side. It has removable side panels (with locks included) and a rear solid steel door with a lock. It is possible to insert the wiring through the closed top and bottom panels (with end caps included). The set includes a ventilation panel with 4 230V fans. In addition, the set includes accessories for fixing support rails, M6 screws and end caps for the entrance panels, and thanks to the self-assembly construction (flat pack), the whole is in 3 flat packages, which facilitates transport. |
|---|---|
| Type | Floor standing |
| Height | 37U |
| Width | 600 |
| LCD display | No |
| Number of fan slots | 4 |
| Number of vertical rails | 4 |
| Protection class | IP20 |
| Front door type | Glass |
| Stuff | Steel |
| Stuff | Glass |
| Load (max) | 800 |
| Accessories included | Mounting accessories Front and rear door lock Side panel lock x2 M6 x20 screws |
| Optional accessory | AK-1003-B Shelf for Lanberg cabinet AK-1005-B Shelf for Lanberg cabinet AK-1007-B Drawer shelf for Lanberg standing cabinet AK-1008-B Universal shelf suitable for Lanberg hanging and standing cabinets AK-1101-B Brush panel 1U Lanberg AK-1201-B Cable Organizer type A Lanberg AK-1202-B Cable Organizer type B Lanberg AK-1302-S Set of 50 M6 Lanberg screws AK-1401-B End cap 1U Lanberg AK-1402-B 2U Lanberg end cap |
| Color | Black |
| Color | RAL 9004 |
| Dimensions | 600 x 800 x 1833 mm |
| Weight | 98.5 |
| Other features | Floor panel: 4 wheels with brakes + adjustable feet Ventilation panel: 4 230V fans in the upper housing Type of door: Front - Tempered glass, Rear - Steel Compliance with standards: ANSI / EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI Material: High-quality rolled steel, powder coated Door thickness: 5.0 mm Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; rest - 1.50 mm - 1.20 mm Cable openings: Top, Bottom (adjustable) |
