Description

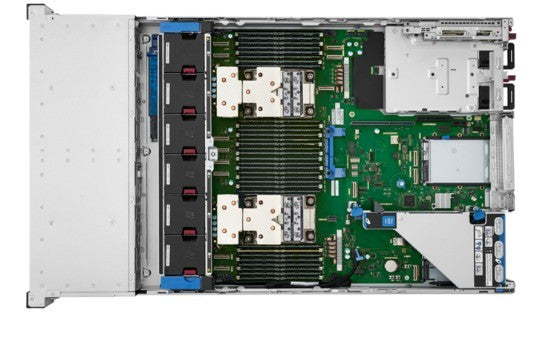

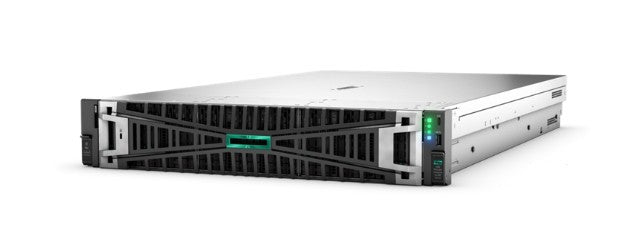

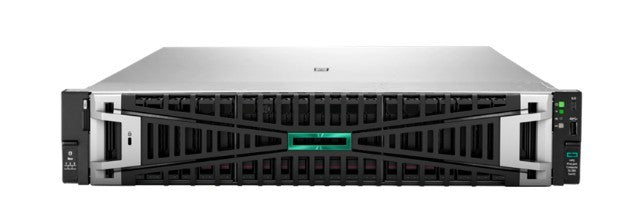

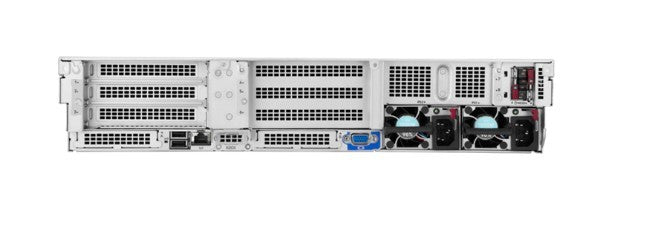

Hewlett Packard Enterprise Server DL380 G12 6505P 8SFF P89316-425
Specifications
| Description | HPE ProLiant Compute DL380 Gen12 6505P 1P 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server The HPE ProLiant Compute DL380 Gen12 server features one Intel Xeon 6505P processor, 64GB of Dual Rank memory (2x32GB), one HPE MR408i-o Gen11 x8 Lanes storage controller with 4GB cache (OCP SPDM), support for eight SFF drives, four standard fans, two HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSDs, and a 3/3/3 warranty. |
|---|---|
| Model | HPE ProLiant DL360 Gen12 |
| Number of CPUs installed | 1 |
| Max supported number of processors | 2 |
| CPU series | Intel Xeon |
| CPU model | 6505P |
| CPU frequency | 2.2 |
| Number of cores | 12C |
| CPU - other information | Intel Xeon 6505P |
| RAM memory installed | 64 |
| Max memory size | 8 |
| Memory type | DDR5 |
| Kind of memory | Registered |
| Kind of memory | ECC |
| Memory frequency | 6400 MHz |
| Number of memory slots used | 2 |
| Number of available memory slots | 30 |
| Total number of memory slots | 32 |
| RAM - other information | 64 GB (2x32 GB, 6400 MT/s) |
| Network interface | 2 x 10Gbit/s 10GBase-T |
| Network card - other information | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Disk controller | Card |
| RAID levels | 1 |
| RAID levels | 10 (1+0) |
| RAID levels | 5 |
| RAID levels | 50 (5+0) |
| RAID levels | 0 |
| RAID levels | 6 |
| RAID levels | 60 (6+0) |
| Controller memory | 4 GB |
| Controller - other information | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Form factor (width) | 2,5'' (SFF) |
| Hot-swapping support | Yes |
| Hard drive cage interfaces | NVMe |
| Hard drive cage interfaces | SAS |
| Max. number of disks in current configuration | 8 |
| Number of HDDs installed | 2 |
| Total capacity of all disks installed | 960 |
| Type of installed disc | SSD |
| Disk interface | SATA |
| Optical disk drive | None |
| Internal backup device support | Yes |
| I/O connectors | 1 x USB 3.2 Type-A Gen 1 |
| I/O connectors | 1 x USB Service |
| I/O connectors | 1 x RJ-45 (iLO Remote Management Network) |
| I/O connectors | 1 x 15-pin D-Sub |
| I/O connectors | 4 x USB 3.0 |
| Number of power supplies installed | 2 |
| Max. number of power supplies | 2 |
| Power supply output current | 1000 |
| PSU efficiency | 96 |
| Hot-plug power supply support | Yes |
| Number of fans | 4 |
| Hot-plug fans support | No |
| Housing | Rack 2U |
| Height | 42.9 |
| Width | 434.6 |
| Depth | 753.1 |
| Weight | 19.94 |
| Tower to rack conversion support | No |
| Color | Not applicable |
