Description

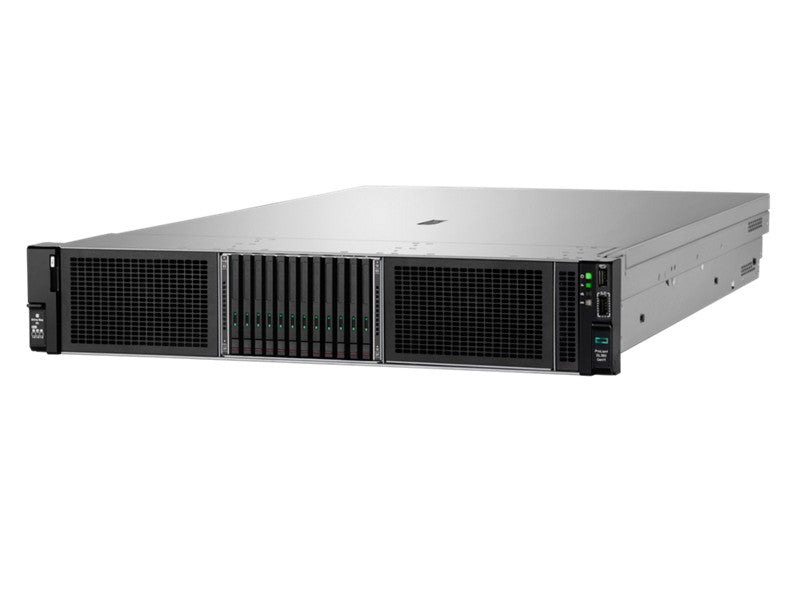

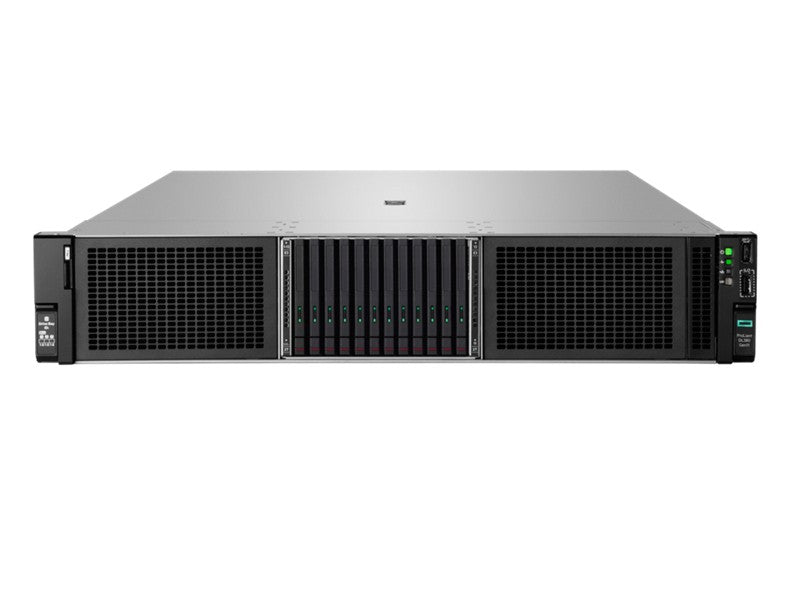

Hewlett Packard Enterprise Server DL380 G11 4514Y 64G 8SFF P77235-425
Specifications
| Description | HPE ProLiant DL380 Gen11 4514Y 2.0GHz 16c 1P 64GB-R 8SFF MR416i-o 2x2.4TB HDD 2x1000W PS EU Server P77235-425 HPE ProLiant DL380 Gen11 8 SFF rack server with one Intel Xeon Silver 4514Y processor, 64 GB DDR5 RDIMM memory, HPE MR416i-o storage controller, two 2.4 TB SAS HDDs, two HPE 1000W Flex Slot Titanium Hot Plug Power Supply, and a 3/3/3 warranty |
|---|---|
| Model | HPE ProLiant DL380 Gen11 |
| Chipset type | Intel C741 |
| Number of CPUs installed | 1 |
| Max supported number of processors | 2 |
| CPU series | Intel Xeon |
| CPU model | 4514Y |
| CPU frequency | 2 |
| Number of cores | 16C |
| CPU - other information | Intel Xeon Silver 4514Y (16 core, 2.0 GHz, 150W) |
| RAM memory installed | 64 |
| Max memory size | 8 |
| Memory type | DDR5 |
| Kind of memory | Registered |
| Memory frequency | 5600 MHz |
| Number of memory slots used | 2 |
| Number of available memory slots | 30 |
| Total number of memory slots | 32 |
| RAM - other information | 64 GB (2x32 GB, 5600 MT/s) Notes: Runs at 4400 MT/s due to processor limitation |
| Network interface | 2 x 10Gbit/s 10GBase-T |
| Network card - other information | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Disk controller | Card |
| Controller - other information | HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller |
| RAID levels | 10 (1+0) |
| RAID levels | 5 |
| RAID levels | 50 (5+0) |
| RAID levels | 6 |
| RAID levels | 60 (6+0) |
| RAID levels | 0 |
| RAID levels | 1 |
| Battery backup | Bettery |
| Controller memory | 8 GB |
| Form factor (width) | 2,5'' (SFF) |
| Hot-swapping support | Yes |
| Hard drive cage interfaces | SATA |
| Hard drive cage interfaces | NVMe |
| Hard drive cage interfaces | SAS |
| Max. number of disks in current configuration | 8 |
| Number of HDDs installed | 2 |
| Total capacity of all disks installed | 4.8 |
| Type of installed disc | HDD |
| HDD interface | SAS |
| Optical disk drive | None |
| Internal backup device support | No |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 2 x PCIe 5.0 x 8 |
| I/O connectors | 1 x 15-pin D-Sub |
| I/O connectors | 1 x USB 2.0 |
| I/O connectors | 1 x USB Service |
| I/O connectors | 2 x RJ-45 LAN |
| I/O connectors | 1 x RJ-45 (iLO Remote Management Network) |
| I/O connectors | 4 x USB 3.0 |
| Number of power supplies installed | 2 |
| Max. number of power supplies | 2 |
| Power supply output current | 1000 |
| PSU efficiency | 96 |
| Hot-plug power supply support | Yes |
| Number of fans | 4 |
| Hot-plug fans support | Yes |
| Housing | Rack 2U |
| Height | 8.75 |
| Width | 44.8 |
| Depth | 72.7 |
| Weight | 33 |
| Tower to rack conversion support | No |
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response |
| Accessories included | HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit |
| Color | Not applicable |
