Description

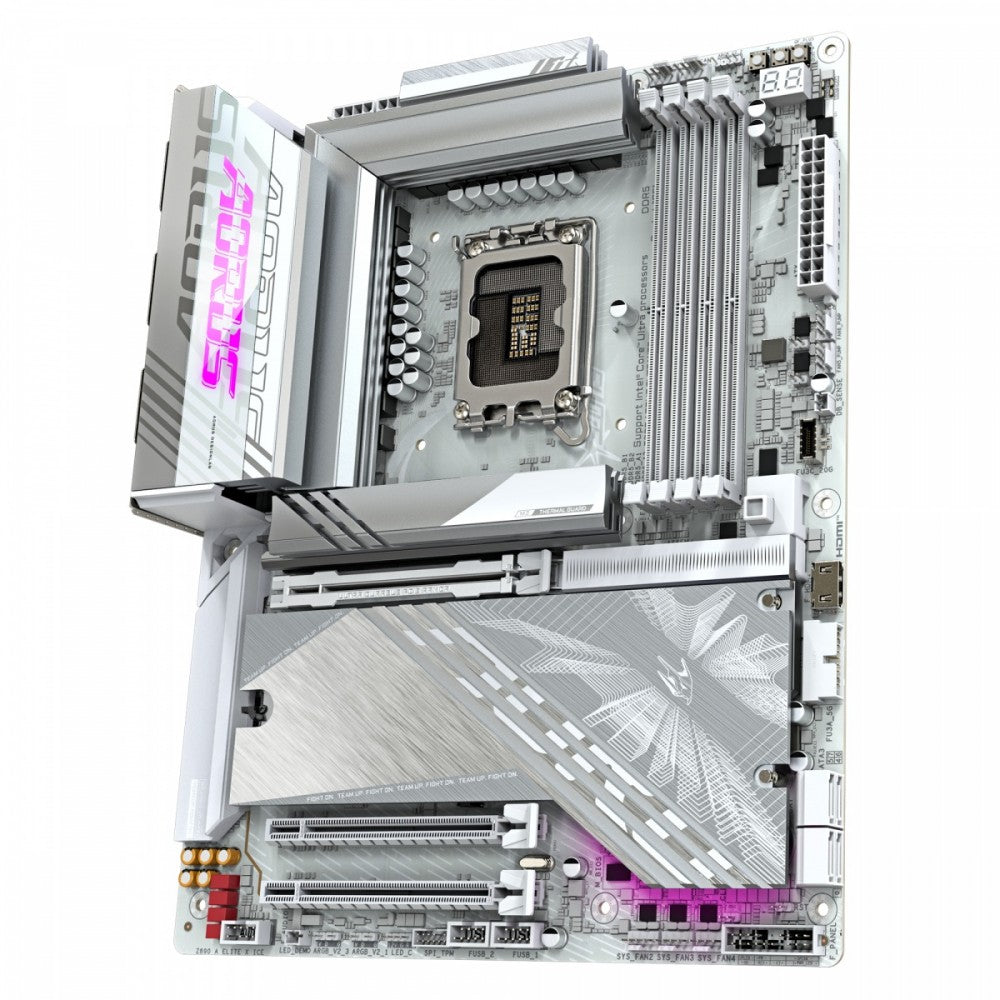

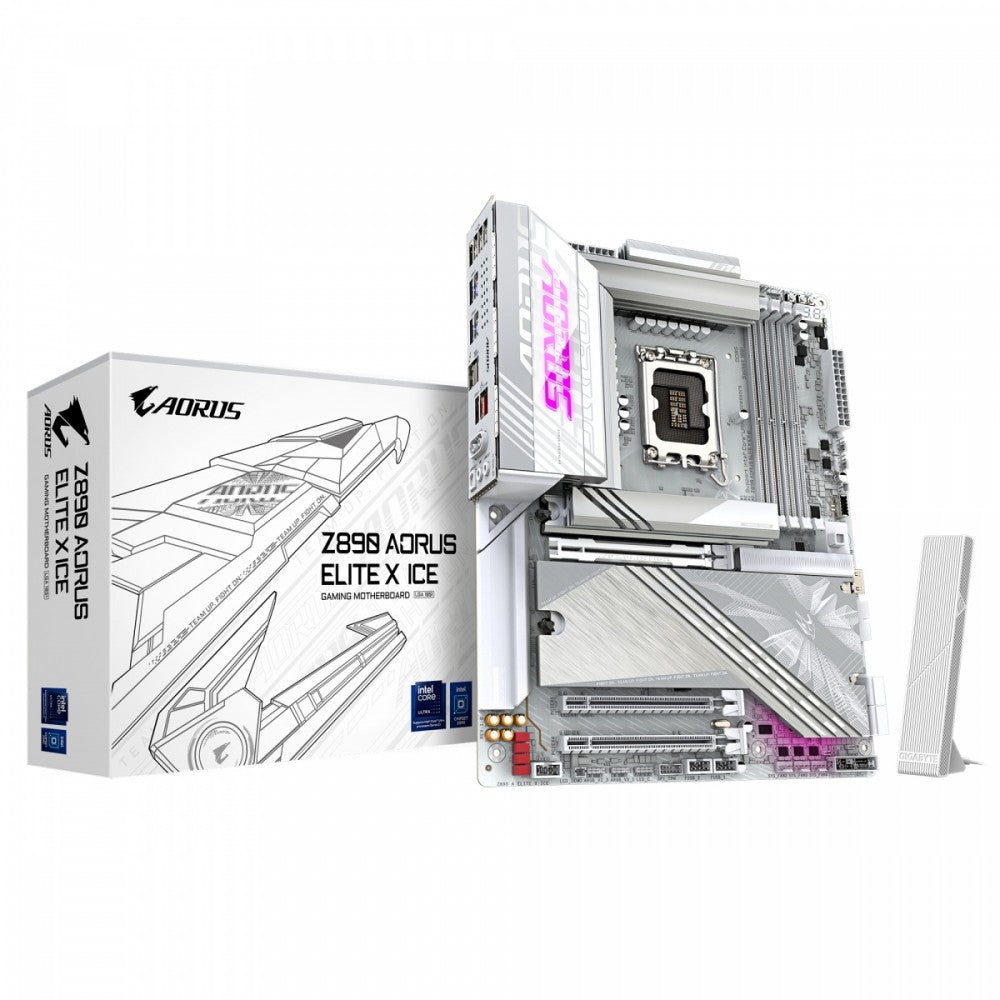

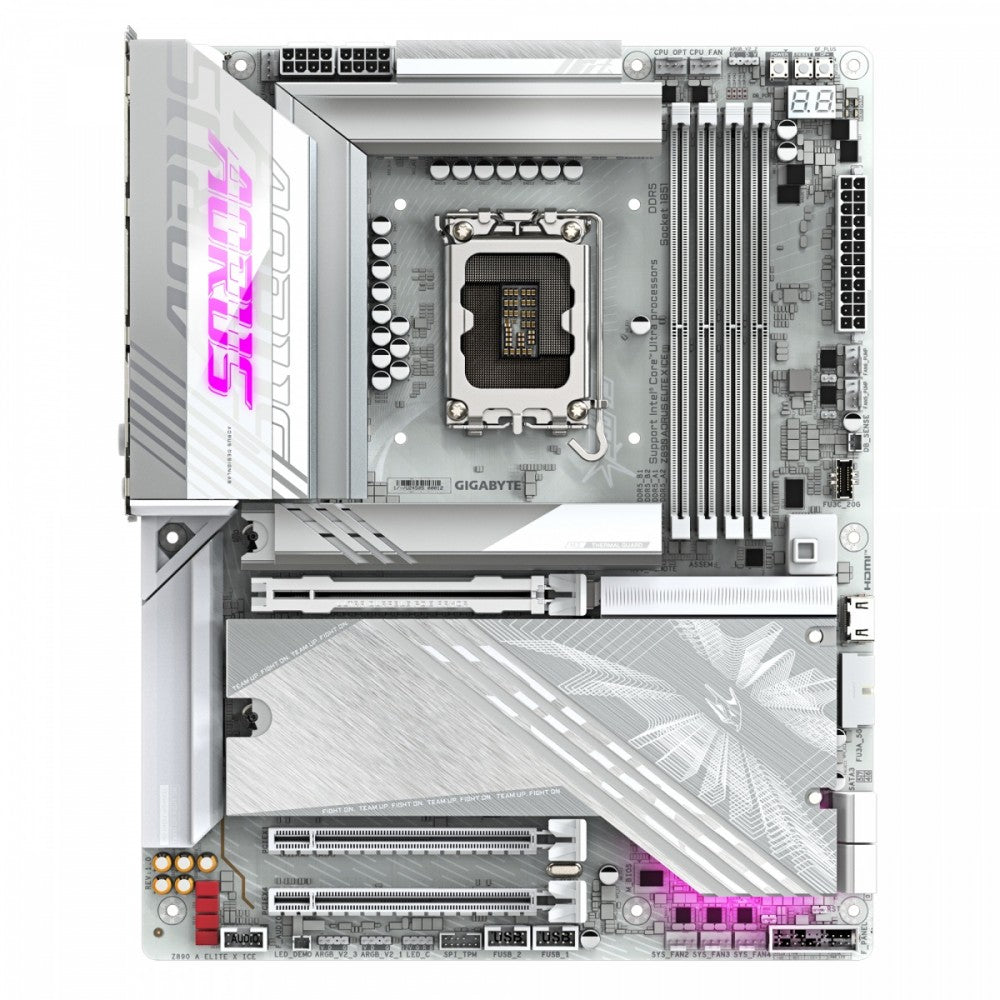

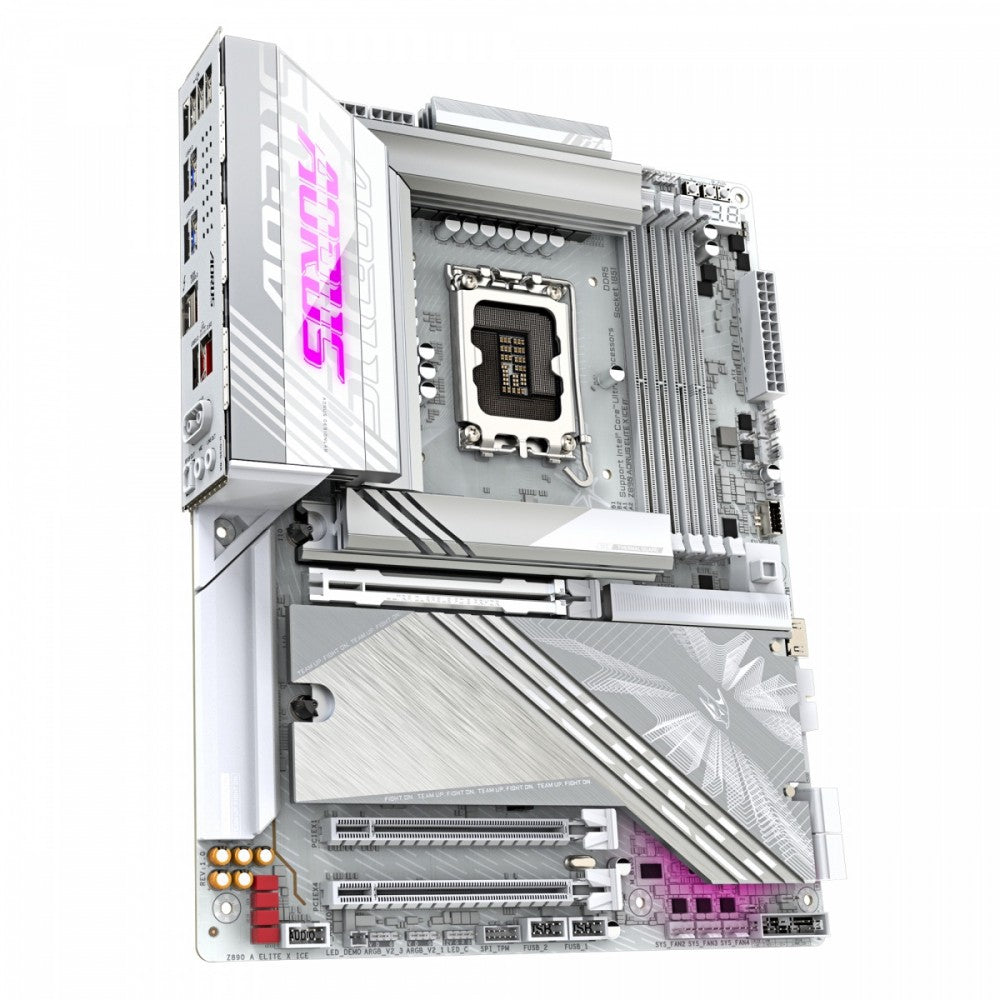

Gigabyte Motherboard Z890 A ELITE X ICE
Specifications

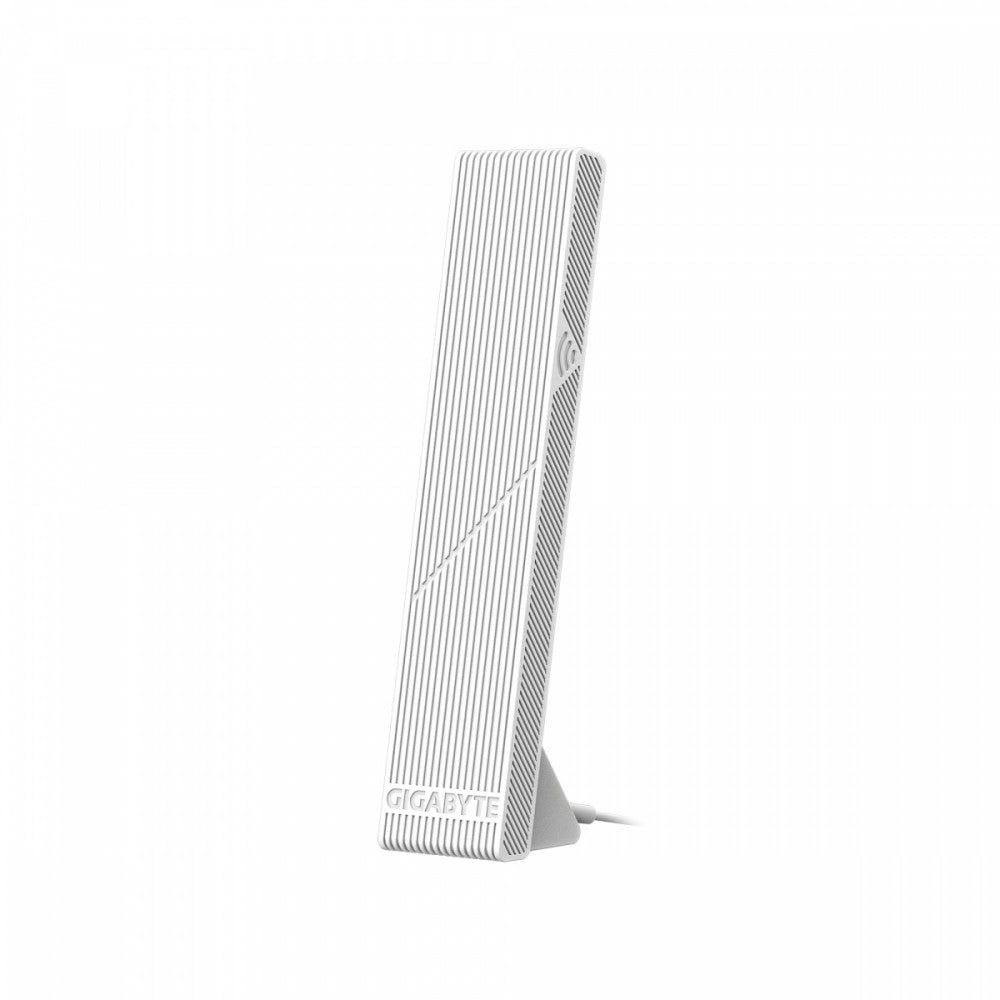

| Description | Supports Intel Core Ultra (Series 2) Processors Digital Twins 16+1+2 Phase VRM Solution D5 Bionic Corsa for Infinite Memory Performance AORUS AI SNATCH: Software for AI auto overclocking AI Perfdrive: Provides optimal and customized BIOS setting profile for users Premium Compatibility: 4*DDR5 with XMP memory module support WIFI EZ-Plug: Quick and easy design for installing Wi-Fi antenna EZ-Latch Plus: PCIe and M.2 slots with quick release and screwless design EZ-Latch Click: M.2 heatsinks with screwless design Sensor Panel Link: Built-in video port for hassle-free panel configuration in the case User-friendly UI: Multi-theme, AIO fan control and Q-Flash auto scan in BIOS and software New power monitor in HWinfo for real-time monitoring of CPU power phase Ultra-fast storage: 5 x M.2 slots, including 1 x PCIe 5.0 x4 Efficient cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard L High-speed networking: 2.5GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna Expanded connectivity: THUNDERBOLT 4 Type-C with DP-Alt High-resolution audio: ALC1220 and audiophile-grade WIMA capacitors Ultra-durable PCIe Armor casing: metal backplate for PCIe x16 slot for enhanced durability PCIe UD X slot: PCIe 5.0 x16 slot with 10x more durability for graphics cards |
|---|---|
| Model | Z890 A ELITE X ICE |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | Yes |
| Chipset manufacturer | Intel |
| Chipset type | Intel Z890 Express Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 8266 MHz |
| Memory bus frequency | 8400 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 7400 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 7950 MHz |
| Memory bus frequency | 7900 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 5800 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 8600 MHz |
| Memory bus frequency | 8800 MHz |
| Memory bus frequency | 8933 MHz |
| Memory bus frequency | 9066 MHz |
| Memory bus frequency | 9200 MHz |
| Memory bus frequency | 9333 MHz |
| Memory bus frequency | 9466 MHz |
| Memory bus frequency | 9500 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 2 x M.2 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 4.0 x 1 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | CPU: - 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M-key, Type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M-key, Type M, type Supports 2280 SATA and PCIe 4.0 x4/x2 SSD) (M2M_SB) - 4 x SATA 6Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| Graphics | Integrated graphics processor - Intel HD Graphics support: - 1 Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video output When a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output * Due to the limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, refer to Chapter 2-6, Back Panel Connectors.) * Support for DisplayPort 1.4 and HDCP 2.3 - 1 front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4. (Graphics specifications may vary depending on CPU support.) |
| Sound card | Realtek ALC1220 CODEC * The line-out jack on the rear panel supports DSD audio. High-Resolution Audio 2/4/5.1/7.1-channel * The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings. S/PDIF output support |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard |
| USB ports at back panel | 11 |
| USB ports on motherboard | 8 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 5 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

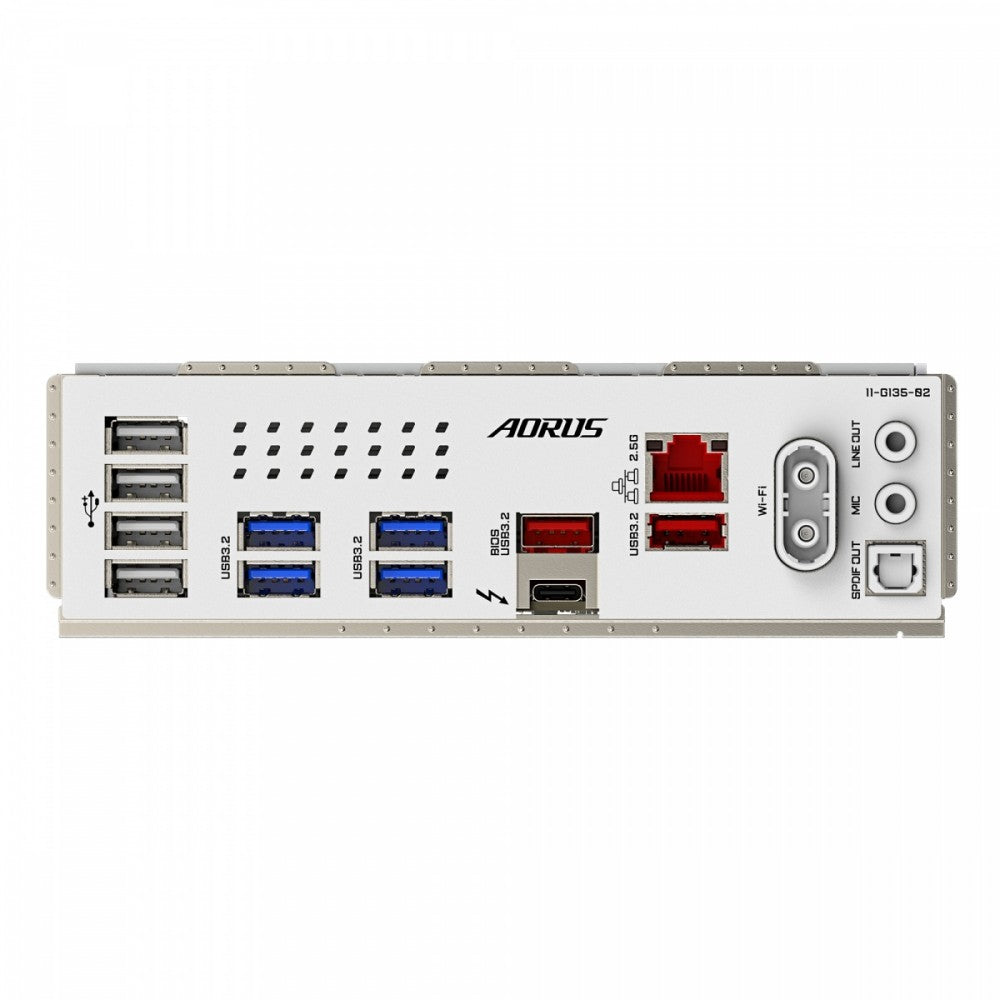

| External connectors | 2 x USB 3.2 Gen 2 Type-A |
| External connectors | 4 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x S/PDIF |
| External connectors | 4 x USB 2.0 |
| External connectors | 1 x Thunderbolt 4 |
| External connectors | 1 x Line Out |
| External connectors | 2 x SMA |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x HDMI |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 2 x 4pin case fan liquid cooling |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 5 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 1 x Noise detection header |
| Onboard connectors | 1 x Q-Flash Plus button |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
