Description

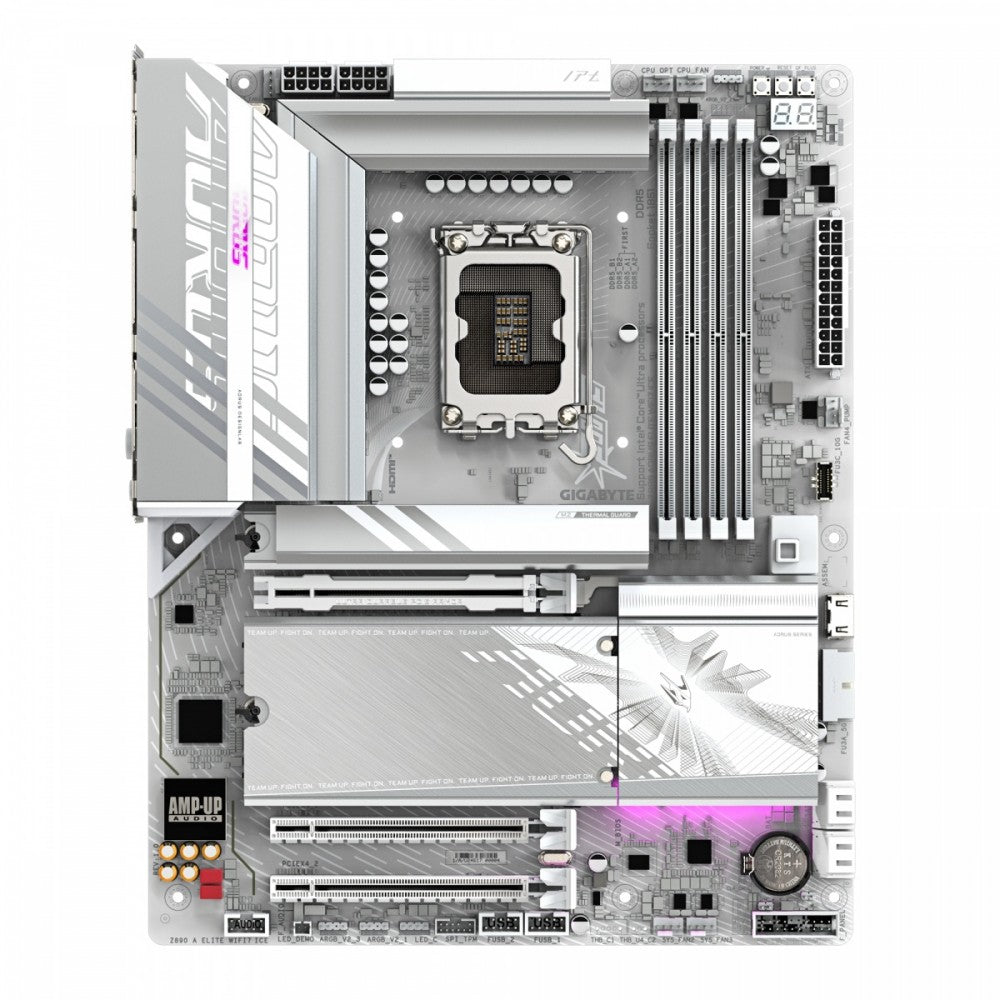

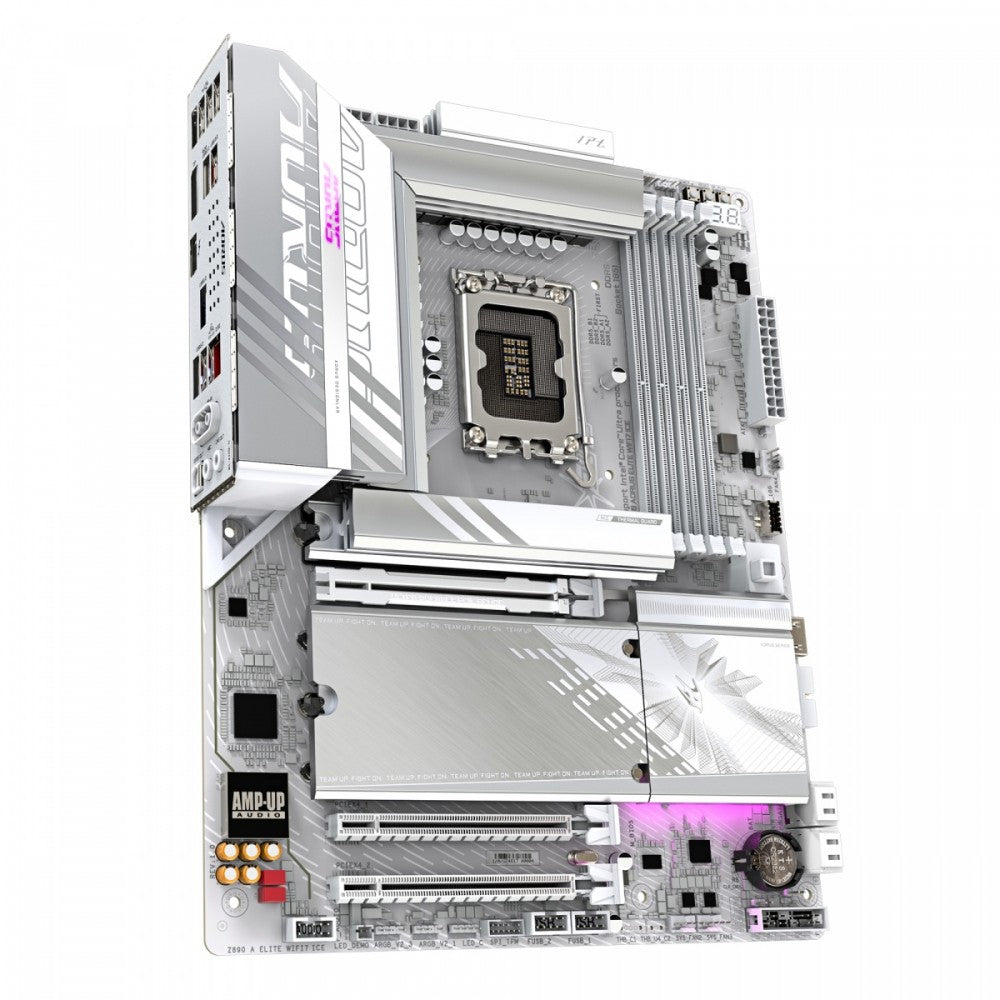

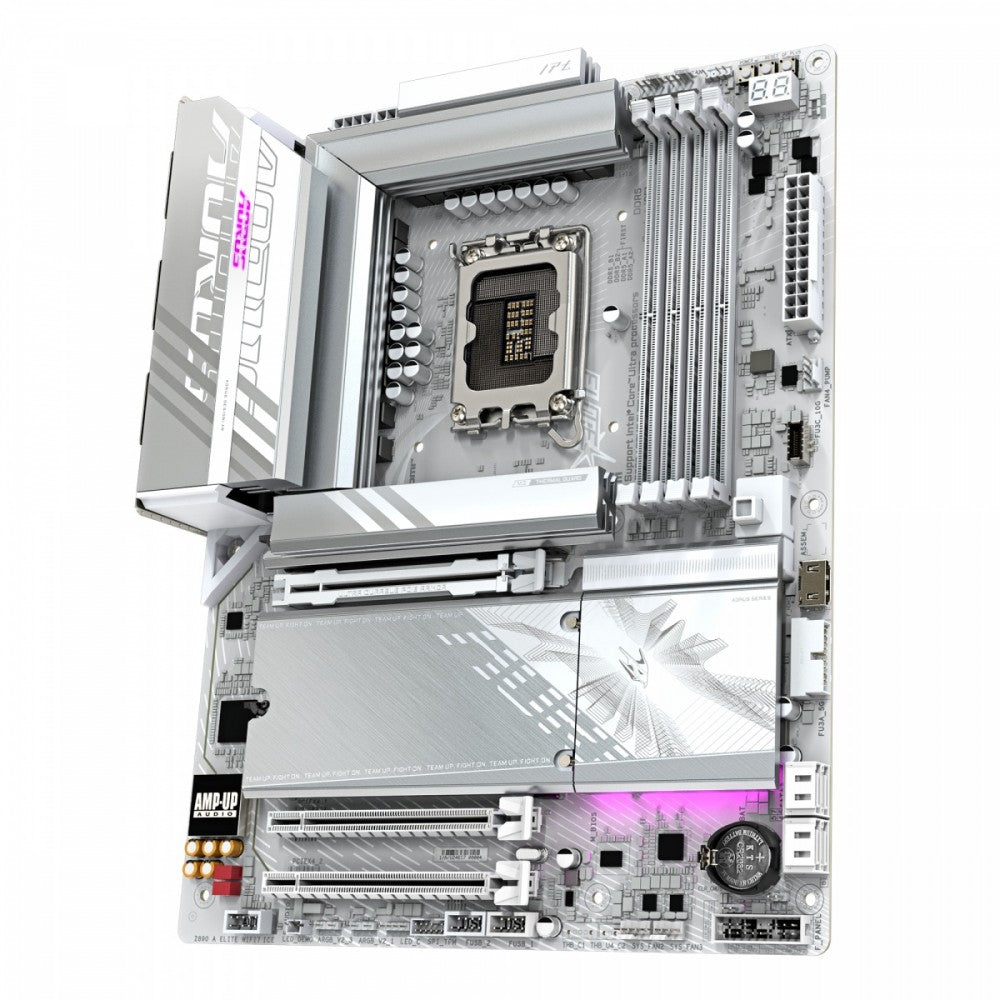

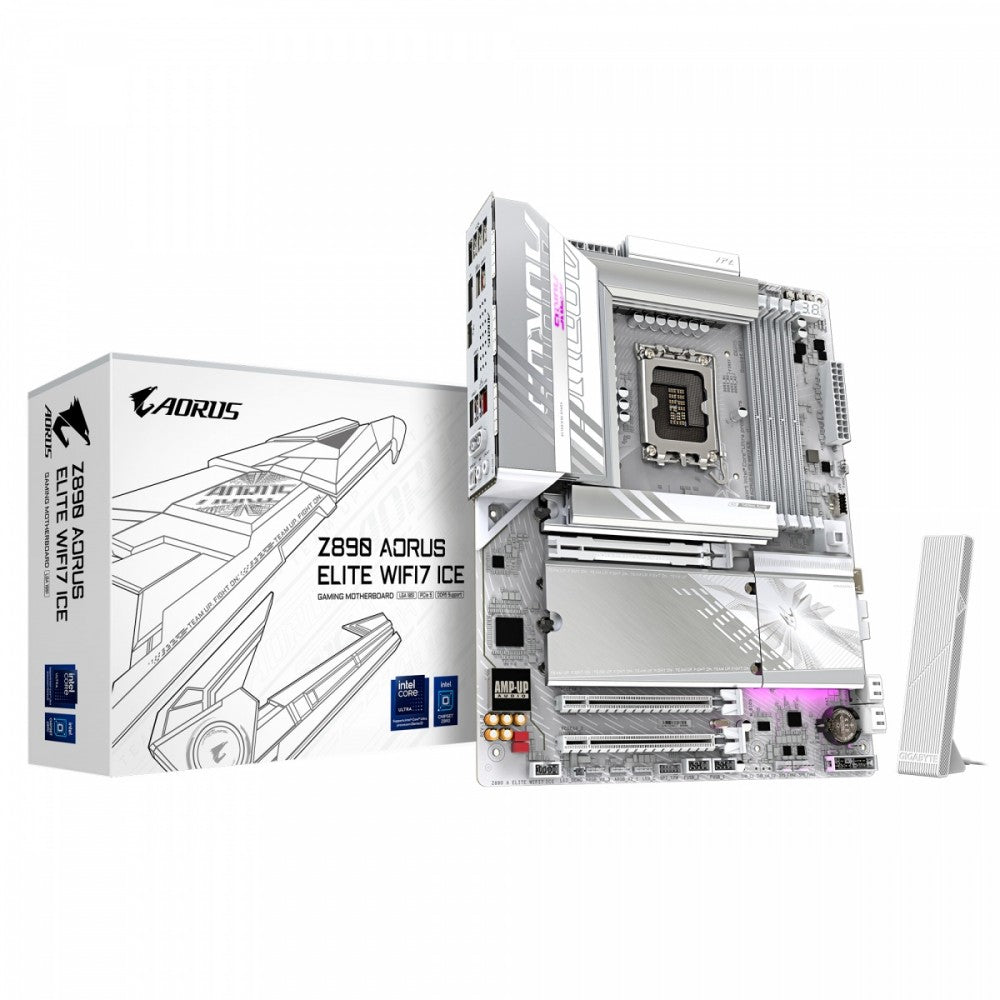

Gigabyte Motherboard Z890 A ELITE WF7 ICE
Specifications
| Description | Supports Intel Core Ultra (2 series) processors Digital twin 16+1+2 phase VRM D5 Bionic Corsa for infinite memory performance AI Perfdrive: Provides optimal and customized BIOS setting profile for users Premium Compatibility: 4*DDR5 with XMP memory module support WIFI EZ-Plug: Quick and easy design for installing Wi-Fi antenna EZ-Latch Plus: Quick release PCIe and M.2 slots with screwless design EZ-Latch Click: M.2 heatsinks with screwless design Sensor Panel Link: Built-in video port for hassle-free panel configuration in the case User-friendly interface: Multi-Theme, AIO fan control and auto Q-Flash scanning in BIOS and software New power monitor in HWinfo for real-time monitoring of CPU power phases Ultra-fast storage: 4*M.2 slots, including 1*PCIe 5.0 x4 Efficient cooling: VRM Thermal Armor Advanced and M.2 Thermal Guard L High-speed networking: 2.5GbE LAN and Wi-Fi 7 with ultra-high gain directional antenna Expanded connectivity: THUNDERBOLT 4 Type-C with DP-Alt, DisplayPort High-resolution audio: ALC1220 and audiophile-grade WIMA capacitors Ultra-durable PCIe shield: Metal backplate for PCIe x16 slot for increased durability PCIe UD X slot: PCIe 5.0 x16 slot with 10x more durability for graphics cards |
|---|---|
| Model | Z890 A ELITE WF7 ICE |
| CPU socket | LGA1851 |
| Processor family | Intel Core Ultra |
| Integrated CPU | Yes |
| Chipset manufacturer | Intel |
| Chipset type | Intel Z890 Express Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 7400 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 7900 MHz |
| Memory bus frequency | 7950 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 8266 MHz |
| Memory bus frequency | 8400 MHz |
| Memory bus frequency | 8600 MHz |
| Memory bus frequency | 8800 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 5800 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 8933 MHz |
| Memory bus frequency | 9066 MHz |
| Memory bus frequency | 9200 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 2 x PCIe 4.0 x 4 |
| Expansion slots | 2 x M.2 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Expansion Slots CPU: - 1 PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, you must install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 speed (PCIEX4_1, PCIEX4_2) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 Connector (Socket 3, M Key, Type 22110/2280 SATA and PCIe 4.0 x4 SSD Support) (M2M_SB) - 4 x SATA 6Gb/s Connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD Storage Devices Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA Storage Devices |
| Sound card | Realtek ALC1220 CODEC * The line-out jack on the rear panel supports DSD audio. High-Resolution Audio 2/4/5.1/7.1-channel * The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings. S/PDIF output support |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |

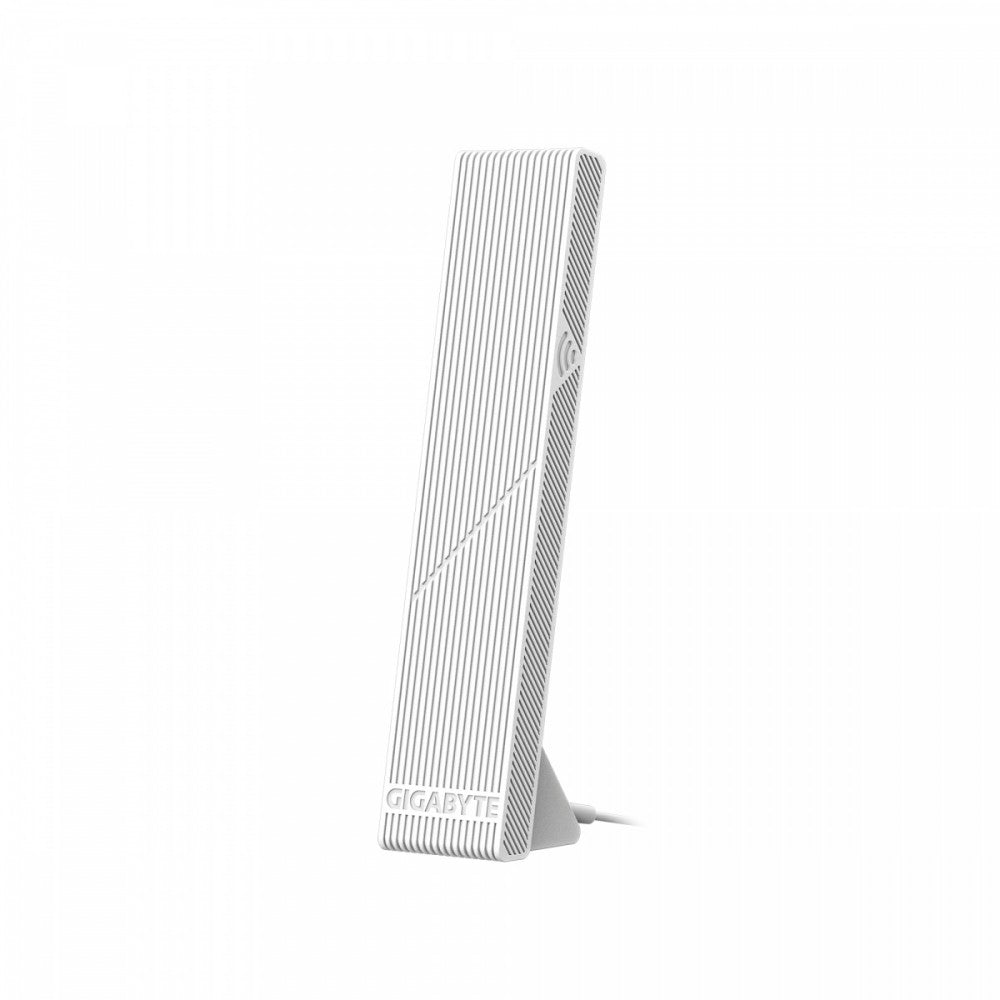

| Network interface | LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard (Actual data transfer rate may vary depending on environment and equipment.) |
| USB ports at back panel | 10 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 4 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

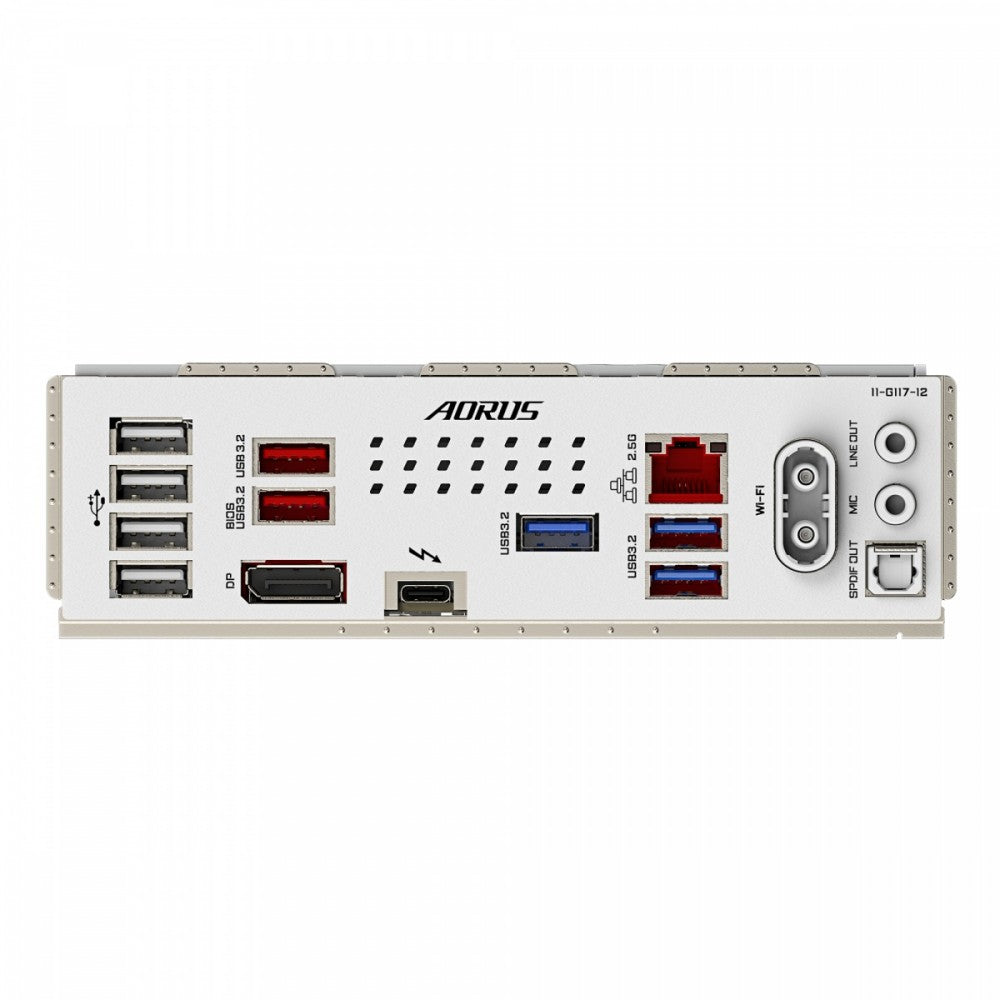

| External connectors | 4 x USB 2.0 |
| External connectors | 1 x Thunderbolt 4 |
| External connectors | 2 x USB 3.2 Gen 2 Type-A |
| External connectors | 3 x USB 3.2 Gen 1 Type-A |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x DisplayPort |
| External connectors | 1 x S/PDIF |
| External connectors | 2 x SMA |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.2 Gen 1 Type-A |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x HDMI |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 3 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 1 x Q-Flash Plus button |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
