Description

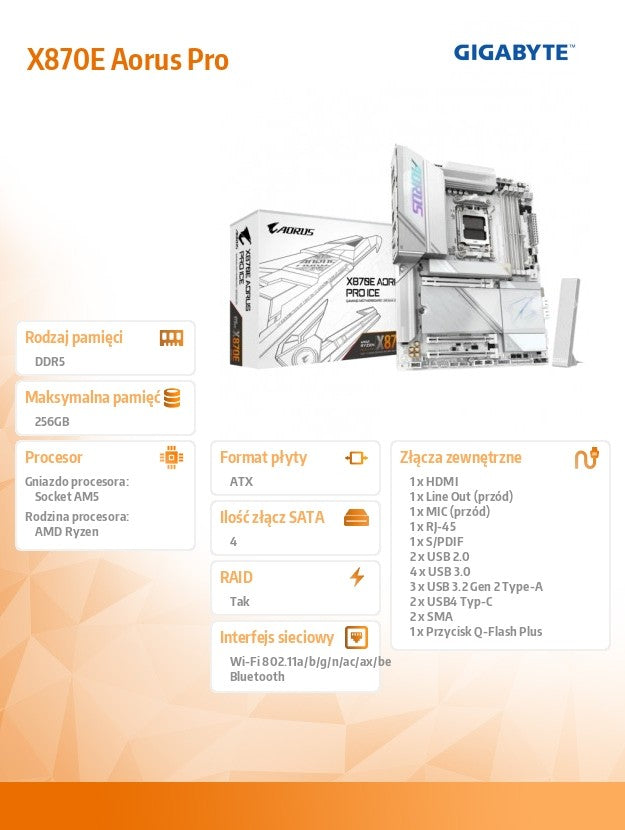

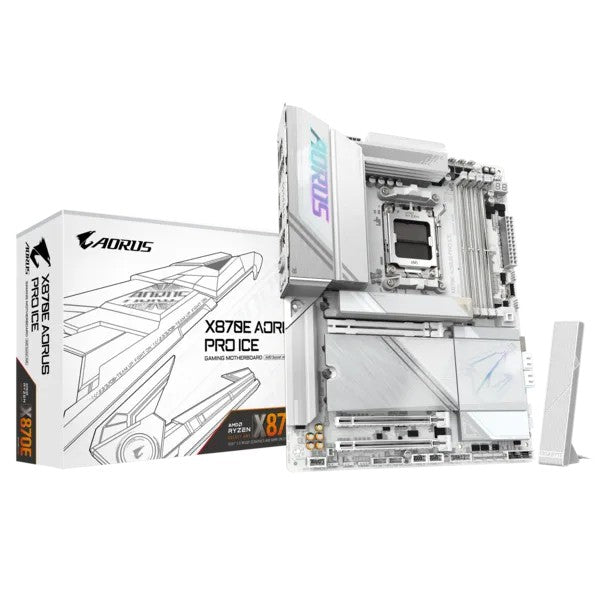

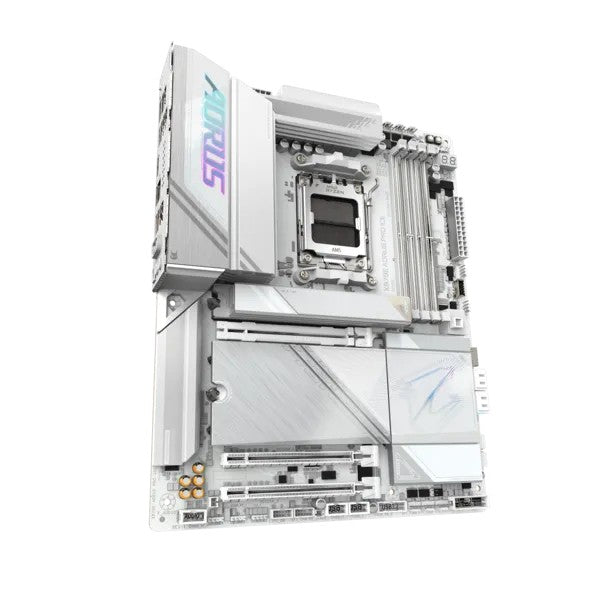

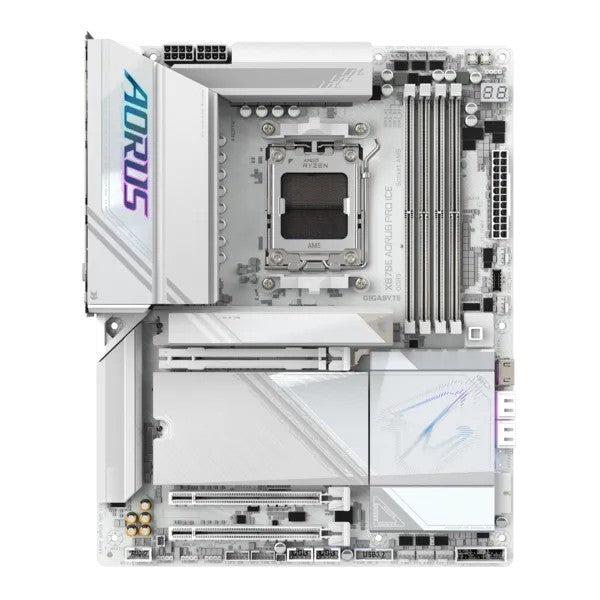

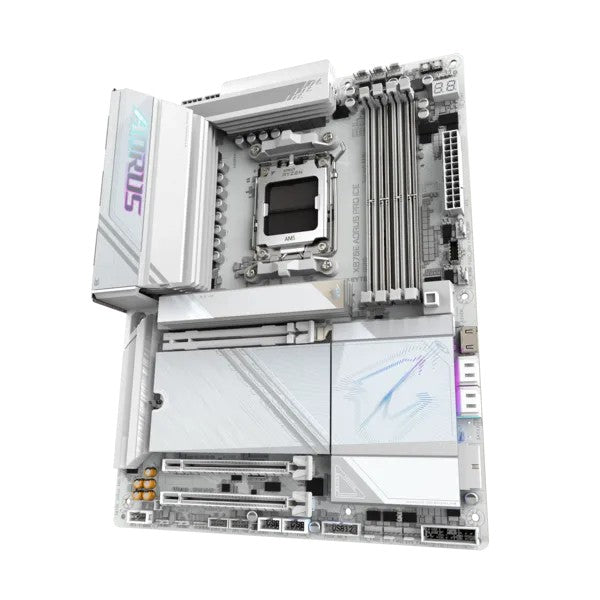

Gigabyte Motherboard X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
Specifications

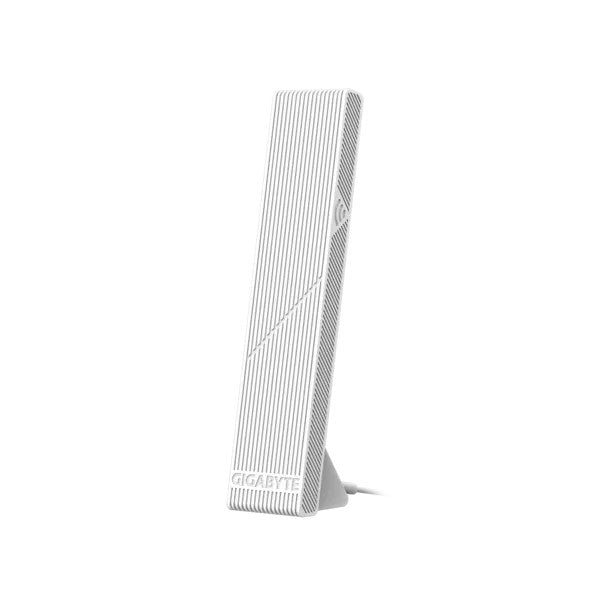

| Description | Motherboard X870E Aorus Pro ICE AMD AM5 Socket: Supports AMD Ryzen 9000/8000/7000 series processors Digital VRM Solution: 16+2+2 phase power design Dual-Channel DDR5 Memory: 4 DIMM slots with AMD EXPO memory support WIFI EZ-Plug: Quick and easy Wi-Fi antenna installation EZ-Latch Plus: PCIe and M.2 slots with quick-release, screwless design EZ-Latch Click: Screwless M.2 heatsinks Sensor Panel Link: Built-in video port for seamless case panel installation User-Friendly Interface: Multi-theme support, AIO fan control, and automatic Q-Flash scanning in BIOS/software New HWinfo Power Monitor: Real-time monitoring of CPU power phases Ultra-Fast Storage: 4 M.2 slots, including 3 x PCIe 5.0 x4 Efficient Cooling: Advanced VRM Thermal Armor and M.2 Thermal Guard L High-Speed Networking: 2.5 GbE LAN and Wi-Fi 7 with ultra-high-gain directional antenna Expanded Connectivity: 2 x USB4 Type-C ports with DP-Alt and HDMI Reliable Audio: Realtek ALC1220 HD audio codec and audiophile-grade capacitors Ultra-Durable PCIe Armor: Metal backplate for PCIe x16 slots for added durability PCIe UD X Slot: PCIe 5.0 x16 slot with 10x reinforced strength for graphics cards |
|---|---|
| Model | X870E Aorus Pro |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870E |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6666 MHz |
| Memory bus frequency | 8200 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 8000 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 4400 MHz |
| Memory bus frequency | 6400 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 5.0 x 16 |
| Expansion slots | 1 x PCIe 4.0 x 4 |
| Expansion slots | 1 x PCIe 3.0 x 4 |
| Expansion slots | 3 x PCIe 5.0 x 4 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | 1 M.2 slot (M2A_CPU), integrated with the processor, supporting SSDs Socket 3, M key, type 25110/22110/2580/2280 2 M.2 slots (M2B_CPU, M2C_CPU), integrated with the processor, supporting SSDs Socket 3, M key, type 22110/2280 AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs. M2B_CPU and M2C_CPU slots will be unavailable when using AMD Ryzen 8000-Phoenix 1/Phoenix 2 series processors. AMD Ryzen 8000 Phoenix 1/Phoenix 2 processors. 1 M.2 slot (M2D_SB), integrated with the chipset, supporting PCIe 4.0 x4/x2 SSDs Socket 3, M key 4 SATA 6 Gb/s slots |
| Sound card | Realtek ALC1220 codec High Definition Audio support Audio channels: 2/4/5.1/7.1 Support for S/PDIF Out |
| Network interface | Bluetooth |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax/be |
| Network interface | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB ports at back panel | 11 |
| USB ports on motherboard | 8 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 4 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 4 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

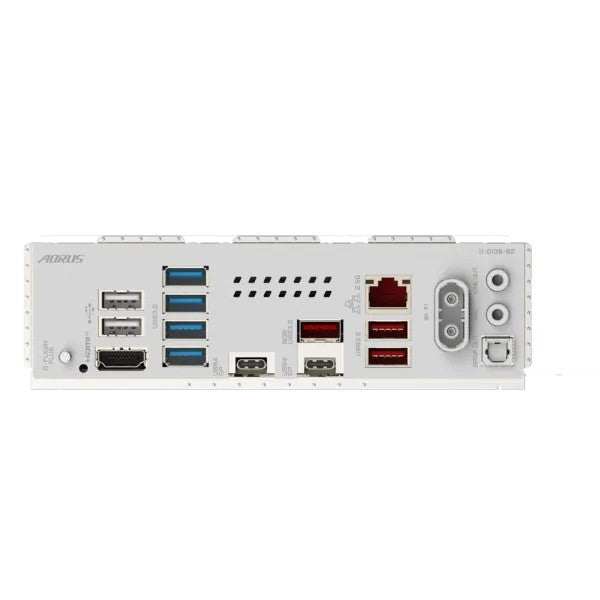

| External connectors | 1 x RJ-45 |
| External connectors | 1 x Line Out (front) |
| External connectors | 1 x MIC (front) |
| External connectors | 1 x HDMI |
| External connectors | 2 x SMA |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x S/PDIF |
| External connectors | 4 x USB 3.0 |
| External connectors | 1 x Q-Flash Plus button |
| External connectors | 2 x USB4 Type-C |
| External connectors | 3 x USB 3.2 Gen 2 Type-A |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Noise detection header |
| Onboard connectors | 2 x temperature sensor |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 2 x USB 3.0 header |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 1 x HDMI |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 3 x Addressable LED |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Special functions | Voltage detection Temperature detection Fan speed detection Coolant flow detection Fan failure warning Fan speed control Noise detection |
| BIOS | 1 × 256 Mbit flash Uses licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30,5 x 24,4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
