Description

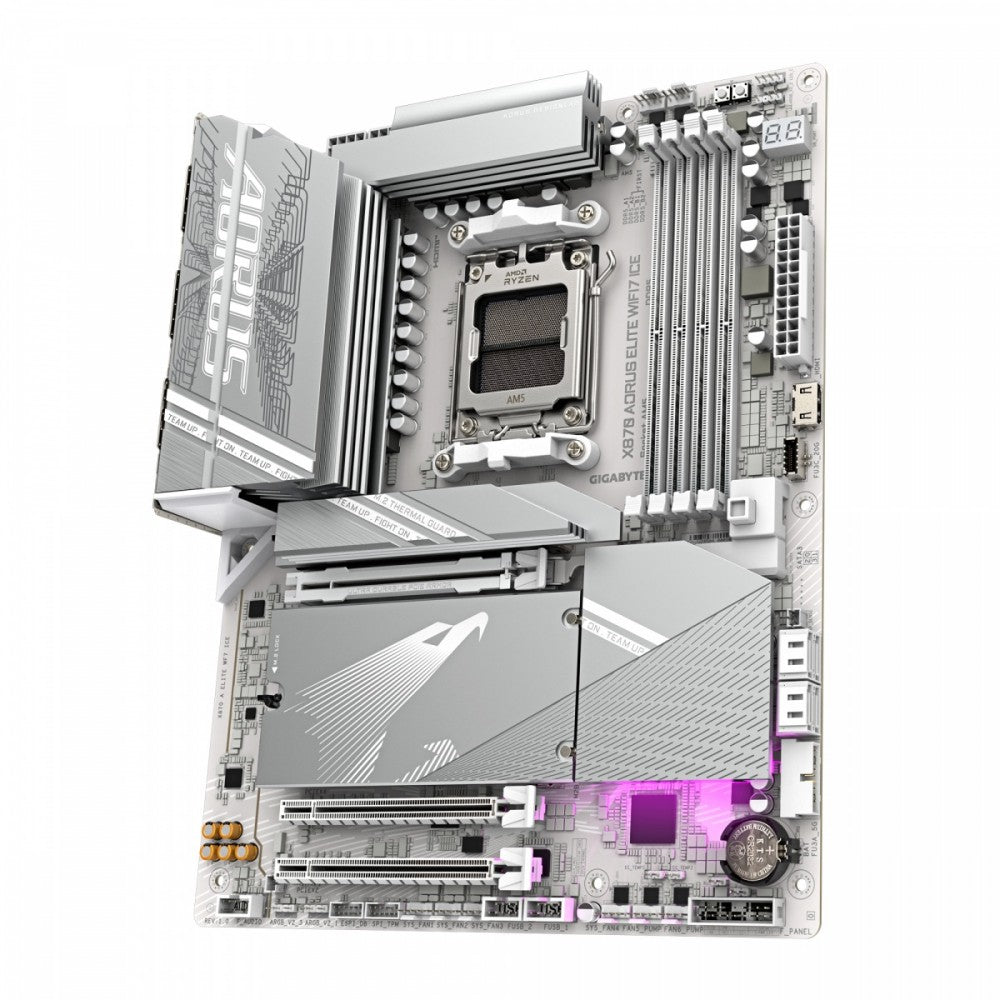

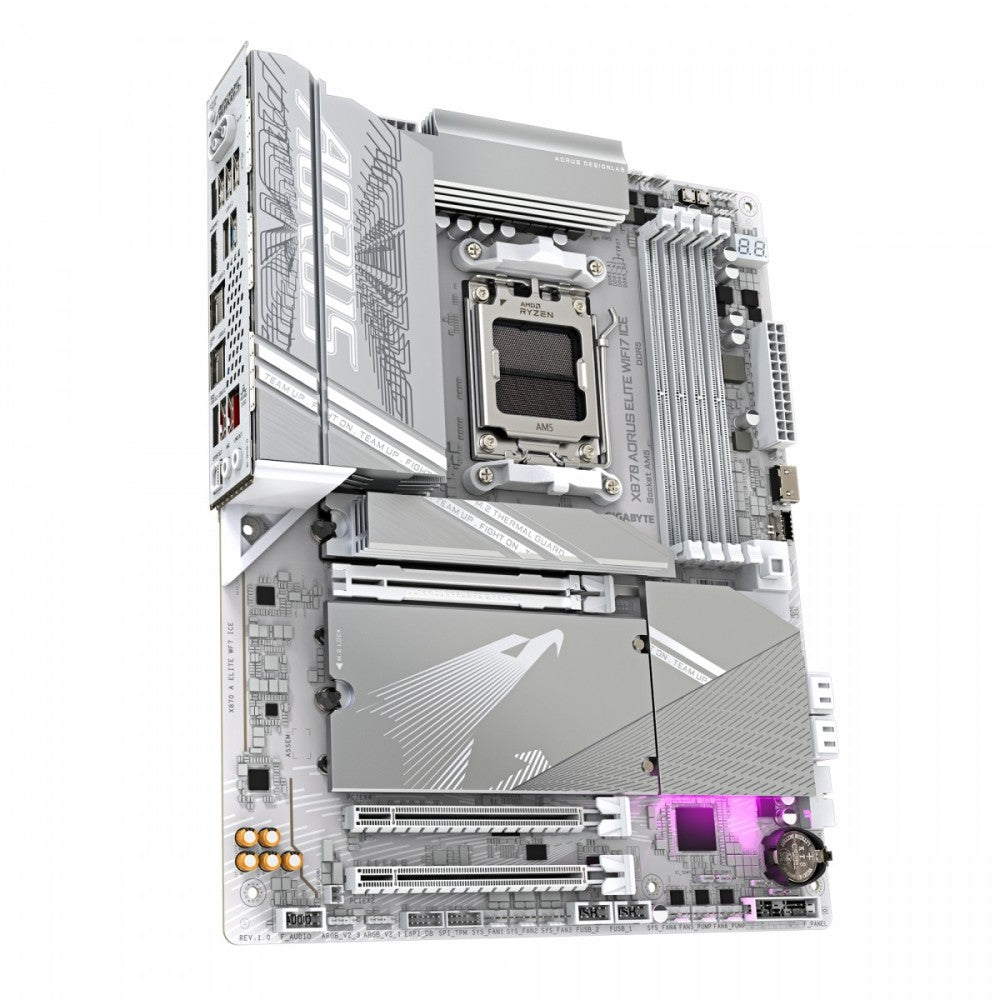

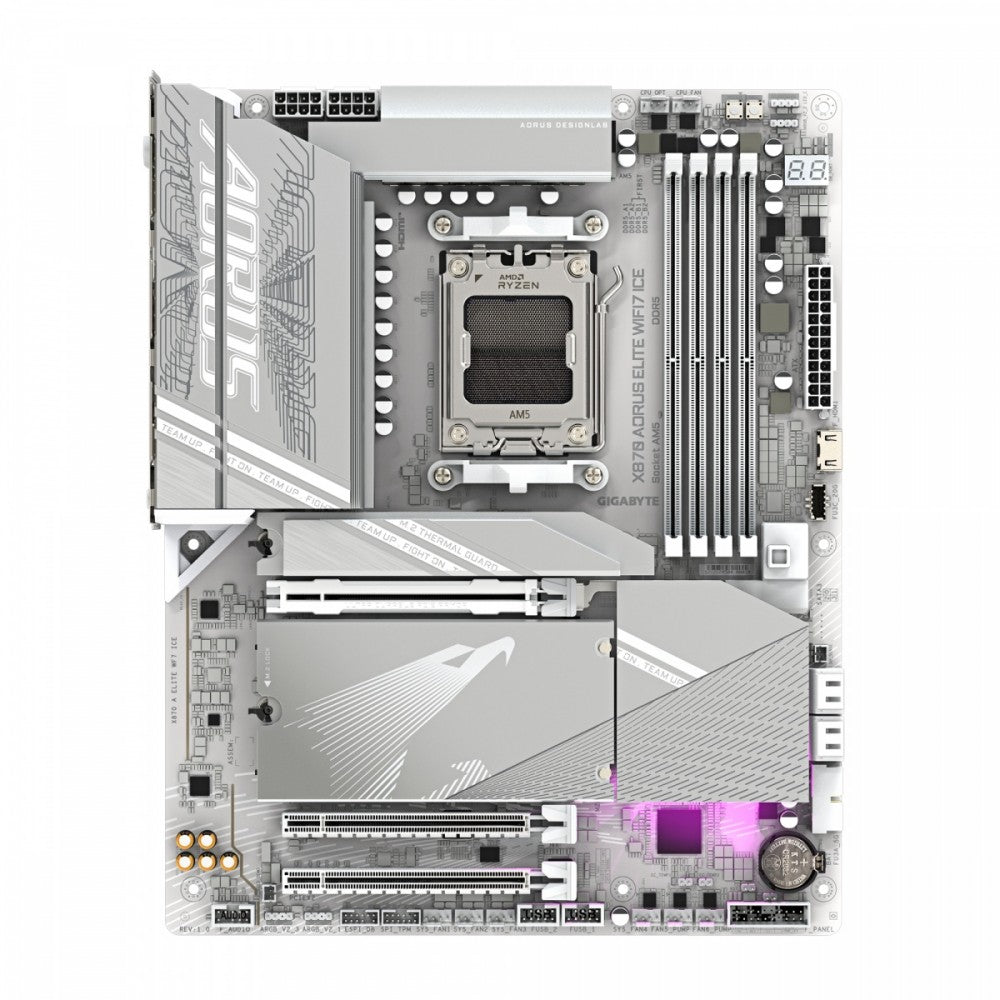

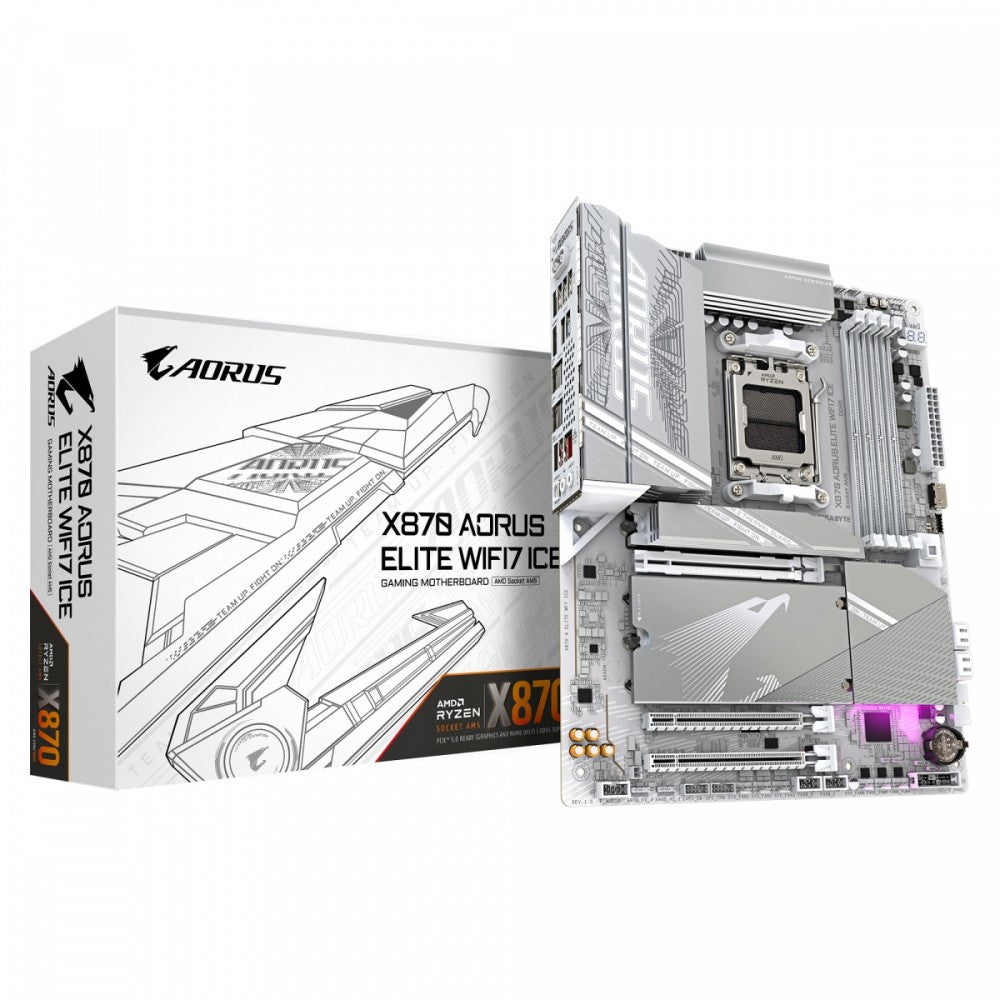

Gigabyte Motherboard X870 A ELITE WF7 ICE AM 5 4DDR5 HDMI/USB-C ATX
Specifications
| Description | AMD Socket AM5Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR54*DIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch PlusPCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch ClickM.2 heatsinks with screwless design Sensor Panel LinkOnboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage4*M.2 slots, including 3* PCIe 5.0 x4 Efficient ThermalVRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended ConnectivityDual USB4 Type-C with DP-Alt, HDMI Reliable AudioRealtek ALC1220 HD Audio & Audiophile Grade Capacitors Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability PCIe UD Slot X PCIe 5.0 x16 slot with 10X strength for graphics card |
|---|---|
| Model | X870 A ELITE WF7 ICE |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen 7 |
| Processor family | AMD Ryzen 5 |
| Processor family | AMD Ryzen 9 |
| Processor family | AMD Ryzen 3 |
| Integrated CPU | Yes |
| Chipset manufacturer | AMD |
| Chipset type | AMD X870 |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 7200 MHz |
| Memory bus frequency | 7600 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 6600 MHz |
| Memory bus frequency | 6666 MHz |
| Memory bus frequency | 6800 MHz |
| Memory bus frequency | 4400 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 7000 MHz |
| Memory bus frequency | 7800 MHz |
| Memory bus frequency | 8000 MHz |
| Max memory size | 256 |
| Expansion slots | 1 x PCIe 4.0 x 16 |
| Expansion slots | 1 x PCIe x 16 |
| Expansion slots | 1 x PCIe 3.0 x 16 |
| Expansion slots | 1 x M.2 |
| Max. number of SATA devices | 4 |
| Max. number of ATA devices | 0 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Expansion Slots 1 PCI Express x16 (PCIEX16) slot, integrated with the processor: AMD Ryzen 9000/7000 series processors support PCIe 5.0 x16 mode * M2B_CPU and M2C_CPU slots share bandwidth with PCIEX16 slot. When M2B_CPU or M2C_CPU slot is occupied, PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x4 mode (The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, you must install it in the PCIEX16 slot.) Chipset: - 1 PCI Express x16 slot, supporting PCIe 4.0 and operating at x4 mode (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 speed (PCIEX2) Storage Interface 1 x M.2 connector (M2A_CPU), integrated with the processor, supporting socket 3, M key, type 25110/22110/2580/2280 SSD: AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 1 series processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 2 series processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated with the processor, supporting socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs * M2B_CPU and M2C_CPU connectors become unavailable when AMD Ryzen 8000-Phoenix 1/Phoenix 2 series processors are used. 1 x M.2 connector (M2D_SB), integrated into the chipset, supporting Socket 3, M-Key, Type 22110/2280 PCIe 4.0 x4/x2 SSD 4 x SATA 6Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 series processors. Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Graphics | Integrated graphics processor with AMD Radeon Graphics support + ASMedia USB4 controller: - 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support DisplayPort version 1.4 and HDR. Integrated graphics processor with AMD Radeon Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support HDMI version 2.1, HDCP 2.3 and HDR. ** Support native HDMI 2.1 TMDS compliant ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support HDMI version 1.4 (Graphics specifications may vary depending on processor support.) Support for up to four displays simultaneously. |
| Sound card | CODE Realtek ALC1220 * The line-out jack on the rear panel supports DSD audio. High-resolution audio 2/4/5.1/7.1-channel * The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings. S/PDIF output support |
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | Wi-Fi 802.11a/b/g/n/ac/ax |
| Network interface | Bluetooth |
| Network interface | LAN Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard |
| USB ports at back panel | 12 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 6 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 3 |
| FireWire (IEEE 1394) | No |
| COM connector / port | No |
| LPT connector / port | No |

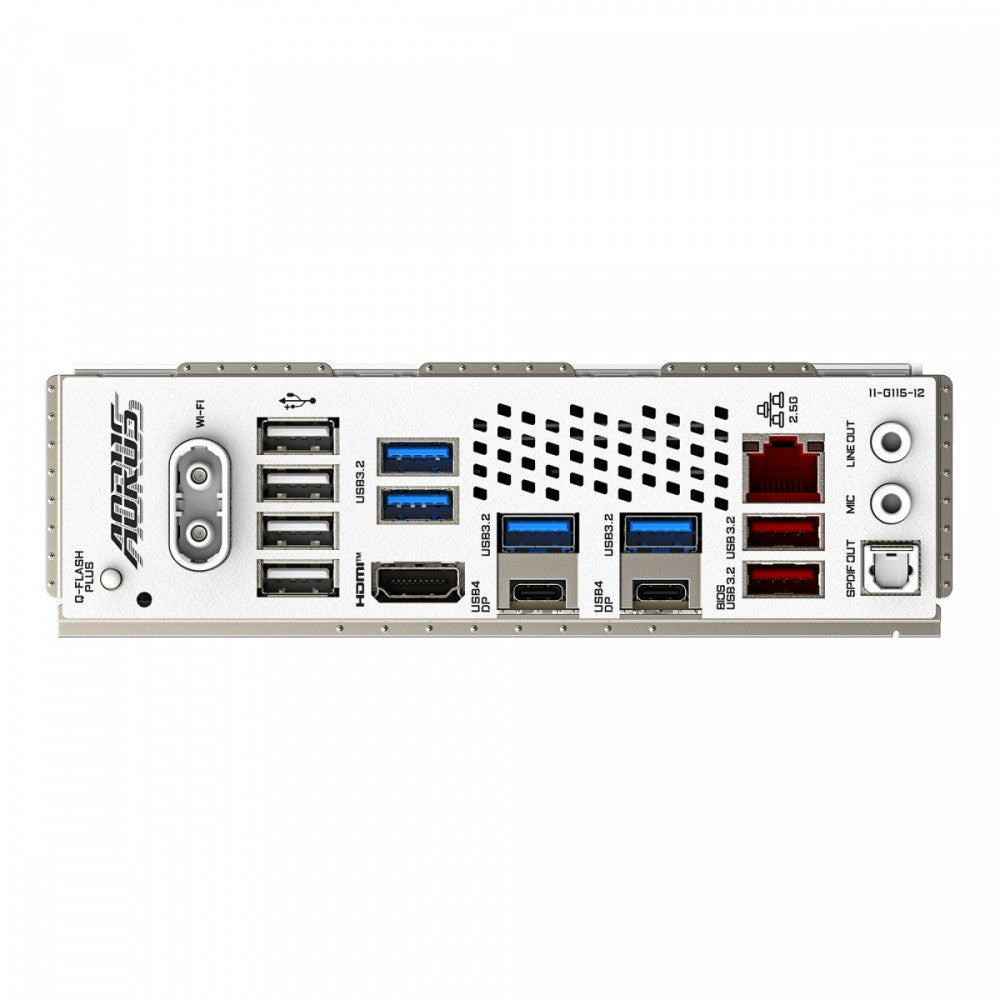

| External connectors | 1 x RJ-45 |
| External connectors | 4 x USB 2.0 |
| External connectors | 4 x USB 3.0 |
| External connectors | 2 x SMA |
| External connectors | 2 x USB4 Type-C |
| External connectors | 2 x USB 3.1 |
| External connectors | 1 x S/PDIF |
| External connectors | 1 x HDMI |
| External connectors | 1 x Q-Flash Plus button |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x Clear CMOS jumper |
| Onboard connectors | 1 x Power button |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 1 x System panel header |
| Onboard connectors | 1 x Reset button |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x HDMI |
| Onboard connectors | 4 x 4pin Chassis fan |
| Onboard connectors | 2 x 4pin case fan liquid cooling |
| Onboard connectors | 2 x 8pin 12V |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 4 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 2 x USB 2.0/1.1 header |
| Onboard connectors | 1 x USB 3.0 header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 1 x Reset jumper |
| Onboard connectors | 2 x temperature sensor |
| Onboard connectors | 1 x Noise detection header |
| Onboard connectors | 1 x RGB LED strip header |
| Onboard connectors | 3 x Addressable LED |
| Special functions | GIGABYTE Control Center (GCC) Support * The available applications in GCC may vary depending on the motherboard model. The supported functions of each application may also vary depending on the motherboard specifications. Q-Flash Support Q-Flash Plus Support Smart Backup Support |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
| Supported operating systems | Windows 11 |
| Software | Norton Internet Security (OEM version) LAN bandwidth management software |
