Description
General Information
- SKU: 1466804
- Manufacturer Product Page: ELKO
- Manufacturer Code: N/A
- Catalog: N/A
- EAN: N/A
- Warranty: N/A months
- Currency: N/A
- Packaging Quantity: N/A
Specifications
| Category Code | MBA |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.235 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage |
| Power source type | ATX |
| Product colour | Dark brown |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Supported processor sockets | Socket AM4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 64 |
| Maximum internal memory per slot | 32 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 5100 |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,PCI Express 3.0,SATA III |
| Supported storage drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum resolution | 5120 x 2880 |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| 1st M.2 highest PCI Express generation | 3.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 128 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery capacity | 220 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Country of origin | China |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Package depth | 235 |
| Package height | 52 |
| Package weight | 772 |
| Package width | 265 |
| Products per shipping (inner) case | 1 |
| Depth | 198 |
| Height | 35 |
| Width | 233 |
| Batteries included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Screws included | Yes |
| Warranty period | 3 |
| Weight | 700 |
| Product Net Weight | 0.6 |
| Shipping Box Depth | 27 |
| Shipping Box Height | 5 |
| Shipping Box Weight | 0.698000013828278 |
| Shipping Box Width | 23.5 |
| Unit Calculated Volume | 0.003172 |
| Unit Calculated Weight | 0.698/0.726 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Integrated ARGB header and Q-Flash Plus button
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- Fast Network: GbE LAN
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and D-sub for Multi-display Support
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use

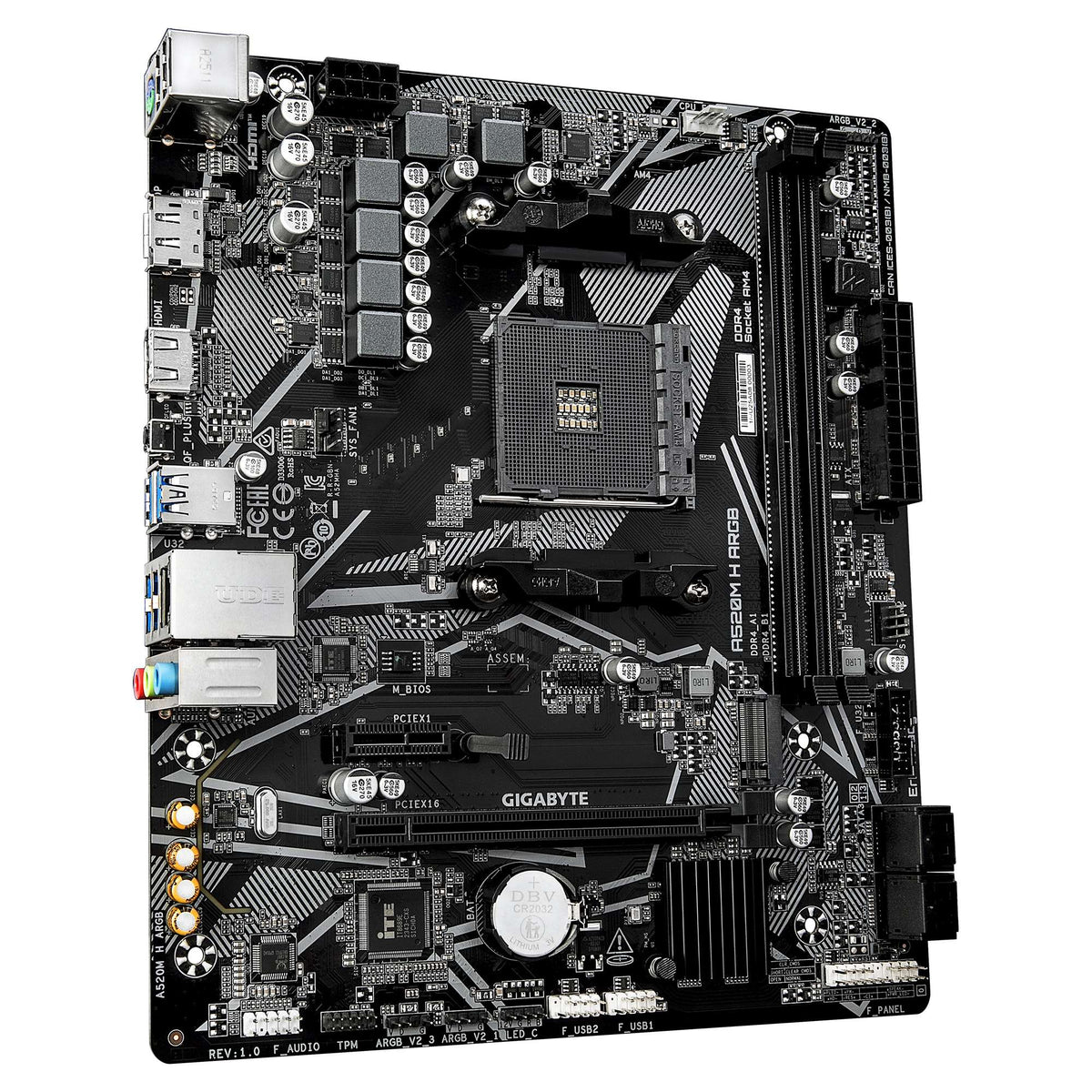

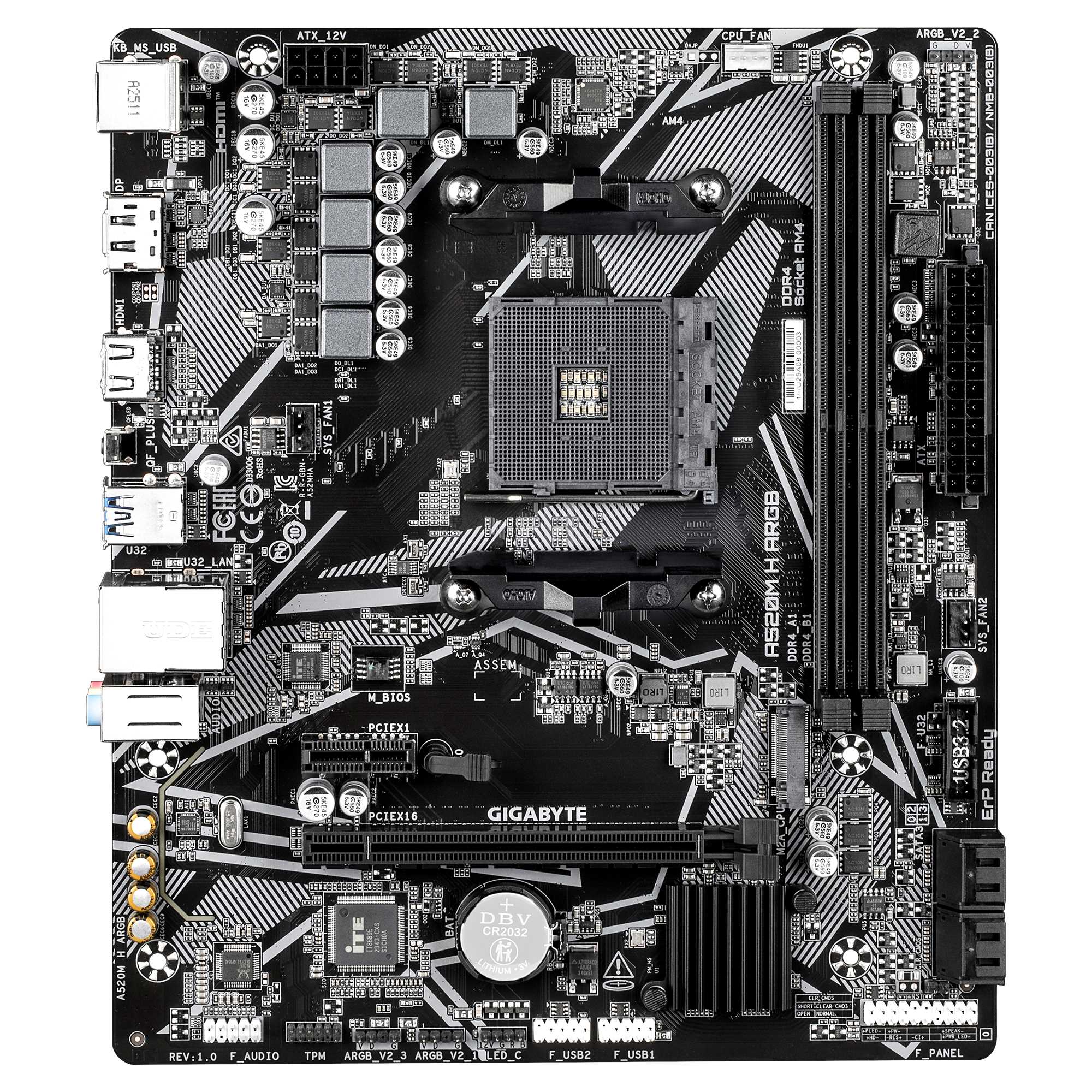

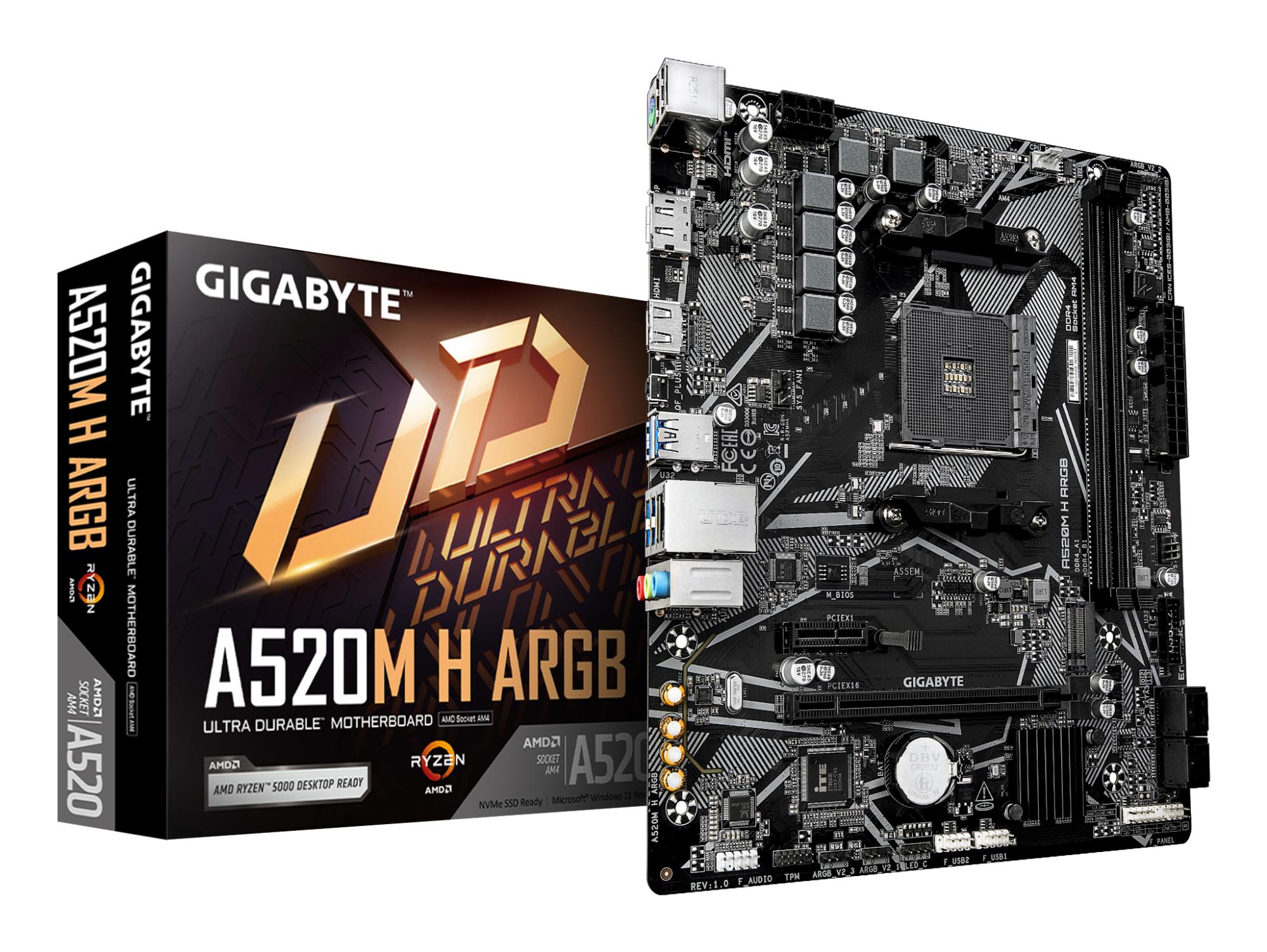

GIGABYTE A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, 1 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series/AMD Ryzen PRO 3000 Series/AMD Ryzen PRO 4000 Series/AMD Ryzen PRO 5000 Series
M.2,PCI Express 3.0,SATA III
