Description
General Information
- SKU: 1465466
- Manufacturer Product Page: DAHUA IPC-HFW21249T-AS-IL-0280B
- Manufacturer Code: IPC-HFW21249T-AS-IL-0280B
- Catalog: Network Cameras
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Form factor | Bullet |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera shutter type | Electronic/Mechanical |
| Lens viewing angle, diagonal | 136 |
| Lens viewing angle, horizontal | 112 |
| Lens viewing angle, vertical | 58 |
| Minimum illumination | 0 |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 90 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/2.5 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 |
| Closest focusing distance | 3.5 |
| Detect distance | 98.9 |
| Fixed focal length | 2.8 |
| Fixed focus | Yes |
| Identify distance | 9.9 |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 39.6 |
| Recognize distance | 19.8 |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 30 |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 32 kbps-8192 kbps; H.265: 12 kbps-8192 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 4480 x 2512 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Supported video modes | 1080p/1296p/1520p/1536p/1620p/2160p/240p/2880p/480p/576p/720p/960p |
| Total megapixels | 12 |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
| Bluetooth | No |
| Client interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 20 |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 |
| RAM capacity | 512 |
| ROM capacity | 128 |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 10.1 |
| Power consumption (Power over Ethernet (PoE)) | 3.7 |
| Power consumption (typical) | 3.1 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Storage relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Height | 90.7 |
| Length | 238.5 |
| Weight | 720 |
| Width | 90.7 |
| Package weight | 970 |
| Number of cameras | 1 |
| Audio input | RCA |
| Audio output | RCA |
| Browser supported | IE; Chrome; Firefox |
| Data transfer rate | 100 |
| Iris | Yes |
| Lens mount interface | M12 |
| Unit Calculated Volume | 0.004104 |
| Unit Calculated Weight | 0.98 |
Description

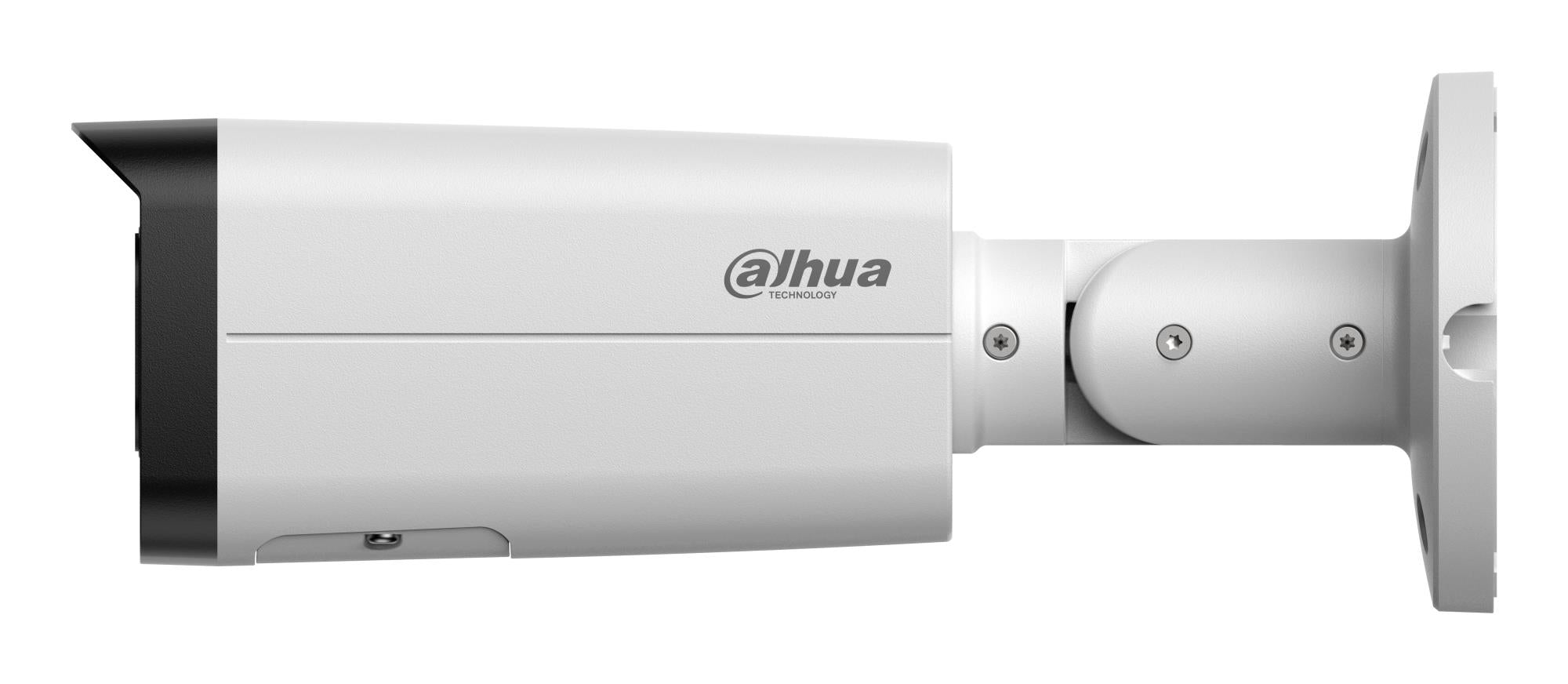

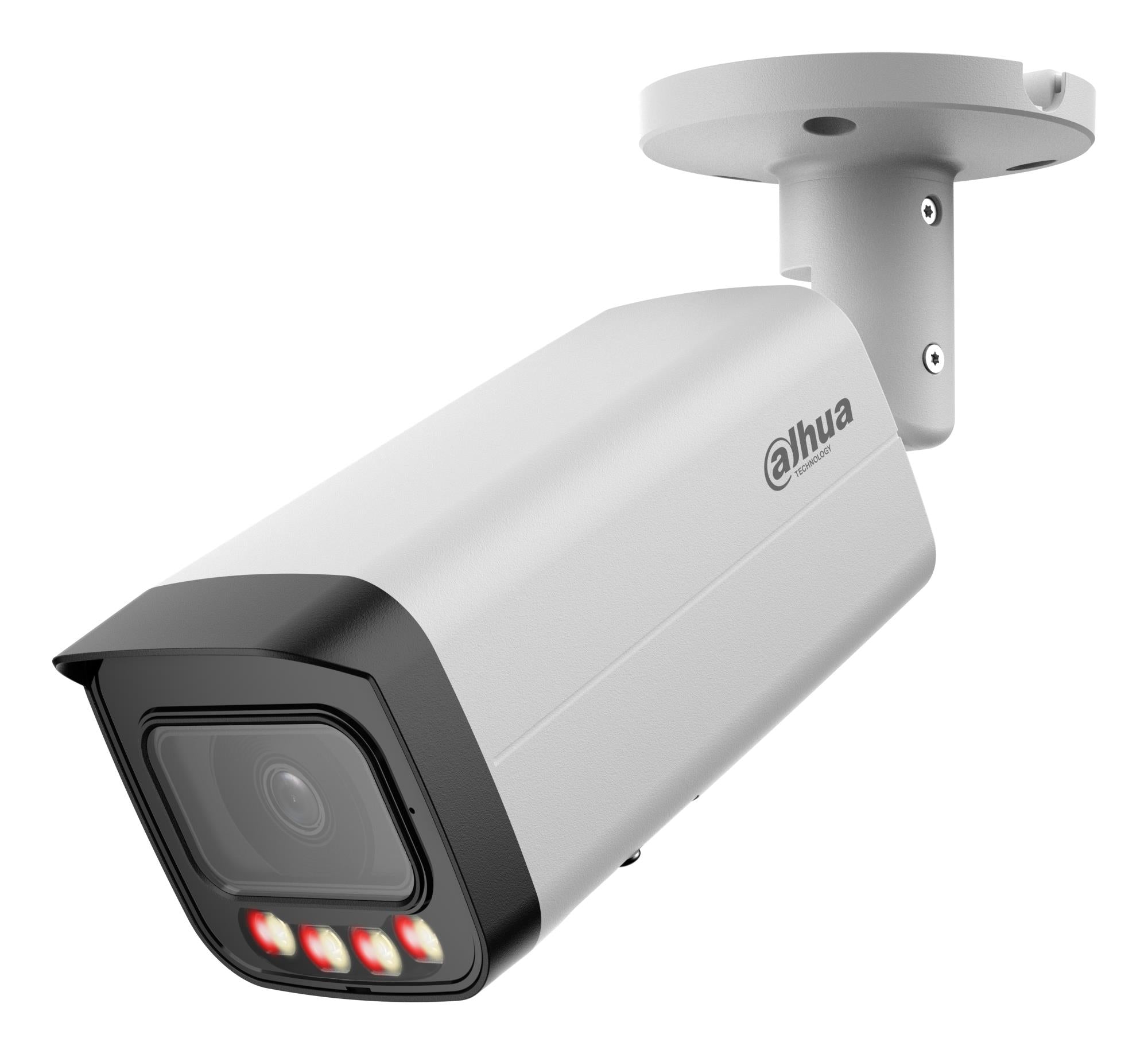

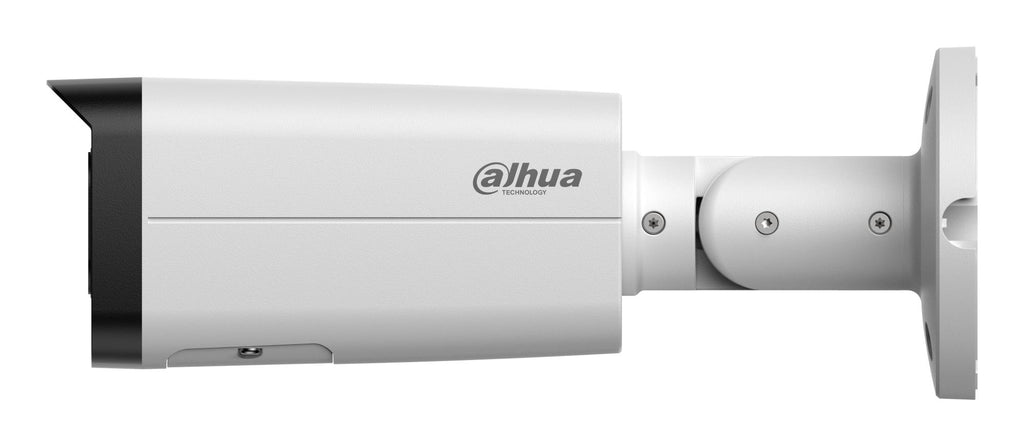

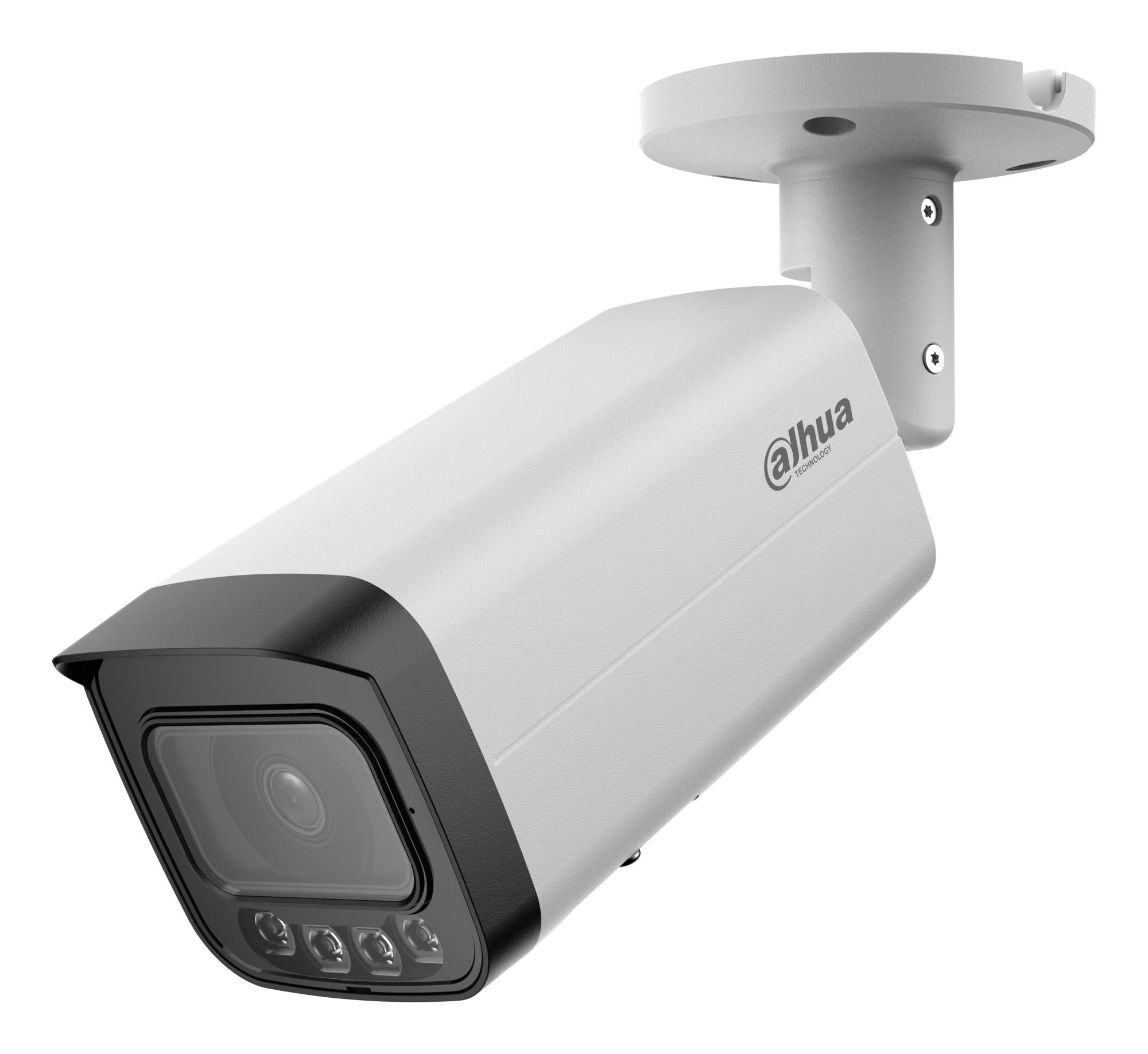

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
- High-Quality Imaging with 12MP Resolution
- Smart Dual Light: Built-in IR and LED Lights with 3 Illumination Modes Supported
- Deep Learning-Based Human and Vehicle Classification
- Built-in Mic for Real-Time Audio Security
- Supports Max. 256G Micro SD card
- Efficient H.264+/H.265+ Compression Technology
- Rich Interface: Alarm: 1 in, 1 out; audio: 1 in, 1 out
Dahua Technology WizSense IPC-HFW21249T-AS-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 58°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
H.264: 32 kbps-8192 kbps; H.265: 12 kbps-8192 kbps
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
G.711a/G.711Mu/G.726/PCM
ONVIF (Profile S & Profile G & Profile T); CGI
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
