Description
General Information
- SKU: 1460048
- Manufacturer Product Page: CLUB3D CSV-2562
- Manufacturer Code: CSV-2562
- Catalog: Notebook Docks
- EAN: 8719214473570
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | NBK |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.305 |
| Unit Box Width | 0.175 |
| Connectivity technology | Wired |
| HDMI ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Host interface | Thunderbolt 5 |
| Microphone in | No |
| Thunderbolt 5 ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery up to | 140 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000/2500 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington/Nano |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD Express/SD |
| Data transfer rate | 120 |
| HD type | 8K Ultra HD |
| Housing material | Plastic |
| Maximum refresh rate | 144 |
| Number of displays supported | 3 |
| NVMe | Yes |
| On/off switch | Yes |
| Product colour | Black |
| SSD enclosure | Yes |
| Built-in speaker(s) | No |
| Power source type | DC |
| Power supply | 180 |
| USB cable length | 1 |
| Sustainability certificates | SCS Product Category Rule (PCR) |

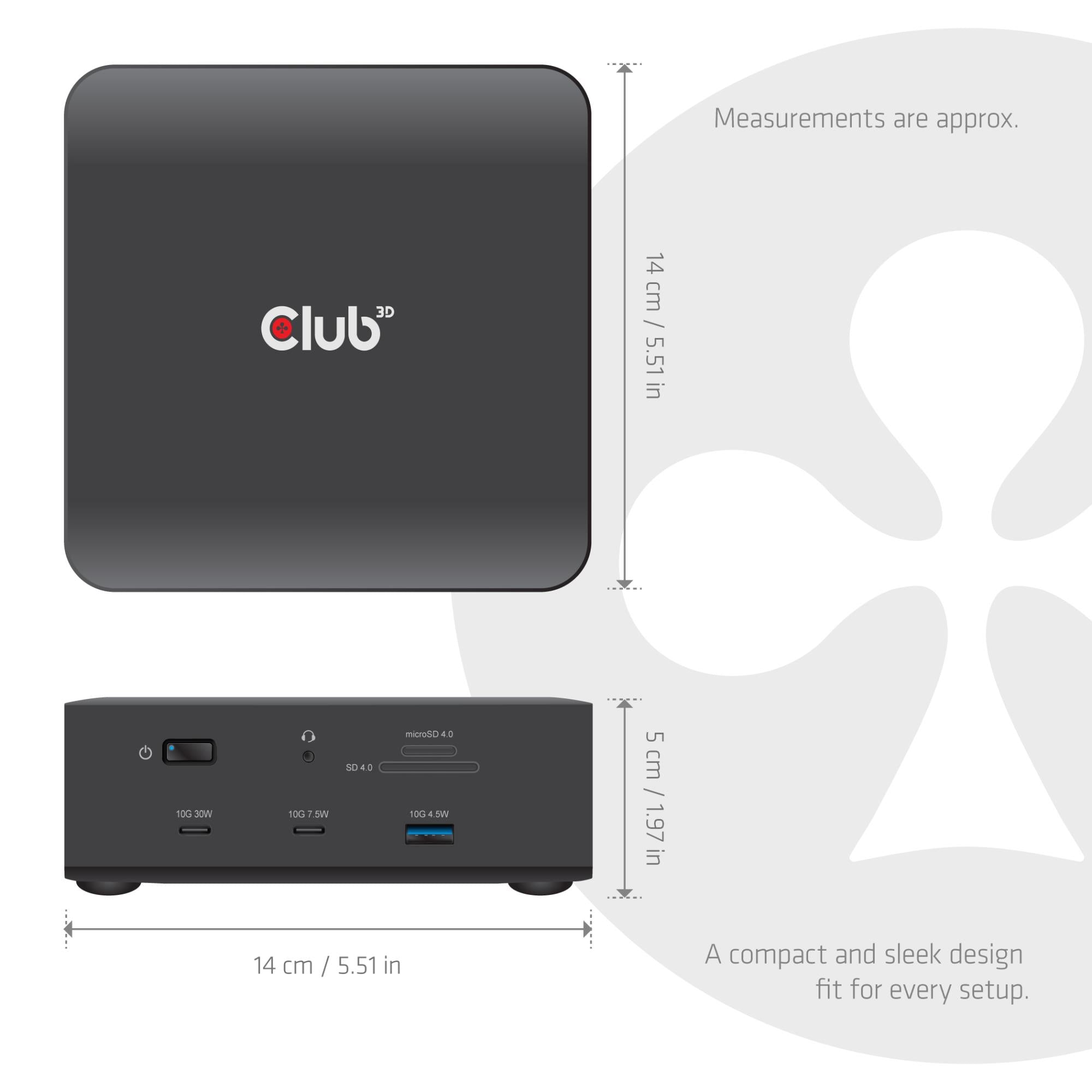

| Depth | 140 |
| Height | 50 |
| Weight | 794 |
| Width | 140 |
| Package depth | 59 |
| Package height | 169 |
| Package weight | 1598 |
| Package width | 302 |
| Quantity per pack | 1 |
| Cables included | Thunderbolt |
| Paper/cardboard packaging weight | 168 |
| Plastic packaging weight | 7 |
| Total paper/cardboard packaging weight | 336 |
| Total plastic packaging weight | 14 |
| Harmonized System (HS) code | 8473 3020 |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.004574 |
| Unit Calculated Weight | 1.78 |
Description
Description:

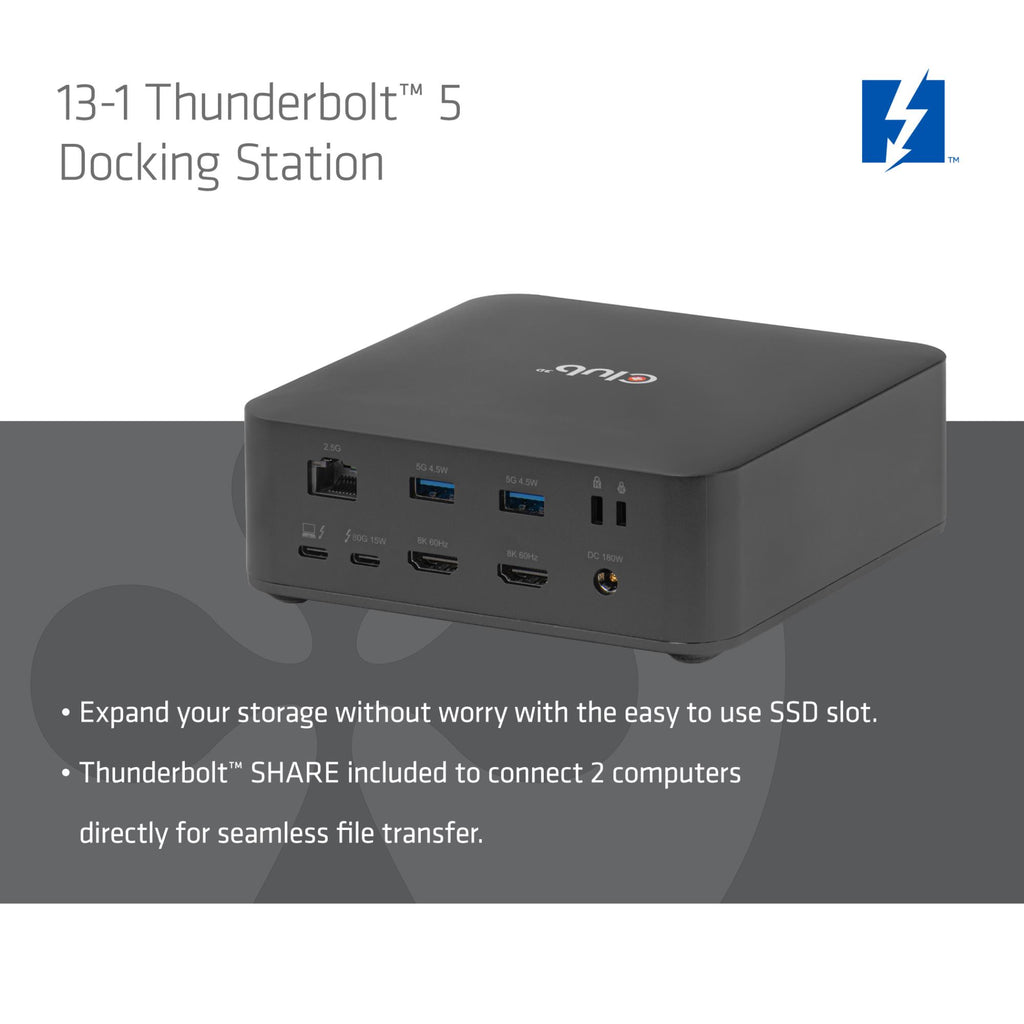

• CERTIFIED THUNDERBOLT™ 5 - Our highest model TB5 device, fully certified for guaranteed compatibility and peak performance.

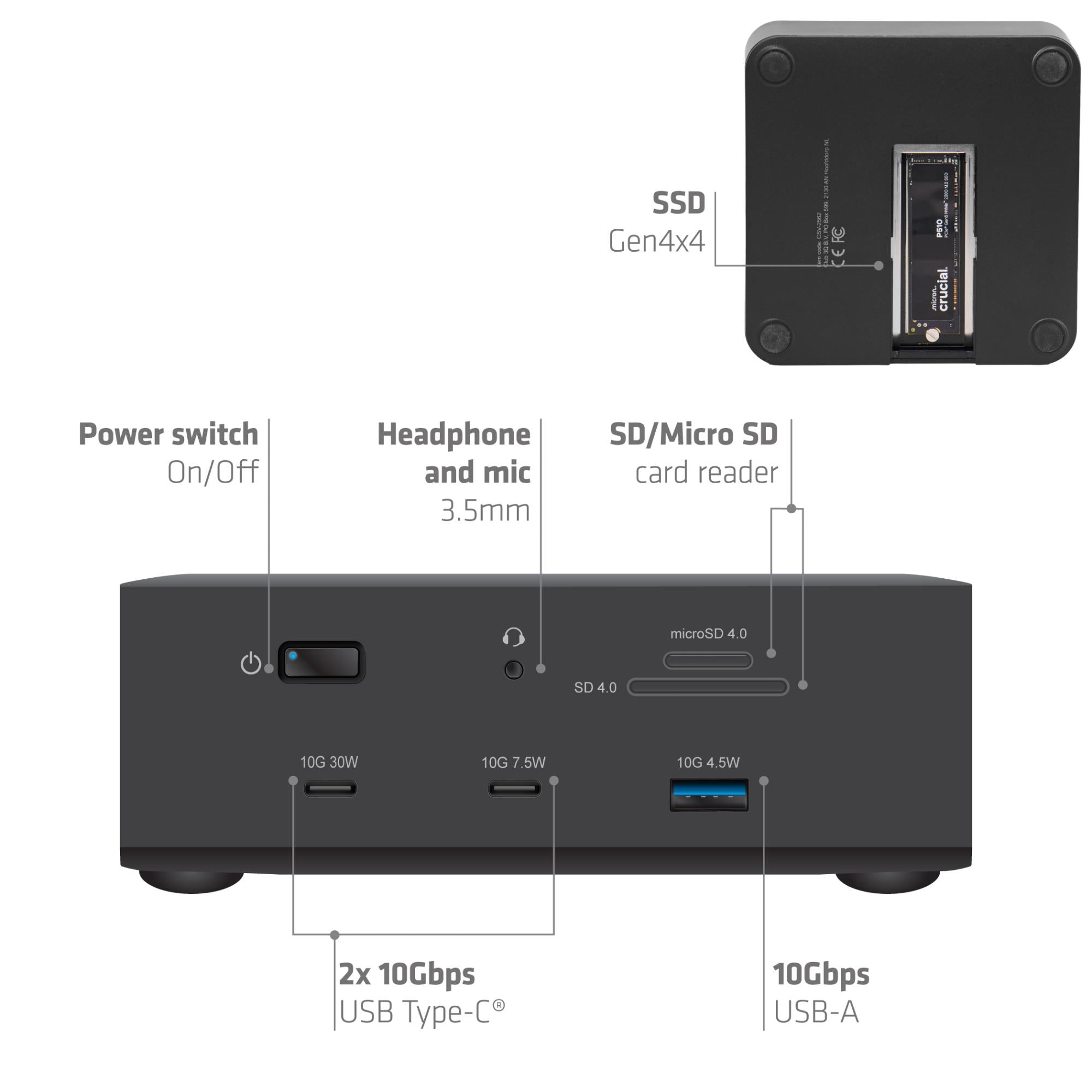

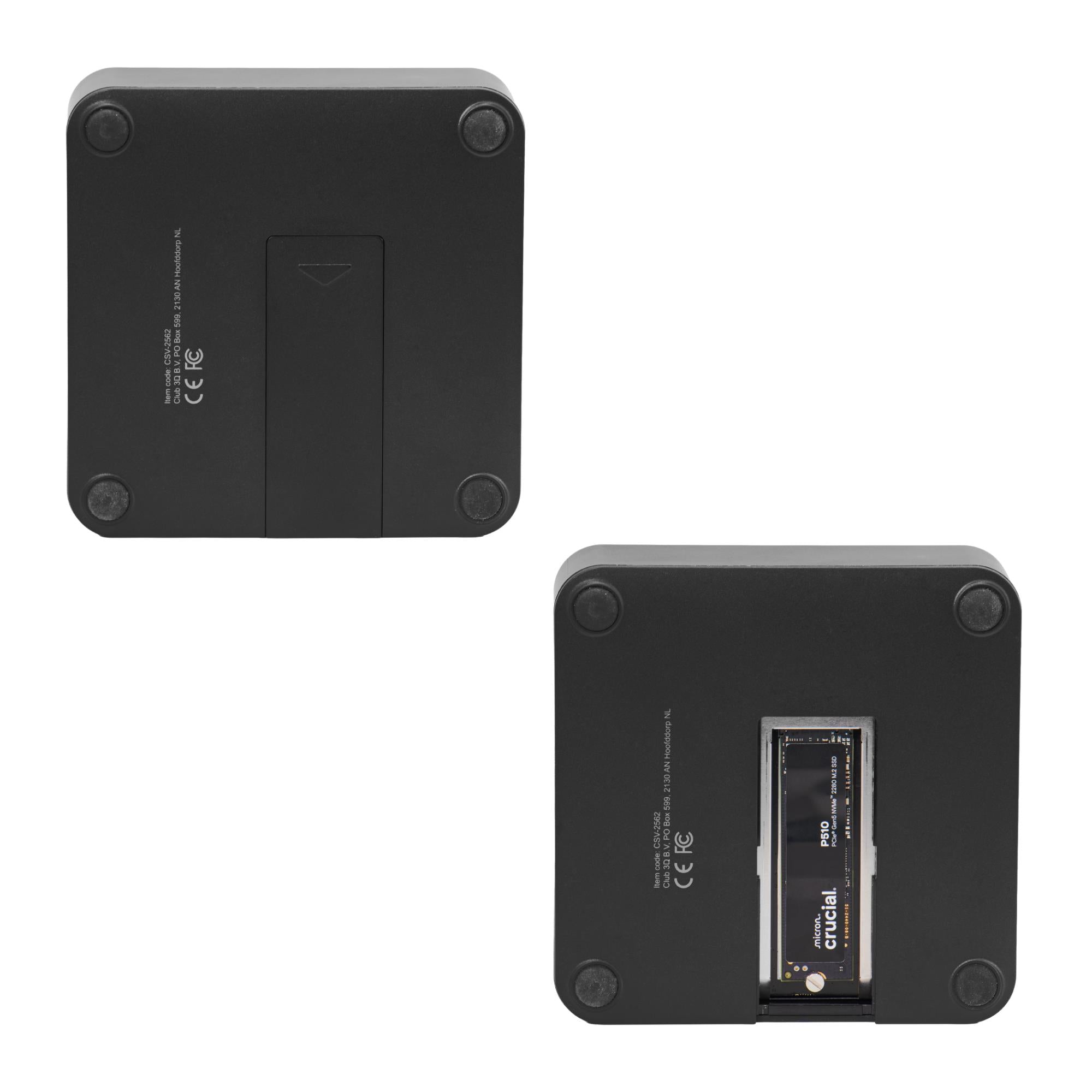

• EXPAND STORAGE HASSLE-FREE - Add more space with an easy-to-use SSD slot, giving your computer the same lightning-fast speed as its built-in storage.
• POWER YOUR WHOLE SETUP - Delivers 140W to your laptop + 30W to phones/tablets via two front-facing USB-C® ports (no extra chargers needed).

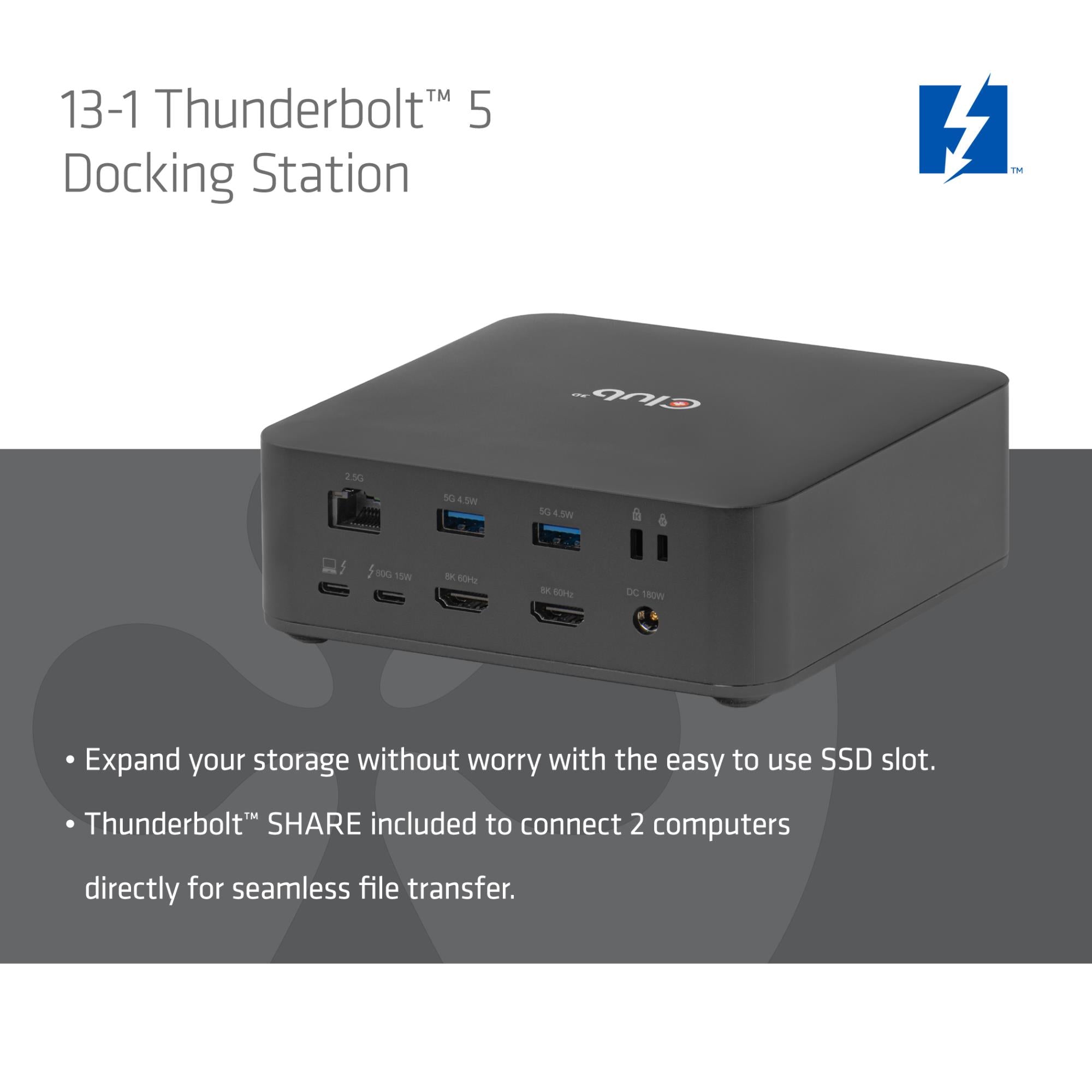

• THUNDERBOLT™ SHARE INCLUDED - Comes with a Thunderbolt™ Share license to connect two computers directly for seamless file transfer and display control.
- Features:
- Adopting Barlow Ridge solution

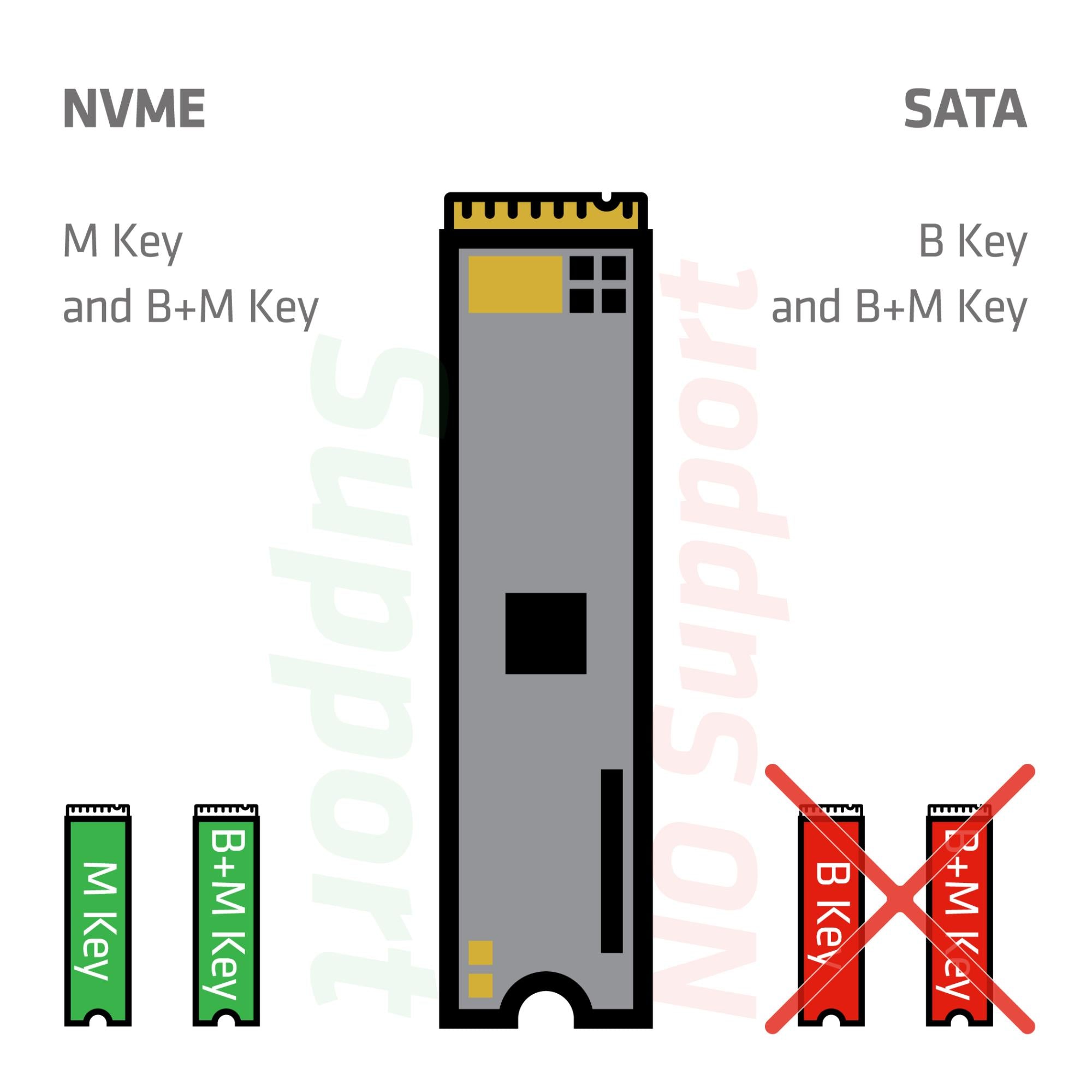

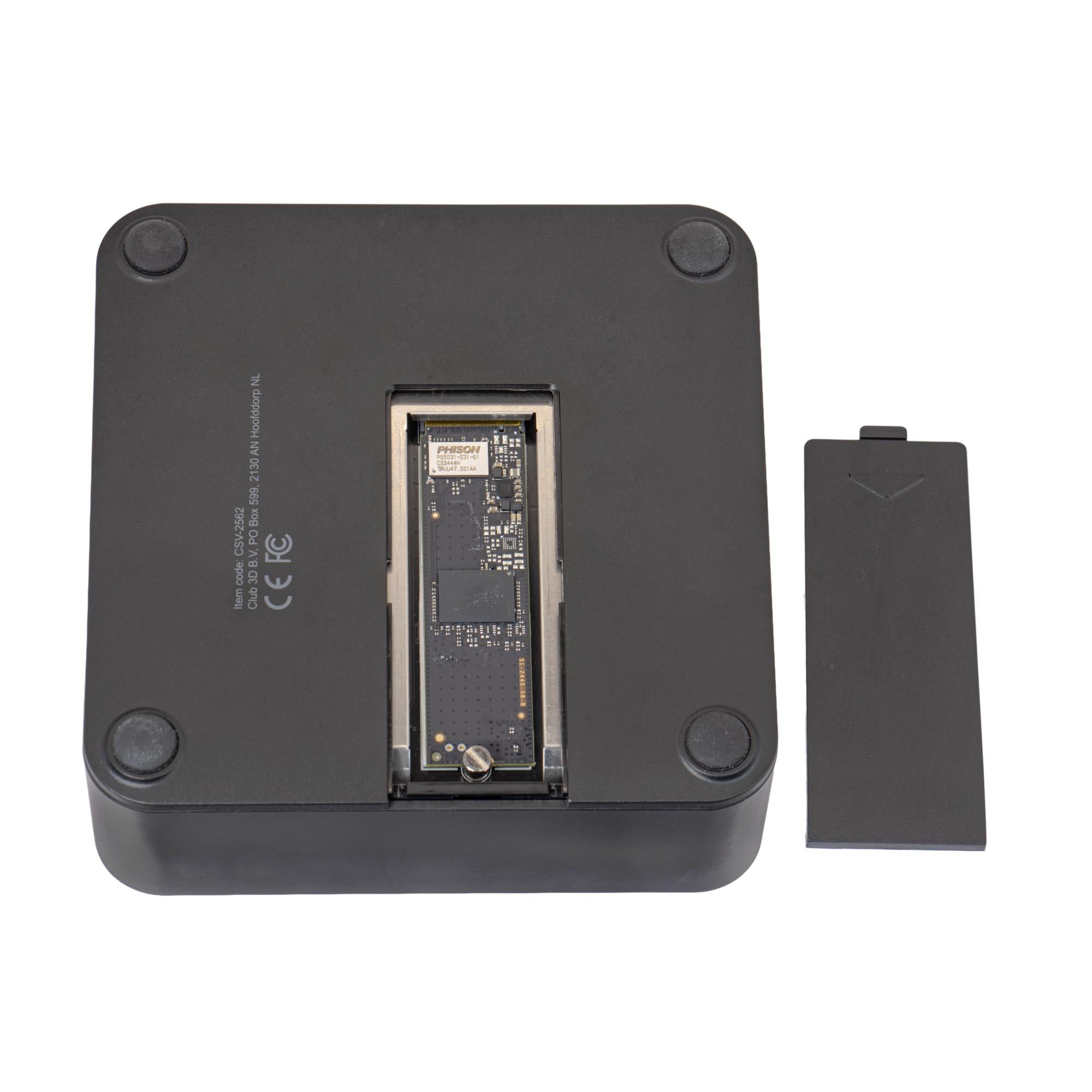

- Compatible with SSDs in 2280, 2260, 2242, and 2230 sizes
- supporting PCIe Gen4x4 (16Gbps, 4 lanes) with maximum read and
- write speeds of 6000MB/s
- Designed for TB5/TB4/USB4 based PCs and compatible with TB3/
- DP-Alt-mode PCs
- Support Thunderbolt™ 5 max 80Gbps or 120Gbps for high speed data
- and outstanding video transfer
- Downstream ports allow you to cascade Thunderbolt™ devices up to 5
- levels
- Downstream ports support max. 80Gbps or 120Gbps data transfer
- support Type-C® dongle/adapter/dock

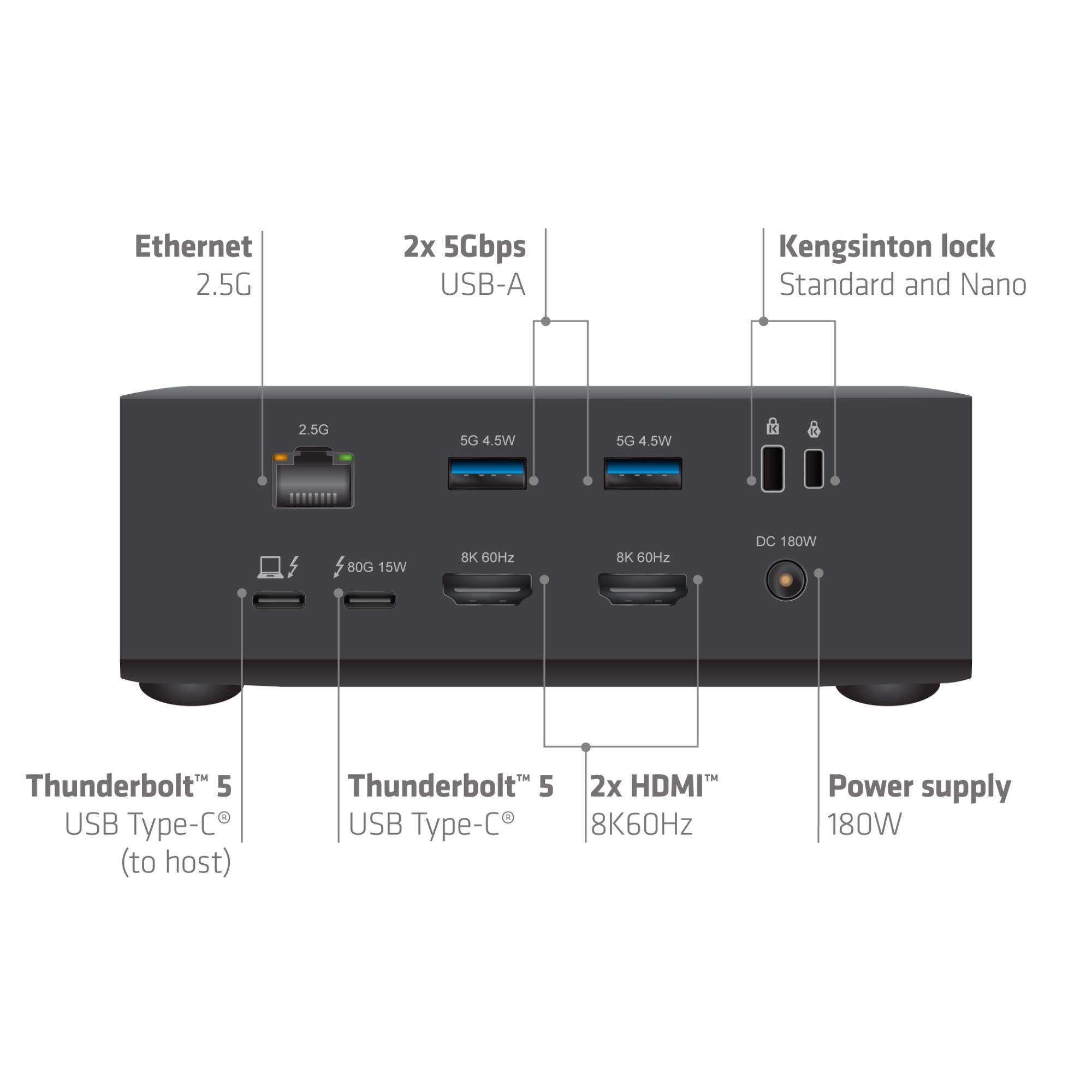

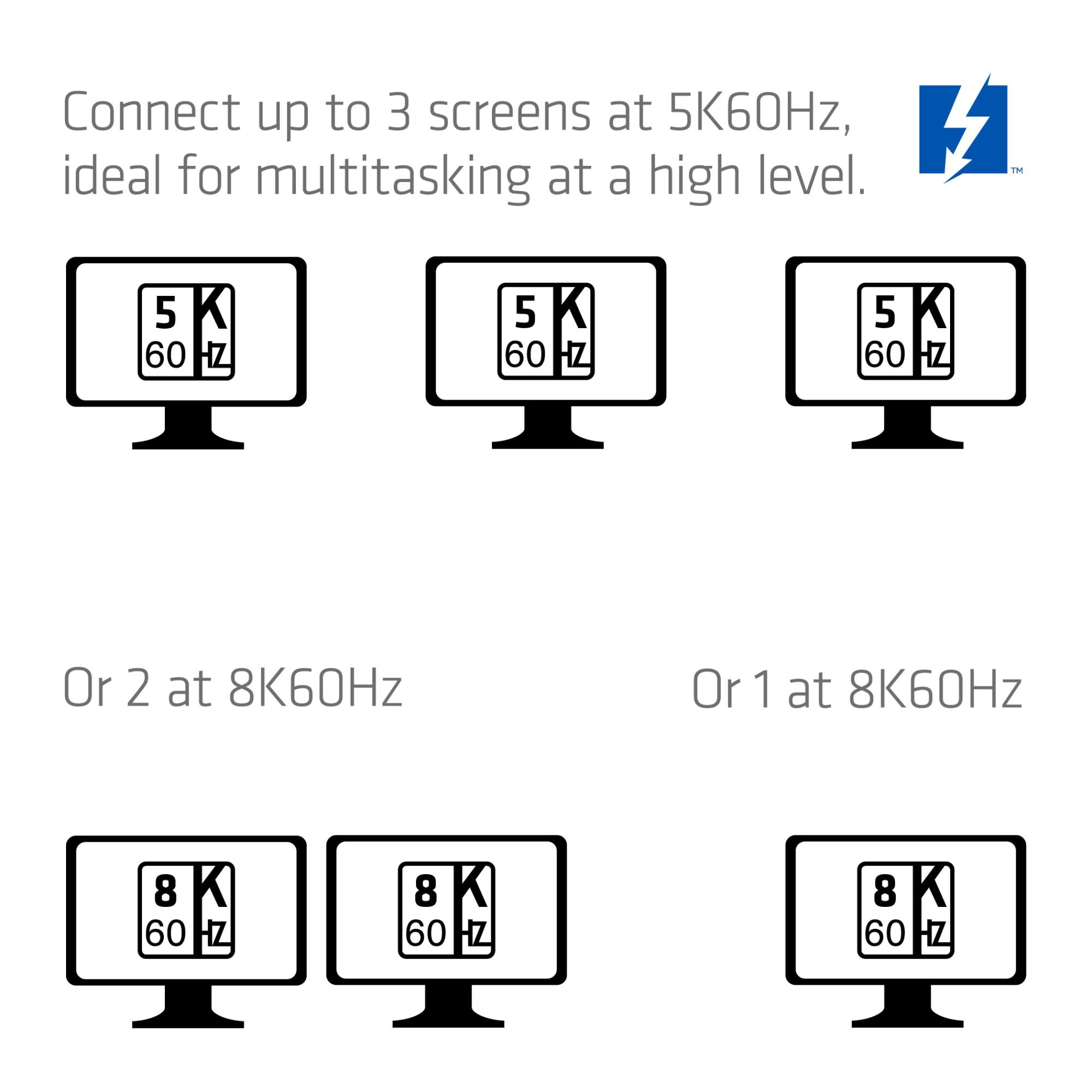

- Support max 10K60Hz for one video output and to be more efficient
- 5K60Hz or 4K144Hz for triple

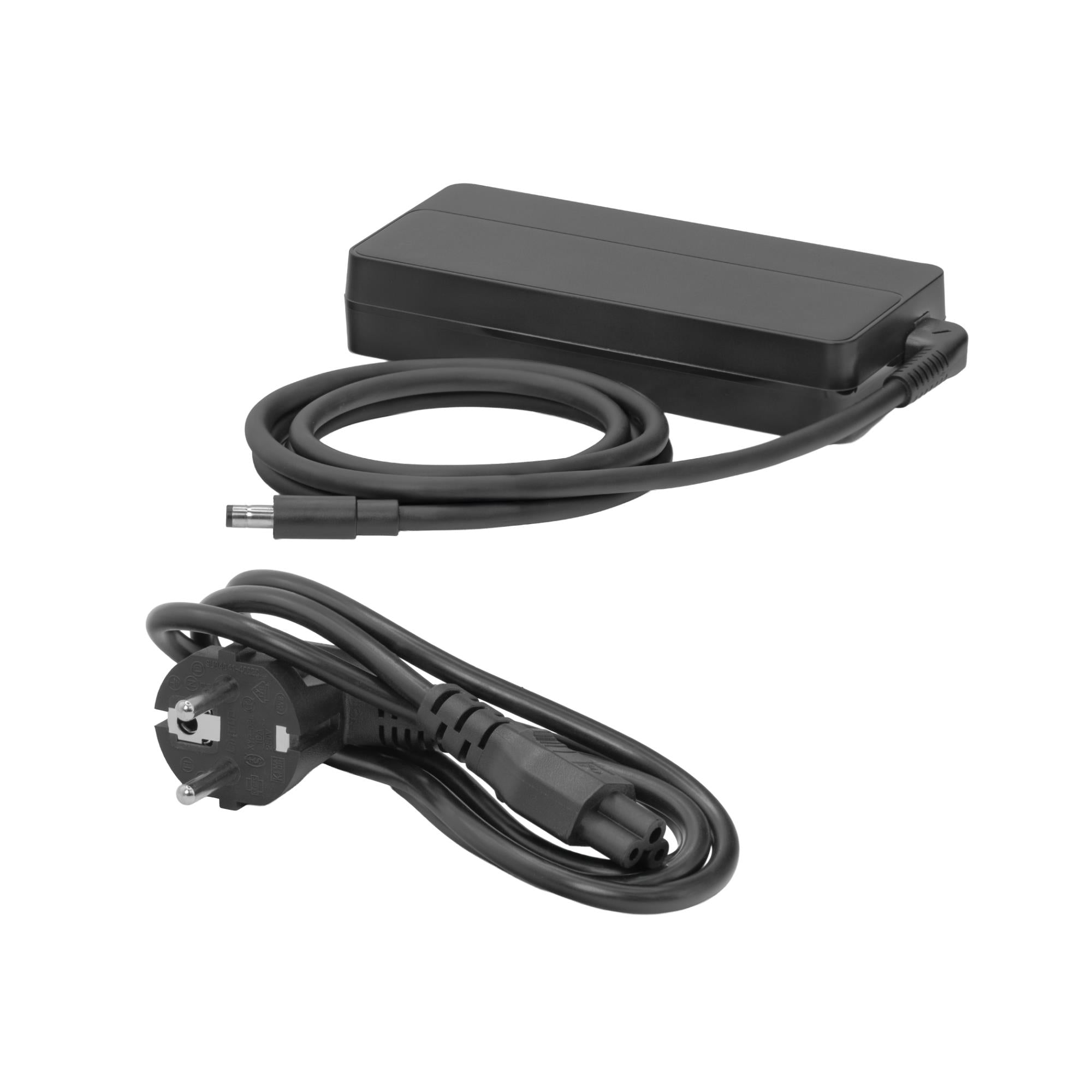

- Self-powered from DC power adapter with max. 180Watt for host and
- Hub
- Made from recycled materials (PCR). Sustainable and durable
- The device has standard and nano Kensington lock slots for a secure
- anti-theft mechanism

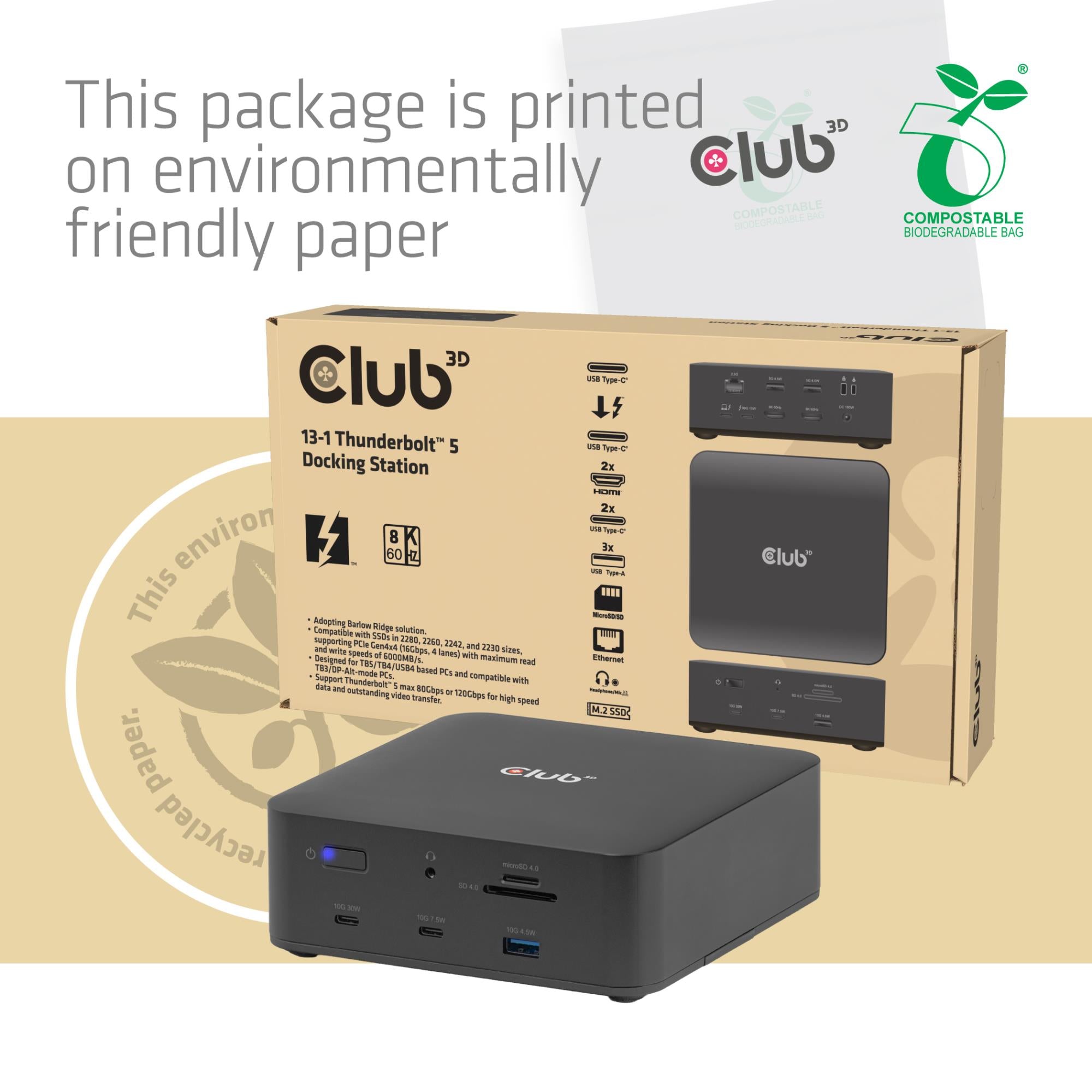

CLUB3D CSV-2562 13-1 Thunderbolt™ 5 Docking Station M.2 SSD 2x HDMI™ 8K60Hz Thunderbolt™ Share Certified 180W. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD Express, SD, Data transfer rate: 120 Gbit/s. Power source type: DC, Power supply: 180 W, USB cable length: 1 m. Sustainability certificates: SCS Product Category Rule (PCR)
