Description
General Information
- SKU: 1459793
- Manufacturer Product Page: DAHUA IPC-HDW5459T-ZE-IL-2712-BLACK
- Manufacturer Code: IPC-HDW5459T-ZE-IL-2712-BLACK
- Catalog: Network Cameras
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 140 |
| People counting function | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 137 - 54 |
| Lens viewing angle, horizontal | 115 - 47 |
| Lens viewing angle, vertical | 62 - 27 |
| Minimum illumination | 0.0004 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 78 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/1.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.13 |
| Detect distance (tele) | 130.8 |
| Detect distance (wide) | 57.5 |
| Focal length range | 2.7 - 12 |
| Identify distance (tele) | 13.1 |
| Identify distance (wide) | 5.8 |
| Maximum aperture number | 1.8 |
| Observe distance (tele) | 52.3 |
| Observe distance (wide) | 23 |
| Recognize distance (tele) | 26.2 |
| Recognize distance (wide) | 11.5 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 50 |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2688 x 1520 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Total megapixels | 4 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Number of users | 20 |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 |
| RAM capacity | 2048 |
| ROM capacity | 4096 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion/People counting/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 14.8 |
| Power consumption (typical) | 3.5 |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 |
| Height | 108.3 |
| Weight | 700 |
| Compliance certificates | CE |
| Package weight | 960 |
| Manual | Yes |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00402 |
| Unit Calculated Weight | 0.8 |
Description
- 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520) @25/30 fps
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions
- With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc
- Supports max. 1 TB Micro SD card; built-in Mic
- 12 VDC/PoE power supply; ePoE
- IP67 protection

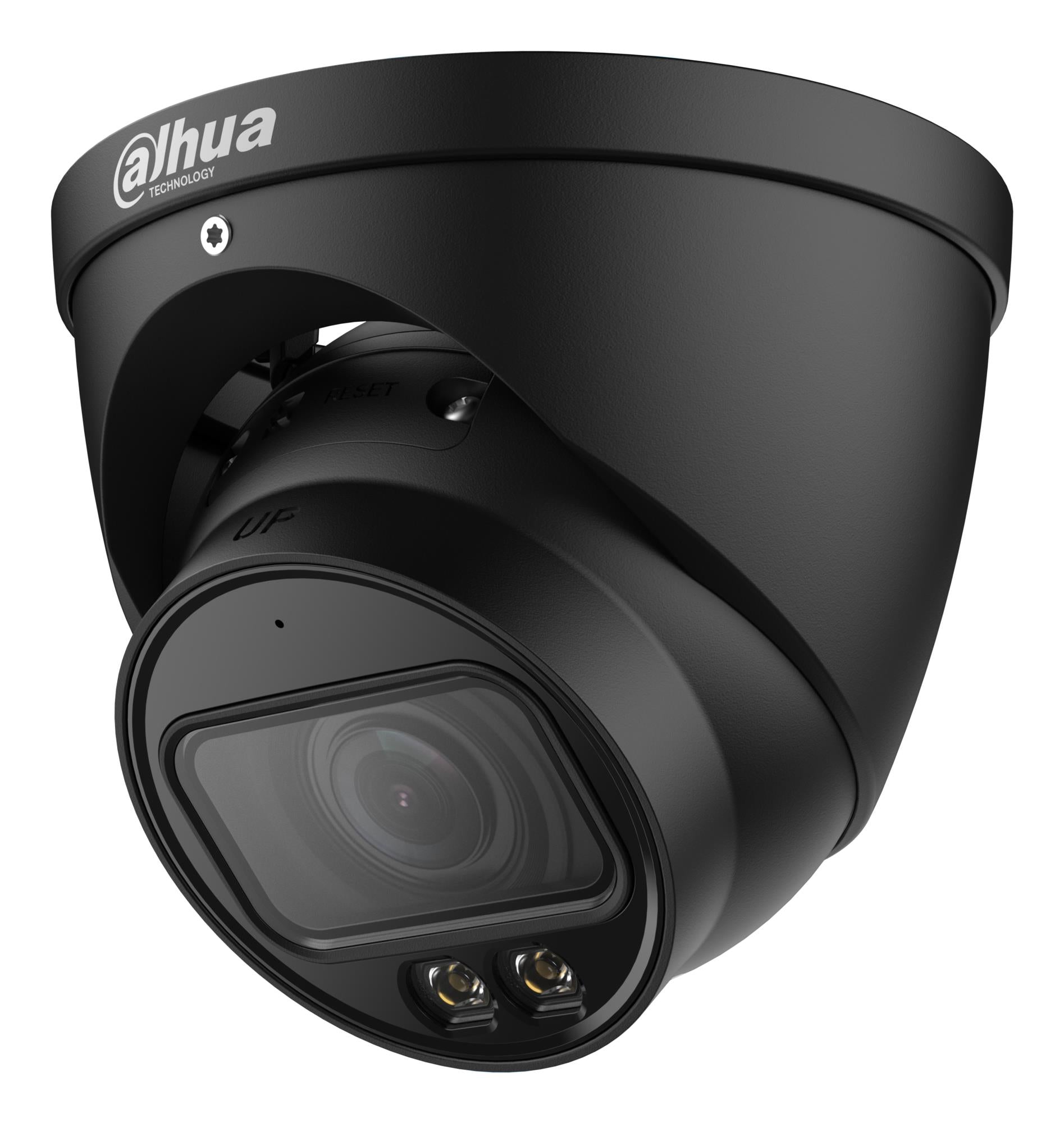

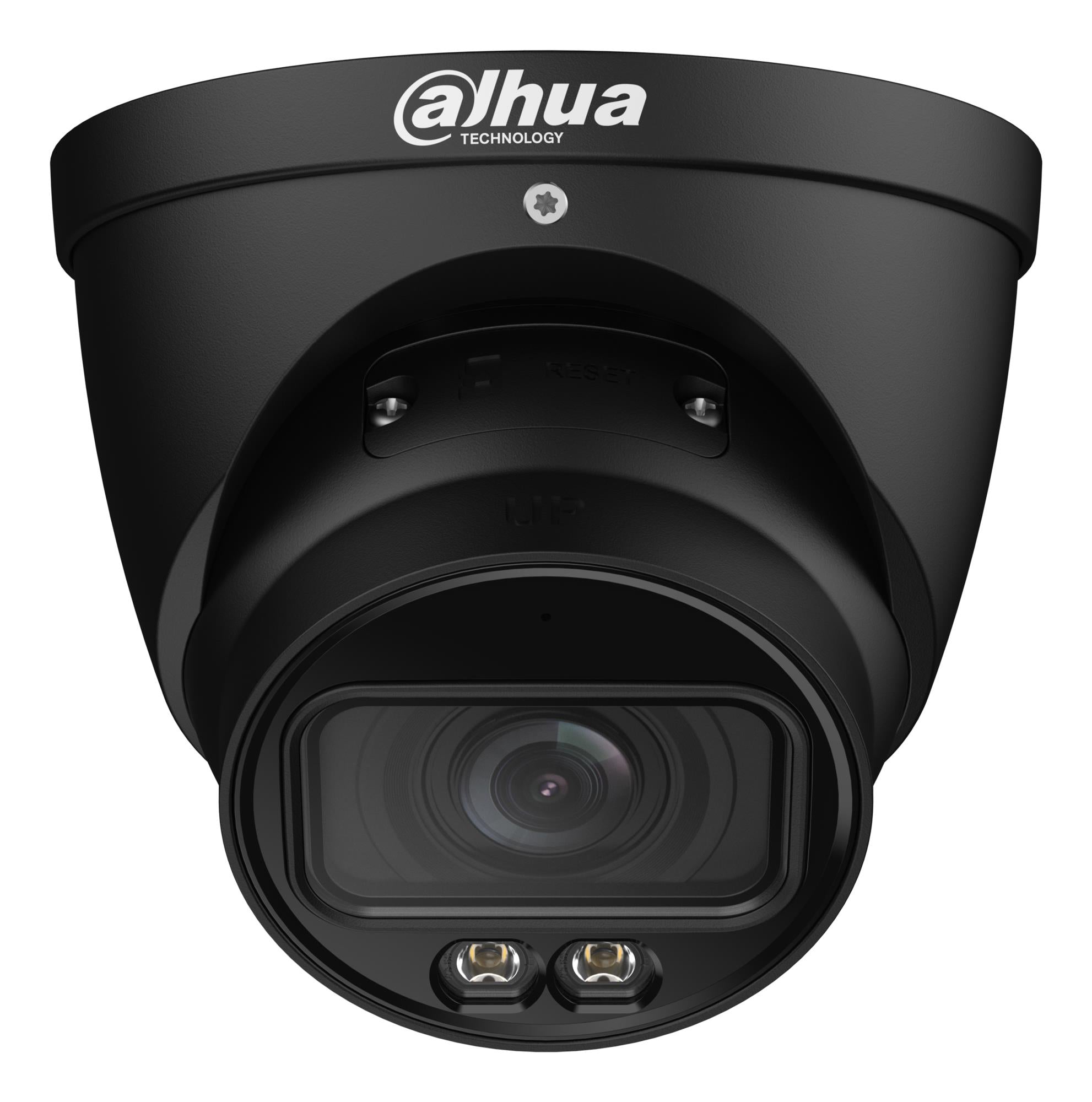

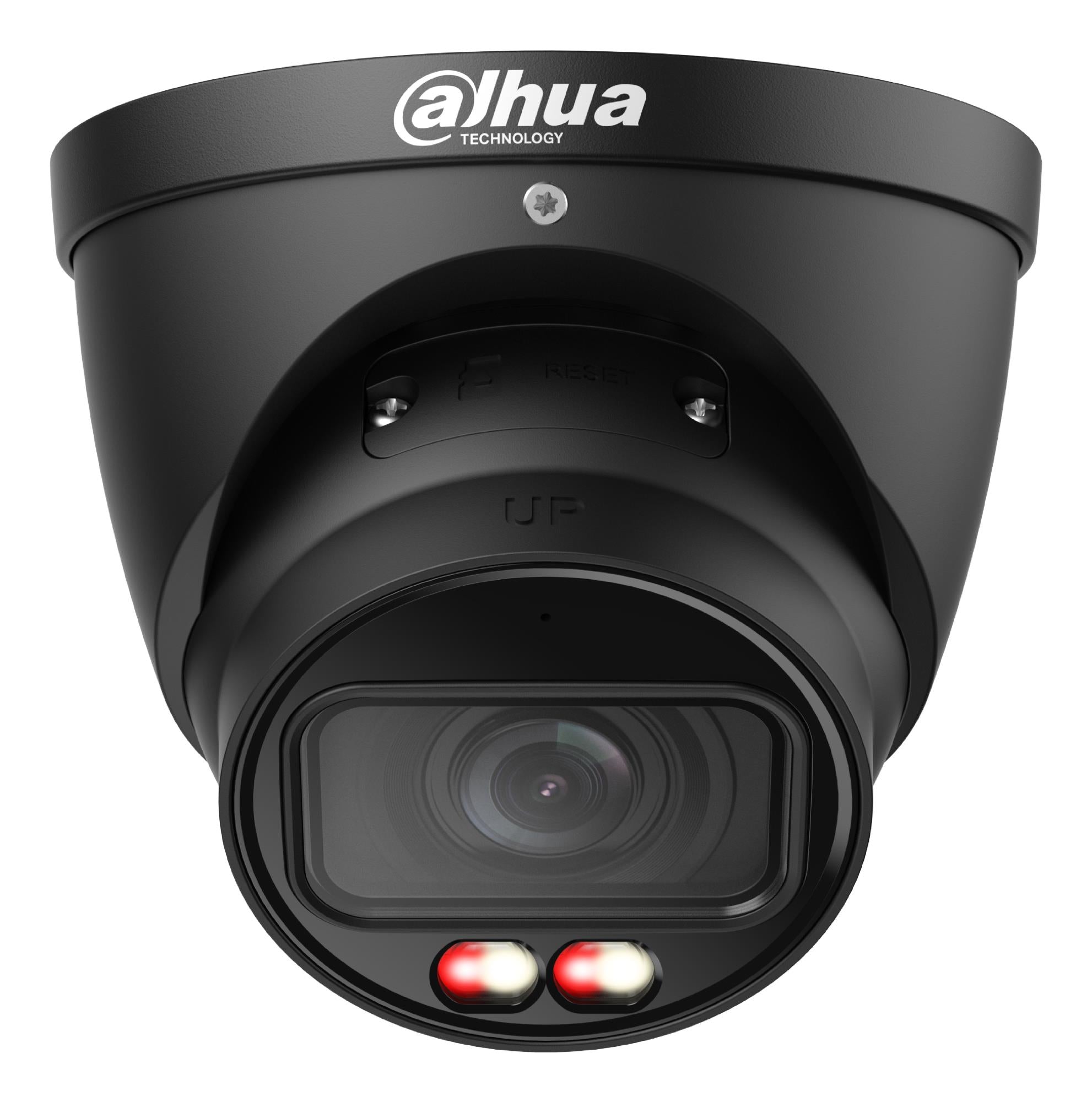

Dahua Technology WizMind IPC-HDW5459T-ZE-IL-2712-Black. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Turret. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 115 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 57.5 m, Detect distance (tele): 130.8 m
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
H.264/H.264B/H.264H/H.265/M-JPEG
G.711 µ-law/G.711 A-law/G.723/G.726/PCM
IEEE 802.1x/IEEE 802.3at
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
