Description
General Information
- SKU: 1459789
- Manufacturer Product Page: DAHUA IPC-HFW5659T1-ASE-PV-0360B-PRO
- Manufacturer Code: IPC-HFW5659T1-ASE-PV-0360B-PRO
- Catalog: Network Cameras
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 130 |
| People counting function | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 111 |
| Lens viewing angle, horizontal | 93 |
| Lens viewing angle, vertical | 50 |
| Minimum illumination | 0.0001 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 90 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 3.2 |
| Detect distance | 85.6 |
| Fixed focal length | 3.6 |
| Identify distance | 8.6 |
| Maximum aperture number | 1 |
| Observe distance | 34.3 |
| Recognize distance | 17.1 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 80 |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3072 x 2048 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Total megapixels | 6 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of microphones | 2 |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3at |
| Number of users | 20 |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 |
| RAM capacity | 2000 |
| ROM capacity | 4000 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion/People counting/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 21.6 |
| Power consumption (Power over Ethernet (PoE)) | 4.8 |
| Power consumption (typical) | 4.1 |
| Power source type | DC |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Depth | 288.4 |
| Height | 84.7 |
| Length | 288.4 |
| Weight | 1090 |
| Width | 94.4 |
| Compliance certificates | CE |
| Package type | Box |
| Package weight | 1390 |
| Manual | Yes |
| Number of cameras | 1 |
| Unit Calculated Volume | 0.00392 |
| Unit Calculated Weight | 1.2 |
Description

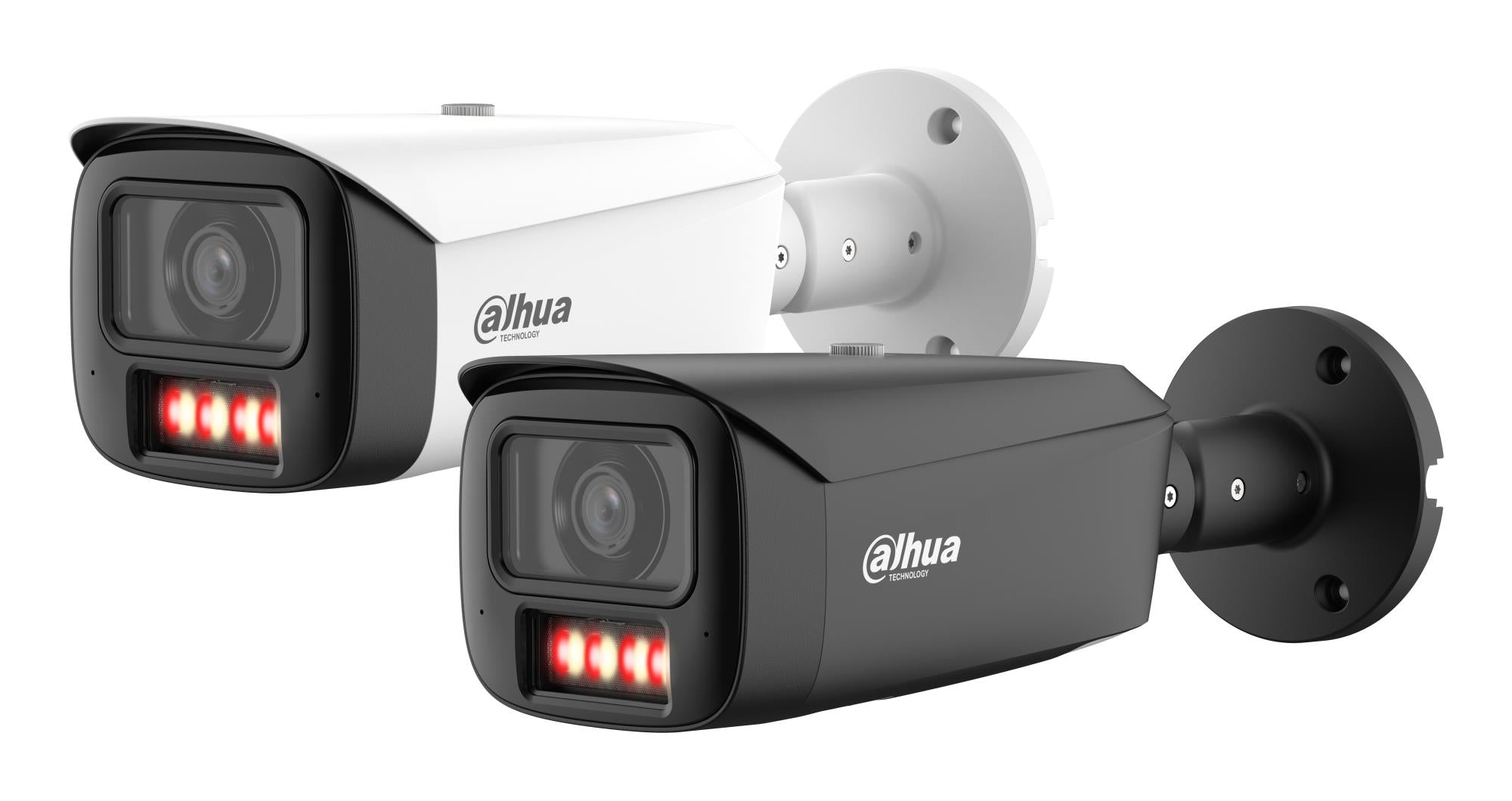

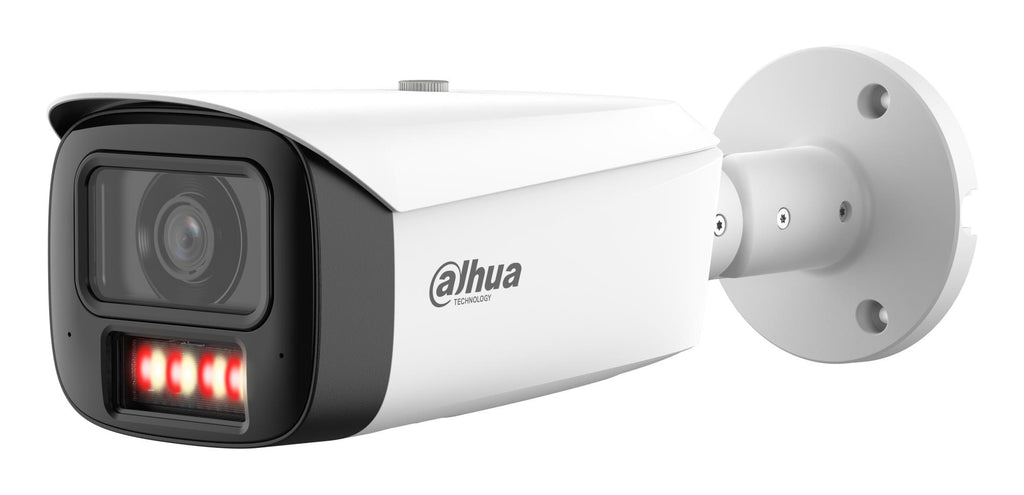

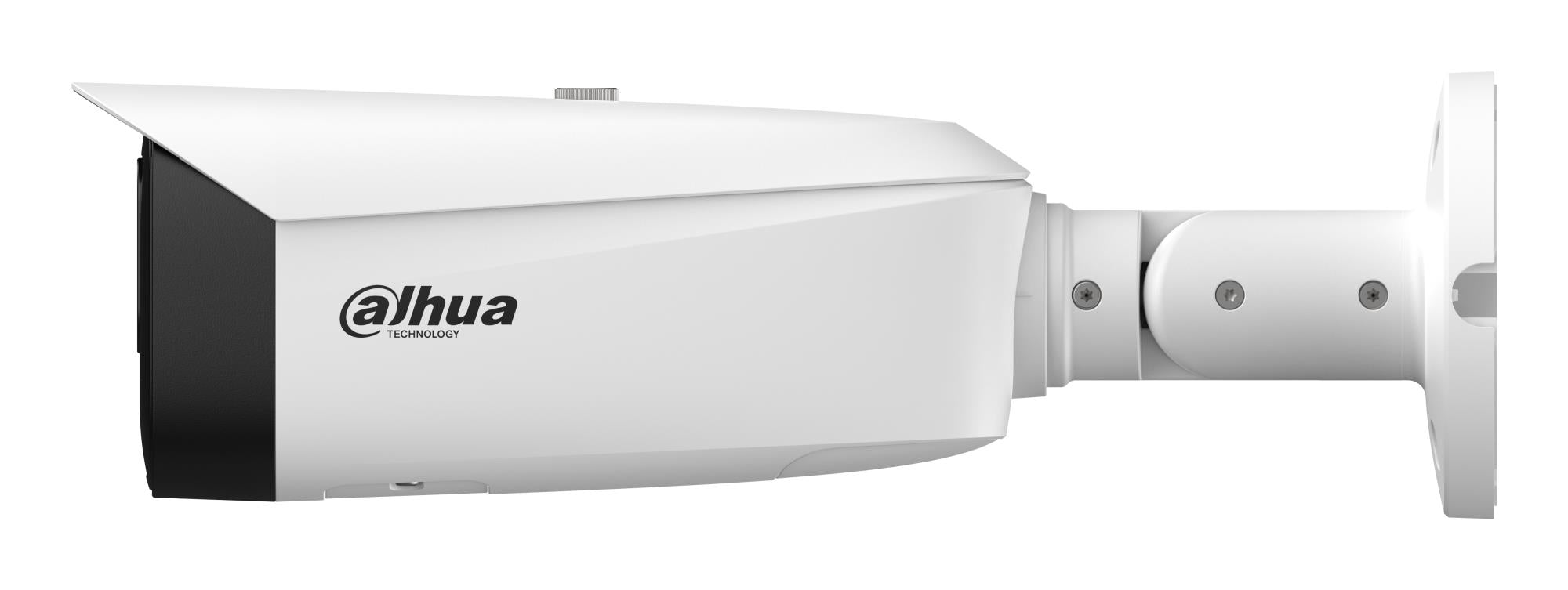

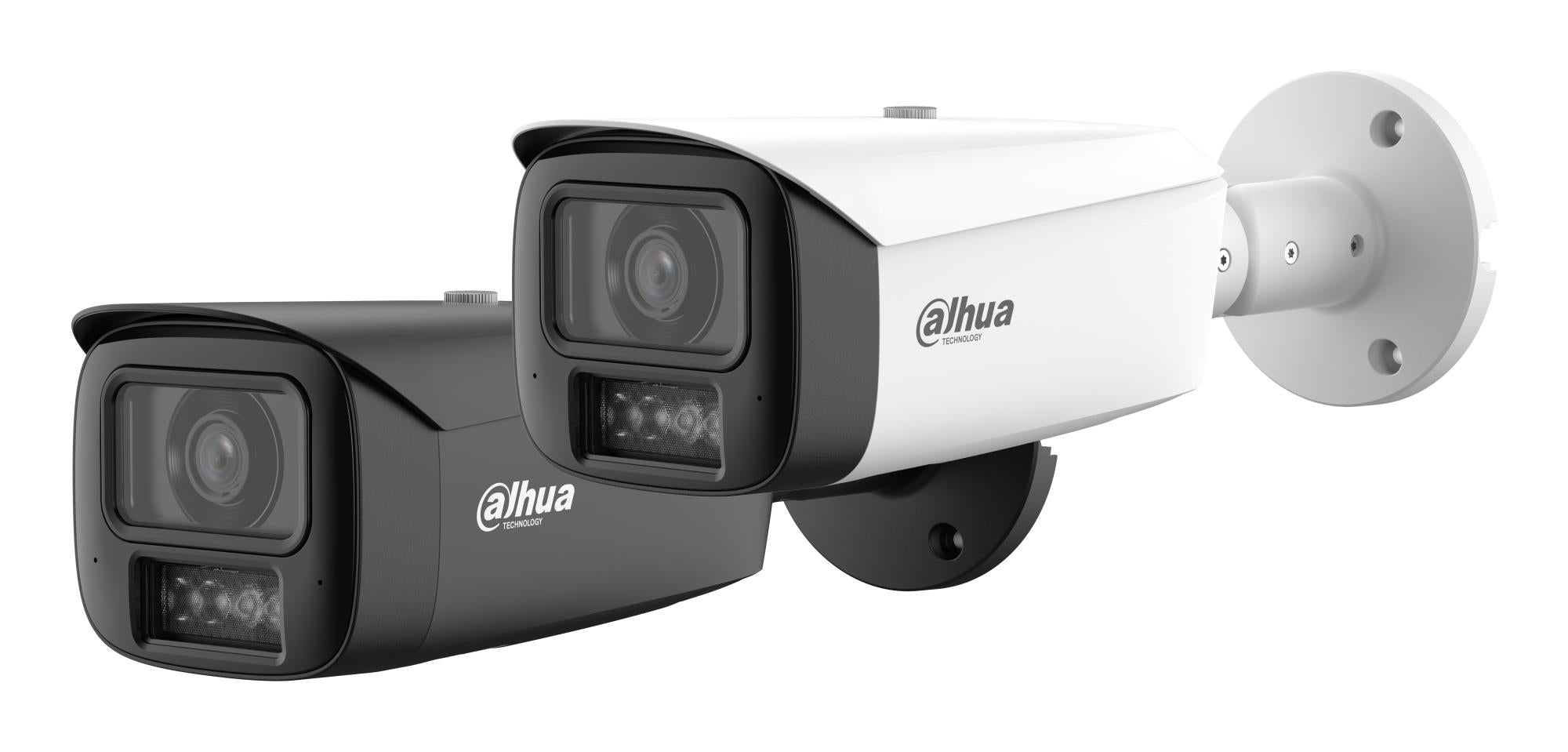

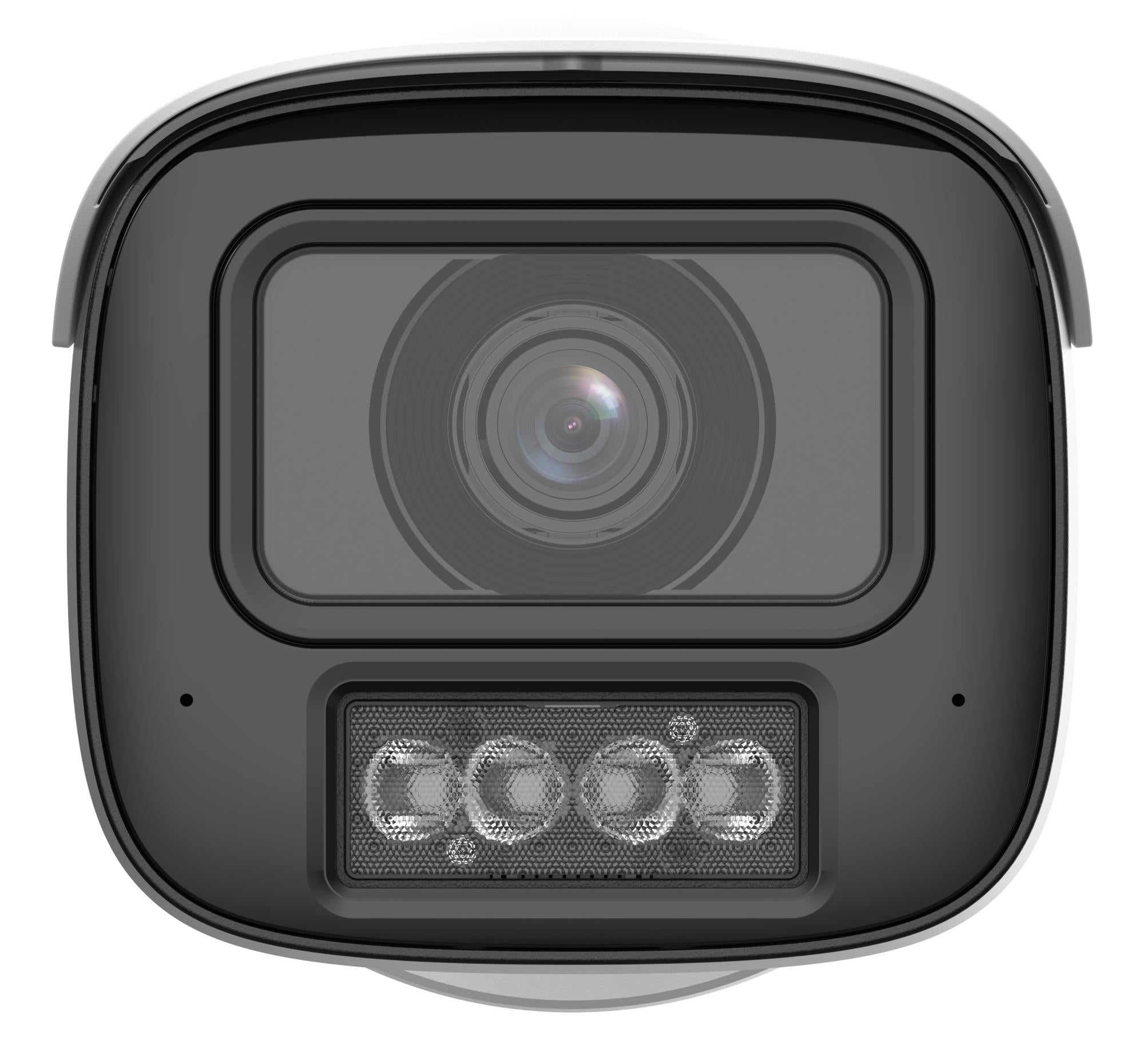

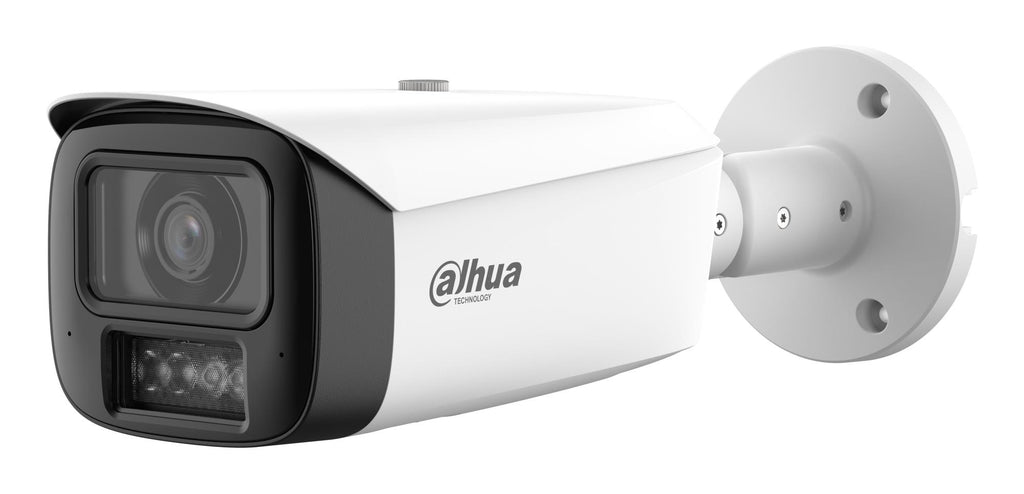

Dahua Technology WizMind IPC-HFW5659T1-ASE-PV-PRO. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0001 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 85.6 m, Observe distance: 34.3 m, Recognize distance: 17.1 m
Constant Bit Rate (CBR),Variable Bit Rate (VBR)
H.264/H.264B/H.264H/H.265/M-JPEG
G.711 µ-law/G.711 A-law/G.723/G.726/PCM
IEEE 802.1x/IEEE 802.3at
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
