Description
General Information
- SKU: 1459788
- Manufacturer Product Page: DAHUA IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK
- Manufacturer Code: IPC-HDBW5659R1-ASE-PV-0280B-PRO-BLACK
- Catalog: Network Cameras
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Form factor | Spherical |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | Black |
| Protection features | Corrosion resistant/Waterproof |
| Alarm input/output | Yes |
| Auto pan mode | Yes |
| Auto-tracking | Yes |
| Built-in light | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Maximum operating distance | 124 |
| People counting function | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 111 |
| Lens viewing angle, horizontal | 93 |
| Lens viewing angle, vertical | 50 |
| Minimum illumination | 0 |
| Pan range | 0 - 355 |
| Tilt angle range | 0 - 75 |
| White balance | Auto |
| Optical sensor size | 1/1.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 3.2 |
| Detect distance | 85.6 |
| Fixed focal length | 3.6 |
| Fixed focus | Yes |
| Identify distance | 86 |
| Maximum aperture number | 1 |
| Observe distance | 34.3 |
| Recognize distance | 17.1 |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 40 |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Frame rate | 30 |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Gain/Mirror |
| Maximum resolution | 3072 x 2048 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Smart IR | Yes |
| Supported video modes | 1080p/720p |
| Total megapixels | 4 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Audio detection | Yes |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of microphones | 1 |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Built-in HDD | Yes |
| Built-in SSD | Yes |
| RAM capacity | 2000 |
| ROM capacity | 4000 |
| Ethernet LAN (RJ-45) ports | 1 |
| Detection distance | 124 |
| Mirror | Yes |
| Motion sensor | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 21.7 |
| Power consumption (Power over Ethernet (PoE)) | 23.9 |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Storage relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 60 |
| Depth | 126 |
| Height | 105 |
| Weight | 730 |
| Width | 126 |
| Compliance certificates | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Package weight | 940 |
| Memory card included | MicroSD |
| Number of cameras | 2 |
| Lens mount interface | M16 |
| Unit Calculated Volume | 0.003288 |
| Unit Calculated Weight | 0.85 |
Description

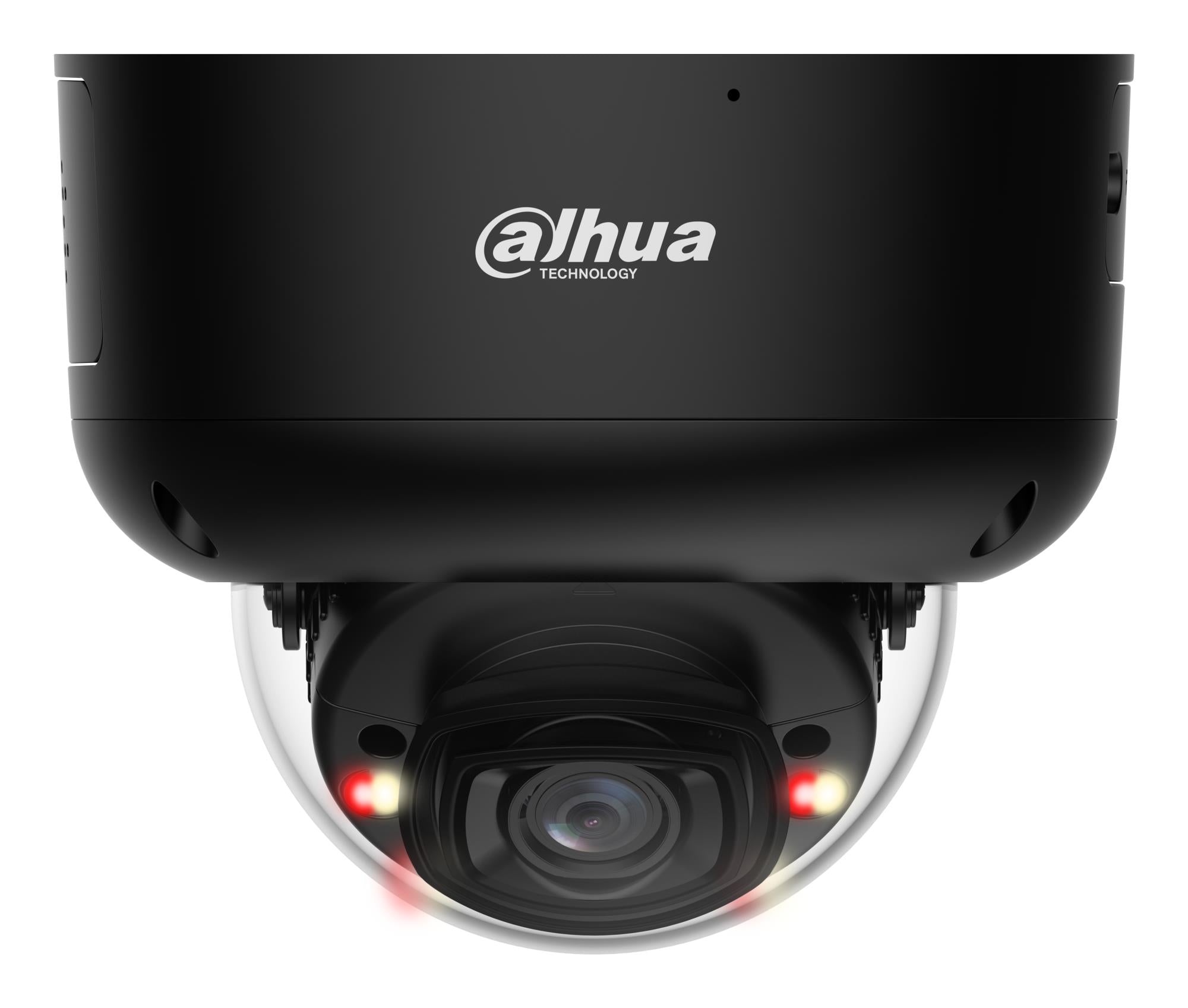

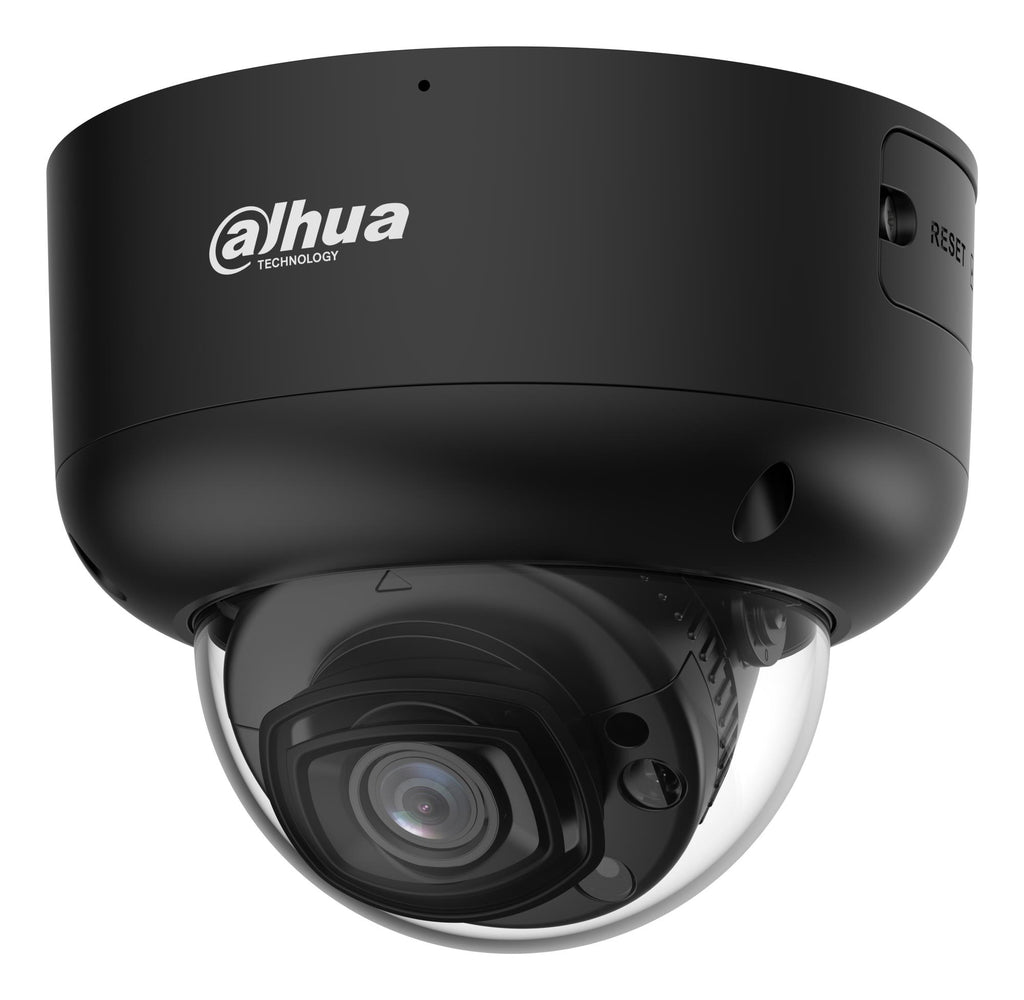

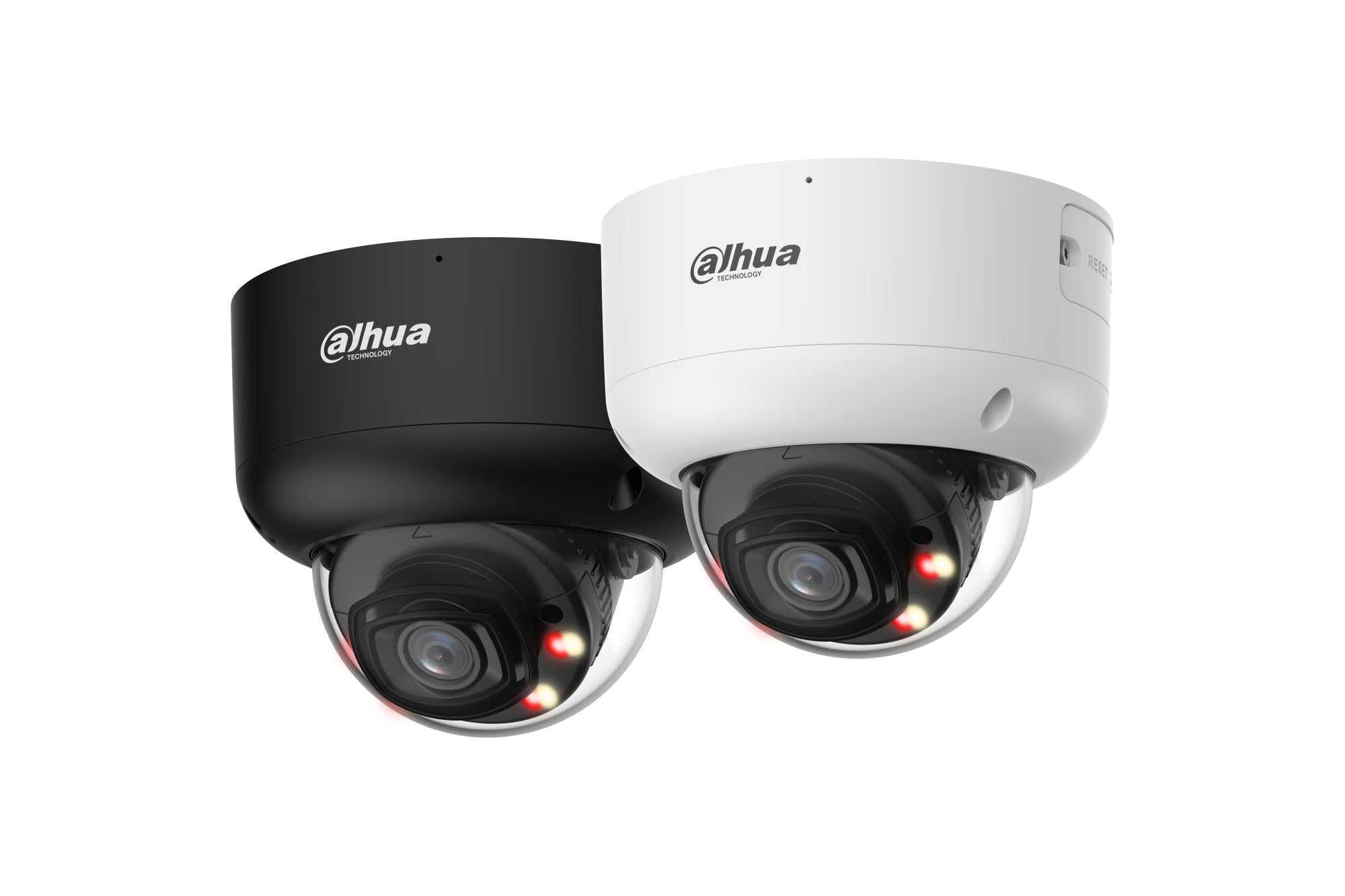

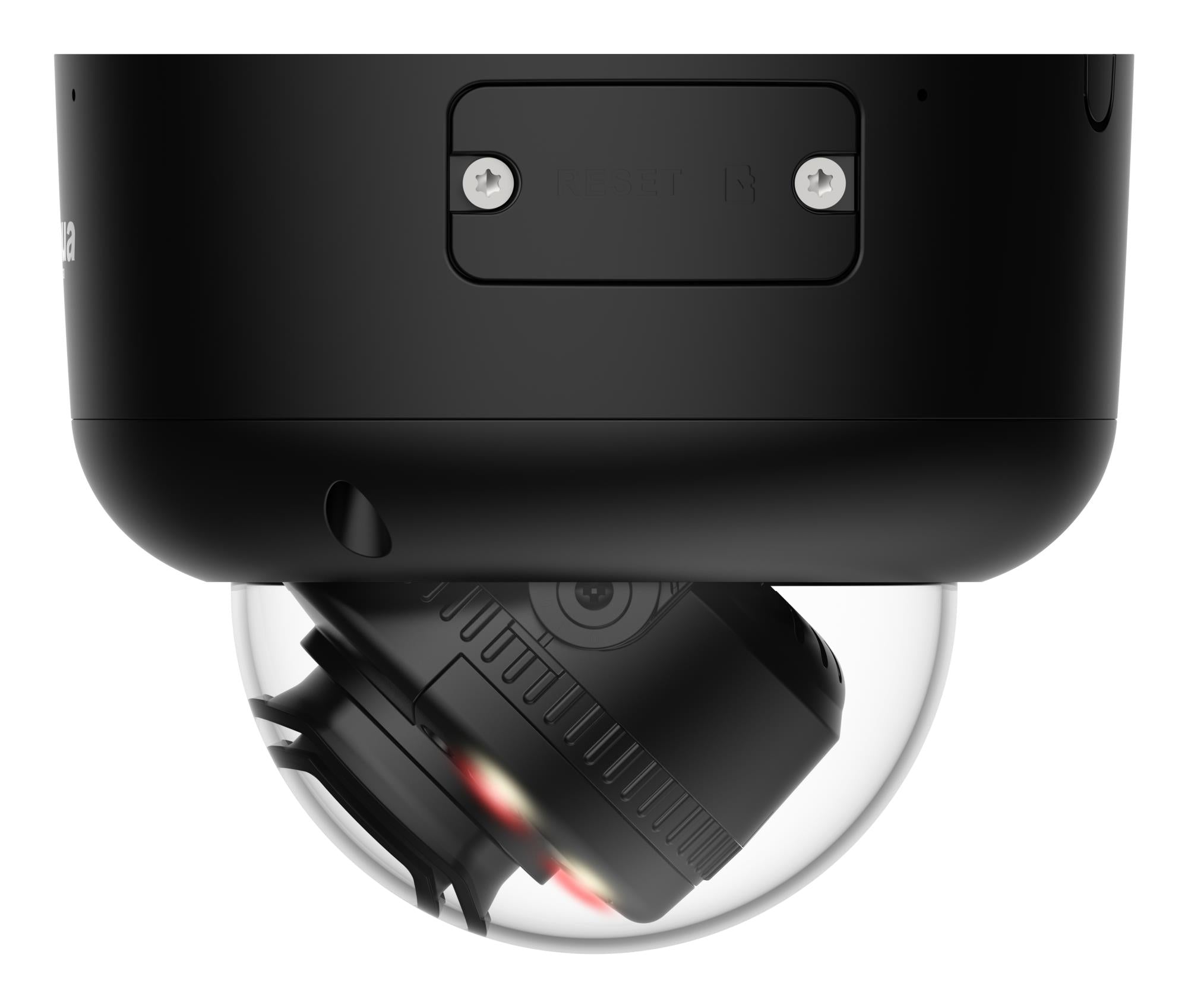

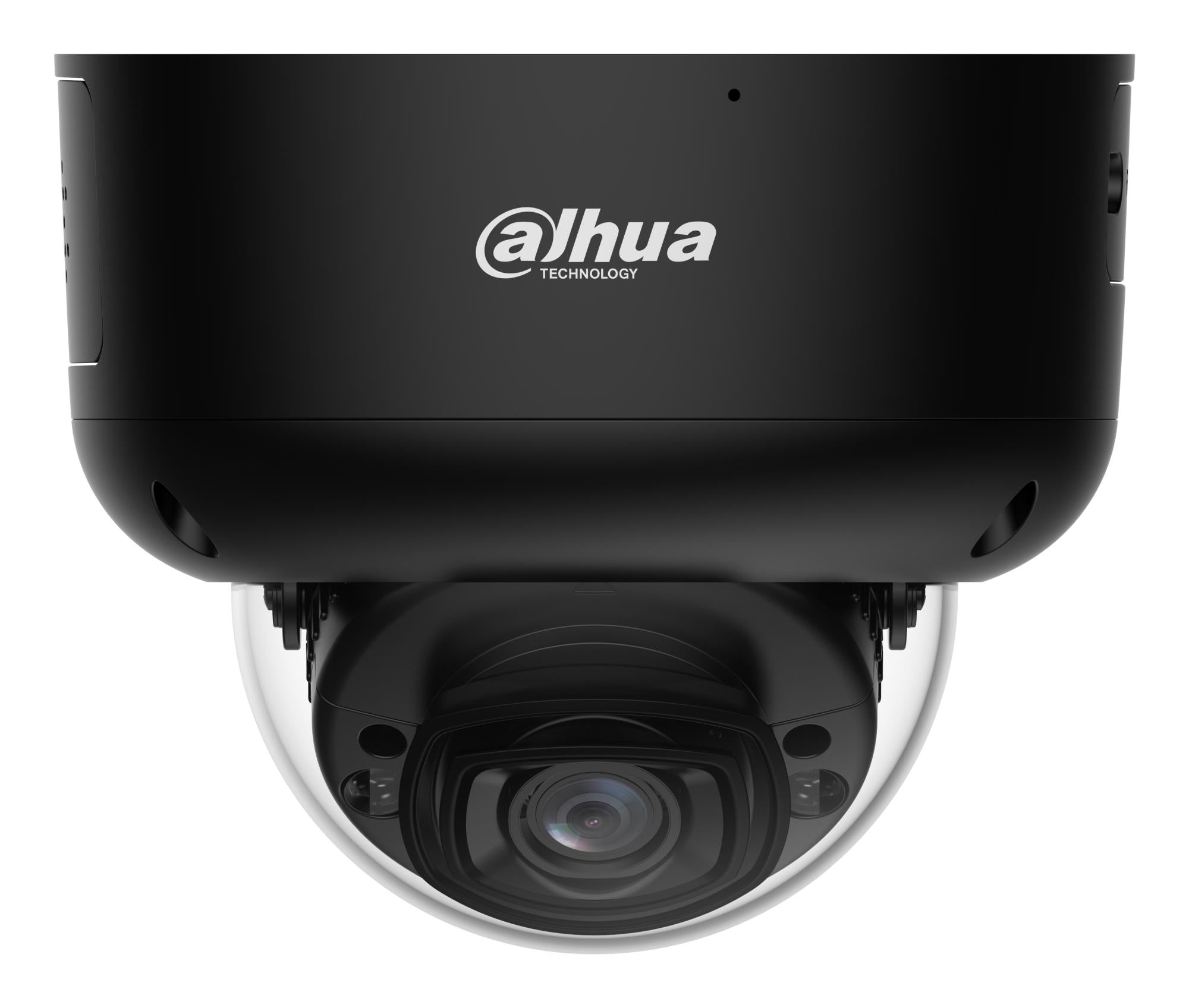

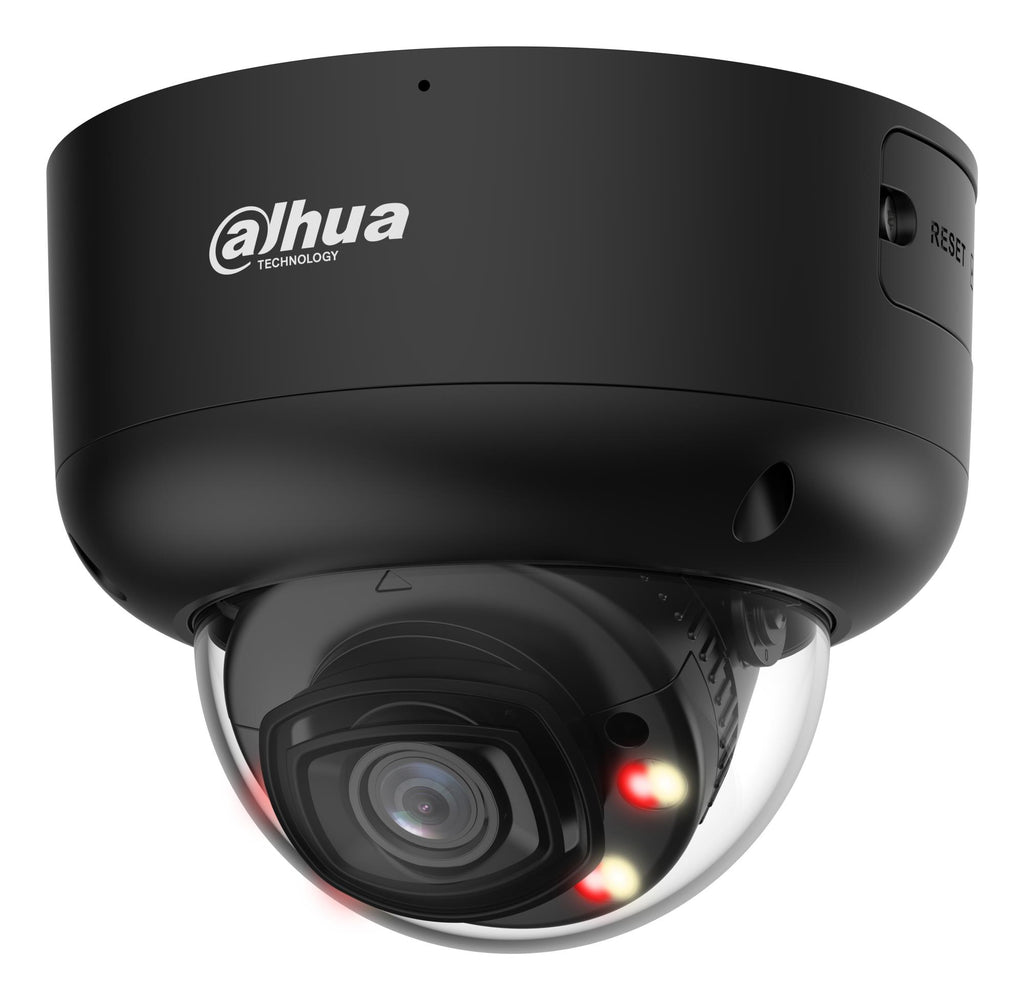

Dahua Technology WizMind IPC-HDBW5659R1-ASE-PV-PRO. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Spherical. Angle of rotation: 360°, Lens viewing angle, horizontal: 93°, Lens viewing angle, vertical: 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 85.6 m, Observe distance: 34.3 m, Recognize distance: 17.1 m
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
H.264/H.264B/H.264H/H.265/M-JPEG
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
