Description
General Information
- SKU: 1455525
- Manufacturer Product Page: DAHUA DH-IPC-HUM4431S-L5-0360B
- Manufacturer Code: DH-IPC-HUM4431S-L5-0360B
- Catalog: Network Cameras
- EAN: 6923172536549
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.09 |
| Unit Box Width | 0.08 |
| Form factor | Cube |
| Housing material | Metal |
| Mounting type | Ceiling/Desk |
| Product colour | Black |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 270 |
| Camera shutter speed | 1/3 - 1/100000 |
| Lens viewing angle, diagonal | 154 |
| Lens viewing angle, horizontal | 129 |
| Lens viewing angle, vertical | 69 |
| Minimum illumination | 0.001 |
| Number of Privacy masking areas | 4 |
| White balance | Auto/Custom modes/Manual/Natural/Outdoor/Street lamp |
| Optical sensor size | 1/3 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.8 |
| Detect distance | 50.6 |
| Fixed focus | Yes |
| Focal length range | 2 - 2.8 - 3.6 - 8 |
| Identify distance | 5.1 |
| Maximum aperture number | 1.6 |
| Observe distance | 20.2 |
| Recognize distance | 10.1 |
| Night vision | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 kbps-6144 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Total megapixels | 4 |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio detection | Yes |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| RAM capacity | 128 |
| ROM capacity | 128 |
| Interface | RJ-45 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Video motion detection | Yes |
| Management software | SmartPSS Lite; DSS; DMSS |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 1.8 |
| Power consumption (typical) | 1.4 |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Depth | 31 |
| Height | 37.1 |
| Weight | 81 |
| Width | 31 |
| Package weight | 138 |
| Number of cameras | 1 |
| Audio input | 1x RCA |
| Audio output | 1x RCA |
| Data transfer rate | 100 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000576 |
| Unit Calculated Weight | 0.14 |
Description

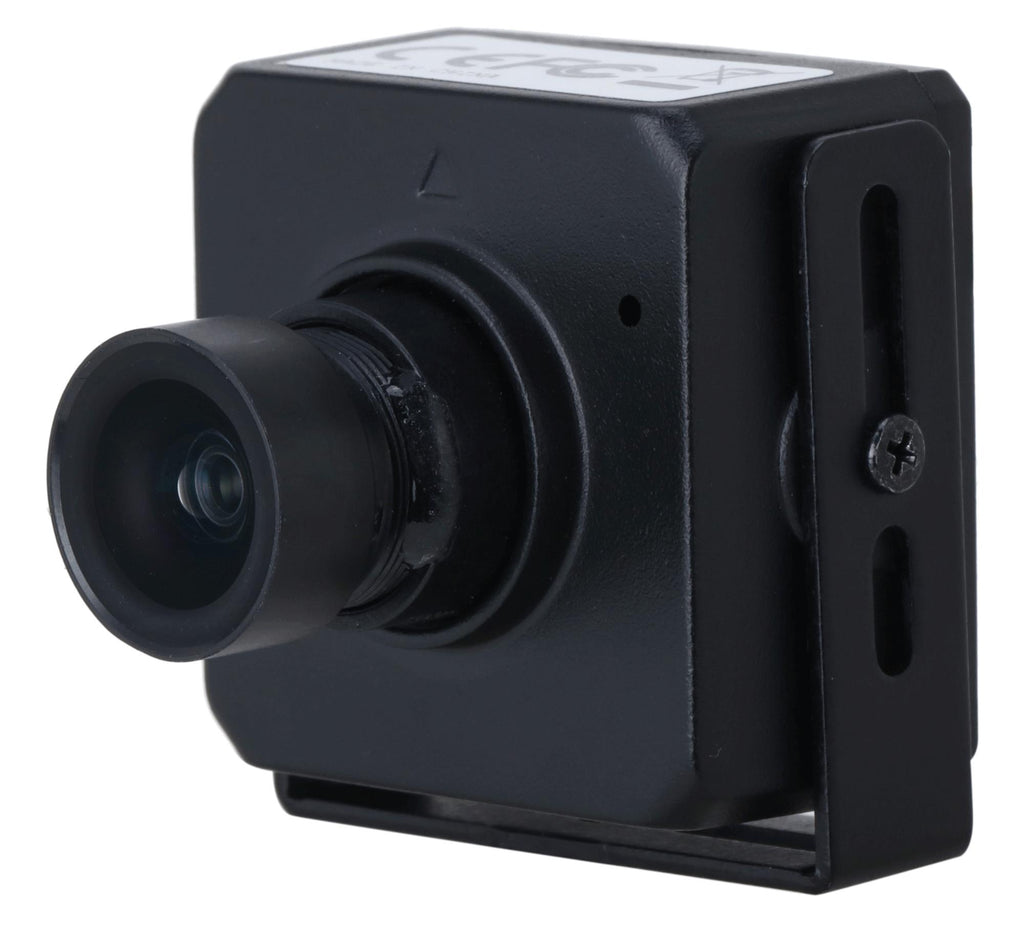

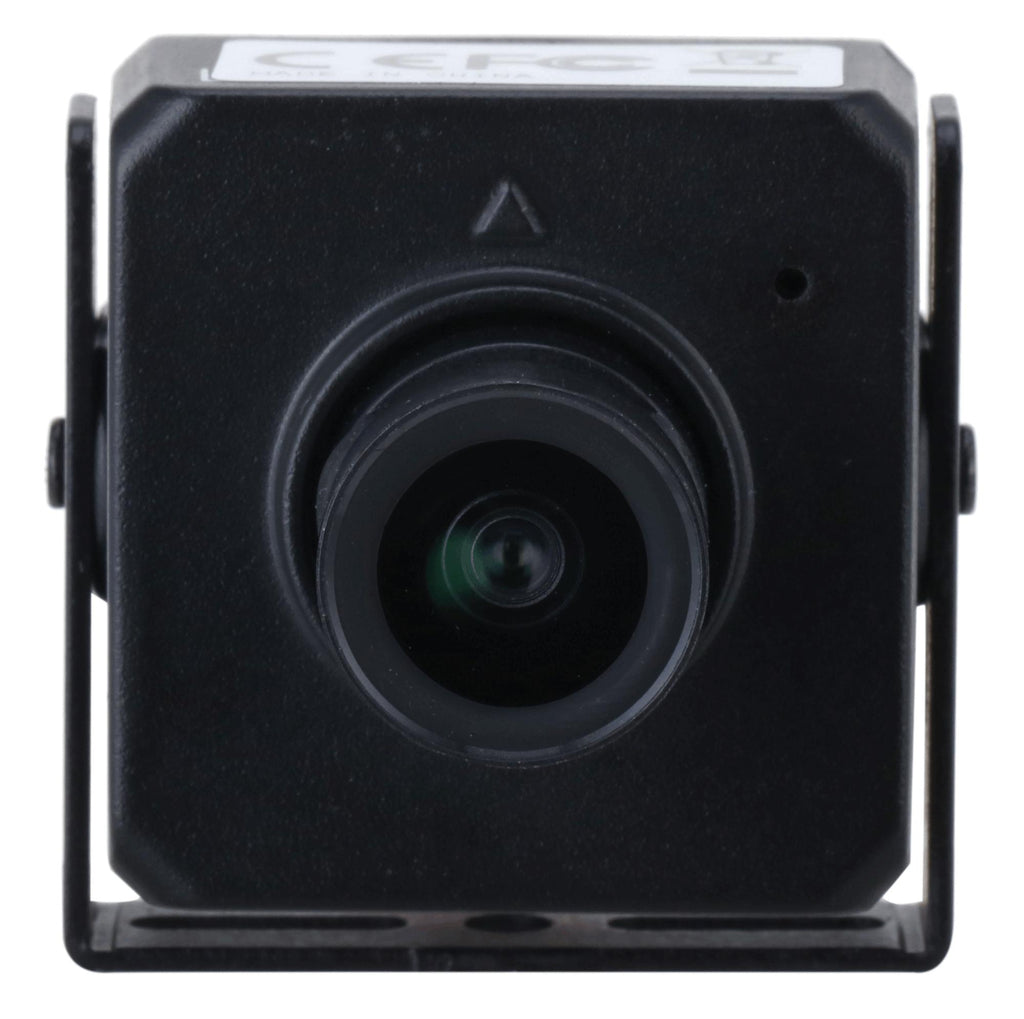

Dahua Technology Pinhole IPC-HUM4431S-L5. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Desk, Product colour: Black, Form factor: Cube. Minimum illumination: 0.001 lx, Angle of rotation: 270°, Lens viewing angle, horizontal: 129°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 50.6 m, Observe distance: 20.2 m, Recognize distance: 10.1 m
CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; 2.8 mm/3.6 mm: FCC:47 CFR FCC Part 15, Subpart B
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
G.711a/G.711Mu/G.726/PCM
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
