Description
General Information
- SKU: 1454096
- Manufacturer Product Page: DAHUA SD3E405DB-GNY-A-PV1
- Manufacturer Code: SD3E405DB-GNY-A-PV1
- Catalog: Network Cameras
- EAN: 6923172548184
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.29 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.19 |
| Form factor | Turret |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Auto-tracking | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014 |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Preset points | Yes |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/1 - 1/30000 |
| Minimum illumination | 0.0005 |
| Pan preset speed | 35.7 |
| Pan range | 0 - 355 |
| Pan speed | 36 |
| Tilt angle range | -15 - 90 |
| Tilt preset speed | 27.1 |
| Tilt speed | 25.8 |
| White balance | Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp |
| Optical sensor size | 1/2.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Closest focusing distance | 1.5 |
| Detect distance | 270 |
| Digital zoom | 16 |
| Focal length range | 2.7 - 13.5 |
| Focus | Motorized/Manual |
| Identify distance | 27 |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 106.6 |
| Optical zoom | 5 |
| Recognize distance | 54 |
| Zoom capability | Yes |
| Night vision | Yes |
| Night vision distance | 50 |
| Number of illumination LEDs | 6 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 2560 x 1440 |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 4 |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Signal-to-Noise Ratio (SNR) | 55 |
| Voice codecs | G.711a/G.711Mu/G.722.1/G.726/MP2L2/PCM |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Number of users | 20 |
| Streaming method | Multicast/Unicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 |
| RAM capacity | 512 |
| ROM capacity | 128 |
| Ethernet LAN (RJ-45) ports | 1 |
| Active tampering alarm | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Face detection/Human detection/Intrusion/Missing object/Tripwire/Vehicle detection |
| Video motion detection | Yes |
| Management software | DMSS;DSS Pro |
| DC output voltage | 12 |
| Power consumption (max) | 15 |
| Power consumption (typical) | 4.5 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -30 - 60 |
| Mobile operating systems supported | Android/iOS |
| Depth | 142.6 |
| Height | 236.1 |
| Weight | 1500 |
| Width | 140 |
| Package weight | 2100 |
| Number of cameras | 1 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01378 |
| Unit Calculated Weight | 2.05 |
Description
- 1/2.8" 4Megapixel CMOS
- 5x optical zoom
- Max. 25/30fps@4M
- IR distance up to 50 m
- Warm light illumination distance up to 30 m
- SMD 3.0
- Perimeter protection
- Face detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out
- Built-in Mic and Speaker for Two-way Talk
- 12 VDC/PoE power supply
- IP66
- Sound and light alarm (red and blue lights)

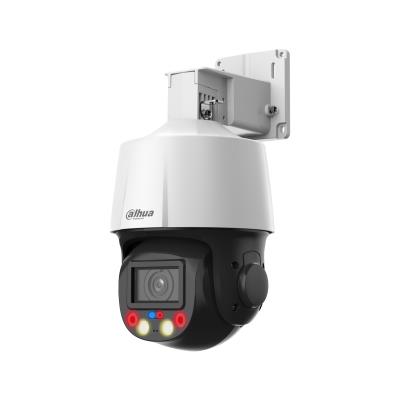

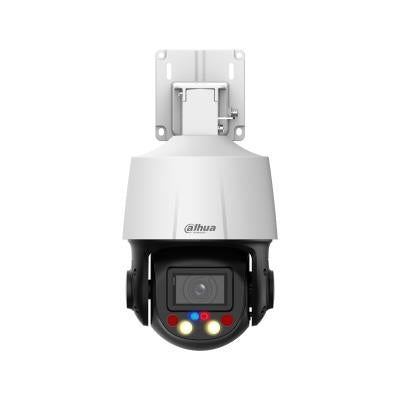

Dahua Technology WizSense SD3E405DB-GNY-A-PV1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Tilt angle range: -15 - 90°, Tilt speed: 25.8 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 16x, Detect distance: 270 m
CE: EN55032/EN55024/EN50130-4 FCC: Part15 B, ANSI C63.4-2014
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
G.711a/G.711Mu/G.722.1/G.726/MP2L2/PCM
FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Abandoned object/Face detection/Human detection/Intrusion/Missing object/Tripwire/Vehicle detection
