Description
General Information
- SKU: 1453440
- Manufacturer Product Page: GIGABYTE A620M S2H 2.2
- Manufacturer Code: A620M S2H 2.2
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331855208
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.27 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard chipset | AMD A620 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling |
| Product colour | Brown |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Maximum internal memory supported by processor | 96 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 96 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 7200 |
| Supported memory clock speeds | 4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 |
| Supported memory module capacities | 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB connector type | USB Type-A/USB Type-C |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 |
| Country of origin | China |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Package depth | 265 |
| Package height | 54 |
| Package weight | 907 |
| Package width | 265 |
| Products per shipping (inner) case | 1 |
| Depth | 225 |
| Height | 35 |
| Width | 230 |
| Batteries included | Yes |
| Bundled software | Norton Internet Security LAN bandwidth management software |
| Cables included | SATA |
| Warranty period | 3 |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.005034 |
| Unit Calculated Weight | 0.95 |
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN

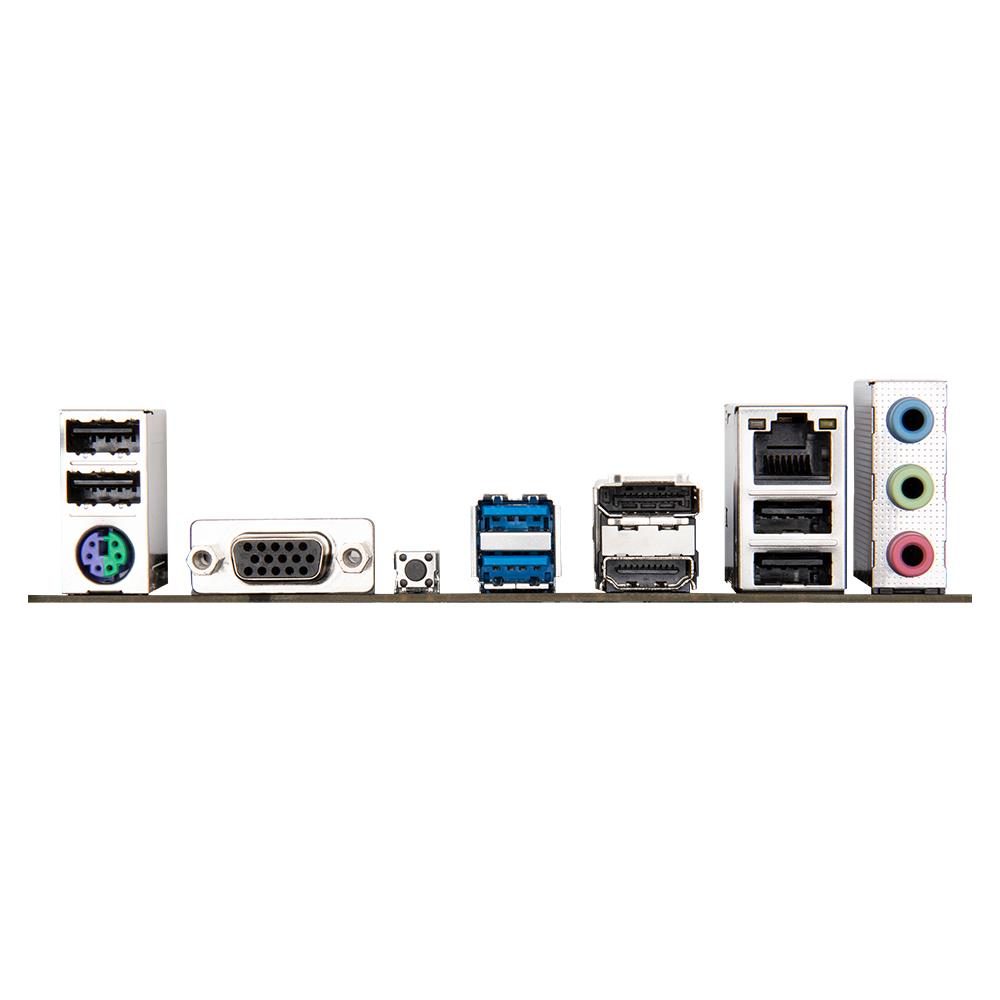

- Extended Connectivity：DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

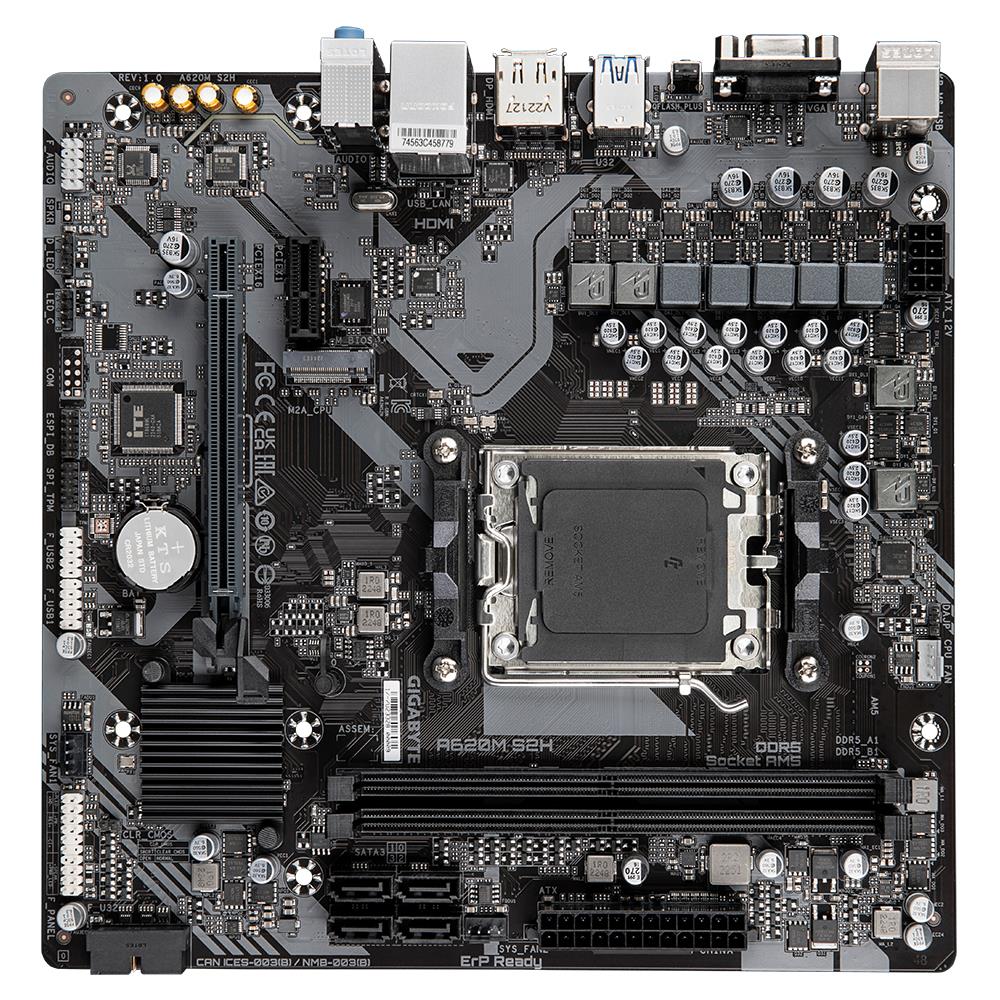

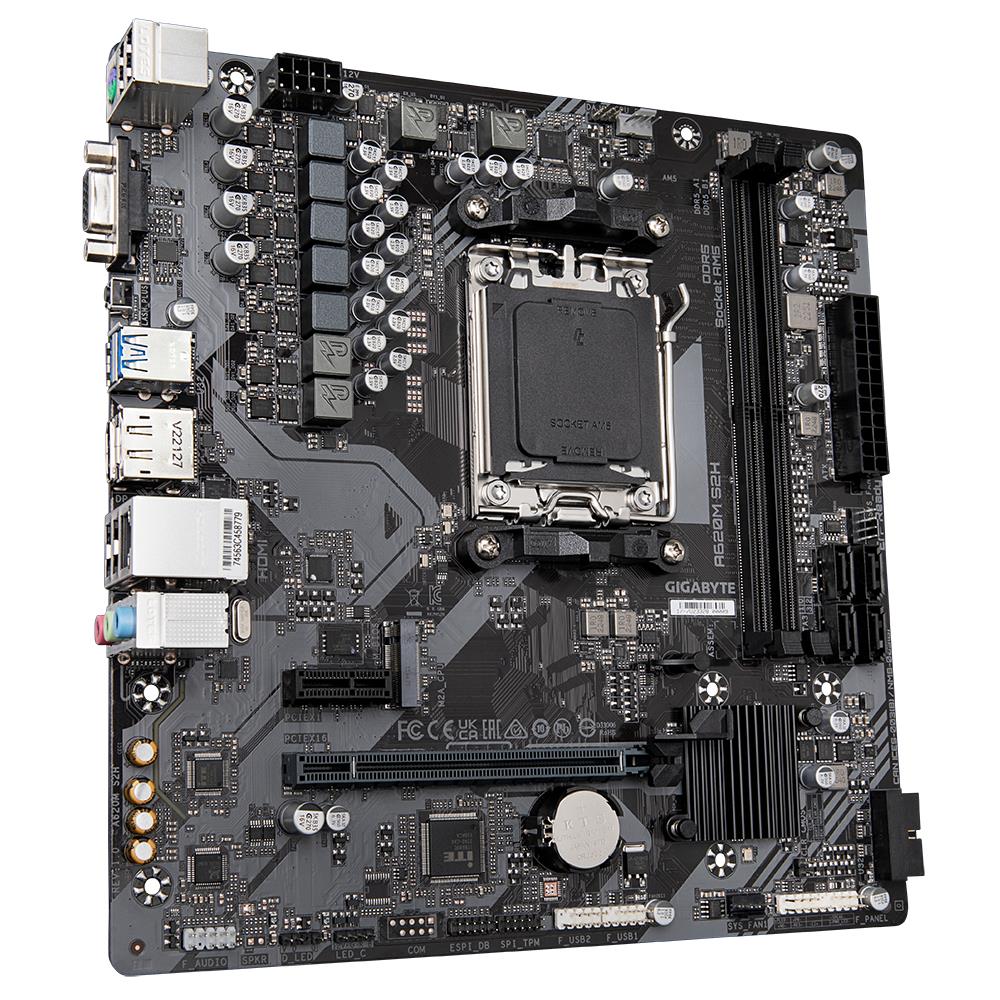

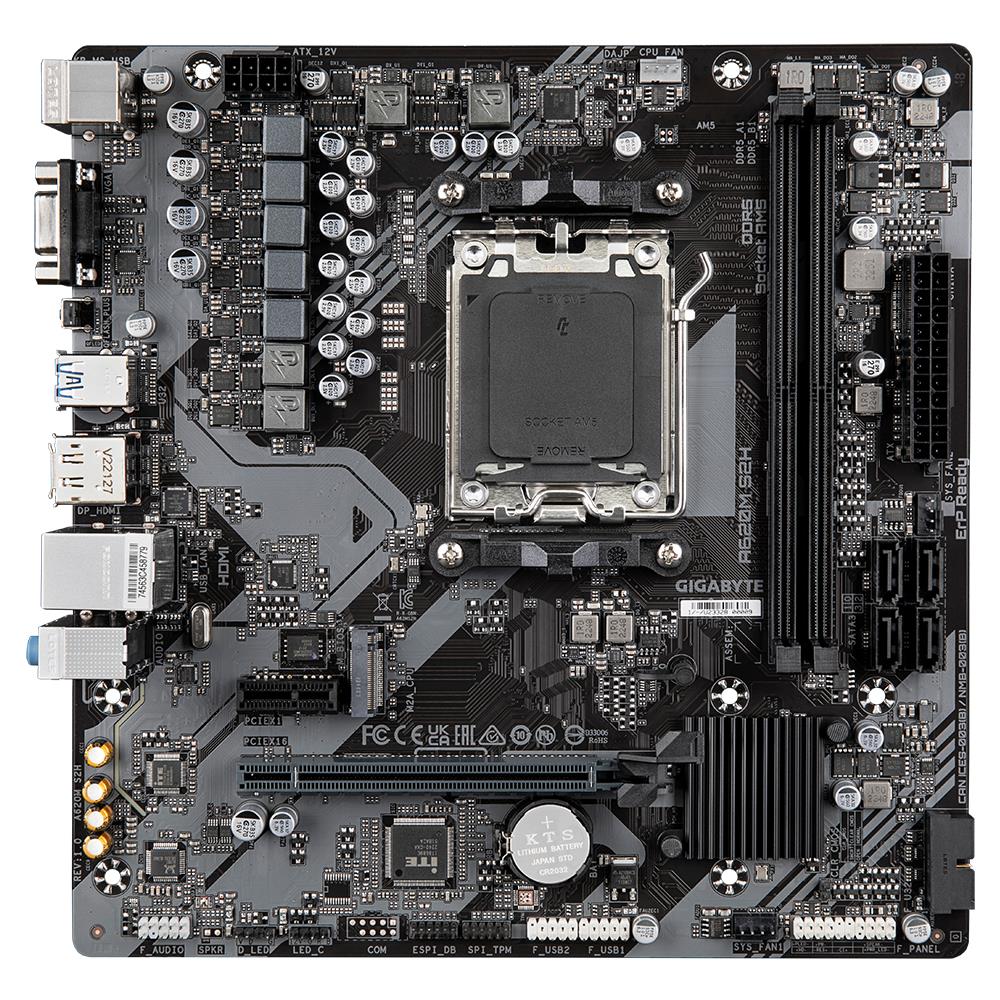

GIGABYTE A620M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Norton Internet Security LAN bandwidth management software
