Description
General Information
- SKU: 1453096
- Manufacturer Product Page: DAHUA IPC-HDW2449TM-S-IL-0360B
- Manufacturer Code: IPC-HDW2449TM-S-IL-0360B
- Catalog: Network Cameras
- EAN: 6923172580375
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.14 |
| Form factor | Dome |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 94 |
| Lens viewing angle, horizontal | 78 |
| Lens viewing angle, vertical | 41 |
| Minimum illumination | 0.0006 |
| Number of Privacy masking areas | 4 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 78 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.6 |
| Detect distance | 85.4 |
| Fixed focal length | 3.6 |
| Fixed focus | Yes |
| Identify distance | 8.5 |
| Maximum aperture number | 1.6 |
| Observe distance | 34.2 |
| Recognize distance | 17.1 |
| Colour night vision distance | 30 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2688 x 1520 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 4 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711/G.711 µ-law/G.726/PCM |
| Built-in microphone | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Streaming method | Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 |
| RAM capacity | 128 |
| ROM capacity | 128 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Video motion detection | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 4.4 |
| Power consumption (typical) | 2.1 |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Diameter | 121.9 |
| Height | 99.1 |
| Weight | 460 |
| Compliance certificates | CE/Federal Communications Commission (FCC)/UL |
| Package weight | 650 |
| Manual | Yes |
| Number of cameras | 1 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.00273 |
| Unit Calculated Weight | 0.71 |
Description
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Supports max. 256 G Micro SD card; built in MIC
- 12 VDC/PoE power supply, easy for installation
- IP67 protection

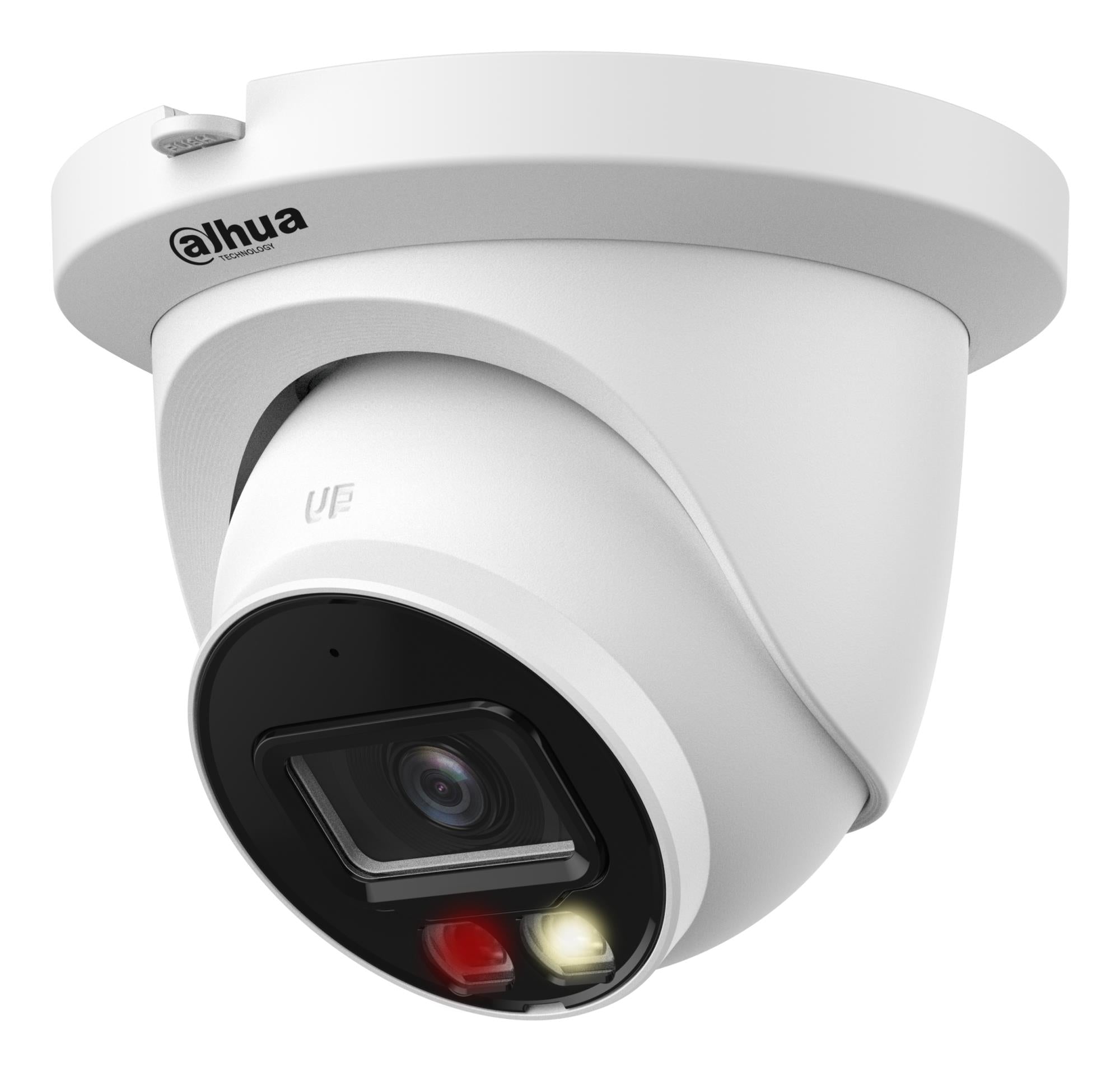

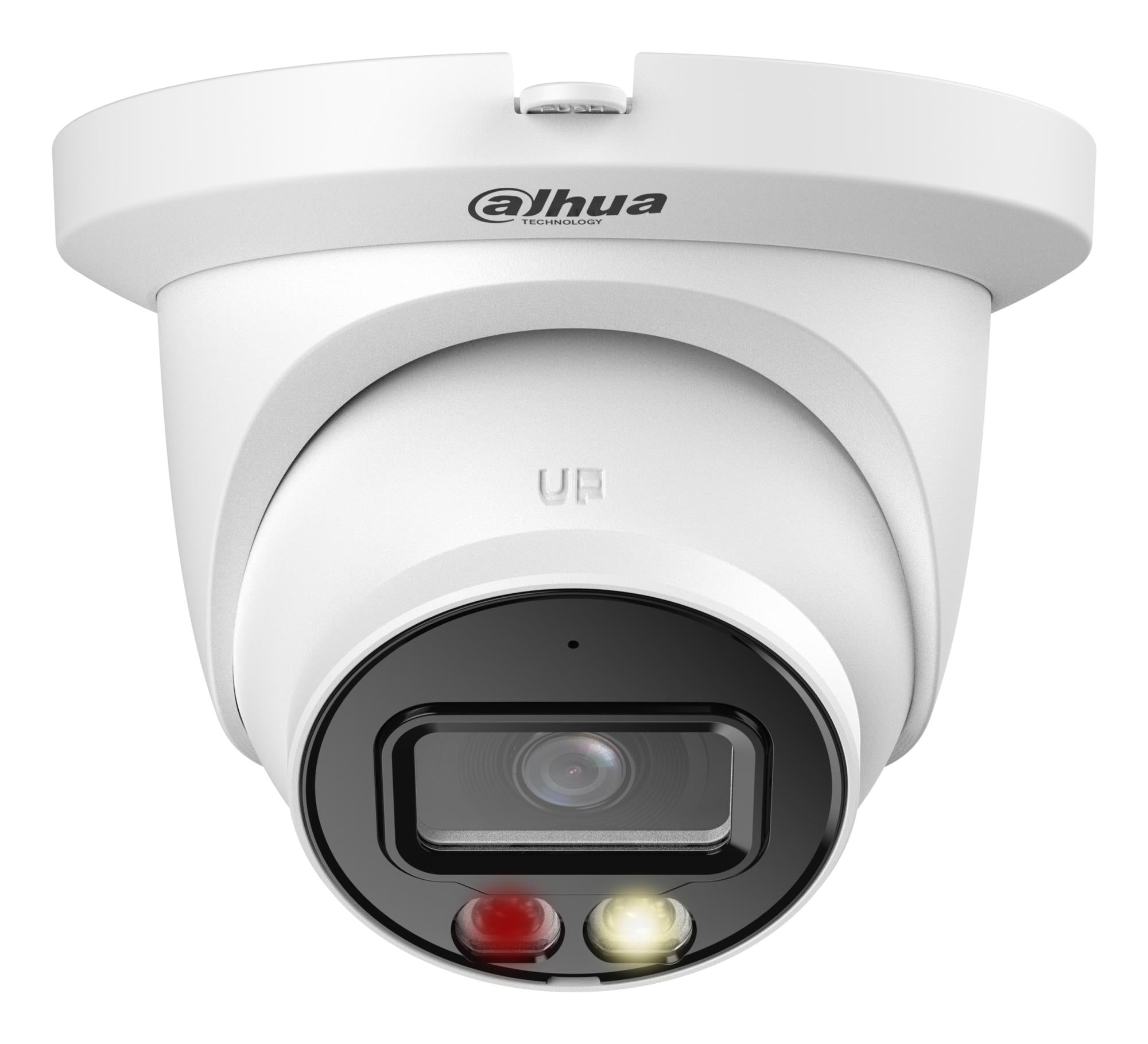

Dahua Technology WizSense IPC-HDW2449TM-S-IL-0360B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 85.4 m, Observe distance: 34.2 m, Recognize distance: 17.1 m
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264B/H.264H/H.265/M-JPEG
G.711/G.711 µ-law/G.726/PCM
IEEE 802.1x/IEEE 802.3af
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, ICMP, IGMP, P2P
