Description
General Information
- SKU: 1449486
- Manufacturer Product Page: EATON 9PX5KIRTNG2
- Manufacturer Code: 9PX5KIRTNG2
- Catalog: UPS for Computers &Peripherals
- EAN: 3553340710551
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | UPW |
| CnCode | 85044095 |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.59 |
| Unit Box Width | 0.96 |
| Efficiency | 96.7 |
| Efficiency (ECO mode) | 99 |
| Heat dissipation | 563 |
| Input frequency | 40/70 |
| Input operation voltage (max) | 276 |
| Input operation voltage (min) | 100 |
| Input power factor | 0.99 |
| Noise level | 40 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60 |
| Output operation voltage (max) | 240 |
| Output operation voltage (min) | 200 |
| Output power | 5000 |
| Output power capacity | 5 |
| Power consumption (average operating) | 165 |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| AC outlet types | C13 coupler/C39 coupler/Hardwire |
| Network card slot | Yes |
| RS-232 ports | 1 |
| USB port | Yes |
| Automatic battery test | Yes |
| Battery capacity | 5 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 12 |
| Typical backup time at half load | 9.4 |
| Cable length | 1.8 |
| Display type | LCD |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black,Silver |
| Rack capacity | 3U |
| Operating altitude | 0 - 3000 |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | 0 - 40 |
| Cables included | USB cable |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 |
| Compliance certificates | CB/CE/cULus/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RCM/REACH/RoHS/UKCA/WEEE |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
| Depth | 684 |
| Height | 130 |
| Weight | 43100 |
| Width | 440 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1756 |
| Unit Calculated Weight | 55 |
Description

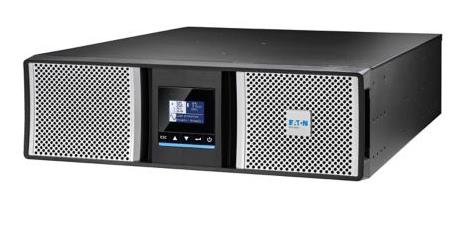

Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included
Eaton 9PX 5000i RT3U Netpack G2. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, Hardwire, C39 coupler. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 5 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 3U. Compliance certificates: CB, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA,..., Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
CB/CE/cULus/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RCM/REACH/RoHS/UKCA/WEEE
